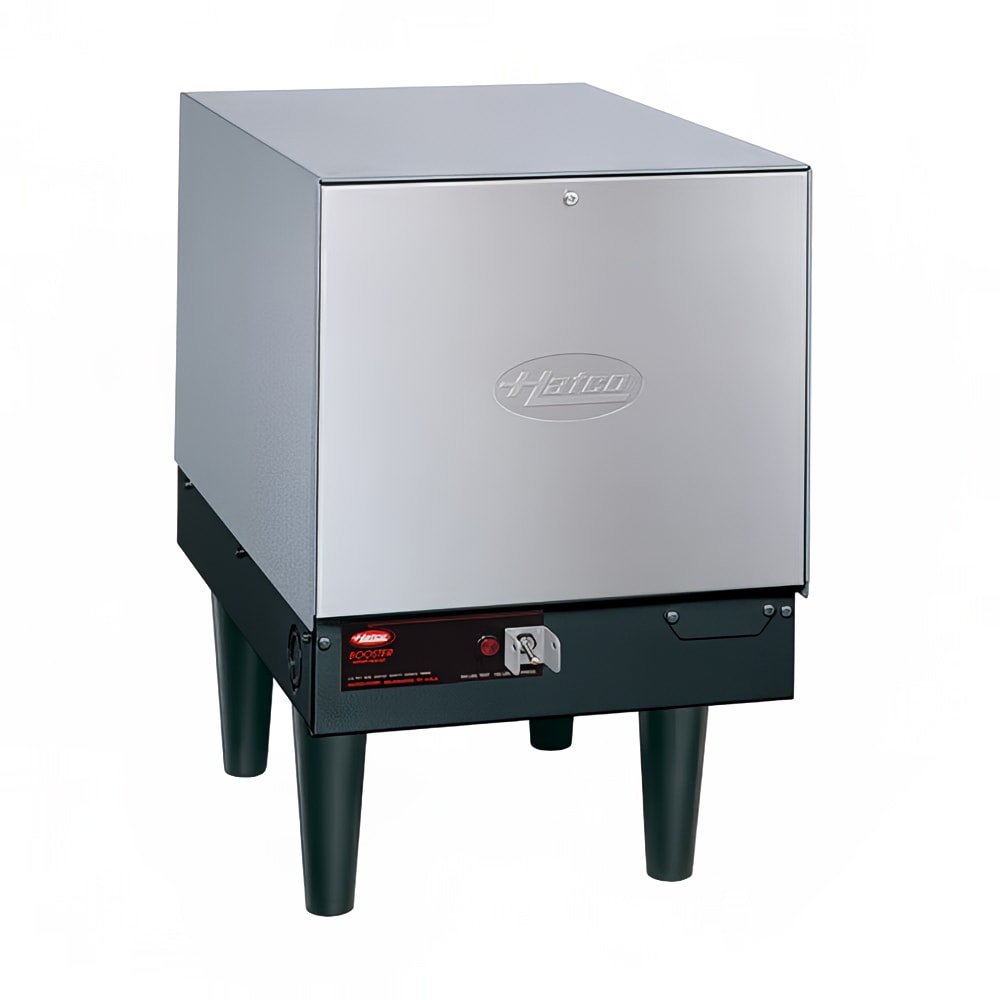

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 240v/3ph
Retail Price: $4,306.00
$2,368.30 /Each
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hatco C-6 Description
Ensuring that sanitizing water reaches 180 degrees Fahrenheit, the Hatco C-6 compact booster water heater can be installed close to the dish pit on the included 6-inch legs or with slide mounting brackets, which are sold separately. For proper operation, this unit includes a temperature relief valve and a pressure reducing valve as well as accessible probes and elements for servicing. This booster can be monitored with its two gauges, pilot indicator light, and a calibrated immersion thermostat.
The Hatco C-6 compact booster water heater is insulated with fiberglass to prevent heat loss and lined with Castone® to reduce limestone buildup. Its body is powder coated with silver hammertone, so it is durable and corrosion resistant. To keep the unit and its users safe, this booster includes a low-water cut-off and a high-temperature limit control. Equipped with a 6-gallon capacity, this booster heater is factory pre-plumbed and pre-wired for quick installation.
Product Details
- 6-gal. capacity
- Heats water to the required 180 degrees F
- Maximum 60 GPH at 40-degree-F rise
- Maximum 34 GPH at 70-degree-F rise
- Silver powder-coated hammertone body
- Stainless steel swing panel for probe and element access
- Fiberglass insulation
- Castone-lined, limescale-resistant tank
- 2 pressure gauges
- Temperature relief valve
- Pressure reducing valve
- Pilot indicator light
- High-temperature limit control
- Low-water cut-off
- Calibrated immersion thermostat
- 6-in. legs
- Mountable on sliding brackets (not included)
- On/off switch
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
Dimensions & Utilities
- 13.06 in. W x 26 in. D x 19.78 in. H
- 21.6 A, 6 kW
- 240 V/60 Hz/3 ph
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/3-ph, NSF, cUL, UL
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Hatco C-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 60 |
| 70F Recovery (gph) | 34 |
| Amps | 21.6 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 6 |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 13 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Weight | 118.00 |
