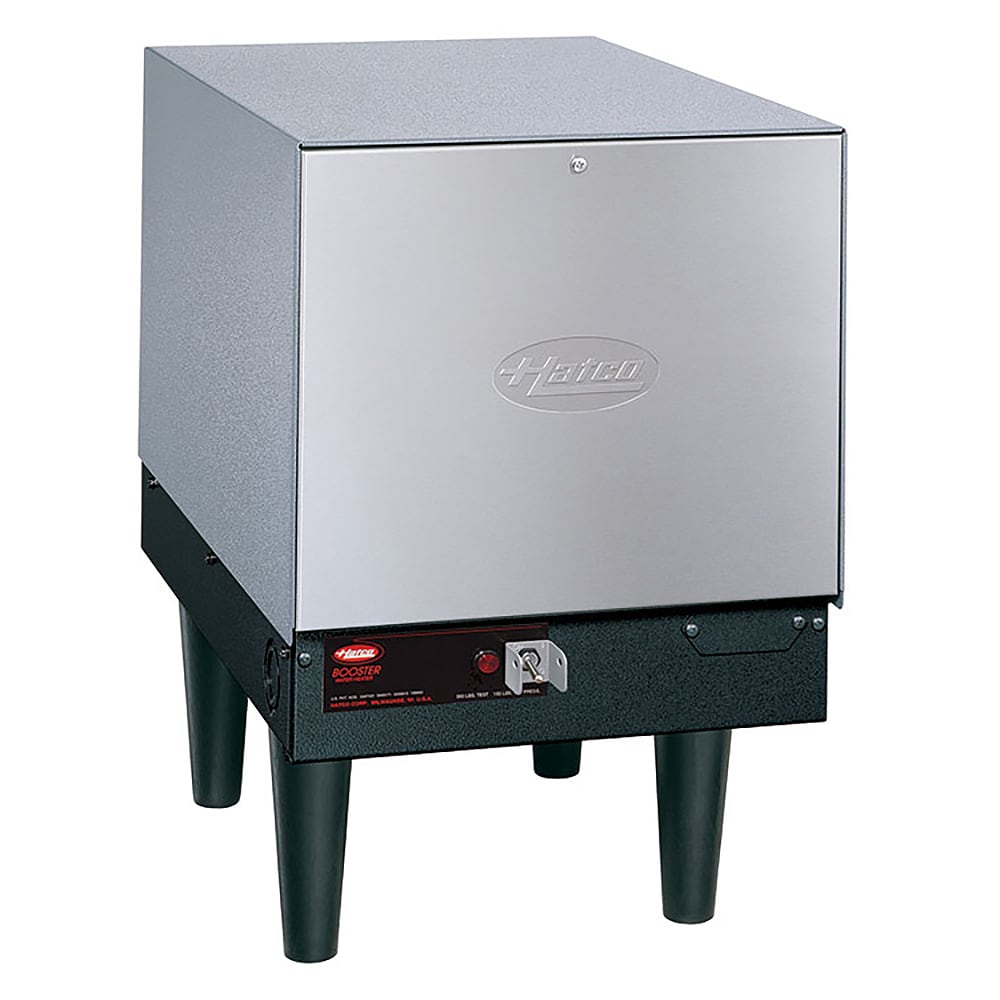

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 208v/1ph

The Hatco C-6 compact booster heater increases the temperature of rinse water to 180 degrees Fahrenheit before it goes into the dishmachine, properly sanitizing dishes and flatware. The unit provides as much as 60 gallons per hour. Inside the Castone®-lined tank, there is a 6-gallon storage capacity, and the insulated design keeps heat inside the unit.

The temperature/pressure relief valve releases water to get the pressure to the desired level when it's too high. There is also a low-water cut-off to shut off power to the heating element if the tank water level is low, eliminating the risk of burnout. Turning the Hatco C-6 compact booster heater on and off just requires a switch, and an indicator light illuminates when it is powered on. Through the front panel, the operator can access the components for convenient maintenance.

Product Details

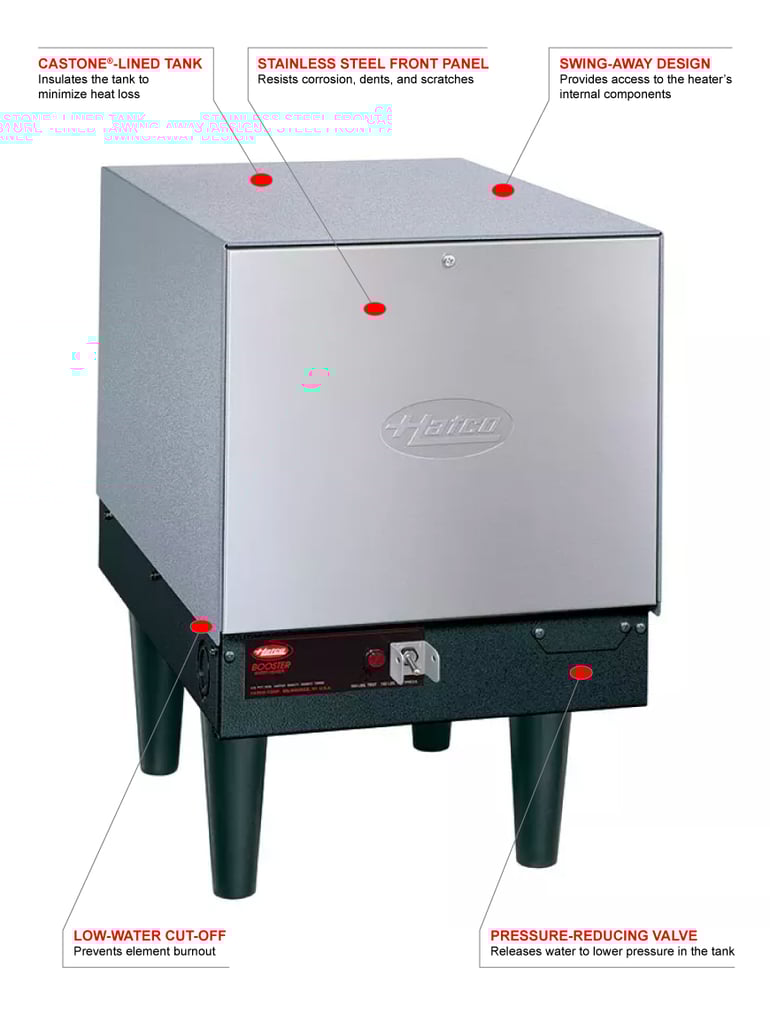

• Ensures water is 180 degrees F for sanitizing cycles in warewashers
• 60 GPH with 40-degree F rise
• 34 GPH with 70-degree F rise
• 6-gal. storage capacity
• Cement-like substance, called Castone, lines the tank for structure
• Fiberglass insulation traps heat in the tank
• On/off switch has an illuminating pilot light to show the power is on
• Temperature/pressure relief valve lowers pressure in the tank by releasing water
• Pressure-reducing valve regulates and stabilizes flow pressure
• Low-water cut-off prevents heating element burnout by shutting off power to the element when water levels are low
• Swing-away design of the front panel offers access for maintenance
• Stainless steel construction of the front panel prevents corrosion, dents, and scratches
• Powder-coated body increases durability for consistent use
• 6-in. plastic legs elevate the unit

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 28.9 A, 6 kW
• 208 V/60 Hz/1 ph

Product Features

*Free shipping on Hatco C-6 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-6 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
