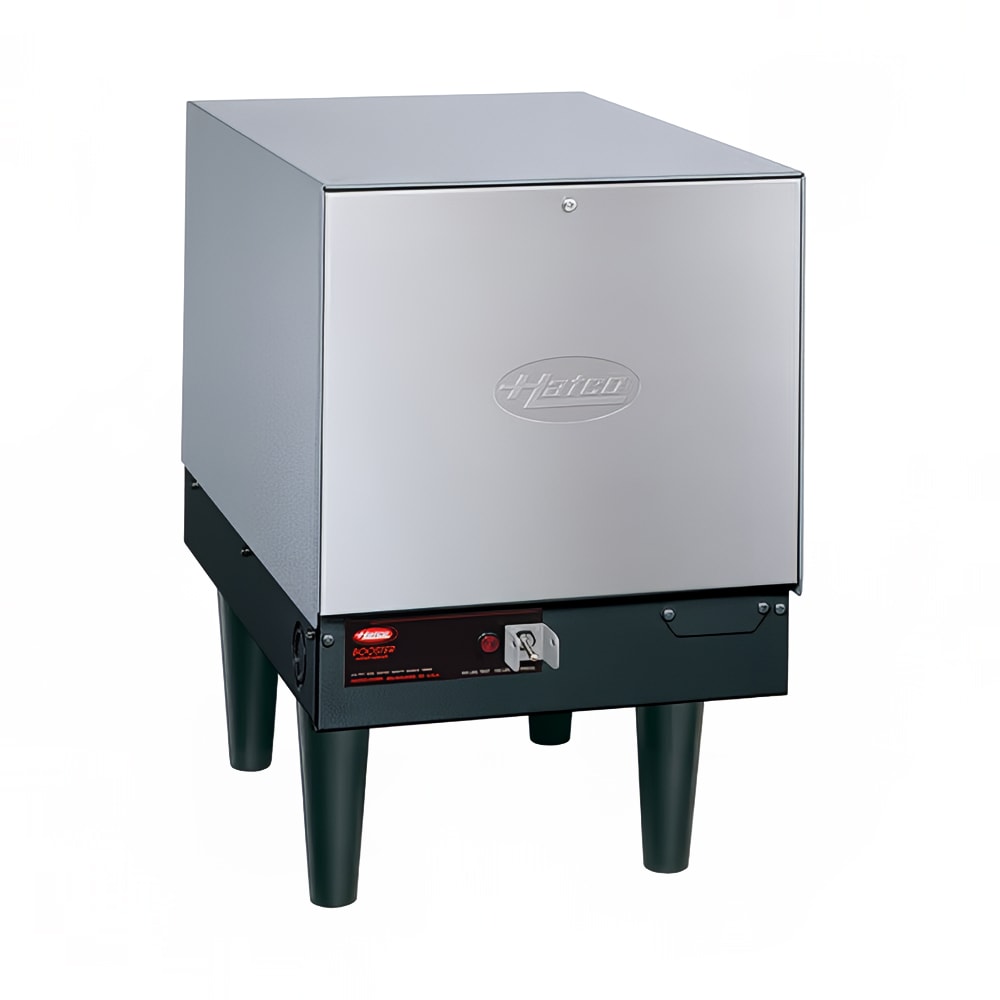

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 240v/1ph
Typically ships in 9 - 13 Business Days
Retail Price: $4,306.00
$2,368.30 /Each
Selected Voltage: 240V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Similar Products in Stock Now
Hatco C-6 Description
The Hatco C-6 compact booster heater ensures water in the warewasher properly sanitizes dishes and flatware by reaching 180 degrees Fahrenheit. Six gallons of water can be held in its tank, and when water levels in the tank are too low, power to the heating element is shut off to prevent burnout. Further protecting the system, the pressure-reducing valve regulates and stabilizes flow pressure, while the temperature/pressure valve releases water when pressure is too high.
Components can be accessed through the front panel of this Hatco C-6 compact booster heater. This panel is constructed of corrosion-resistant, heavy-duty stainless steel, and the body is powder coated for additional strength. Cleaning under the heater is enabled by the 6-inch legs that lift it off the dishwasher while the powder-coated exterior adds durability.
Product Details
- Provides water at 180 degrees F for warewashing sanitizing cycles
- Maximum 60 GPH at 40-degree-F rise
- Maximum 34 GPH at 70-degree-F rise
- Tank has a 6-gal. storage capacity
- Castone® lining in the tank creates structure for heavy use
- Fiberglass insulation minimizes heat loss for energy conservation
- Pilot indicator light by the on/off switch illuminates when the unit is operating
- Pressure-reducing valve regulates and stabilizes flow pressure
- Temperature/pressure relief valve lowers pressure by releasing water from the tank
- Low-water cut-off shuts off power to the heating element when the water level is low, preventing element burnout
- Swing-away front panel provides component access for maintenance
- Stainless steel front panel resists dents, scratches, and corrosion
- Body is powder coated for durability
- 6-in. plastic legs elevate integral components off the dishroom floor
Dimensions & Utilities
- 13.06 in. W x 26 in. D x 19.78 in. H
- 21.6 A, 6 kW
- 240 V/60 Hz/1 ph
Product Features
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/1-ph, NSF, cUL, UL
*Image may not depict product color, inclusions or accessories.
Hatco C-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 60 |
| 70F Recovery (gph) | 34 |
| Amps | 25 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 6 |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 13 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Weight | 118.00 |
