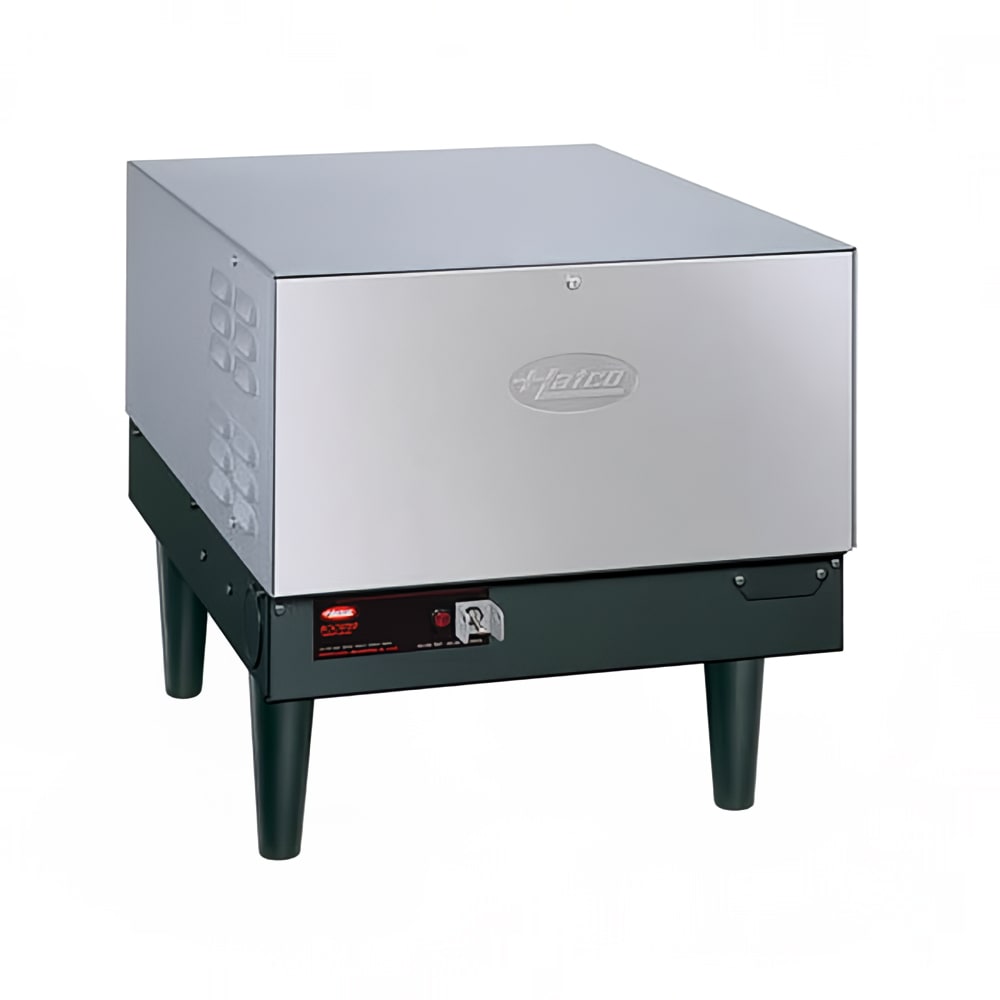

Hatco C-30 Compact Booster Water Heater, 6 Gallon, 30 kW, 240v/3ph
Retail Price: $7,111.00
$3,911.05 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco C-30 Description
Great for small kitchens, the Hatco C-30 booster water heater is designed with a compact body that takes up as little room as possible. Slide brackets are available to enable mounting under the dishtable and save even more space. The body has a powder-coated hammertone exterior and a stainless steel front panel, which swings away so maintenance workers can access internal components. Fiberglass insulation surrounds the tank and holds heat inside; this setup lowers energy costs as less power is spent heating up the water. The tank has a 6-gallon capacity and is lined with Castone® to limit corrosion buildup despite high water volumes.
- 6-gal. capacity
- Compact design works well in constrained kitchens
- Dent-resistant, powder-coated hammertone body
- Factory pre-plumbing and pre-wiring reduce setup work
- Calibrated immersion thermostat
- Stainless steel panel gives access to components from the front
- Low-water cut-off lowers the chances of element burnout
- Fiberglass insulation decreases how much heat escapes the tank
- Castone-lined tank defends the interior from corrosion
- Slide bracket option available
- Includes 3⁄4-in. NPT pipe and fittings for water inlet/outlet
- Maximum 301 GPH recovery at 40-degree-F rise
- Maximum 172 GPH recovery at 70-degree-F rise
- 18 in. W x 29 1⁄4 in. D x 18 3⁄100 in. H
- 72.2 A, 30 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-30 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 30-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/3-ph, NSF, cUL, UL
Hatco C-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 301 |
| 70F Recovery (gph) | 155 |
| Amps | 72.2 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 30 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 21 - 30 |
| Width (in) | 18 |
| Weight | 142.00 |
