Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
Hatco C-30 Compact Booster Water Heater, 6 Gallon, 30 kW, 208v/1ph
Free Shipping Item
Retail Price: $6,586.00
$3,622.30 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Previous
Next

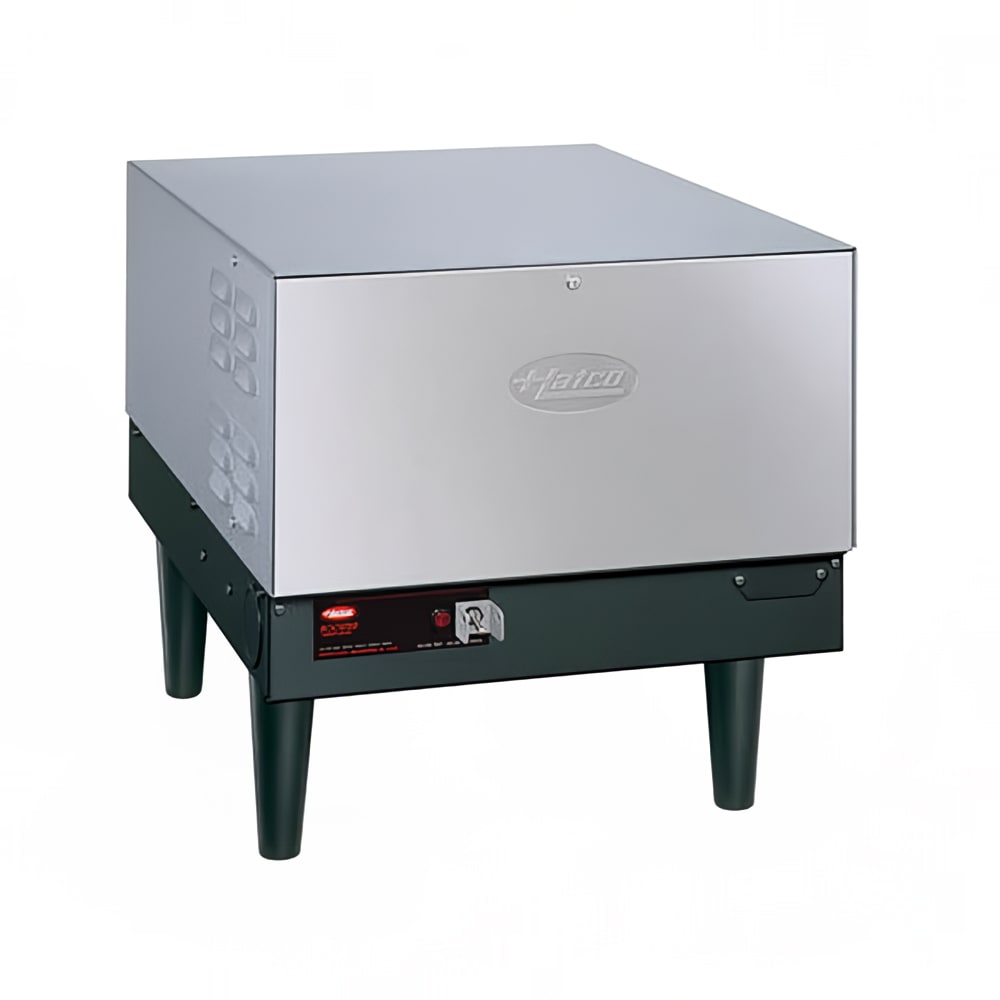

Hatco C-30 Description
Ideal for commercial dishwashers, the Hatco C-30 booster water heater has a 6-gallon capacity and produces 30 kilowatts of water-heating power. The unit has a compact design that is less powerful than comparable heaters but also takes up less floorspace. Additionally, slide bracket mounting is available to further optimize the heater’s position in the kitchen, such as under a worktable. The tank has a Castone® lining which resists corrosion, a useful feature when dealing with a high volume of water. Fiberglass insulation surrounds the tank, helping keep heat inside. The body features a powder-coated hammertone exterior and a stainless steel front panel that opens for cleaning and maintenance on internal components.
Product Details
- 6-gal. capacity
- Compact design is unobtrusive
- Stainless steel front panel
- Panel comes off to facilitate maintenance
- Powder-coated hammertone finish
- Factory pre-plumbing and pre-wiring cut down on labor during setup
- Calibrated immersion thermostat
- Low-water cut-off deactivates element before burnout
- Fiberglass insulation counteracts heat loss
- Castone-lined tank is effective against corrosion
- Slide bracket option available
- Includes 3⁄4-in. NPT pipe and fittings for water inlet/outlet
- Maximum 301 GPH recovery at 40-degree-F rise
- Maximum 172 GPH recovery at 70-degree-F rise
Dimensions & Utilities
- 18 in. W x 291/4 in. D x 183/100 in. H
- 144.3 A, 30 kW
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Hatco C-30 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 30-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
*Image may not depict product color, inclusions or accessories.
1-year Parts & Labor; 10-year Tank Parts
Hatco C-30 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 301 |
| 70F Recovery (gph) | 155 |
| Amps | 144.3 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 30 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 21 - 30 |
| Width (in) | 18 |
| Weight | 142.00 |
