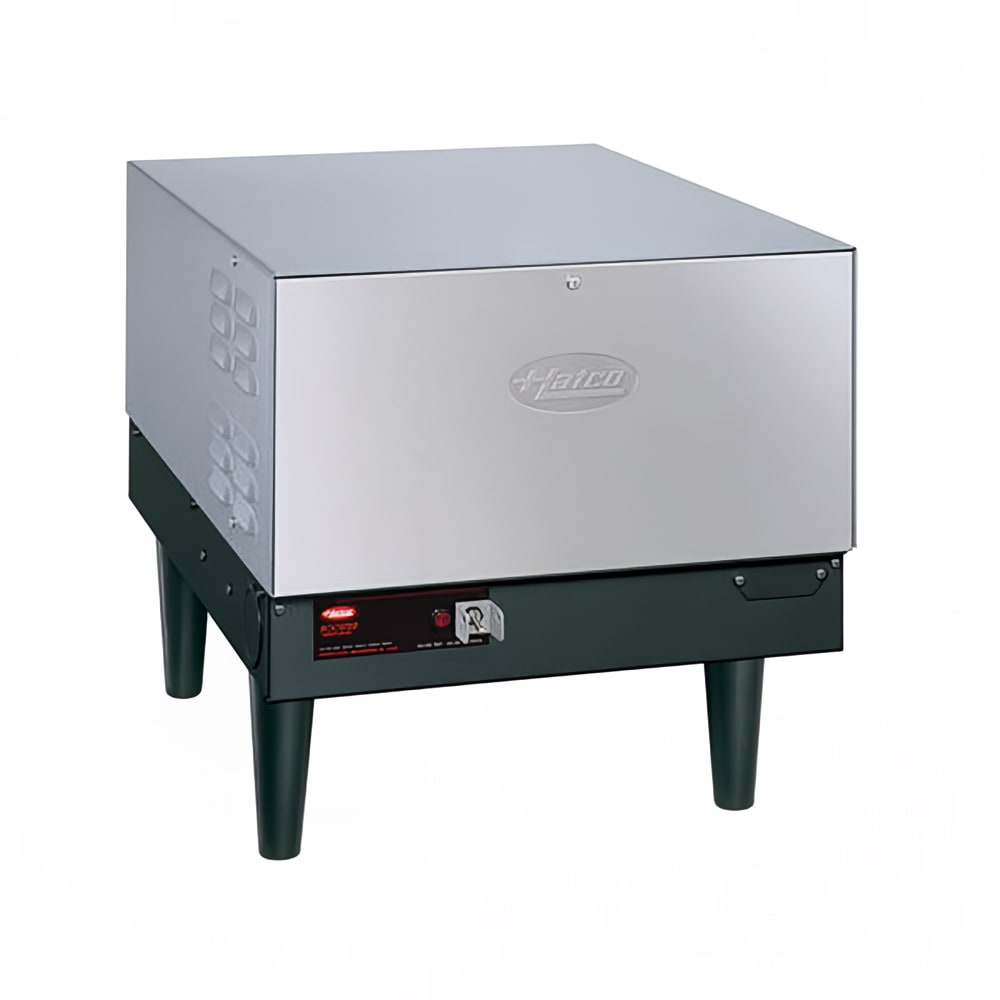

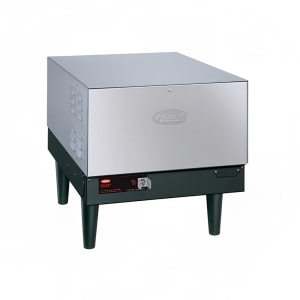

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 480v/3ph

For safety purposes, the Hatco C-24 compact booster water heater comes with a high-temperature limit control and a low-water cut-off feature. Temperatures in this unit reach 180 degrees Fahrenheit, raising water to the correct heat for proper sanitation. These temperatures can be monitored using a calibrated immersion thermostat and two temperature and pressure gauges. Operated with a simple on/off switch, the unit uses a pilot indicator light to tell users if it is working properly. This unit is regulated by the pressure-reducing valve and the temperature and pressure relief valve.

The Hatco C-24 compact booster water heater is powder coated with silver hammertone and has a stainless steel front panel and fiberglass insulation for minimal heat loss. With a Castone®-lined tank, this unit is protected against limestone and corrosion. The control fuses and transformer enable users to quickly access the probes and elements behind the swinging front panel. This unit comes standard with 6-inch legs, which can be switched to slide mounting brackets.

Product Details

• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• 6-gal. water capacity
• Water is heated to 180 degrees F and ready to sanitize dinnerware
• Available slide mounting brackets (sold separately)
• 6-in. legs
• Swinging stainless steel front panel
• Silver powder-coated hammertone surface
• Fiberglass insulation
• Castone-lined tank prevents corrosion
• Transformer and control fuses
• Accessible elements and probes
• Pressure-reducing valve
• Low-water cut-off
• Pilot indicator light
• High-temperature limit control
• Power switch
• Temperature and pressure relief valve
• Calibrated immersion thermostat
• 2 pressure and temperature gauges
• Fittings for inlet and outlet
• ³⁄₄-in. NPT pipe

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 28.9 A, 24 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-24 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
