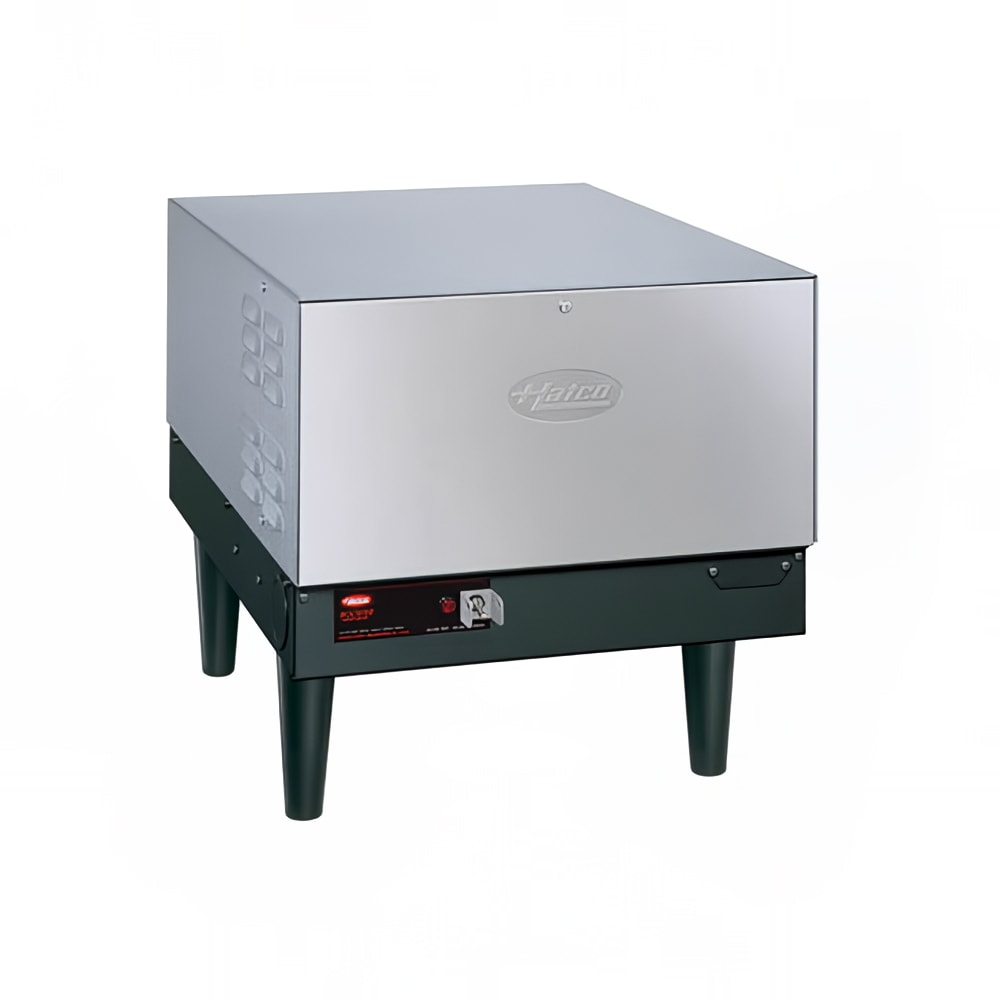

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 240v/1ph
Retail Price: $6,941.00
$3,817.55 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-24 Description
Featuring a 6-gallon capacity, the Hatco C-24 compact booster water heater holds water at 180 degrees Fahrenheit, the temperature required to eliminate bacteria growth. This unit has a powder-coated hammertone finish and a stainless steel swing-away panel that grants access to control fuses, probes, and elements for servicing. To reduce heat loss, this booster is insulated with fiberglass, and the tank is lined with Castone® to prevent the buildup of corrosion and limestone.
The Hatco C-24 compact booster water heater keeps its elements from burning out with a low-water cut-off. Other features include a high-temperature limit control, a pilot indicator light, a pressure-reducing valve, two temperature and pressure gauges, and an on/off switch. Temperatures in this unit can be monitored using the calibrated immersion thermostat. This booster can be mounted with slide brackets or placed on the floor on 6-inch legs.
- 6-gal. water capacity
- Water reaches 180 degrees F for sanitation
- Maximum 241 GPH at 40-degree-F rise
- Maximum 138 GPH at 70-degree-F rise
- Features a durable powder-coated hammertone surface and a stainless steel front panel
- Insulated with fiberglass
- Tank lined with Castone to prevent corrosion
- Low-water cut-off protects elements
- High-temperature limit control
- Calibrated immersion thermostat
- Factory plumbed and wired
- Access to control fuses, transformer, probes, and elements
- 6-in. legs
- Mountable on slide brackets (sold separately)
- Temperature and pressure relief valve
- Pressure-reducing valve
- 2 temperature and pressure gauges
- Pilot indicator light
- On/off switch
- 3⁄4-in. NPT pipe
- Fittings for inlet and outlet
- 18 in. W x 29 1⁄4 in. D x 18 3⁄100 in. H
- 100 A, 24 kW
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-24 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph
Hatco C-24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 241 |
| 70F Recovery (gph) | 138 |
| Amps | 100 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 24 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 21 - 30 |
| Width (in) | 18 |
| Weight | 142.00 |
