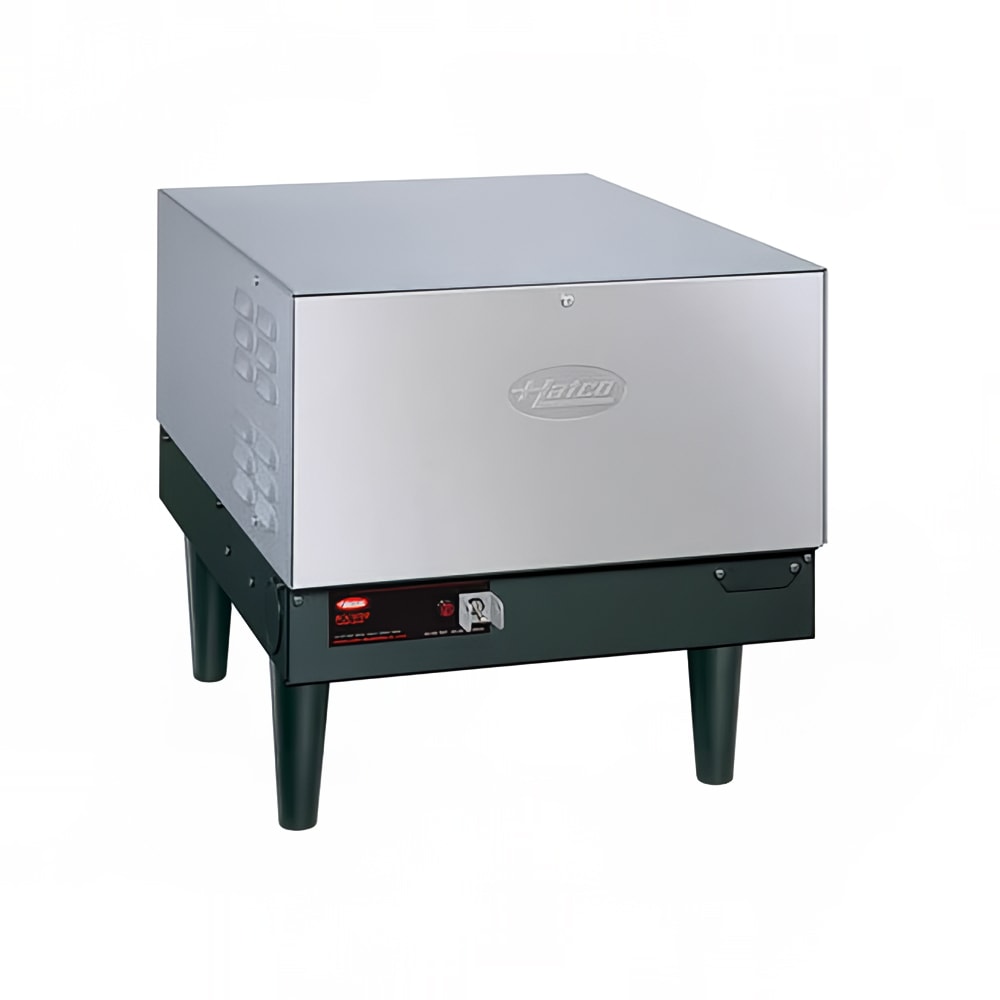

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 240v/3ph
Retail Price: $6,426.00
$3,534.30 /Each
Selected Voltage: 240V, 3 Phase
208V, 1 Phase |
208V, 3 Phase |
240V, 1 Phase |
240V, 3 Phase |
480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hatco C-24 Description
The Hatco C-24 compact booster water heater is insulated with fiberglass to reduce heat loss and quickly bring water to temperature. Its tank is lined with Castone®, a material designed to reduce the potential for rust and limestone, and the body is finished with a silver hammertone powder coating. Behind the swinging stainless steel front panel, the control fuses and transformer enable quick access to elements and probes. This unit can stand on the floor with 6-inch legs or be mounted underneath the dishtable with slide brackets.
The safety features in the Hatco C-24 compact booster water heater include a low-water cut-off and a high-temperature limit control. Temperatures can be monitored with the calibrated immersion thermostat and two gauges for temperature and pressure. Completely factory wired and plumbed, this unit features a pilot indicator light, a pressure-reducing valve, and a temperature and pressure relief valve.
Product Details
- Holds 6 gal. of hot water
- Water reaches 180 degrees F for sanitation and flash-drying
- Maximum 241 GPH at 40-degree-F rise
- Maximum 138 GPH at 70-degree-F rise
- Low-water cut-off prevents burnout
- High-temperature limit control
- Pressure-reducing valve
- Temperature and pressure relief valve
- Calibrated immersion thermostat
- Power switch
- 2 temperature and pressure gauges
- Pilot indicator light
- Control fuses and transformer with accessible probes and elements
- Fiberglass insulation
- Castone-lined tank for limestone prevention
- Hammertone silver powder coating
- Swinging panel made of stainless steel
- Slide brackets for mounting (sold separately)
- 6-in. legs included
- Fittings for inlet and outlet
- 3⁄4-in. NPT pipe
Dimensions & Utilities
- 18 in. W x 291/4 in. D x 183/100 in. H
- 57.8 A, 24 kW
- 240 V/60 Hz/3 ph
*Free shipping on Hatco C-24 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
*Image may not depict product color, inclusions or accessories.

Hatco C-24 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Hatco |
40F Recovery (gph) | 241 |
70F Recovery (gph) | 138 |
Amps | 57.8 |
Capacity (gallons) | 6 |
Heat | Electric |
Hertz | 60 |
kW | 24 |
Usage Level | Medium Duty |
Voltage | 240 |
Warranty | 1-year Parts & Labor; 10-year Tank Parts |
Watts | 21 - 30 |
Width (in) | 18 |
Phase | 3 |
Product | Booster Heaters |
Product Type | Dishwashing Equipment & Supplies |
Weight | 142.00 |
Important Prop 65 information for California residents.
Hatco C-24 Accessories
Compare to Similar Items
Attributes | ![]() Current Item: Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 240v/3ph |
![]() Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 480v/3ph |
![]() Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 240v/1ph |
![]() Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 208v/3ph |
---|---|---|---|---|
Customer Rating |
|
|
|
|
Price | $3,534.30 | $3,534.30 | $3,534.30 | $3,534.30 |
Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
40F Recovery (gph) | 241 | 241 | 241 | 241 |
70F Recovery (gph) | 138 | 138 | 138 | 138 |
Capacity (gallons) | 6 | 6 | 6 | 6 |
Width (in) | 18 | 18 | 18 | 18 |
Watts | 21 - 30 | 21 - 30 | 21 - 30 | 21 - 30 |
Heat | Electric | Electric | Electric | Electric |
Voltage | 240 | 480 | 240 | 208 |
Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
