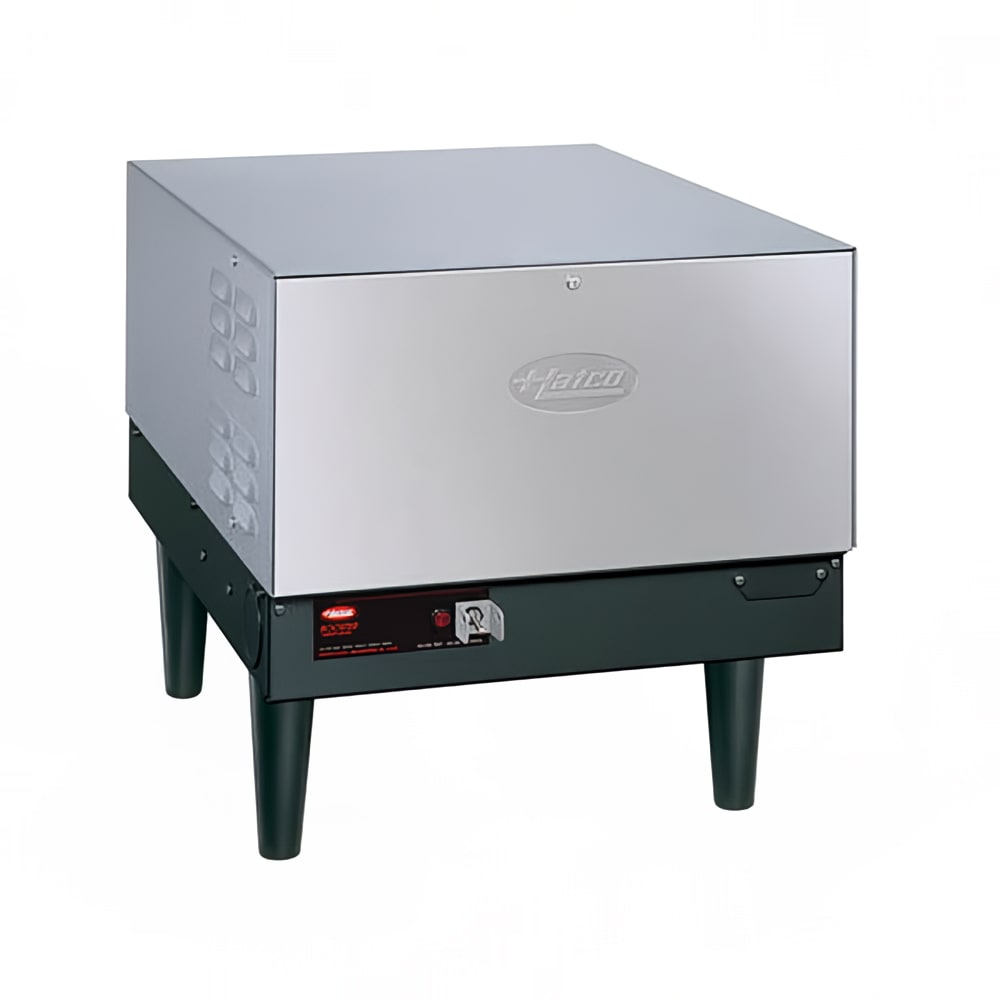

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 208v/60/1ph

For a final sanitizing rinse, the Hatco C-24 compact booster water heater provides water at 180 degrees Fahrenheit to ensure all bacteria is eliminated. Available with separate slide mounting brackets or as a standalone unit with the included 6-inch legs, this unit should be kept near the dishwasher at all times. Safety features include a low-water cut-off, a high-temperature limit control, and a pilot indicator light. This unit is completely pre-wired and pre-plumbed at the factory.

Finished with a powder coating and a hammertone surface, the Hatco C-24 compact booster water heater features a stainless steel front panel. It has fiberglass insulation and a Castone®-lined tank to minimize heat loss and corrosion buildup. This unit can be monitored by a calibrated immersion thermostat and two pressure and temperature gauges. As safety measures, the booster has a pressure-reducing valve and is turned off by a single switch.

Product Details

• 6-gal. tank capacity
• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• Provides 180-degree-F water
• Temperature and pressure relief valve
• 2 temperature and pressure gauges
• Power switch
• Calibrated immersion thermostat
• Pressure-reducing valve
• High-temperature limit control
• Low-water cut-off
• Pre-plumbed and pre-wired
• Transformer and control fuses
• Probes and elements are highly accessible
• Powder-coated hammertone finish on a body insulated with fiberglass
• Stainless steel swing-away front panel
• Castone-lined tank prevents corrosion
• Slide brackets for mounting (sold separately)
• Includes 6-in. legs
• Fittings for inlet and outlet
• ³⁄₄-in. NPT pipe

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 115.4 A, 24 kW
• 208 V/60 Hz/1 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-24 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
