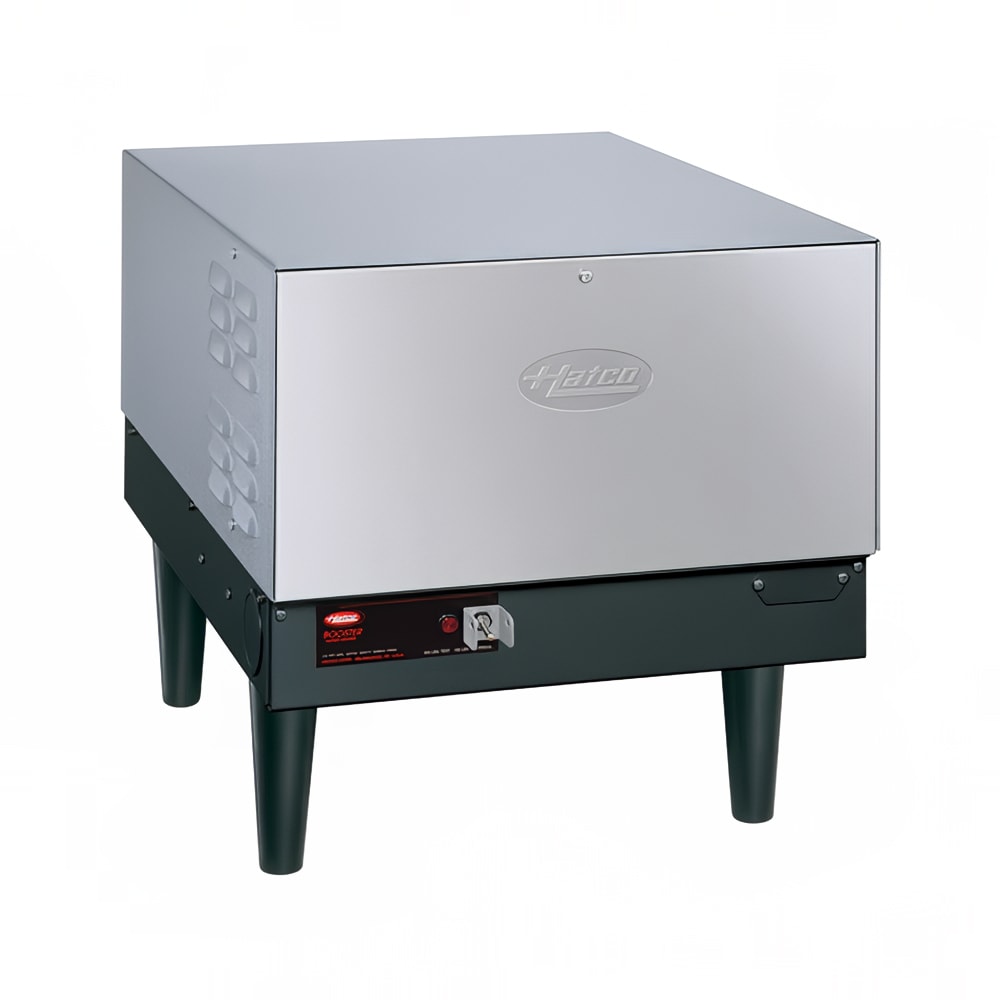

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 208v/3ph

To kill bacteria and sanitize dishes, the Hatco C-24 Compact booster heater heats rinse water in a commercial dishwasher to 180 degrees Fahrenheit. The unit's walls have fiberglass insulation to ensure maximum heat retention, and a high-temperature limit protects the unit from overheating. When heating water, the unit's pilot light turns on, preventing burns by notifying users. For safety, the temperature and pressure are monitored by a probe, and if needed, the relief valves will adjust them.

Constructed of stainless steel and hammertone, the Hatco C-24 booster heater withstands heavy use, and its interior is lined with Castone®, which reduces mineral buildup. The low-water cut-off feature prevents the heat element from burning out if the tank runs dry. When hot water is no longer needed, an on/off switch turns the heater off to reduce utility bills. For servicing, the front panel swings open, providing access to the probes and elements.

Product Details

• Part of the Compact series
• 6-gal. storage capacity
• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• Water tank is lined with Castone, which protects against corrosion and limescale buildup
• Fiberglass insulation retains heat for energy efficiency
• Pressure relief valves and pressure gauge ensure safe pressure is maintained
• Temperature gauge and high-temperature limit reduce overheating
• Low-water cut-off feature prevents element burnout by shutting it down if water is too low
• Front stainless steel panel swings out for access to probes, fuses, and elements during service calls
• Hammertone body is durable and corrosion resistant

Product Features

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 66.7 A, 24 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-24 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
