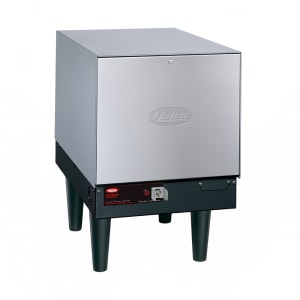

Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 480v/3ph

For use with high-temperature commercial dishwashers, the Hatco C-15 Compact booster heater can heat 151 gallons per hour for sanitizing dishes and brings water to 180 degrees Fahrenheit, which is the temperature that starts to kill bacteria. Castone® lines the inner walls to prevent rust and scale buildup, and fiberglass insulation blocks out the cold, ensuring maximum heat retention.

Two temperature and pressure gauges watch internal conditions, and an indicator light notifies users when it is heating up. Since it has a low-water cut-off feature, the unit will not operate without enough water, and a pressure relief valve and pressure reducing valve keep the pressure within safe margins. To prevent overheating, a probe monitors the temperature and shuts the unit off if it exceeds the limit. The Hatco C-15 booster heater has a stainless steel and hammertone exterior with a hinged front panel for efficient service and maintenance.

Product Details

• Part of the Compact series
• 6-gal. storage capacity
• Maximum 151 GPH at 40-degree-F rise
• Maximum 86 GPH at 70-degree-F rise
• Water tank interior is coated with Castone, a non-toxic, cement-like finish that prevents corrosion and mineral buildup
• Stainless steel and hammertone exterior is durable and corrosion resistant
• 6-in. legs are adjustable for convenient installation
• Fiberglass insulation retains heat
• Temperature gauge, pressure gauge, and pressure relief valves ensure pressure and temperature are correct
• Element burnout prevented by high-temperature limit and low-water cut-off feature
• Fuses, transformer, and elements are accessible through the swing-open front panel

Product Features

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 18.1 A, 15 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco C-15 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 480v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-15 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
