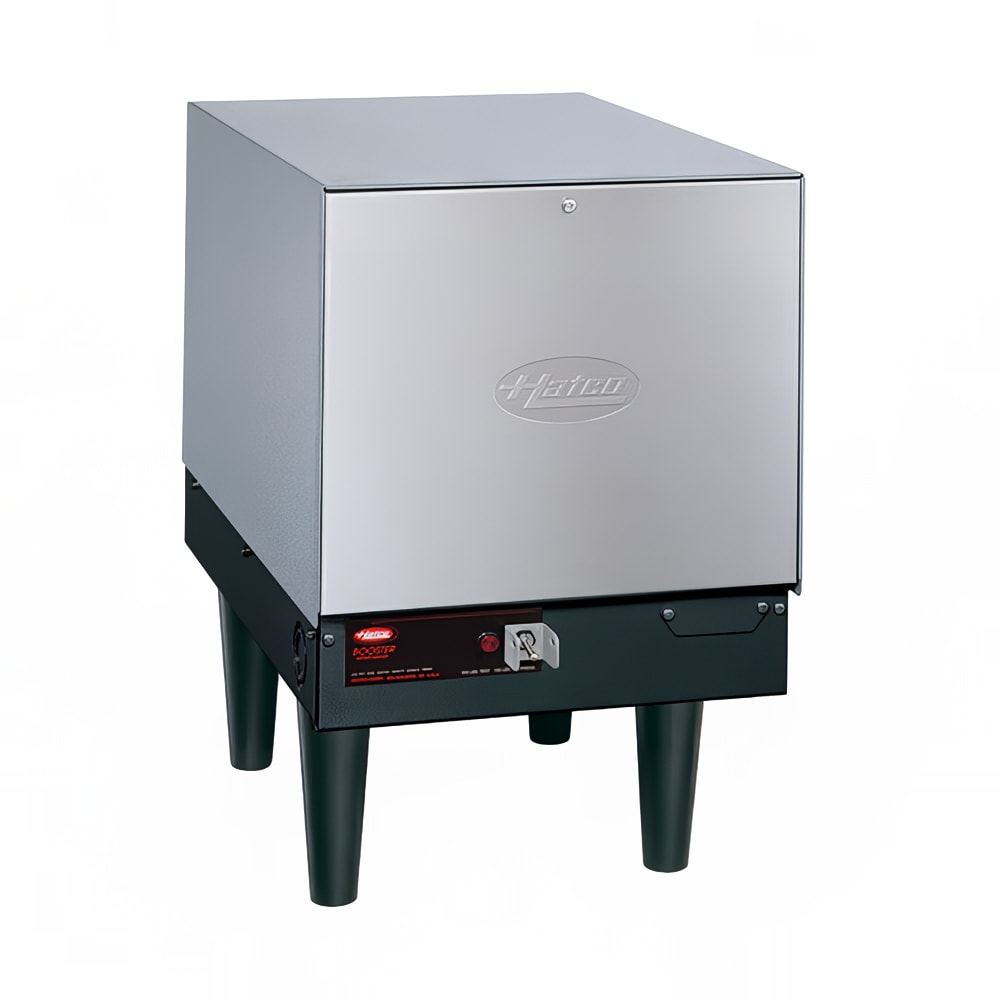

Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 208v/1ph
Typically ships in 9 - 13 Business Days
Retail Price: $5,141.00
$2,827.55 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-15 Description
The Hatco C-15 compact booster heater warms water to the sanitizing temperature required for commercial dishwashers, which is 180 degrees Fahrenheit. To resist limescale and corrosion buildup, the 6-gallon-capacity tank is lined with Castone®, and fiberglass insulation retains heat in the tank for energy efficiency. A switch enables the unit to be turned on or off as needed, and when warming, an indicator light notifies the user. Made of hammertone, its body is durable, while its front panel is stainless steel to resist corrosion.
To help it operate safely, the Hatco C-15 booster heater has several features, such as a high-temperature limit that shuts it down if it grows too hot, preventing heat damage. Temperature and pressure are monitored by gauges, and a relief valve releases water if the pressure gets too intense. A low-water cut-off feature prevents the heater from warming without enough water, which can lead to overheating. Through the swing-away front panel, the elements, fuses, and probes can be accessed for maintenance.
- 6-gal. storage capacity
- Maximum 151 GPH at 40-degree-F rise
- Maximum 86 GPH at 70-degree-F rise
- Temperature and pressure gauges monitor internal conditions
- Pressure relief valve ensures unit is operating at the optimal pressure
- High-temperature limit and low-water cut-off prevent element burnout
- Fiberglass insulation minimizes heat loss
- Front panel swings open to expose fuses, transformer, and elements for service
- Water tank interior is coated with Castone, a non-toxic, cement-like product that prevents corrosion
- Stainless steel and hammertone exterior is durable and corrosion resistant
- 6-in. adjustable legs for installation on uneven floors
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 72.2 A, 15 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-15 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/1-ph, NSF, cUL, UL
Watch a video about this product
Hatco C-15 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 151 |
| 70F Recovery (gph) | 86 |
| Amps | 72.2 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 15 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-15 Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 208v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,827.55 / Each | $2,827.55 / Each | $2,827.55 / Each | $2,827.55 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 9 - 13 Business Days | IN STOCK: Ships in 1 Business Day | Typically ships in 9 - 13 Business Days | Typically ships in 9 - 13 Business Days |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 151 | 151 | 151 | 151 |
| 70F Recovery (gph) | 86 | 86 | 86 | 86 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 208 | 240 | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
