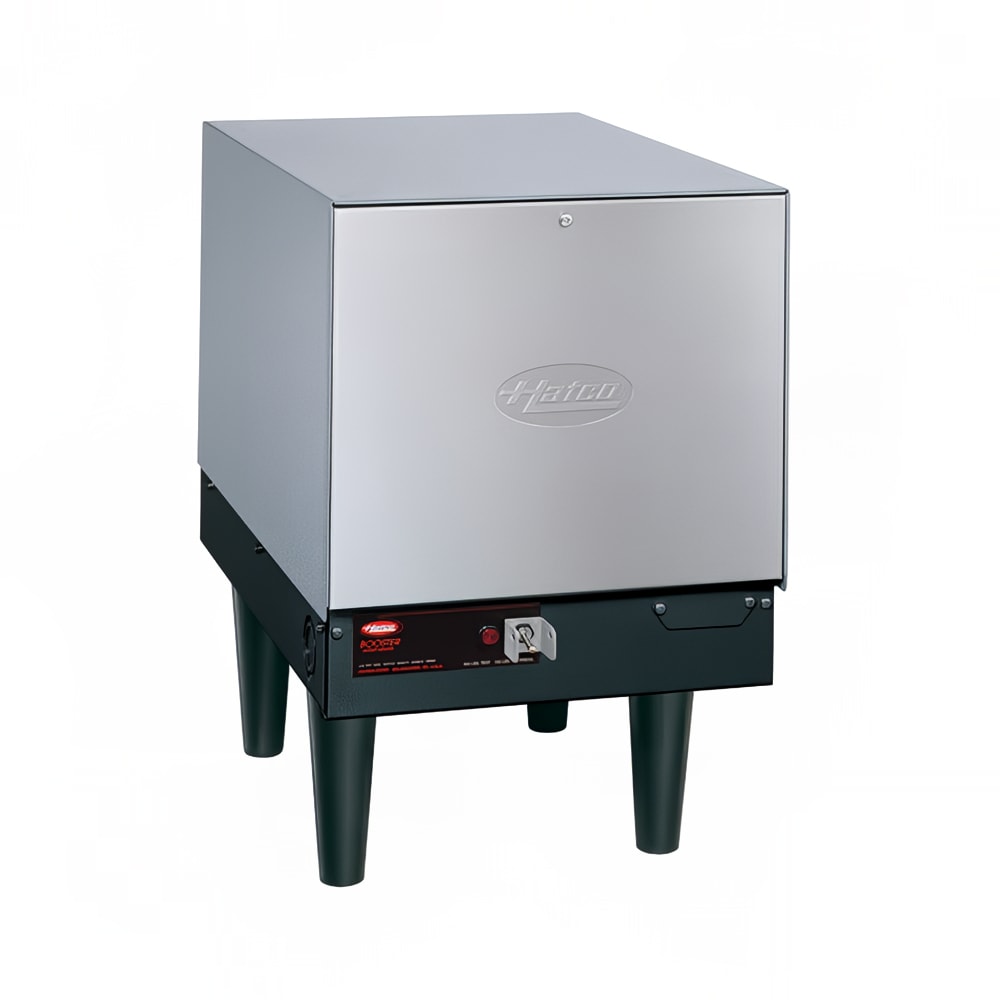

Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 240v/1ph

To sanitize dishes and flatware, the Hatco C-15 compact booster water heater brings water to the temperature needed to kill bacteria. With 6-inch legs, this unit can stand alone or be mounted with slide brackets under a dishtable. It is finished with powder-coated silver hammertone and features a stainless steel, swing-away front panel and a Castone®-lined tank that resists the buildup of corrosion and limestone. To minimize heat loss, this unit is insulated with fiberglass.

The Hatco C-15 compact booster water heater can be monitored with an immersion thermostat, pressure and temperature gauges, and a pilot indicator light. This unit comes standard with a temperature and pressure relief valve, a pressure-reducing valve, and an on/off switch. For operator safety, a low-water cut-off feature prevents element burnout, and a high-temperature limit control prevents permanent damage.

Product Details

• Maximum 151 GPH at 40 degree-F rise
• Maximum 86 GPH at 70 degree-F rise
• 6-gal. tank capacity
• Boosts running water to 180 degrees F for sanitation
• 6-in. legs for standalone usage
• Slide brackets for mounting (sold separately)
• Swing-away stainless steel front panel provides convenient access to probes and elements
• Control fuses and transformer
• Fiberglass insulation
• Silver powder-coated hammertone on the body
• Castone-lined tank prevents limestone buildup and corrosion
• Pre-plumbed and pre-wired
• Calibrated immersion thermostat
• Low-water cut-off prevents burnout
• Pressure-reducing valve
• Temperature and pressure relief valve
• High-temperature limit control
• Pilot indicator light
• On/off switch
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 62.5 A, 15 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-15 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-15 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
