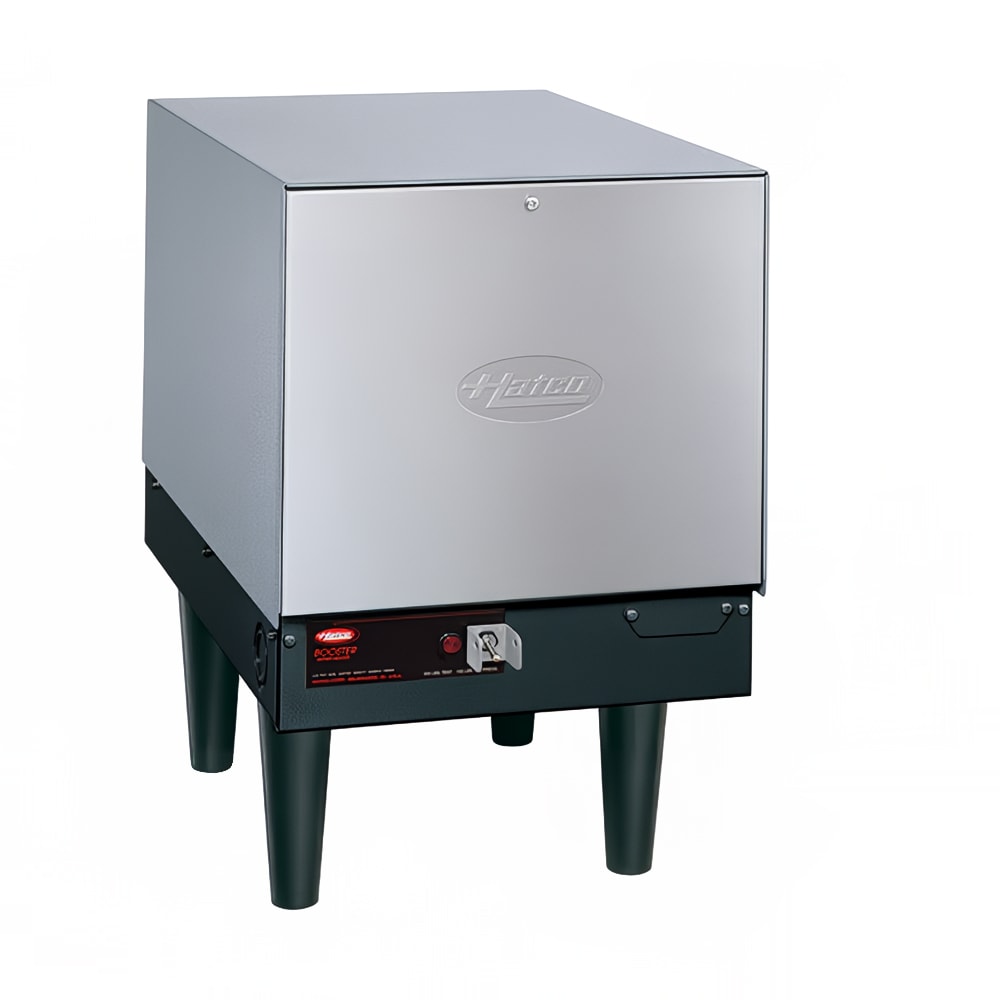

Hatco C-15 208-3-QS Compact Booster Heater, 6-Gallon, 15 KW, 208 Volts, 3 Phase

MPN: C-15 208-3-QS
Free Shipping

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,780.00
$1,529.00 / Each

Hatco C-15 208-3-QS Description

SKU: 042-C152083

Hatco's C152083 booster heater provides a 40 degree Fahrenheit rise to 151 gallon-per-hour water supplies or a 70 degree Fahrenheit rise to 86 gallon-per-hour water supplies. It is built with a number of safety features, includes a low-water cutoff, pressure relief valve, and two temperature pressure gauges. The heaters water tank is lined with long-lasting Castone® so it resists corrosion and scale buildup.

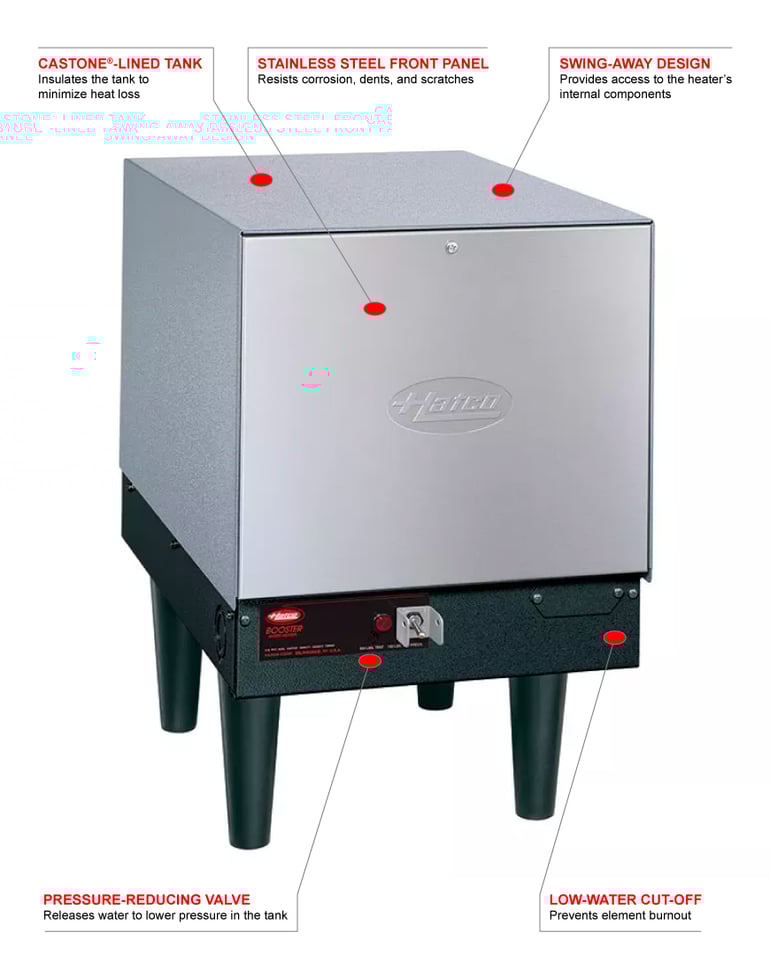

Product Details

  • Gives a 40 degree rise to 151 gph water and a 70 degree rise to 86 gph water
  • Designed to bring water up to the 180 degree F point required for hot water sanitization
  • Water rinsed in hot water dries quickly for streamlined warewashing procedures
  • May be installed on brackets (sold separately) or on included 6-in. legs
  • Stores 6-gal. of heated water
  • Castone lined tank resists corrosion and mineral buildup for a long life
  • Pressure relief valve prevents unsafe levels of pressure from building up
  • Pressure reducing valve provides the correct water pressure for optimal operation
  • 2 gauges allow users to monitor temperature and pressure
  • Pilot indicator light signifies when unit is powered on
  • On/Off switch allows operators to cut power when unit is not needed to conserve electricity
  • Low water cutoff prevents elements from damage in low-water conditions
  • Insulated with efficient fiberglass for energy efficiency
  • Factory plumbed and wired for quick installation and setup
  • Stainless steel front panel and powder-coated hammertone body for corrosion-resistance
  • Service is made simple by swing-away front panels that give easy access to water cut-off, fuses, transformer, probe, and elements
  • 208 V/60 Hz/3-ph, 41.7 A, 15kW
  • Overall Dimensions: 13.06-in. W x 26-in. D x 13.78-in. H
  • cULus and CE Listed; NSF Certified

Compact Booster Heater, Electric, 6-gallon storage capacity, electric operation, 15-KW, stainless steel front, Castone tank, 208 volts, 3 phase. Same Day Shipping on orders recieved before noon (based on availability). NOTE: Water supply in excess of 3.0 grains of hardness per gallon (GPG) must be treated and softened before being used; water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit. Please be advised that product failure caused by liming or sediment buildup is covered under warranty ONLY with proper usage of Hatco water treatment system.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hatco C-15 208-3-QS Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 151 gph
70F Recovery 86 gph
Category Water Booster Heaters
Heat Electric
KW 15
Width (in) 13
Weight 120.00
Hatco C-15 208-3-QS Certifications
  • NSF
