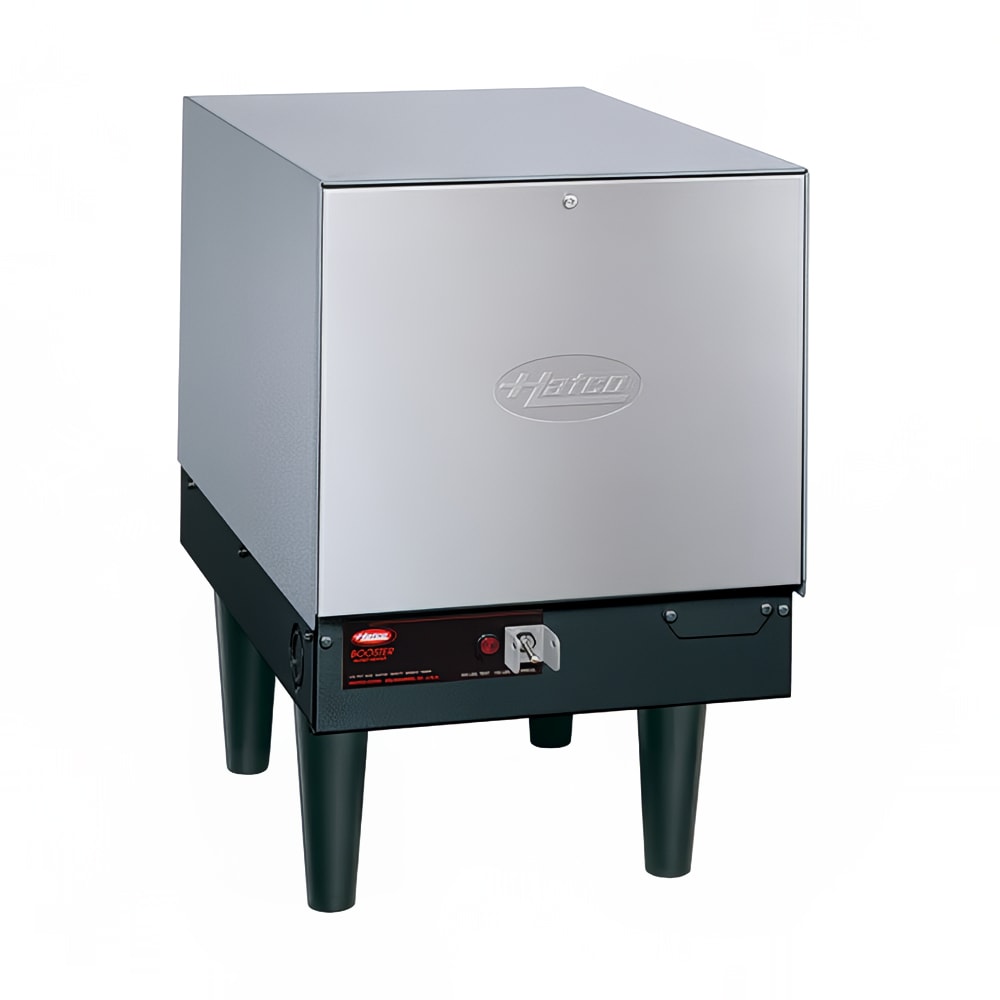

Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 240v/3ph
Typically ships in 4 - 8 Business Days
Retail Price: $5,141.00
$2,827.55 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco C-15 Description
For sanitizing dishes, the Hatco C-15 booster heater can heat water by 40- or 70-degree-Fahrenheit boosts to raise it to 180 degrees Fahrenheit – the temperature required for eliminating bacteria. The 6-gallon-capacity tank has fiberglass insulation to retain heat and Castone® lining to reduce mineral buildup.
To ensure the Hatco C-15 booster heater is working properly, it has gauges that monitor the temperature and pressure. A relief valve helps lower the pressure if it gets too high, and a temperature cut-off turns off the equipment if it gets too hot. When the tank runs out of water, a low-water cut-off feature prevents the elements from warming and burning out. This unit has straightforward controls with an on/off switch, and its internal components can be accessed through the swing-away front panel. A pilot light alerts users when the unit is heating water.
- Designed to heat water to 180 degrees F for high-temp dishmachines
- 6-gal. storage capacity
- Maximum 151 GPH at 40-degree-F rise
- Maximum 86 GPH at 70-degree-F rise
- Water tank is insulated with fiberglass for energy efficiency
- Castone-lined water tank resists corrosion
- Relief valve reduces pressure buildup
- Temperature and pressure meters enable operators to monitor water conditions
- High-temperature gauge prevents booster from overheating
- Low-water cut-off keeps unit from operating with low water
- Front panel swings away for access to critical components, including control fuses, transformer, probes, and elements
- Durable stainless steel front and powder-coated hammertone body
- Ships factory pre-plumbed and pre-wired for quick setup
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 36.1 A, 15 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-15 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hatco C-15 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 151 |
| 70F Recovery (gph) | 86 |
| Amps | 36.1 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 15 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-15 Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 240v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,827.55 / Each | $2,827.55 / Each | $2,827.55 / Each | $2,827.55 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | IN STOCK: Ships in 1 Business Day | Typically ships in 2 - 3 weeks | Typically ships in 9 - 13 Business Days |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 151 | 151 | 151 | 151 |
| 70F Recovery (gph) | 86 | 86 | 86 | 86 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 208 | 480 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Yes, the unit heats rinse water to 180°F.
The booster delivers 151 GPH at a 40°F rise.
Yes. This heater operates on 240 V/60 Hz/3 ph power.
The unit measures 13 1⁄16 in. W x 26 in. D.
Yes, the Castone®-lined tank reduces scale accumulation inside the heater.
The swing-away front panel exposes controls, probes, and heating elements.
The low-water cutoff prevents element burnout during operation.
Yes, the front gauges display both temperature and pressure readings.
