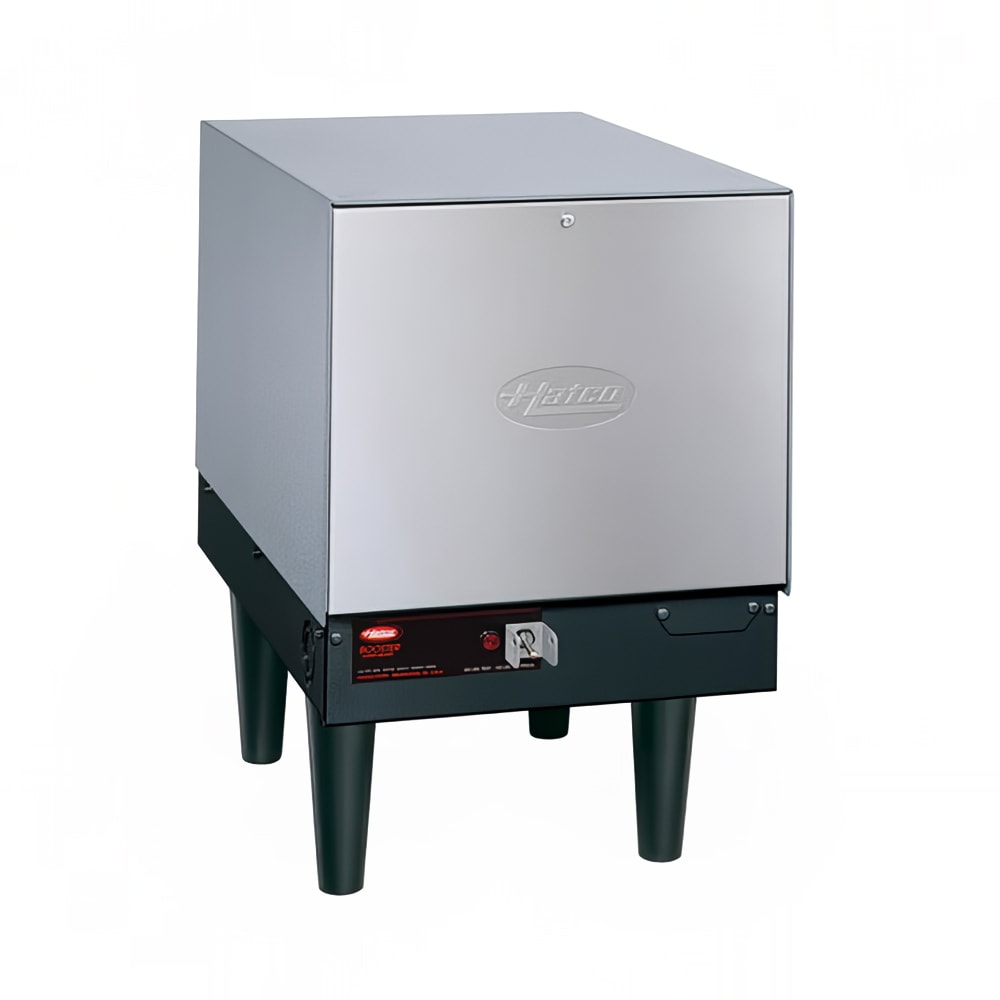

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 480v/3ph
Retail Price: $4,701.00
$2,585.55 /Each
Selected Voltage: 480V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hatco C-13 Description
Behind its swing-away front panel, the Hatco C-13 compact booster water heater houses control fuses for quick maintenance. Equipped with a powder-coated silver hammertone body and a stainless steel front, this unit is strong and durable. It is insulated with fiberglass for heat retention and lined with Castone® to reduce limescale. This unit can be mounted with slide brackets or placed near the dishwasher, which it brings to the final temperature of 180 degrees Fahrenheit needed for optimal sanitation.
Factory pre-plumbed and pre-wired, the Hatco C-13 compact booster water heater conveniently comes with a temperature and pressure relief valve, a pressure-reducing valve, two gauges, and a calibrated immersion thermostat. For the safety of the user and longevity of the unit, this booster includes a low-water cut-off to prevent burnout and a high-temperature limit control switch.
Product Details
- 6 gal. capacity
- Maximum 135 GPH at 40 degree-F rise
- Maximum 77 GPH at 70 degree-F rise
- Slide mounting brackets (sold separately)
- Stainless steel removable front panel provides internal access
- Powder-coated silver hammertone body
- Insulated with fiberglass
- Castone-lined tank reduces the amount of limescale
- 6-in. legs
- Calibrated immersion thermostat
- High-temperature limit control and low-water cut-off safety features
- Temperature and pressure relief valve
- Pressure-reducing valve
- On/off switch
- Pilot indicator light
- Pre-plumbed and pre-wired at factory
- Fittings for inlet and outlet
- 3⁄4-in. NPT pipe
Dimensions & Utilities
- 131/16 in. W x 26 in. D x 1939/50 in. H
- 16.3 A, 13.5 kW
- 480 V/60 Hz/3 ph
*Free shipping on Hatco C-13 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph
*Image may not depict product color, inclusions or accessories.
Hatco C-13 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 135 |
| 70F Recovery (gph) | 77 |
| Amps | 16.3 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 13.5 |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Certifications | NSF |
| Certifications | UL |
| Weight | 120.00 |
