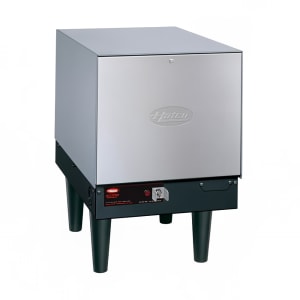

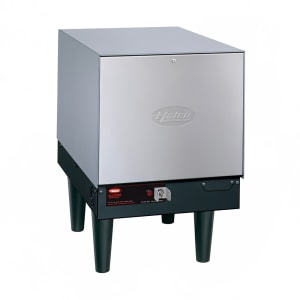

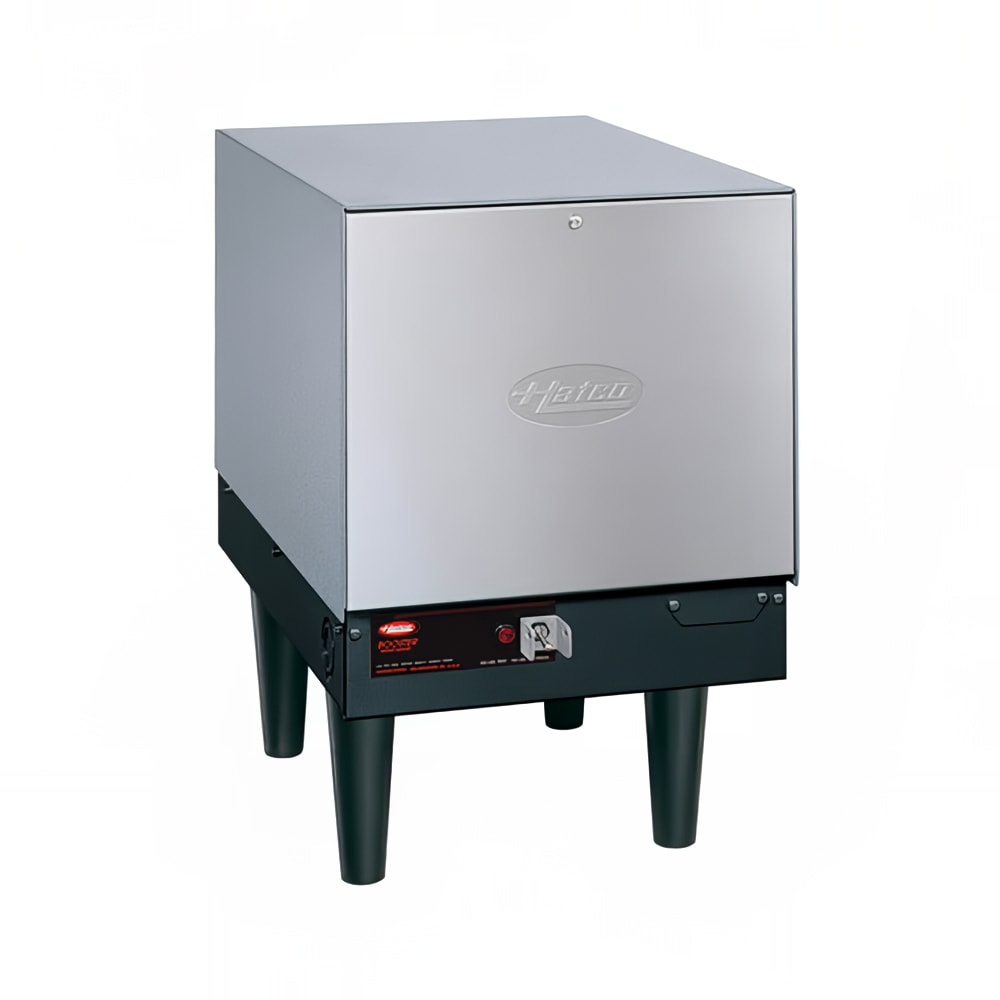

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 208v/3ph

Featuring swing-away front panels, the Hatco C-13 compact booster water heater offers access to the control fuses and transformer for servicing. Designed to provide the final sanitizing rinse to dishes, this unit brings water to the required temperature of 180 degrees Fahrenheit. This powder-coated hammertone unit has a stainless steel front panel and a Castone® liner to prevent the buildup of limestone. The interior is insulated with fiberglass to minimize heat loss.

The Hatco C-13 compact booster water heater can be installed next to the dishwasher with slide brackets or used as a stand-alone unit on 6-inch legs. For safety purposes, this unit includes a low-water cut-off and a high-temperature limit switch. This booster can be monitored through a pilot indicator light and two temperature and pressure gauges, and it includes a temperature and pressure relief valve and a pressure-reducing valve.

Product Details

• Holds 6 gal. of water
• Provides 180-degree-F water for sanitation
• Maximum 135 GPH at 40 degree-F rise
• Maximum 77 GPH at 70 degree-F rise
• Stainless steel front panel is removable for complete access to probes and elements
• Powder-coated silver hammertone body
• Fiberglass insulation
• Castone-lined tank prevents limestone and corrosion
• Slide brackets for mounting (sold separately)
• 6-in. legs reduce the risk of overheating
• Swing-away front panel
• Low-water cut-off prevents element burn out
• Control fuses and transformer
• Pre-plumbed and pre-wired
• Pilot indicator light
• Power switch
• Temperature and pressure relief valve
• Pressure-reducing valve
• 2 temperature and pressure gauges
• High-temperature limit control
• Calibrated immersion thermostat
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 37.5 A, 13.5 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco C-13 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts
