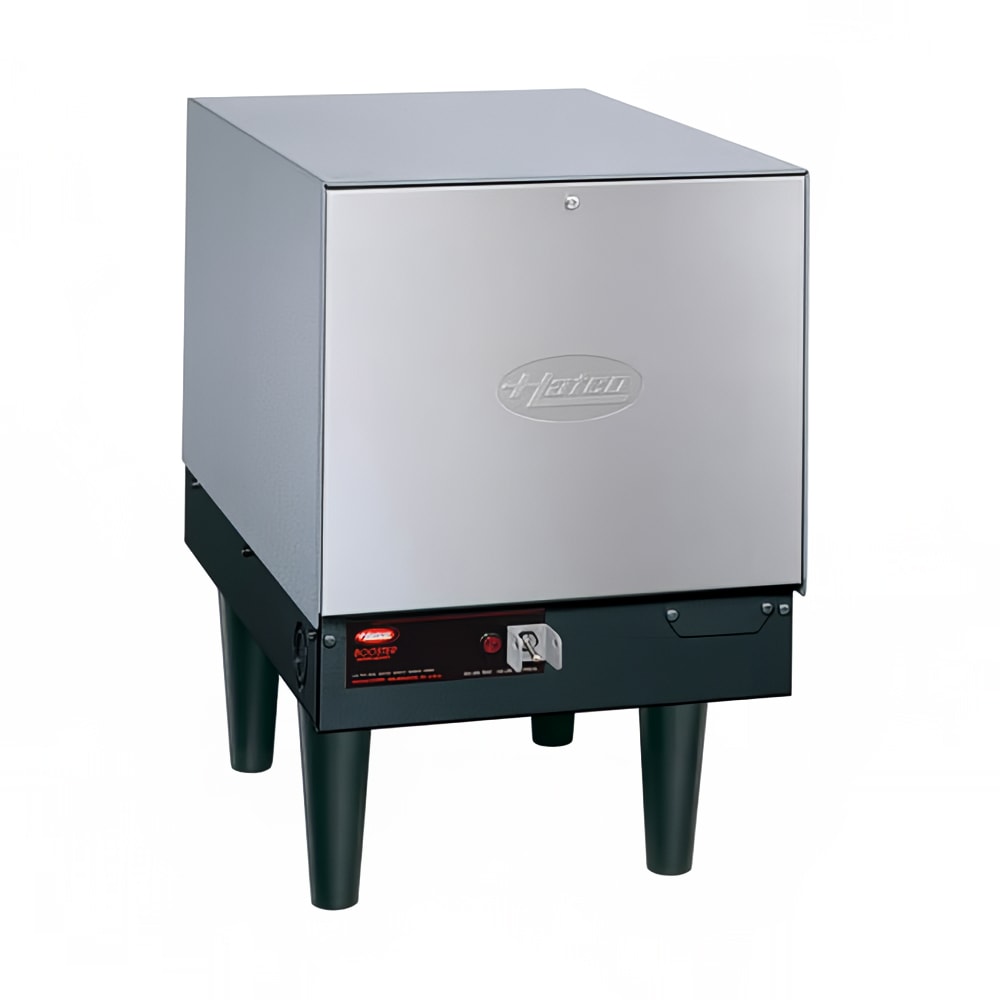

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 240v/3ph
Retail Price: $5,076.00
$2,791.80 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco C-13 Description
For user convenience, the Hatco C-13 compact booster water heater features a temperature and pressure relief valve, a pressure-reducing valve, and two gauges. It boosts hot water to the required temperature of 180 degrees Fahrenheit to kill bacteria. Holding 6 gallons, this unit is controlled with a power switch and protected by a high-temperature limit control and a low-water cut-off.
The Hatco C-13 compact booster water heater is powder coated with silver-gray hammertone, insulated with fiberglass, and lined with Castone®, a material that prevents corrosion and scale buildup. It can either be mounted under a dishtable using the available slide mounting brackets or installed as a stand-alone unit. This booster includes a calibrated immersion thermostat and is pre-plumbed and pre-wired at the factory.
- Holds 6 gal. at once
- Boosts water temperature to 180 degrees F
- Maximum 135 GPH at 40 degree-F rise
- Maximum 77 GPH at 70 degree-F rise
- Pressure-reducing valve
- Temperature and pressure relief valve
- 2 temperature and pressure gauges for monitoring
- Pilot indicator light
- Power switch
- Low-water cut-off prevents operation without water
- High-temperature limit control prevents irreversible damage
- 6-in. legs for standalone usage
- Sliver powder-coated hammertone body
- Stainless steel front panel
- Fiberglass insulation keeps heat inside
- Castone liner prevents buildup of limescale and corrosion
- 3⁄4-in. NPT pipe
- Fittings for inlet and outlet
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 32.5 A, 13.5 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-13 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
Hatco C-13 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 135 |
| 70F Recovery (gph) | 77 |
| Amps | 32.5 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 13.5 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-13 Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 240v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,791.80 / Each | $2,791.80 / Each | $2,791.80 / Each | $2,791.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 135 | 135 | 135 | 135 |
| 70F Recovery (gph) | 77 | 77 | 77 | 77 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 240 | 480 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
