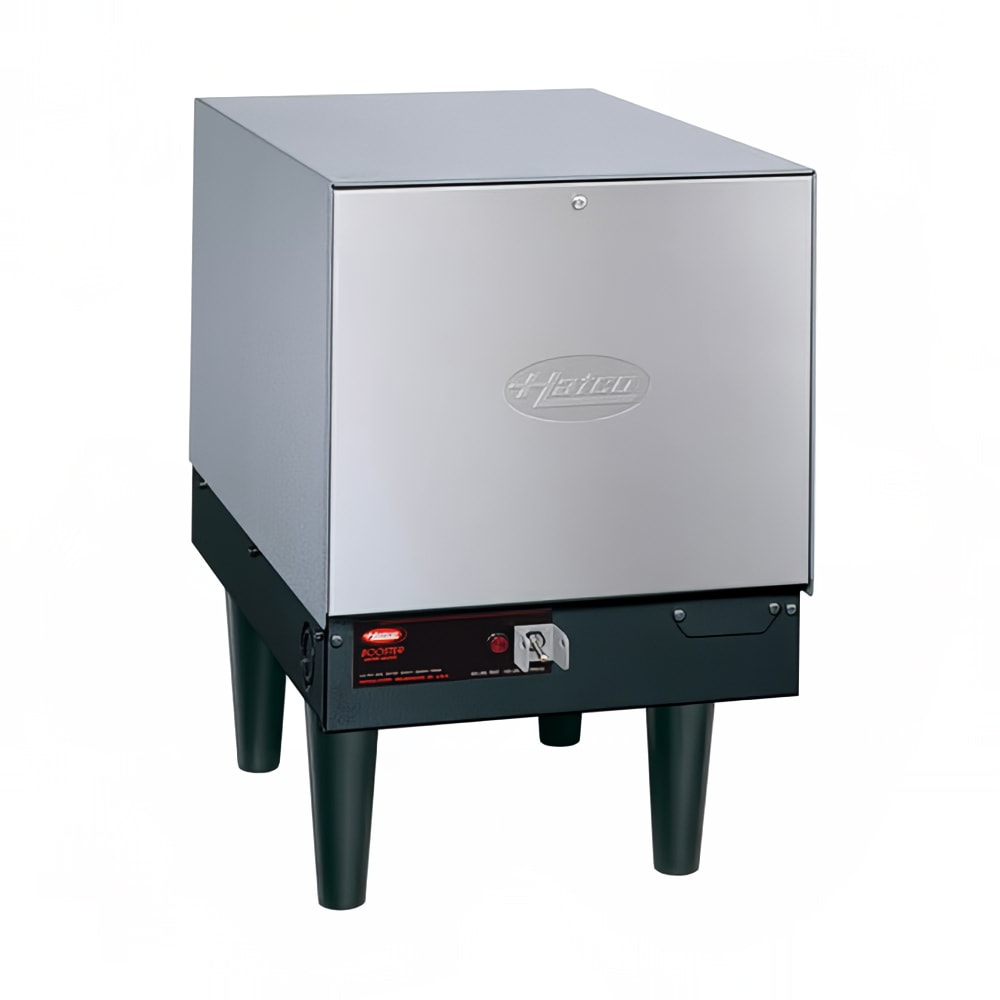

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 240v/1ph

The Hatco C-13 compact booster water heater can be placed beside a dishwashing station or mounted under a dishtable with slide brackets, which are sold separately. This unit is pre-plumbed and pre-wired and includes a temperature and pressure relief valve, as well as a pressure-reducing valve that ensures the internal pressure does not get too high. To prevent element burnout, this unit features a low-water cut-off feature and a high-temperature limit for additional safety. The control fuses can be accessed behind the stainless steel, swing-away front panel for the user's convenience.

With fiberglass insulation, heat stays inside the Hatco C-13 compact booster water heater. The tank is lined with Castone® to prevent the buildup of limestone and possibility of corrosion, and the body is finished with silver hammertone. This unit can be monitored via the two temperature and pressure gauges, an on/off switch, and a calibrated immersion thermostat. The purpose of this booster is to help employees sanitize dishware a final time at the required temperature of 180 degrees Fahrenheit.

Product Details

• 6-gal. tank capacity
• Maximum 135 GPH at 40 degree-F rise
• Maximum 77 GPH at 70 degree-F rise
• Castone liner prevents limestone buildup
• Constructed of powder-coated silver hammertone
• Durable stainless steel swing-away front panel
• Fiberglass insulation
• Mountable under dishtable with slide brackets (sold separately)
• 6-in. legs
• Pre-plumbed and pre-wired in factory
• Calibrated immersion thermostat
• Temperature and pressure relief valve
• Pressure-reducing valve
• 2 temperature and pressure gauges
• On/off switch
• Pilot indicator light
• High-temperature limit control prevents unit from overheating
• Low-water cut-off
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 56.3 A, 13.5 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-13 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-13 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
