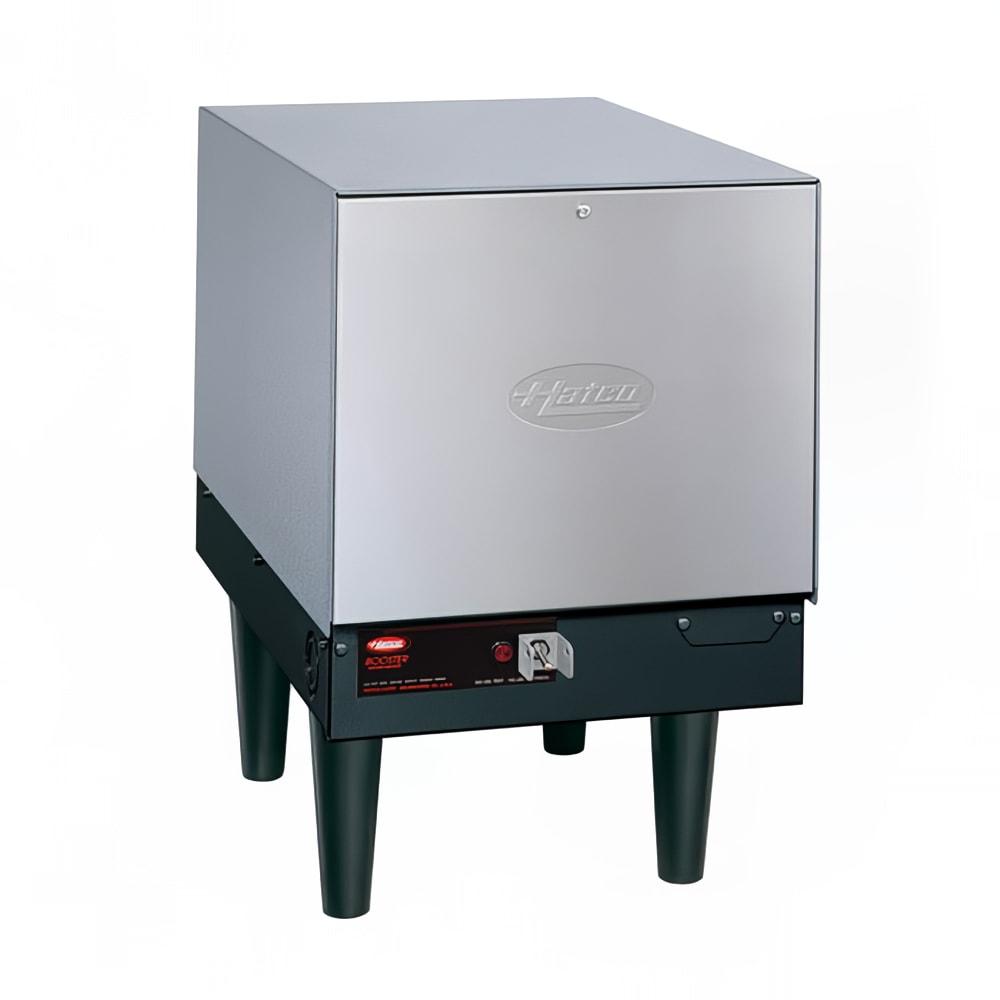

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 208v/1ph
Retail Price: $5,076.00
$2,791.80 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-13 Description
The Hatco C-13 compact booster water heater has a stainless steel front, a powder-coated silver hammertone body, and a Castone®-lined tank that resists corrosion and limescale buildup. To prevent heat loss, this booster is lined with fiberglass insulation, and it includes a temperature and pressure relief valve, a pressure-reducing valve, and two temperature and pressure gauges. This booster can be mounted under a dishtable or countertop with the available slide bracket or set upright with 6-inch legs.
To prevent element burnout, the Hatco C-13 compact booster water heater cuts off when the tank water level is low. This unit includes a pilot indicator light that shows when it is heating water. Because it reaches 180 degrees Fahrenheit, this unit helps users properly sanitize dishware and flatware. It is wired with a calibrated immersion thermostat and a high-temperature limit switch. The front panel enables access to probes and elements for repair.
- 6-gal. capacity
- Maximum 135 GPH at 40 degree-F rise
- Maximum 77 GPH at 70 degree-F rise
- Heats water to 180 degrees F for sanitation
- Slide brackets for installation under dishtable (sold separately)
- 6-in. legs
- Temperature and pressure relief valve
- Pressure-reducing valve
- High-temperature limit control
- On/off switch
- 2 temperature and pressure gauges
- Pilot indicator light
- Low-water cut-off prevents element burnout
- Calibrated immersion thermostat
- Swing-away front panels
- Control fuses and transformer
- Stainless steel front
- Power-coated silver hammertone body
- Castone-lined tank helps prevent corrosion
- 3⁄4-in. NPT pipe and fittings for inlet and outlet
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 65 A, 13.5 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-13 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
Hatco C-13 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 135 |
| 70F Recovery (gph) | 77 |
| Amps | 65 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 13.5 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-13 Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 208v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,791.80 / Each | $2,791.80 / Each | $2,791.80 / Each | $2,791.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 135 | 135 | 135 | 135 |
| 70F Recovery (gph) | 77 | 77 | 77 | 77 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 208 | 240 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
