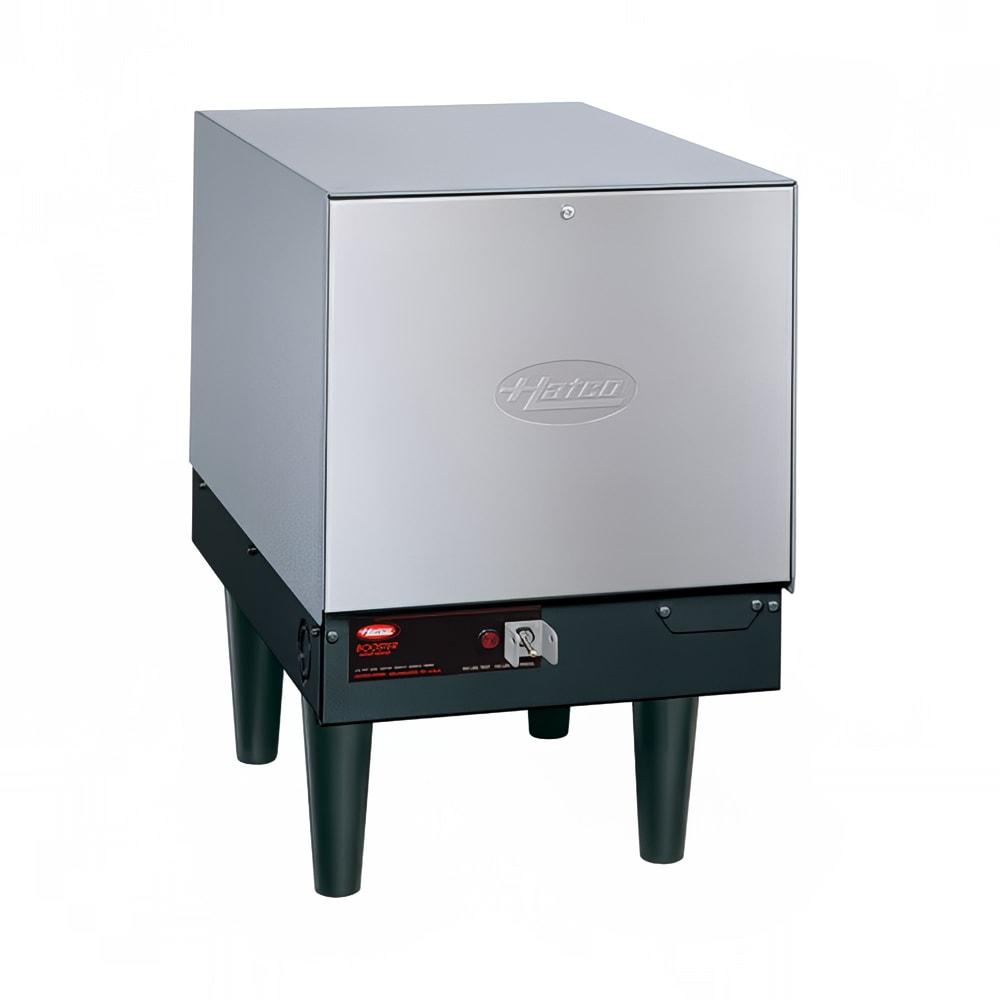

Hatco C-12 Compact Booster Water Heater, 6 Gallon, 12 kW, 480v/3ph

To properly sanitize and flash-dry dishes, the Hatco C-12 compact booster heater raises the temperature of rinse water in warewashers to 180 degrees Fahrenheit. The tank has a 6-gallon storage capacity and Castone® lining that prevents corrosion. Heat is trapped inside the tank with fiberglass insulation, and when heating water, a pilot indicator light alerts employees. If hot water is not needed, the heater can be quickly turned off with an on/off switch to save energy.

If the temperature or pressure is too high in the tank, the relief valve lowers it by releasing water. A pressure-reducing valve regulates and stabilizes the flow pressure, and when water levels are too low, the low-water cut-off feature prevents burnout by shutting off power to the elements. Made of corrosion-resistant stainless steel, the front panel on this Hatco C-12 compact booster heater swings out for convenient access to components.

Product Details

• Elevates rinse water temperature to 180 degrees F for sanitizing and flash drying dishes and flatware
• Castone-lined tank has a 6-gal. storage capacity
• Maximum 120 GPH at 40-degree-F rise
• Maximum 69 GPH at 70-degree-F rise
• Fiberglass insulation keeps heat inside the unit
• On/off switch and pilot indicator light
• Temperature and pressure gauges monitor the tank levels
• High-temp limit protects internal components against heat damage
• Relief valve lowers tank pressure by releasing water if temperature or pressure are too high
• Pressure-reducing valve regulates and stabilizes flow pressure
• Low-water cut-off feature shuts off power to the heating elements if the water level is low, preventing element burnout
• Stainless steel front panel is corrosion resistant and heavy duty
• Panel has a swing-away design for access to the components
• Hammertone body is built for daily use
• 6-in. plastic legs elevate the unit

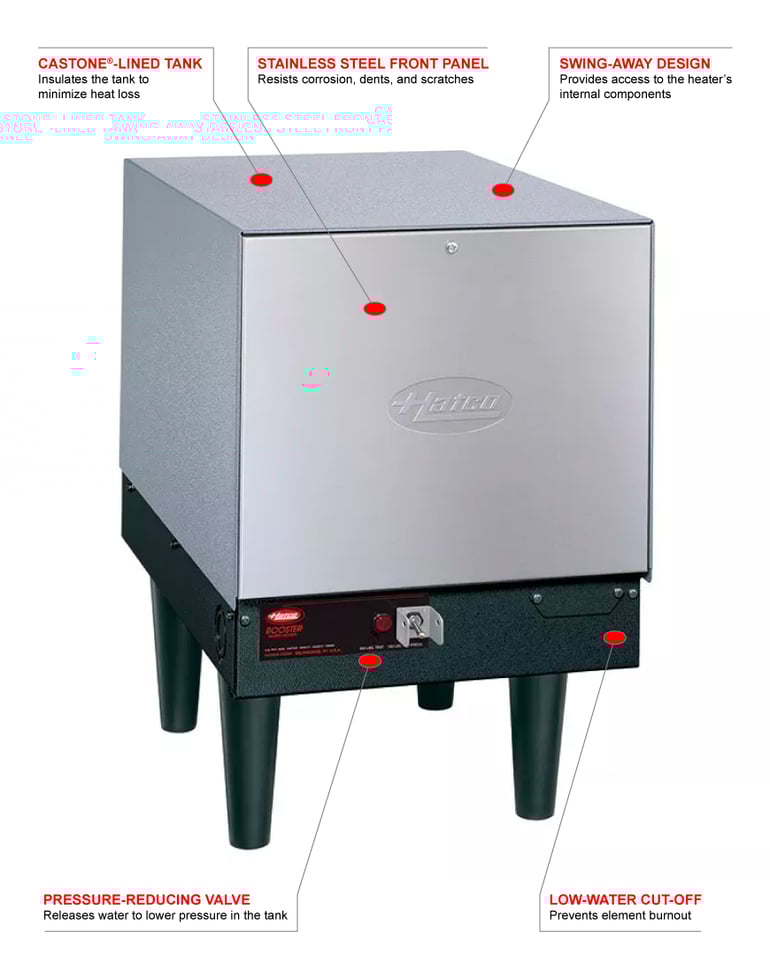

Product Features

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 14.5 A, 12 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco C-12 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 480v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-12 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
