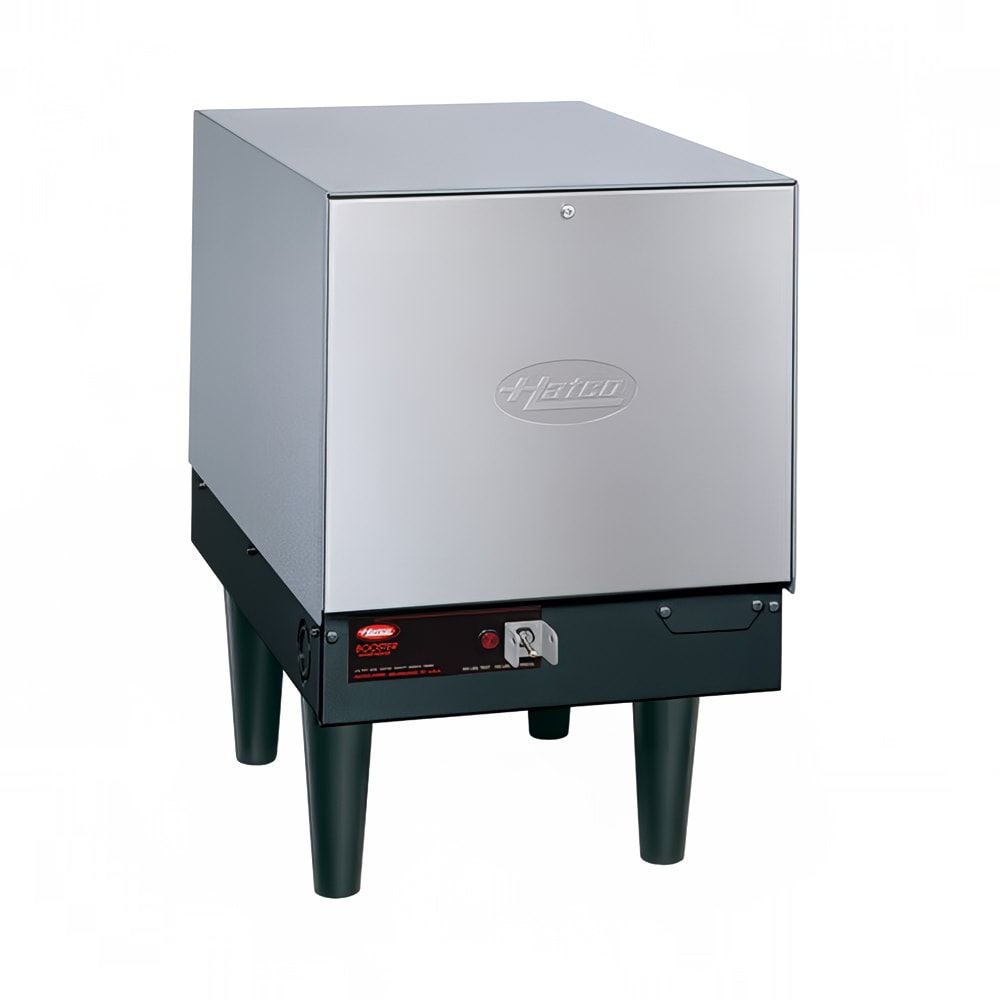

Hatco C-12 Compact Booster Heater, 6 Gallon, 12 KW, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-C122403 • MPN: C-12-240-3-QS
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $3,076.00
$1,691.80 / Each

Selected Voltage: 240V, 3 Phase

Image may not depict product color, inclusions or accessories.

Hatco C-12 Description

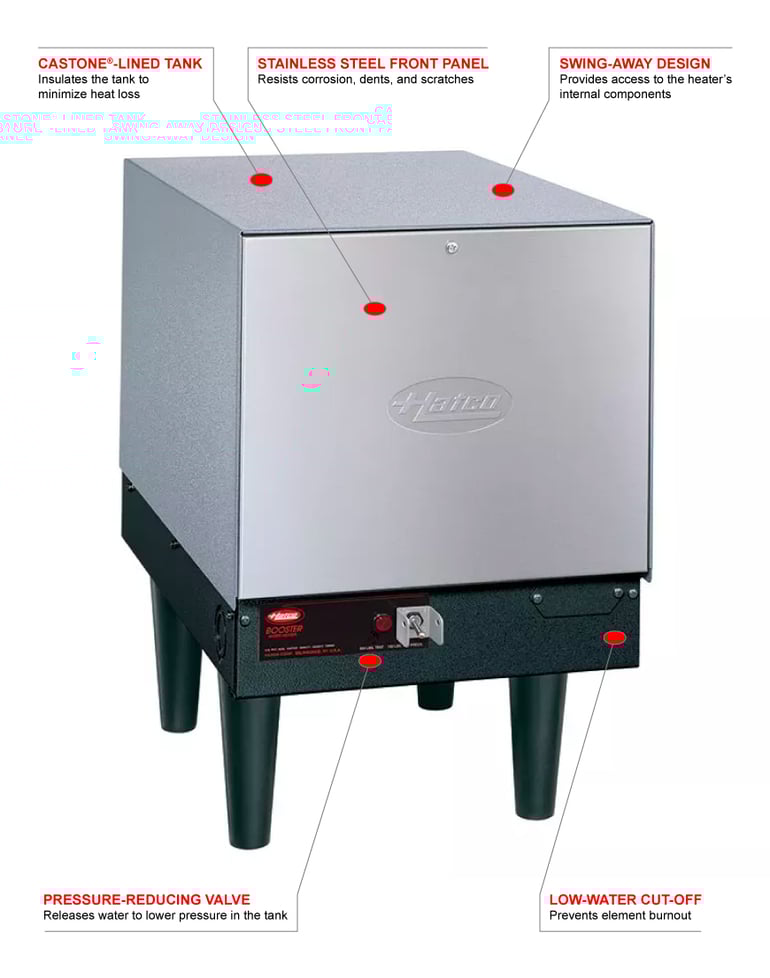

The Hatco C-12 booster heater uses pressure-relief valves, a low-water cut-off, and high-temperature limits to protect the unit from sustaining damage. The fiberglass insulation minimizes heat loss and improves energy efficiency, and the stainless steel and hammertone exterior prevents corrosion and damage. Adjustable 6-inch legs make installation of the booster heater simple, while easy access for service is provided by a swing-out front panel.

Product Details

  • Electric booster heats water to sanitizing temperatures for commercial dishwashers
  • Water temperature recovery:
    • 120 gallons per hour at a 40 degree F rise
    • 69 gallons per hour at a 70 degree F rise
  • Stainless steel front panel and hammertone-painted body provides durability and corrosion-resistance
  • Castone® lining on the tank interior prevents corrosion
  • Fiberglass insulation prevents heat loss and improves energy efficiency
  • Capable of storing up to 6 gallons of water
  • 6-in. legs are adjustable to make installation easy
  • Pressure-relief valve and low-water cut-off prevent incorrect water pressure
  • High-temperature limit control prevents overheating damage to unit
  • Front panels swing open for easy access to interior for maintenance
  • 240 V/60 Hz/3-ph, 28.9 A
  • Overall Dimensions: 13.06 in. W x 20.69 in. D x 19.78 in. H
  • UL, cUL, CE Listed; NSF Certified

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/3-ph, NSF, cUL, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco C-12 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 120 gph
70F Recovery 69 gph
Heat Electric
KW 12
Width (in) 13
Width (in) Range 10 - 15 in
Voltage 240
Phase 3
Hertz 60
Weight 120.00
Hatco C-12 Certifications
  • UL
  • NSF
