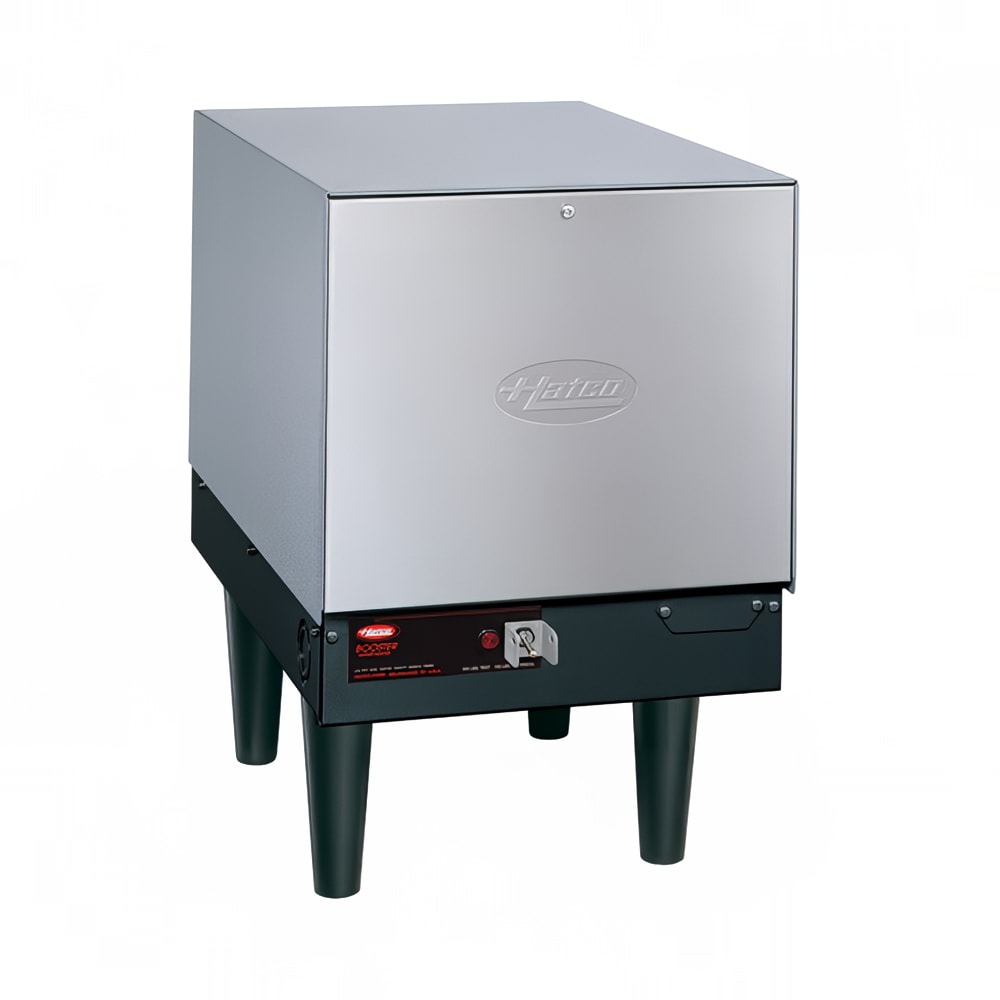

Hatco C-12 Compact Booster Water Heater, 6 Gallon, 12 kW, 208v/1ph
Typically ships in 2 - 3 weeks
Retail Price: $5,041.00
$2,772.55 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-12 Description
The Hatco C-12 compact booster heater increases rinse water temperature to 180 degrees Fahrenheit, which properly sanitizes dishes. Its tank is lined with Castone® and uses fiberglass insulation to minimize heat loss. When the temperature or pressure in the tank is too high, a temperature and pressure relief valve releases water, and a pressure-reducing valve regulates and stabilizes flow pressure.
This Hatco C-12 compact booster heater has a low-water cut-off feature to prevent element burnout because of low water conditions. The heavy-duty and corrosion-resistant stainless steel front panel swings out, so service technicians can access the components. It is stabilized by 6-inch plastic legs.

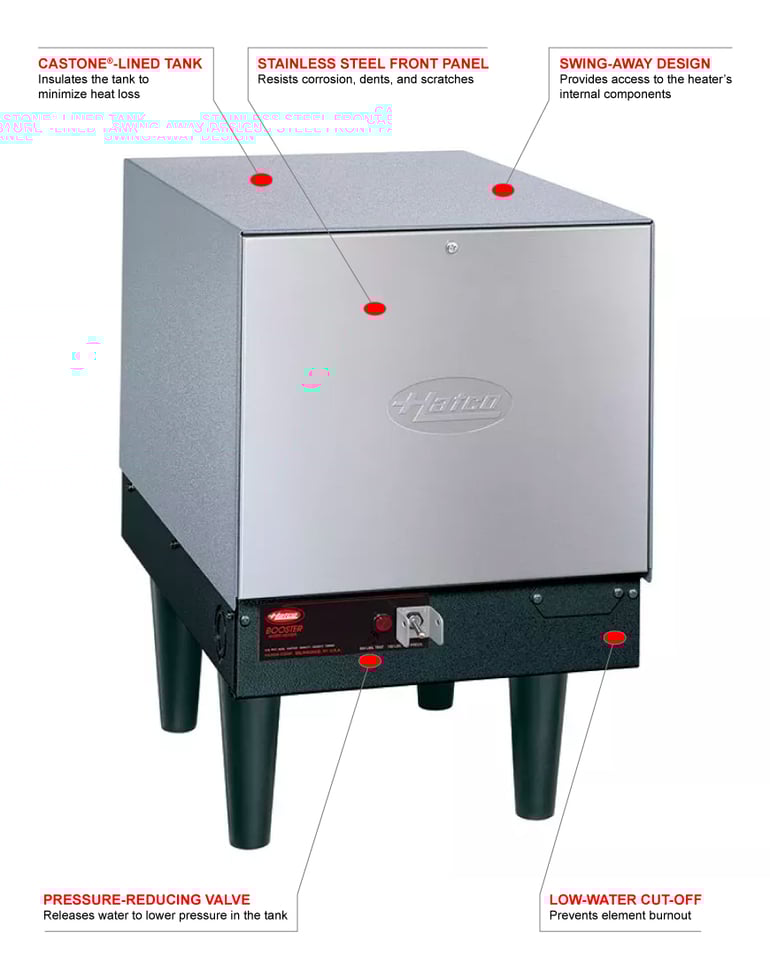

- Increases temperature of rinse water to 180 degrees F to sanitize items in the warewasher
- Maximum 69 GPH at 70-degree-F rise
- 6-gal. storage capacity
- Tank is lined with Castone
- Fiberglass insulation helps prevent heat loss
- On/off switch includes a pilot indicator light
- Temperature/pressure relief valve releases water to lower the pressure in the tank if the temperature or pressure is too high
- 2 temperature and pressure gauges monitor levels in the tank
- Pressure-reducing valve regulates and stabilizes flow pressure
- Pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch
- Low-water cut-off feature prevents element burnout that could occur because of low water condition
- Stainless steel front panel resists corrosion, dents, and scratches
- Panel's swing-away design provides access to the components for maintenance
- Durable powder-coated body is built for high-volume use
- 6-in. plastic legs keep the unit elevated off the floor
- 13.06 in. W x 20.69 in. D x 19.78 in. H
- 12 kW, 57.7 A
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-12 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hatco C-12 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 120 |
| 70F Recovery (gph) | 69 |
| Amps | 57.7 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-12 Hatco C-12 Compact Booster Water Heater, 6 Gallon, 12 kW, 208v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,772.55 / Each | $2,772.55 / Each | $2,772.55 / Each | $2,772.55 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | IN STOCK: Ships in 1 Business Day | Typically ships in 4 - 8 Business Days | Typically ships in 2 - 3 weeks |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 120 | 120 | 120 | 120 |
| 70F Recovery (gph) | 69 | 69 | 69 | 69 |
| Capacity (gallons) | 6 | 6 | ||
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 208 | 240 | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
The unit operates on a 208-V, 3-ph connection drawing 33.4 A and uses a 12-kW heating element.
It holds 6 gal. of hot water to supply a consistent 180°F final rinse for sanitizing and flash-drying dishes.
The heater maintains water temperatures up to 180°F for dependable dish sanitizing and quick drying.
It connects using 3/4-in. NPT fittings for both the inlet and outlet lines.
The Castone®-lined tank resists corrosion for long-term durability.
Fiberglass insulation reduces heat loss, while a calibrated immersion thermostat and high-temperature limit switch ensure precise control.
It’s equipped with a high-temperature limit switch, low-water cut-off, and pressure-relief valve to prevent overheating and dry firing.
Yes, it can be installed beneath a dishtable using slide brackets or on 6-in. adjustable legs for added flexibility.
Incoming water hardness should not exceed 3 grains per gal.; softer water prevents scale buildup and preserves performance.
