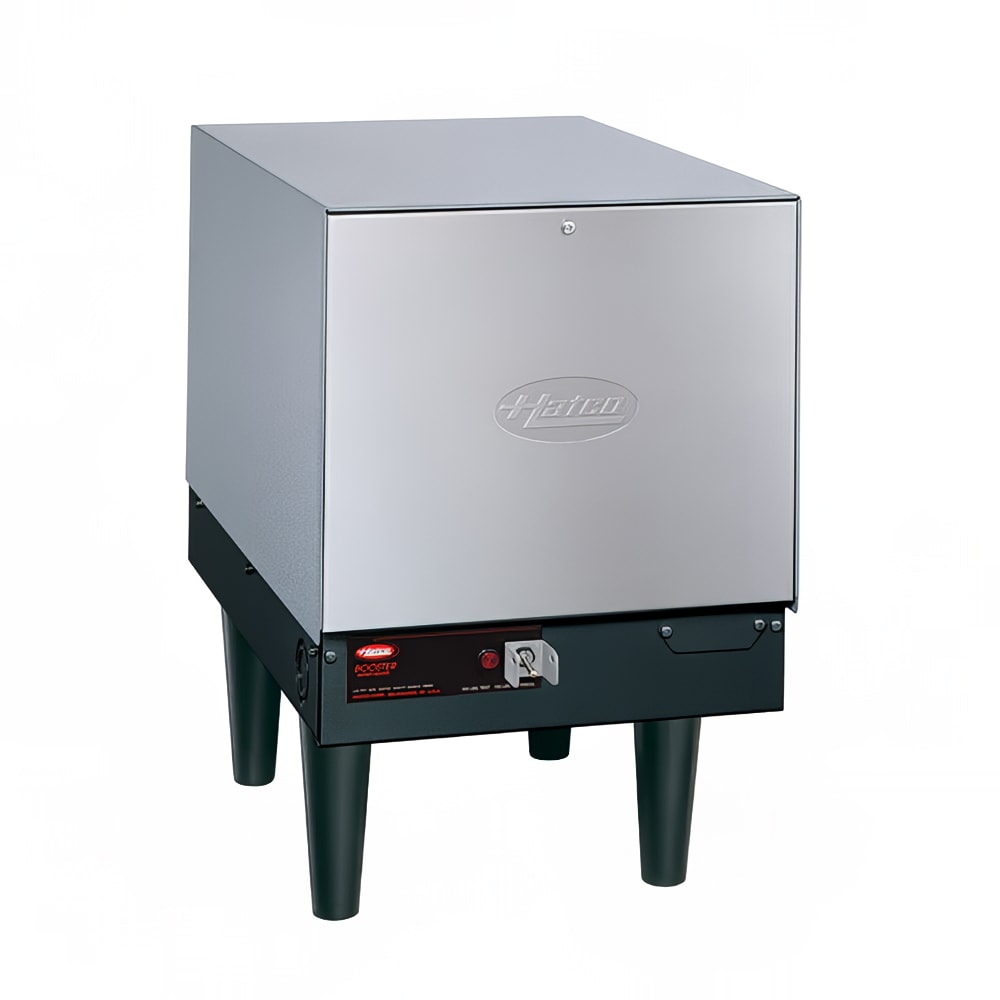

Hatco C-12 Compact Booster Water Heater, 6 Gallon, 12 kW, 208v/3ph

The Hatco C-12 208-3 booster heater is designed to help commercial dishwashers heat water to the required sanitizing temperatures of 180 degrees Fahrenheit for washing and flash-drying flatware and dishes. Able to store up to 6 gallons at a time, this model can heat up to 120 gallons per hour on a 40 degrees Fahrenheit rise and up to 69 gallons per hour at a 70 degrees Fahrenheit rise. The standard Castone® liner meets NSF standards and provides the unit with a durable, non-toxic, non-corrosive steel tank. Fiberglass insulation and an accurate thermostat helps maintain consistent temperatures.

The Compact booster heater's size and space-saving design means the water heater can be installed next to the dishwasher, either placed on the floor or under a dishtable. To prevent damage caused by low water conditions, this electric booster heater features a high-temperature limit, pressure relief valve, and low water cut-off. A swing-out front panel provides access to the inside of the booster heater, making maintenance and service simple. An indicator light and on/off switch let operators know when the Hatco C-12 208-3 is on and allow it to be easily shut off when not in use.

Product Details

• Electric booster heater for commercial dishwashers
• Heats water to sanitizing temperatures of 180 degrees F
• Water temperature recovery: 120 gallons per hour at a 40 degree F rise and 69 gallons per hour at a 70 degree F rise
• 6-gallon storage capacity
• High-temperature limit control prevents damage caused by overheating
• Pressure-relief valve and low-water cut-off prevent incorrect water pressure
• Fiberglass insulation prevents heat loss
• Castone-lined tank is non-corrosive and non-toxic
• Construction includes stainless steel front panel and hammertone body
• Front panels swing open for easy access to interior for maintenance
• 6-in. adjustable legs make installation simple

Dimensions & Utilities

• 13.06 in. W x 20.69 in. D x 19.78 in. H
• 12 KW, 33.4 A
• 208 V/60 Hz/3 ph

Product Features

*Free shipping on Hatco C-12 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-12 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
