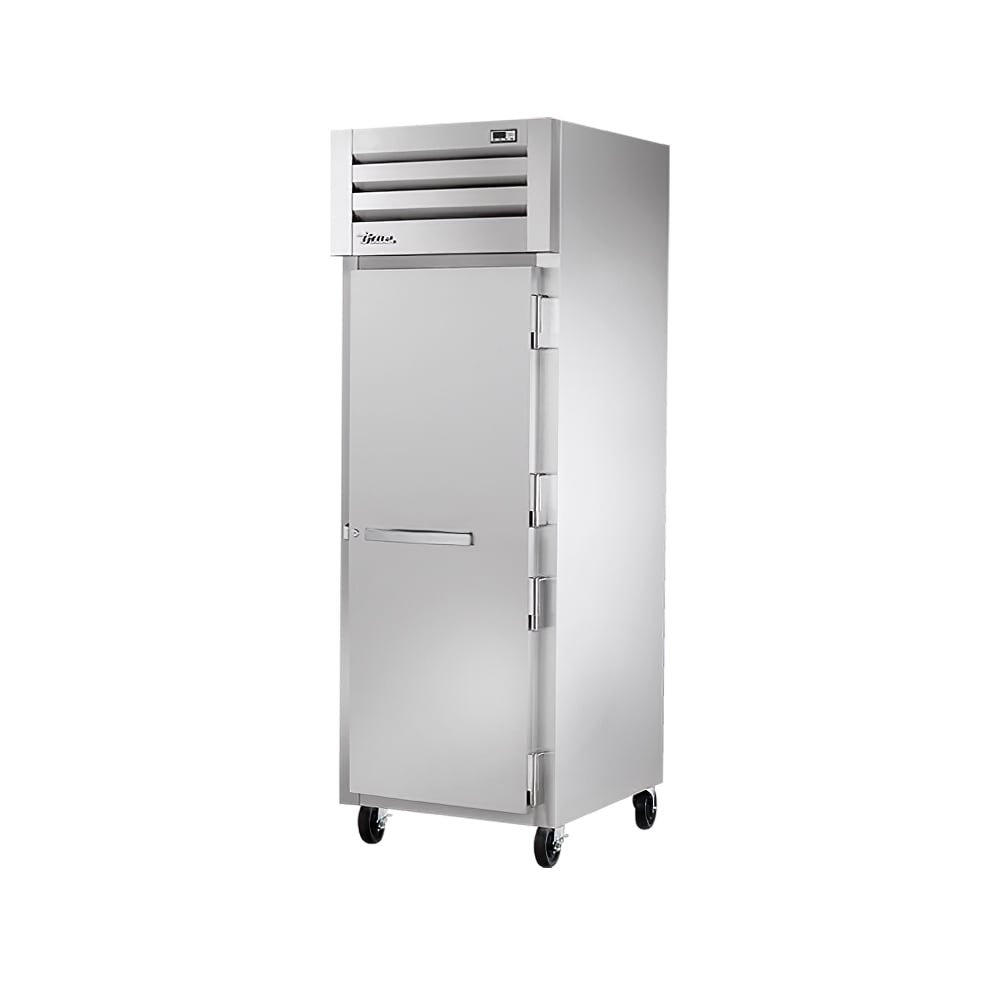

True STG1R-1S-HC 27 1/2" One Section Reach In Refrigerator, 1 Right Hinge Solid Door, 115v
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$4,716.44 /Each
Selected Hinge: Right Hinge
True Refrigeration STG1R-1S-HC Description
The True STG1R-1S-HC SPEC SERIES® reach-in refrigerator has a top-mount refrigeration system so it does not pull dirt and dust into the condenser and evaporator. To keep temperatures cool, the capillary tube system uses R290 hydrocarbon refrigerant. Temperatures can be set from 33 to 38 degrees Fahrenheit, and the digital display can be shown in Celsius or Fahrenheit. For resistance to corrosion, the evaporator is coated in epoxy.
Extending the unit's life and improving its function, an automatic mechanism keeps the condensing coil clean. The reverse condensing fan motor operates for 20 seconds each time the compressor starts, ridding the coil of dust, debris, and dirt. For ideal results, employees should maintain the coil frequently.
Its exterior has a stainless steel door and front with aluminum sides, and the interior has aluminum walls and rear with a stainless steel floor and ceiling. Product sits on three PVC-coated wire shelves, and polyurethane insulation traps cold air in the cabinet. A magnetic gasket around the door prevents air leaks, and the door stays open past 120 degrees for product loading. The True STG1R-1S-HC one-section refrigerator uses LED interior lights to highlight product.
- Part of the SPEC SERIES
- Exterior has a stainless steel door and front with aluminum sides
- Aluminum interior walls and back resist corrosion
- Interior ceiling and floor are stainless steel to ease cleaning
- 3 PVC-coated wire shelves
- Polyurethane insulation traps cold air
- 5-in. castors have locks on the front set
- 120-degree, stay-open door facilitates product loading
- Magnetic gaskets seal the door to prevent the loss of cold air
- LED interior lights provide cabinet visibility
- Pre-wired at factory and ready for final connection
- R290 hydrocarbon refrigerant is sent through a capillary tube to keep the cabinet cool
- Temperature range: 33-38 degrees F
- Evaporator and condenser fan motors move a consistent amount of air
- Condensing fan motor blows dirt and dust away from the condensing coil
- Top mounted to remove the evaporator from the food zone and increase capacity
- Exterior temperature display can be shown in Celsius or Fahrenheit
- Evaporator is epoxy coated to resist corrosion
- 27 1⁄2 in. W x 35 1⁄4 in. D x 84 1⁄8 in. H
- 3.8 A 1⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration STG1R-1S-HC within the 48 contiguous states.
From The Manufacturer
True Refrigeration STG1R-1S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Compressor Location | Top |
| Cubic Feet | 23.2 |
| Depth (in) | 33.75 |
| Door Type | Solid |
| Doors | Full |
| Height (in) | 77.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Material | Aluminum |
| Kitchen Innovations Awards | 2015 |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Spec |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Spec Series® |
| Special Features | Casters Included - Uninstalled |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.5 |
| Weight | 360.00 |
WARNING: Important Prop 65 information for California residents.
- True Refrigeration STM1R1S
Compare to Similar Items
| Attributes |
True Refrigeration STG1R-1S-HC True STG1R-1S-HC 27 1/2" One Section Reach In Refrigerator, 1 Right Hinge Solid Door, 115v Current Item |
Beverage-Air HRS1HC-1S Beverage-Air HRS1HC-1S 26" One Section Reach In Refrigerator, 1 Right Hinge Solid Door, 115v |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,716.44 / Each | $5,837.00 / Each | $4,822.05 / Each | $5,837.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | Typically ships in 4 - 8 Business Days | Typically ships in 3 - 4 weeks | |
| Rating | Spec | Better | Better | Better |
| Cubic Feet | 23.2 | 23.43 | 21.17 | 23.43 |
| Width (in) | 27.5 | 29.88 | 26 | 29.88 |
| Doors | Full | Full | Full | Full |
| No. of Doors | 1 | 1 | 1 | 1 |
| Door Type | Solid | Solid | Solid | Solid |
| Type | Reach In | Reach In | Reach In | Reach In |
| Sections | 1 | 1 | 1 | 1 |
| Compressor Location | Top | Top | Top | Top |
| Depth (in) | 33.75 | 35 | 33.63 | 35 |
| Hinge Configuration | Right | Right | Right | Left |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Special Features | Casters Included - Uninstalled | Casters Included - Uninstalled | Casters Included - Uninstalled | Casters Included - Uninstalled |
| Height (in) | 77.75 | 83.44 | 85 | 83.44 |
| Series | Spec Series® | Dealer's Choice | Horizon Series | Dealer's Choice |
| Warranty | 7-year Parts & Labor; 7-year Compressor | 6-year Parts & Labor; 7-year Compressor | 7-year Limited Parts & Labor; 7-year Compressor Parts | 6-year Parts & Labor; 7-year Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It identifies the unit as a Spec Series model built with full stainless steel interior and exterior construction.
It's a single-section refrigerator with one solid swing door.
The model features an electronic temperature control with digital display for precise monitoring.
The cabinet holds approximately 25 cubic feet of refrigerated storage.
Three adjustable, heavy-duty wire shelves are included for flexible product placement.
The cabinet measures roughly 27 in. W x 33 in. D by 78 in. H.
Ensure clearance at the top, rear, and sides for condenser ventilation and service access.
The compressor is mounted at the top of the cabinet.
Yes. The magnetic door gaskets are removable for cleaning or replacement.
This model has one full-height solid door.
Yes. It plugs into a standard outlet with a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
Yes. Casters are included for repositioning or cleaning access.
It has a stainless steel interior and exterior for durability and simplified cleaning.
It has one section and one door.
An electronic temperature controller with a digital display maintains and shows the cabinet temperature.
This unit provides 25 cu. ft. of refrigerated storage in one section.
Yes. It comes with three heavy-duty adjustable wire shelves.
This unit measures 27 in. W x 33 in. D x 78 in. H.
This reach-in fits restaurants, bars, cafes, and prep areas needing concealed refrigerated storage.
It maintains a holding temperature range from 33-38° F.
