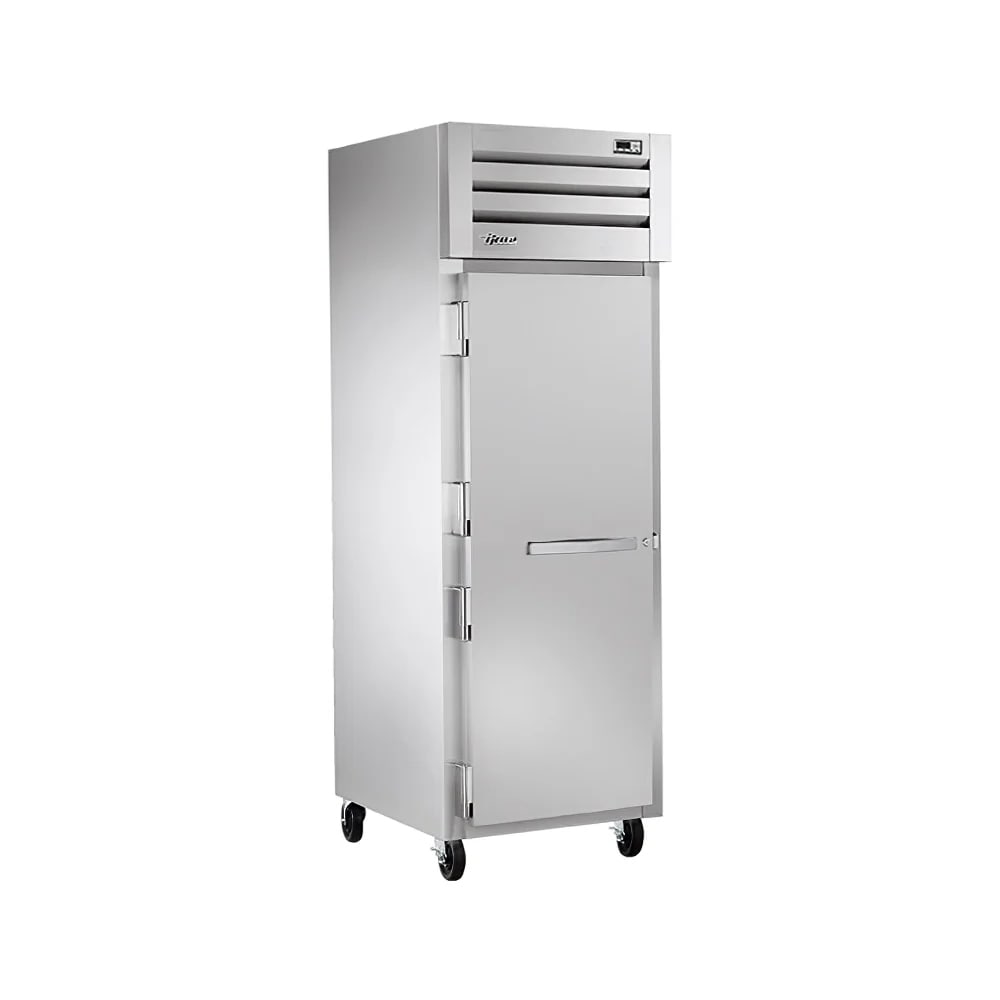

True STG1R-1S-HC 28" One Section Reach In Refrigerator, (1) Left Hinge Solid Door, 115v

The True STG1R-1S-HC SPEC SERIES® reach-in refrigerator has a top-mount refrigeration system to reduce unauthorized tampering and keep it from pulling dirt and dust into the condenser and evaporator. Maintaining temperatures from 33 to 38 degrees Fahrenheit, R290 hydrocarbon refrigerant is used through a capillary tube system, and the digital display on the exterior enables users to monitor temperatures. Its evaporator is epoxy coated to resist corrosion.

The compressor fan motor in this unit blows in reverse for 20 seconds when it starts up, attempting to eliminate any collected dust, dirt, or debris from the condenser coil. This mechanism reduces energy use, improves refrigeration system efficiency, and keeps the storage temperatures as cold and consistent as possible. This reversing fan technology extends the lifespan of the unit, but it doesn't eliminate the need for routine preventative maintenance.

This model has a left-hinged, stainless steel door, matching the entire stainless steel front of the unit. Its sides and interior are made of aluminum, though the interior has a stainless steel floor and ceiling. Inside, three PVC-coated wire shelves maximize storage space for product, while the polyurethane insulation is foamed in place to seal in cold air. A magnetic gasket around the door seals in cold air and prevents leaks, while the door has a 120-degree, stay-open feature to prevent it from closing on the user during loading and unloading. The True STG1R-1S-HC one-section refrigerator has 5-inch castors to aid in installation and LED lights to illuminate the interior.

Product Details

• Part of the SPEC SERIES
• Stainless steel door and front with aluminum sides
• Aluminum interior walls and back resist corrosion
• Interior stainless steel ceiling and floor simplify cleaning
• 3 PVC-coated wire shelves maximize storage space
• Foamed-in-place polyurethane insulation seals in cold air
• Stay-open feature keeps the door open at 120 degrees to assist product loading
• Left-hinged door opens on the right
• Removable, magnetic door gaskets seal the door
• LED interior lights illuminate products
• 5-in. castors have front locks for mobility
• Pre-wired at factory

Self-contained Refrigeration System

• Self-contained capillary tube system cools using R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F
• Evaporator and condenser fan motors reduce heat production to conserve energy
• Reversing fan motor brushes dust and debris buildup from condenser coil
• Top mounted to remove the evaporator from the food zone
• Exterior temperature display can be monitored by operators
• Evaporator is coated in epoxy for corrosion resistance

Dimensions & Utilities

• 27¹⁄₂ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 3.8 A ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

From The Manufacturer

SPEC SERIES® Refrigerator, reach-in, one-section, (1) stainless steel door with lock, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Not as Shown - Left Hinge

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
