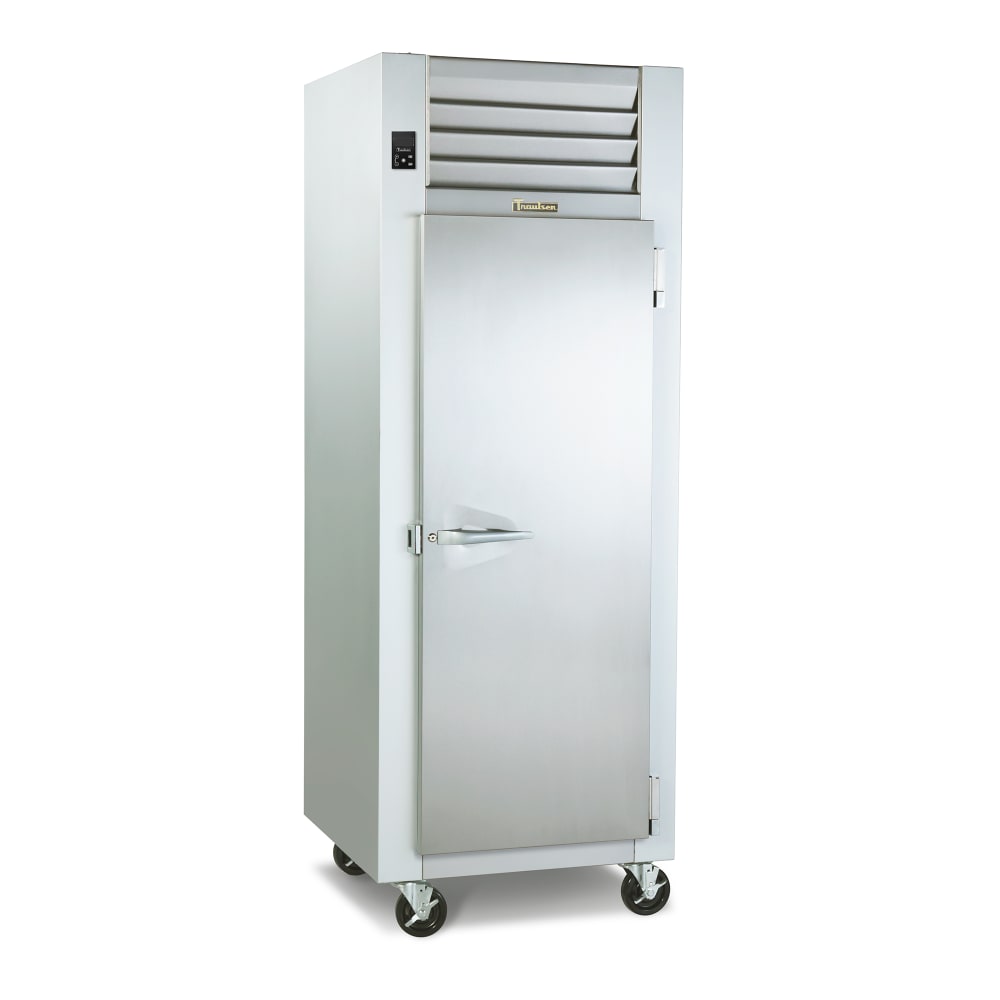

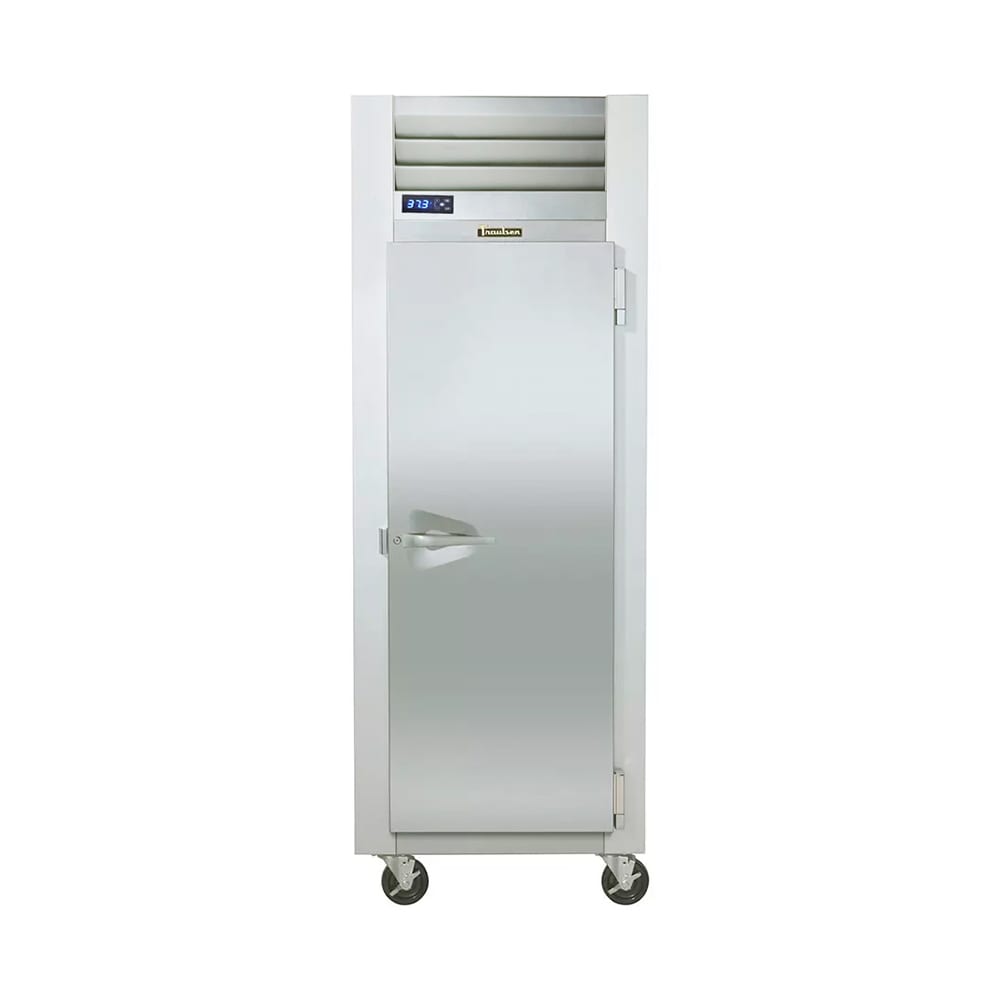

Traulsen G10010 29 7/8" One Section Reach In Refrigerator, 1 Right Hinge Solid Door, 115v
Typically ships in 4 - 8 Business Days
$5,837.00 /Each
Attention: Order by 12-01-2026 to save before the price increases!
Traulsen G10010 Description

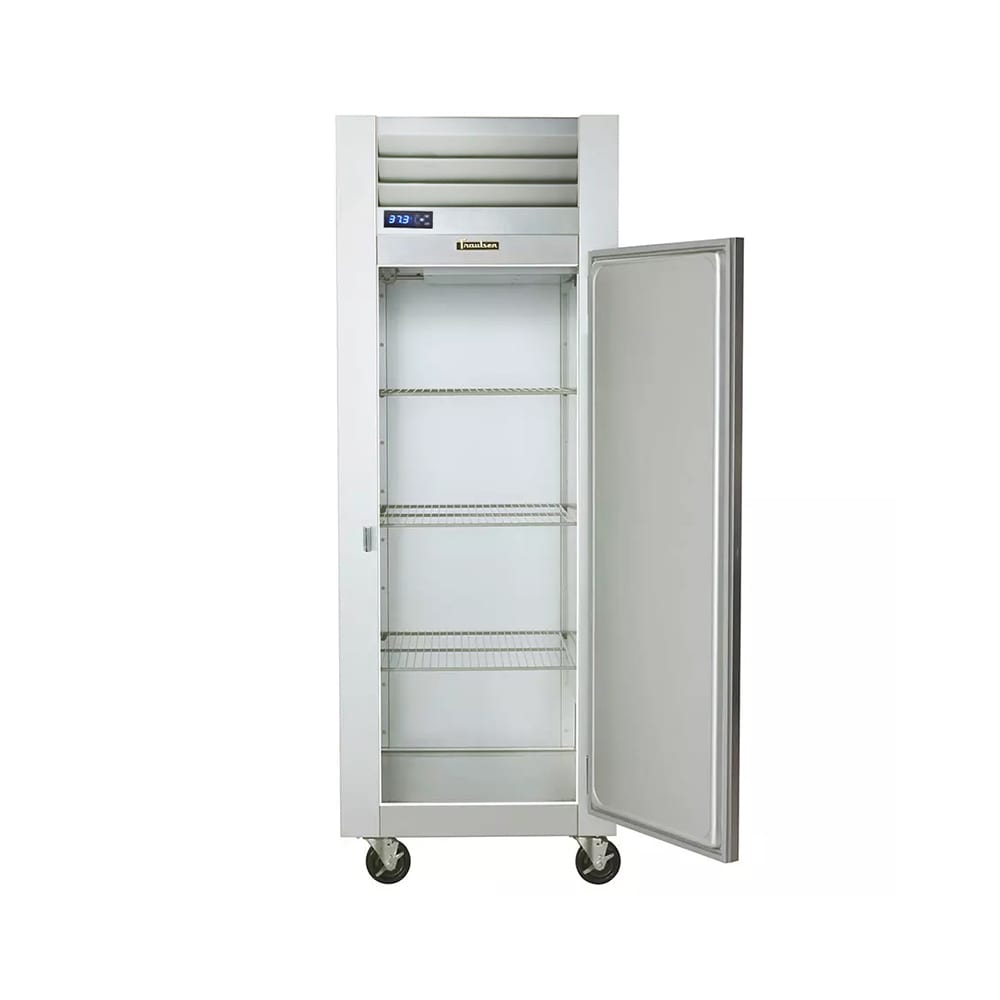

The Traulsen G10010 one-section reach-in refrigerator has three shelves in its cabinet, and because they are epoxy coated, they resist corrosion. Product stored on these shelves should be placed more than 2 inches from the wall, but Load-Sure guards ensure air can flow all around the stored items. LED lighting in the unit enhances visibility so users can find what they are looking for. Solid with a stay-open feature that activates at 120 degrees, this door has gaskets that seal in cold air and can be removed for cleaning.
The temperature in this Traulsen G10010 single-section reach-in refrigerator stays between 34 and 38 degrees Fahrenheit; the operator can set this level to suit specific applications on the microprocessor control. This control system is resistant to damage from water and has an LED display that shows the temperature in Fahrenheit or Celsius. Self-contained, the refrigeration system is mounted on top of the unit. With this design, all the parts are built together and accessible for servicing behind the louver assembly. The evaporator sits out of the food zone, so it does not take up space where product can be stored.
- 23.43-cu.-ft. interior space

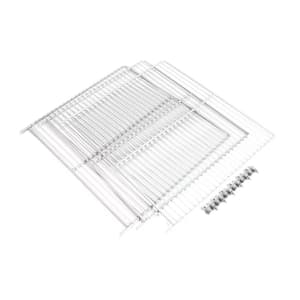

- 3 epoxy-coated shelves
- Load-Sure guard keeps 2 in. of space between product and the walls to prevent it from blocking airflow
- LED lighting in the cabinet increases product visibility
- All-metal construction includes the aluminum interior and sides and stainless steel front and doors
- Door has a stay-open design at 120 degrees for product stocking
- EZ Clean door gasket has a long-lasting design
- 2-in.-thick polyurethane insulation provides structural strength
- (4) 6-in. locking casters
- 1,650 BTU
- Requires 12-in. top clearance
- Part of the G-Series
- Temperature holding range: 34-38 degrees F
- Water-resistant microcompressor control system
- 3-digit LED display shows the temperature in Fahrenheit or Celsius
- Uses R290 refrigerant
- Mounted on top, away from debris on the floor
- Evaporator coil outside the food zone maximizes usable storage space
- Accessible behind the 1-piece louver assembly
- Front-facing condenser coil is accessible for cleaning
- Doors: 21 1⁄8 in. W x 57 5⁄8 in. H
- Overall: 29 7⁄8 in. W x 35 in. D x 83 7⁄16 in. H
- 4.9 A, 1.76 kW, 1⁄5 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen G10010 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Traulsen G10010 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Additional Info | Contact Customer Service for Additional Information; model available with R290 refrigerant as 206-G10010032 |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 23.43 |
| Depth (in) | 35 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Expansion Valve |
| Height (in) | 83.44 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Number of Shelves | 3 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Dealer's Choice |
| Special Features | Casters Included - Uninstalled |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 29.88 |
| Weight | 350.00 |
Important Prop 65 information for California residents.
- Traulsen G10010032
- 5
- 4
- 3
- 2
- 1
Review this product!
The cabinet maintains temperatures from 34-38°F temperatures.
Yes. The top-mounted system stays above floor dust and grease.
The cabinet includes 23.43-cu.-ft. interior capacity.
Yes. A stay-open feature activates past 120°.
The Load-Sure™ guard keeps products 2 in. from walls.
Yes. The EZ-Clean™ gaskets remove for cleaning.
A 12-in. top clearance supports service access.
The refrigeration system uses R290 refrigerant.
This unit provides 23.43 cu. ft. of refrigerated storage in one section.
This unit measures 29 7⁄8 in. W x 35 in. D x 83 7⁄16 in. H.
This model has one full-height solid door.
Yes. It plugs into a standard outlet with a NEMA 5-15P plug.
It maintains a holding temperature range from 34-38° F.
The compressor is mounted at the top of the cabinet.
Yes. The door stays open past 120° for loading.
Yes. The Load-Sure™ guard keeps products 2 in. from the cabinet walls.
Yes. The EZ-Clean™ door gaskets are removable for cleaning.
It uses R290 hydrocarbon refrigerant.
Yes. Casters are included for repositioning or cleaning access.
This reach-in fits restaurants, bars, cafes, and prep areas needing concealed refrigerated storage in a compact upright cabinet.
It has one section and one door.
It comes with three shelves for organizing refrigerated items.
