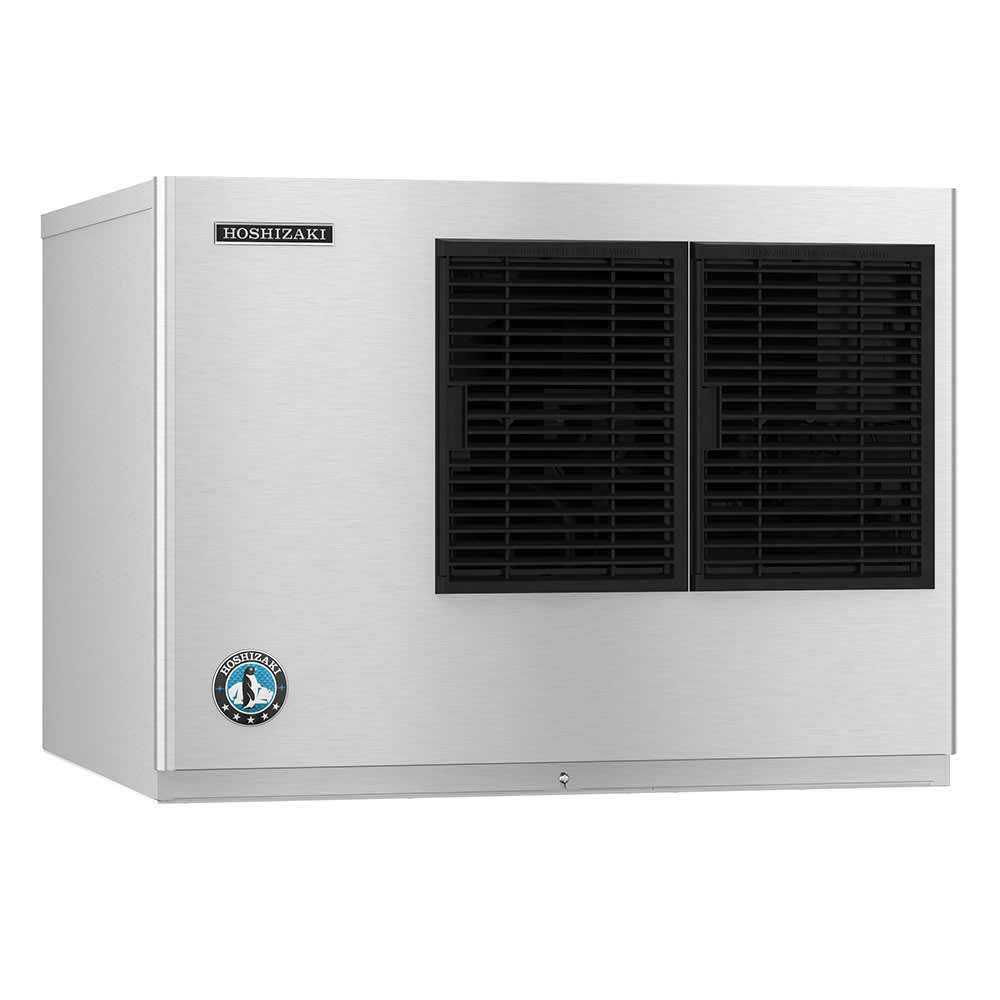

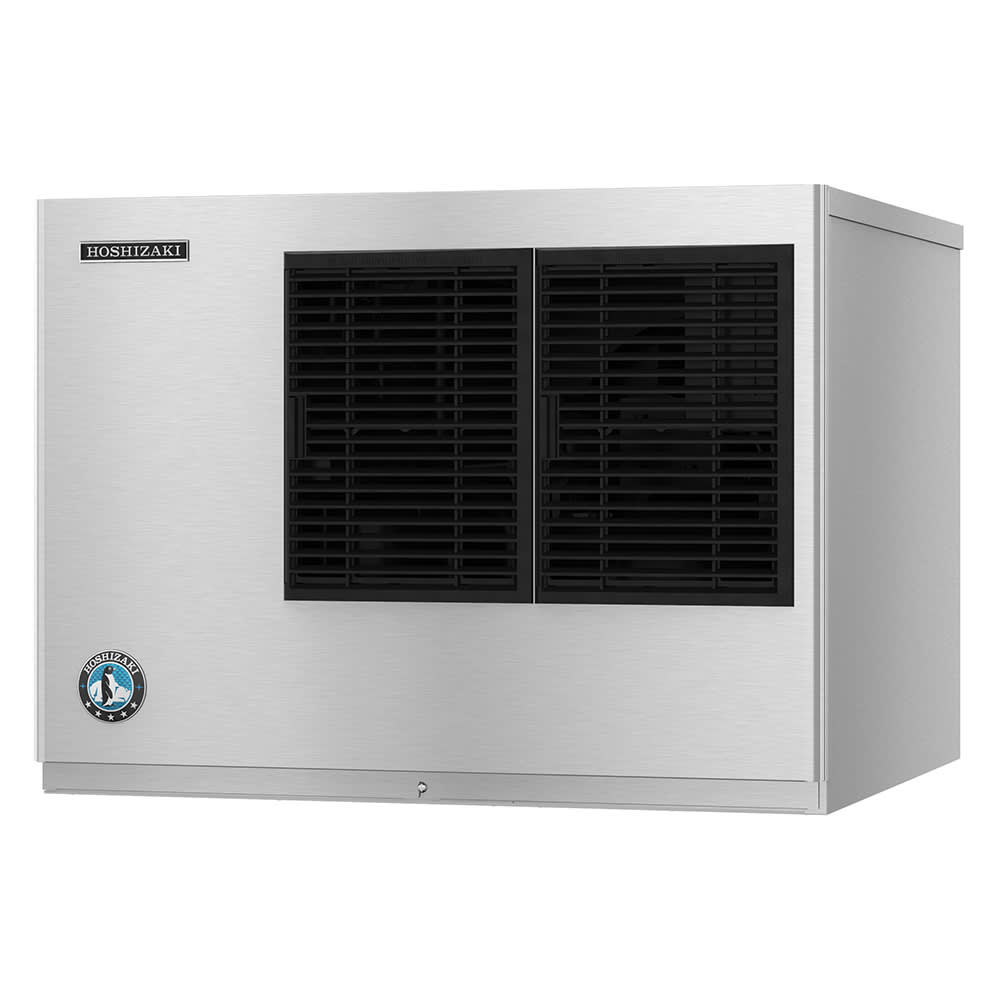

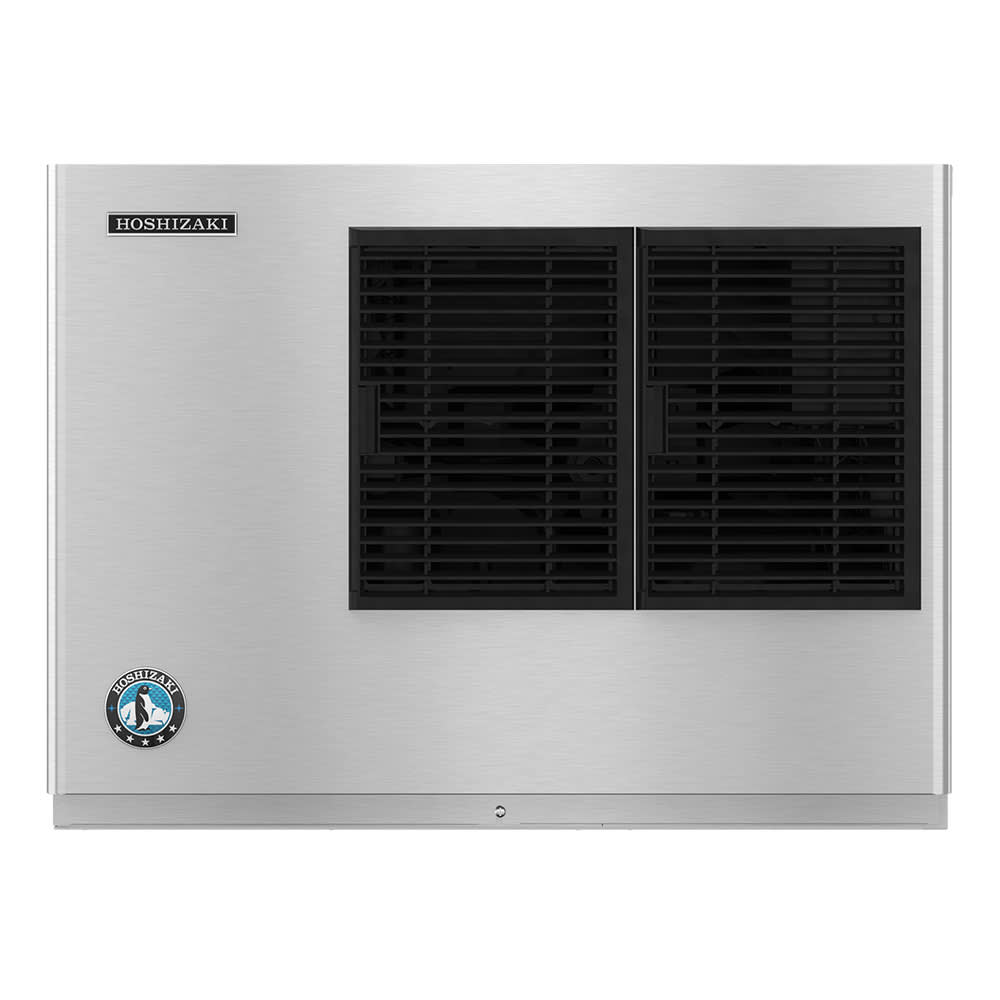

Hoshizaki KML-325MAJ Description
Depending on air and water temperature, the Hoshizaki KML-325MAJ crescent cube ice machine head can make 380 pounds of crescent cube ice, functionally comparable to half-cube ice, in 24 hours. With CycleSaver™ technology, it produces the same amount of ice in half the time as most comparable units. The condenser is air cooled and the unit has a EverCheck™ alert system that detects issues, so it is easy to service. To slow down bacteria growth in food zone areas, H-Guard Plus® protection is built into the Hoshizaki KML-325MAJ crescent cube ice machine head. Constructed of stainless steel, the exterior is durable, corrosion resistant, and easy to clean.
Product Details
- Produces 380 lbs. of ice in 24 hrs. with 70-degree F air temperature and 50-degree F water temperature
- Produces 300 lbs. of ice in 24 hrs. with 90-degree F air temperature and 70-degree F water temperature
- CycleSaver design makes the same amount of ice as other units in half the time

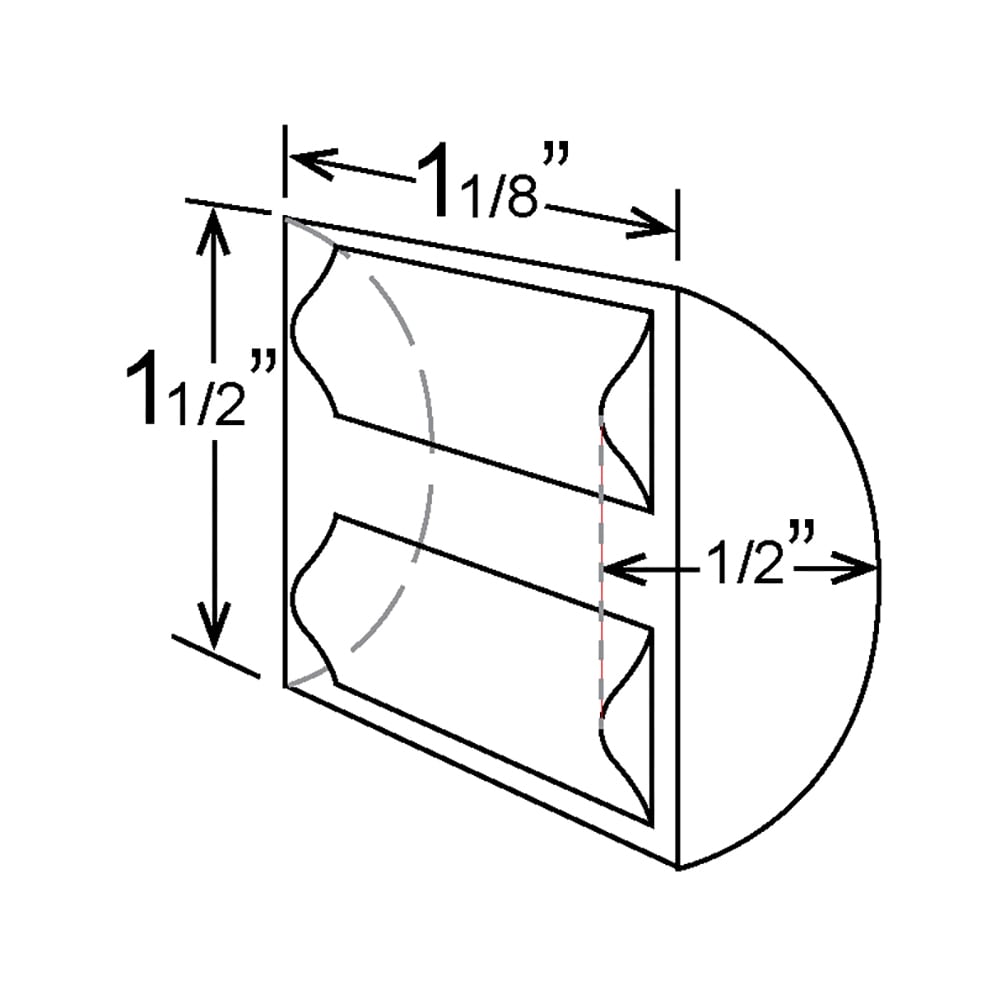

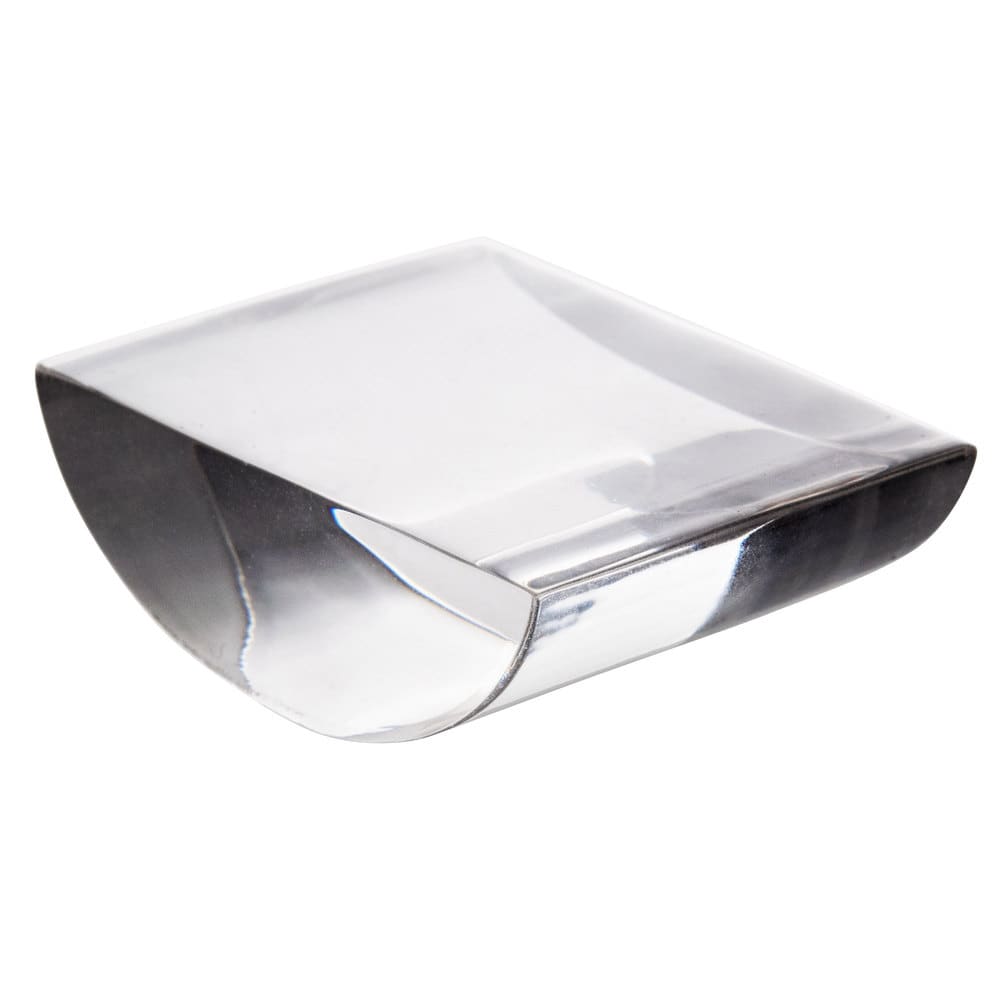

- 11⁄8-in. x 11⁄2-in. x 1⁄2-in. crescent cube ice is ideal for non-blended drinks and dispensing applications
- Air-cooled system is easy to install and service
- R-404A refrigerant maintains cold temperatures
- EverCheck alert system helps detect issues while providing service
- H-Guard Plus antimicrobial protection slows down bacteria growth
- Corrosion-resistant stainless steel exterior is heavy duty
- 115 V/60 Hz/1 ph, 8.4 A, 5.72 kW
- Overall Dimensions: 30 in. W x 273⁄8 in. D x 22 in. H
- UL listed; NSF certified
Operating Requirements
- Ambient air temperature should range 45-100 degrees F
- Water temperature should range 45-90 degrees F
- Water pressure should be 10-113 PSIG
- Requires 6 in. of clearance at the top, rear, and sides for maintenance access and air circulation
Product Features
Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 380 lb/24 hours at 70°/50° (300 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 8.4 amps, NSF, UL
Important Prop 65 information for California residents.
Hoshizaki KML-325MAJ Specifications
PDF Spec Sheet| Manufacturer | Hoshizaki |
| Ice Type | Crescent Cube |
| Warranty | 3-yr parts & labor; 5-yr parts & labor on evaporator; 5-yr parts on compressor & air-cooled condenser |
| Voltage | 115 |
| Compressor Type | Air Cooled |
| Hertz | 60 |
| Phase | 1 |
| Product Type | Ice Makers & Bins |
| Width (in) Range | 30 - 39 |
| Recommended Bins | B-250PF, B-300PF, B-300SF, B-500PF, B-500SF, B-700PF, B-700SF, B-800PF, B-800SF, B-900PF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS, DB-200H |
| Depth (in) | 27.4 |
| Width (in) | 30 |
| Production Range (per day) | 100-999 lb |
| Product | Ice Machine Head |
| Special Features | CycleSaver™ |
| 24 Hr. Production (lbs) | 380 |
| Height (in) | 22 |
| Weight | 185.00 |
