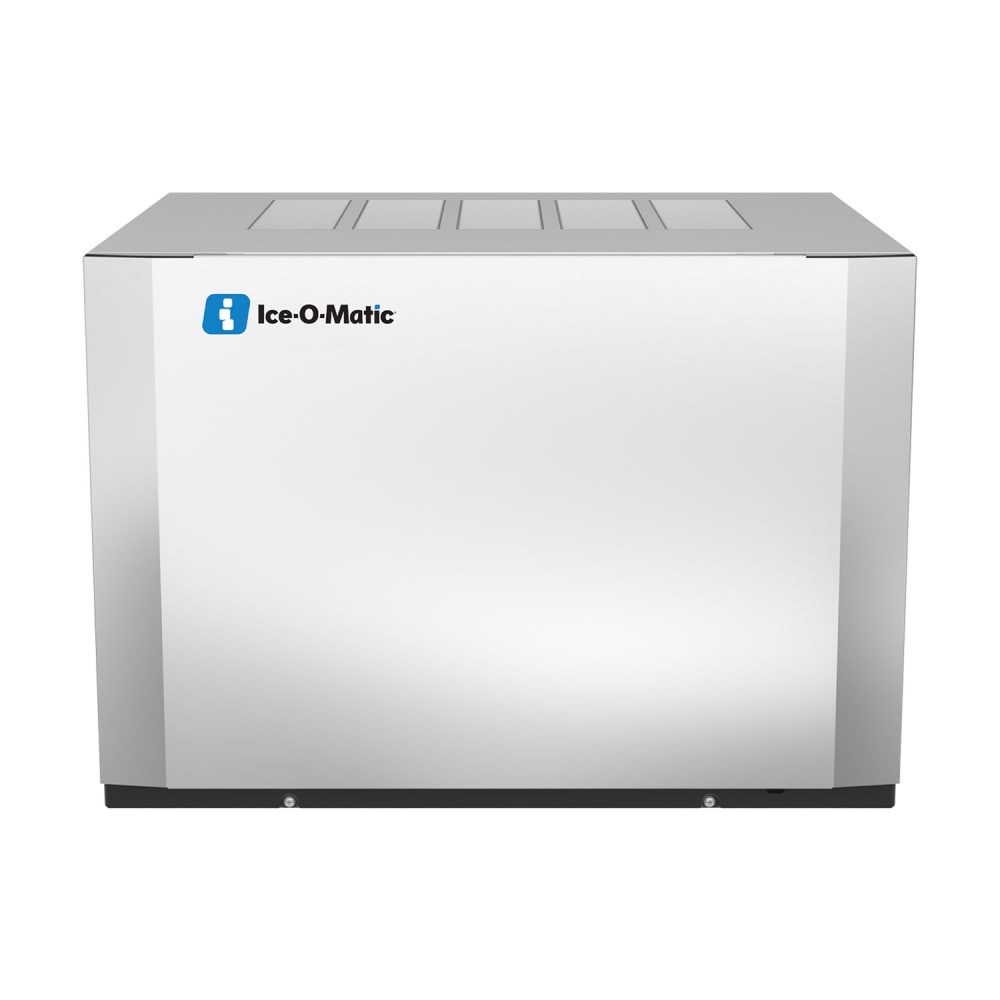

Ice-O-Matic CIM0330HA 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 313 lb/24 hr, Air Cooled, 115v/1ph

The Ice-O-Matic CIM0330HA Elevation™ modular cube ice maker has an LED status display that alerts the operator when cleaning is required. One-touch controls for sanitizing and descaling help employees clean the unit more efficiently, while built-in Agion® antimicrobial protection slows bacteria growth in the food zone. The plastic food zone is also made without crevices, so it can easily be wiped down, and the snap-in and snap-out components can be placed in the dishwasher.

The condenser on this unit is air cooled and self-contained. This ice maker can be installed virtually anywhere because it is designed with dual exhaust technology, which allows hot air to be discharged from the top or from the side of the unit. Installing and servicing the unit is easy thanks to the Universal Smart Harness™ control board, which has a common configuration, digital diagnostics, and universal components. The Ice-O-Matic CIM0330HA Elevation modular cube ice maker makes up to 305 pounds of half-size ice cubes in 24 hours.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Makes ³⁄₈-in. x ⁷⁄₈-in. x ⁷⁄₈-in. half-cube ice
• Produces up to 305 lbs. of ice in a 24-hr. period at 70 degrees F (ambient air)
• Produces up to 230 lbs. of ice in a 24-hr. period at 90 degrees F (ambient air)
• Self-contained condenser uses air to cool the refrigerant
• Hot air can be discharged from the top or side with dual exhaust technology
• Universal Smart Harness control board makes the unit easy to install and service with universal components, digital diagnostics, and common configuration
• Plastic parts are free of BPA and recyclable
• Keeps cool with R-404A refrigerant
• 115 V/60 Hz/1 ph, 11 A, 6.69 kW, 4400 BTU
• Overall Dimensions: 30¹⁄₄ in. W x 24¹⁄₄ in. D x 21¹⁄₄ in. H

Easy to Clean

• LED status display indicates when cleaning is needed
• One-touch controls make the unit easy to sanitize and descale
• Agion antimicrobial protection slows the growth of bacteria
• Crevices are eliminated in the food zone so it is easy to wipe down
• Dishwasher-safe components snap in and out

Product Features

*Free shipping on Ice-O-Matic CIM0330HA within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts
