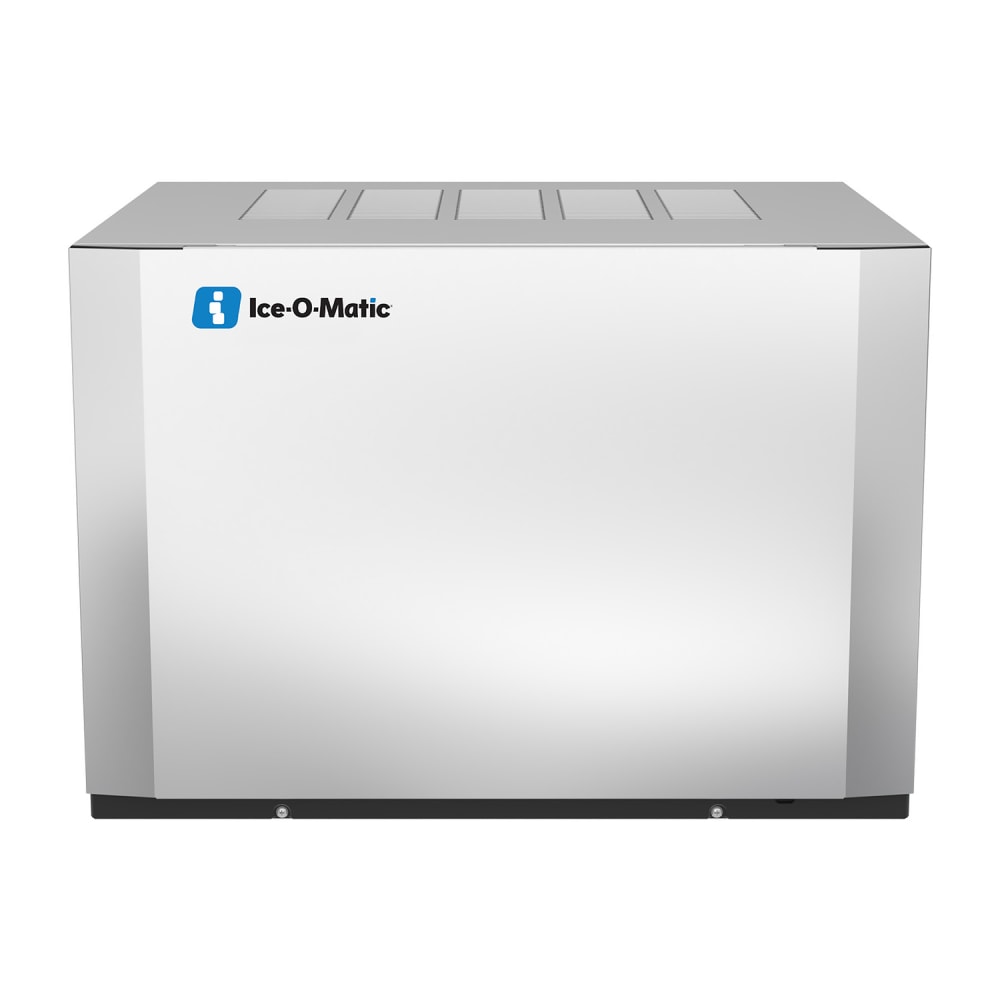

Ice-O-Matic CIM0330FA 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 316 lb/24 hr, Air Cooled, 115v/1ph

The Ice-O-Matic CIM0330FA Elevation™ modular cube ice maker produces up to 305 pounds of full-size cubes each day. These cubes measure ⁷⁄₈ inch by ⁷⁄₈ inch by ⁷⁄₈ inch and are commonly used in beverage service. The condenser is air-cooled and self-contained, which makes the unit easy to install and service. The versatile dual exhaust design allows hot air to be discharged from the top or the side, providing operators with flexible installation options.

To ensure the unit is given routine maintenance, an LED status display alerts the operator when the unit requires cleaning. The sanitization and descaling processes are also aided by one-touch controls that help operations save time and labor. Many of the Ice-O-Matic CIM0330FA Elevation modular cube ice maker's components can be cleaned in the dishwasher, and the ice maker's built-in antimicrobial protection slows the growth of bacteria to keep ice safe and fresh between cleanings.

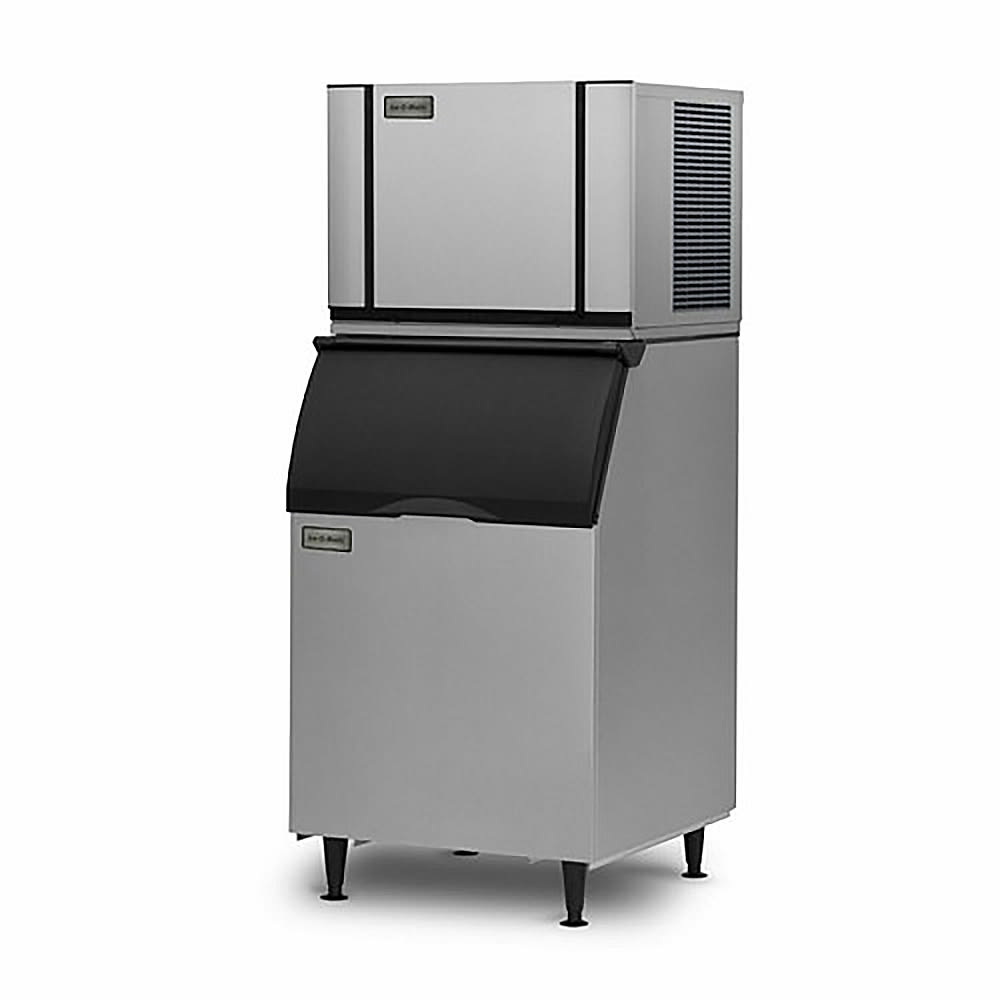

Note: This unit must be paired with an ice maker bin or ice dispenser (sold separately).

Product Details

• Makes full-size cubes measuring ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Produces up to 310 lbs. of ice in 24 hrs.
• Air-cooled, self-contained condenser is easy to service
• Dual exhaust allows hot air to discharge from the side or top, maximizing installation possibilities
• Universal Smart Harness™ control board is designed with universal components, digital diagnostics, and a common configuration
• Plastic parts are BPA free and recyclable
• Uses 20 gal. of water per 100 lbs. of ice produced
• Uses R-404A refrigerant to maintain cold temperatures
• 115 V/60 Hz/1 ph, 11 A, 6.69 kW, 4400 BTU
• Overall Dimensions: 30¹⁄₄ in. W x 24¹⁄₄ in. D x 21¹⁄₄ in. H

Easy to Clean

• Agion® antimicrobial protection is built in to slow bacteria growth
• LED status display indicates when cleaning is required
• Cleaning and servicing is simple with one-touch sanitizing and descaling controls
• Plastic food zone is easy to wipe clean since it does not have crevices
• Components are dishwasher safe

Product Features

*Free shipping on Ice-O-Matic CIM0330FA within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 316 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0330FA Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
