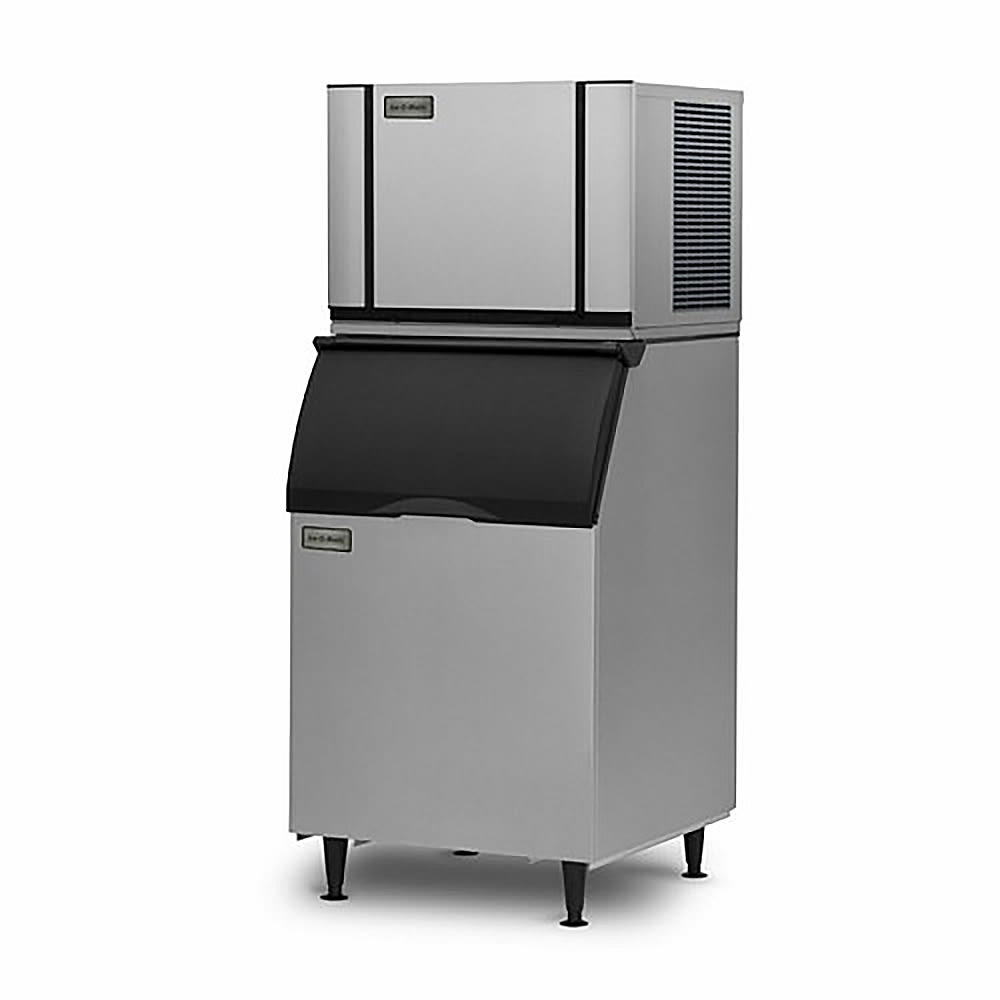

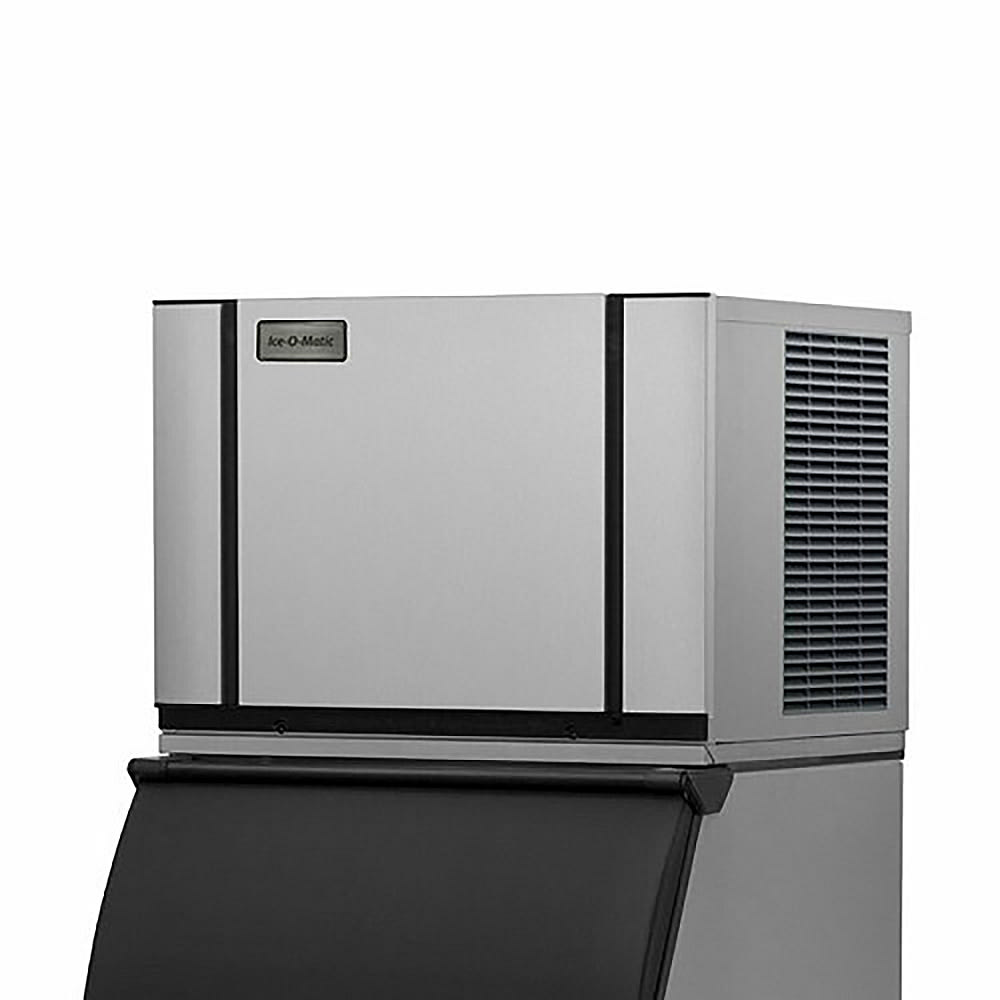

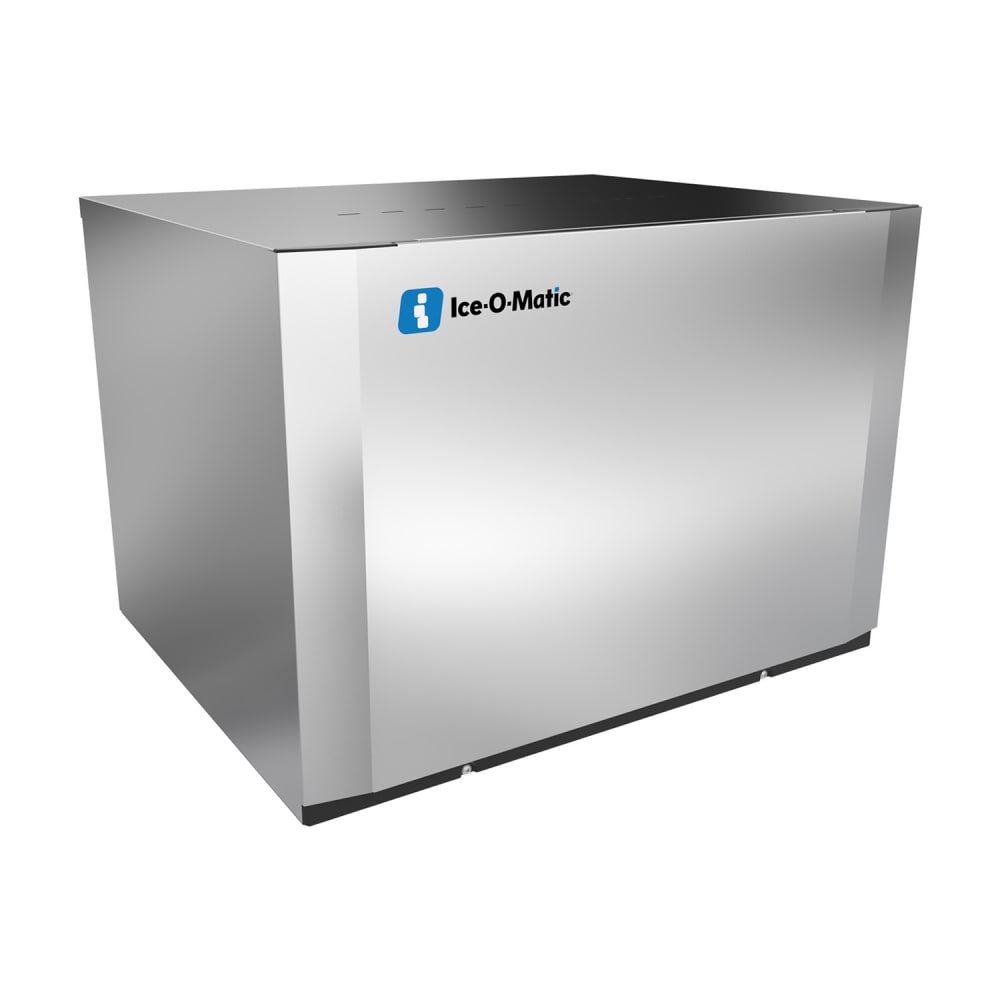

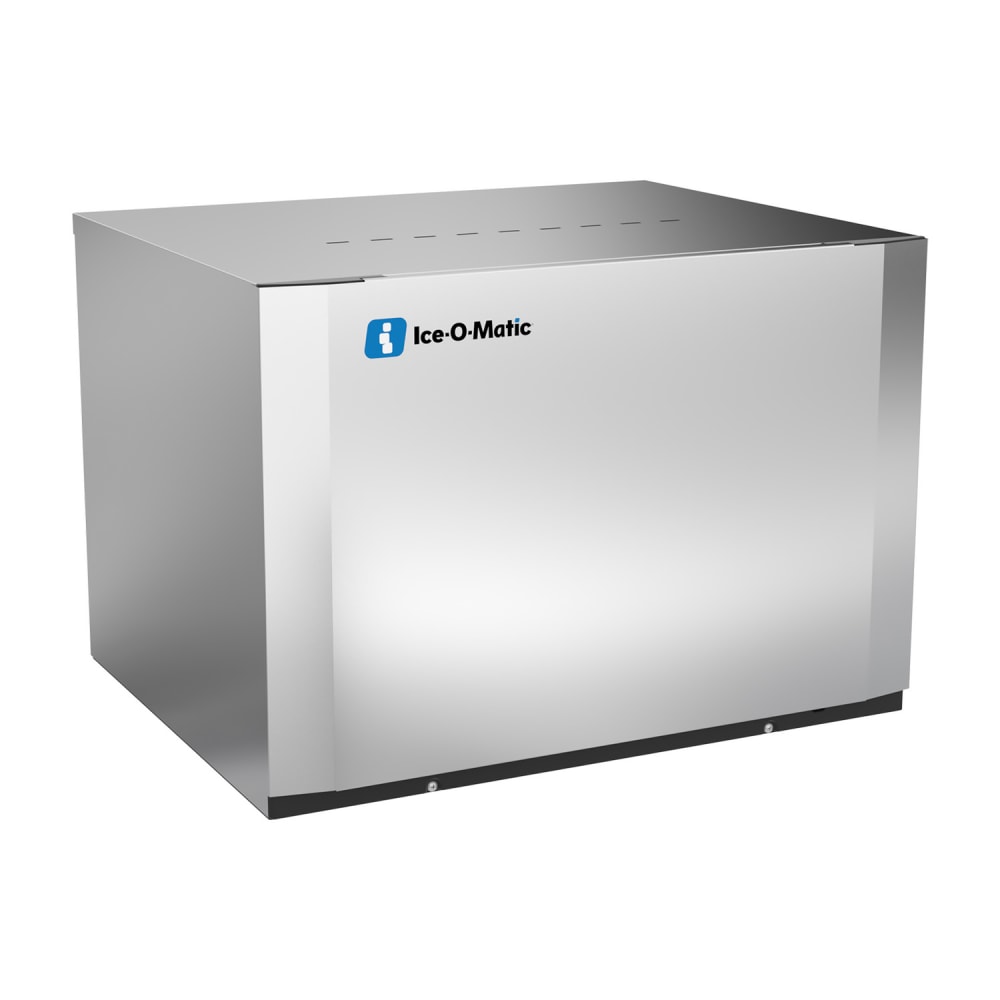

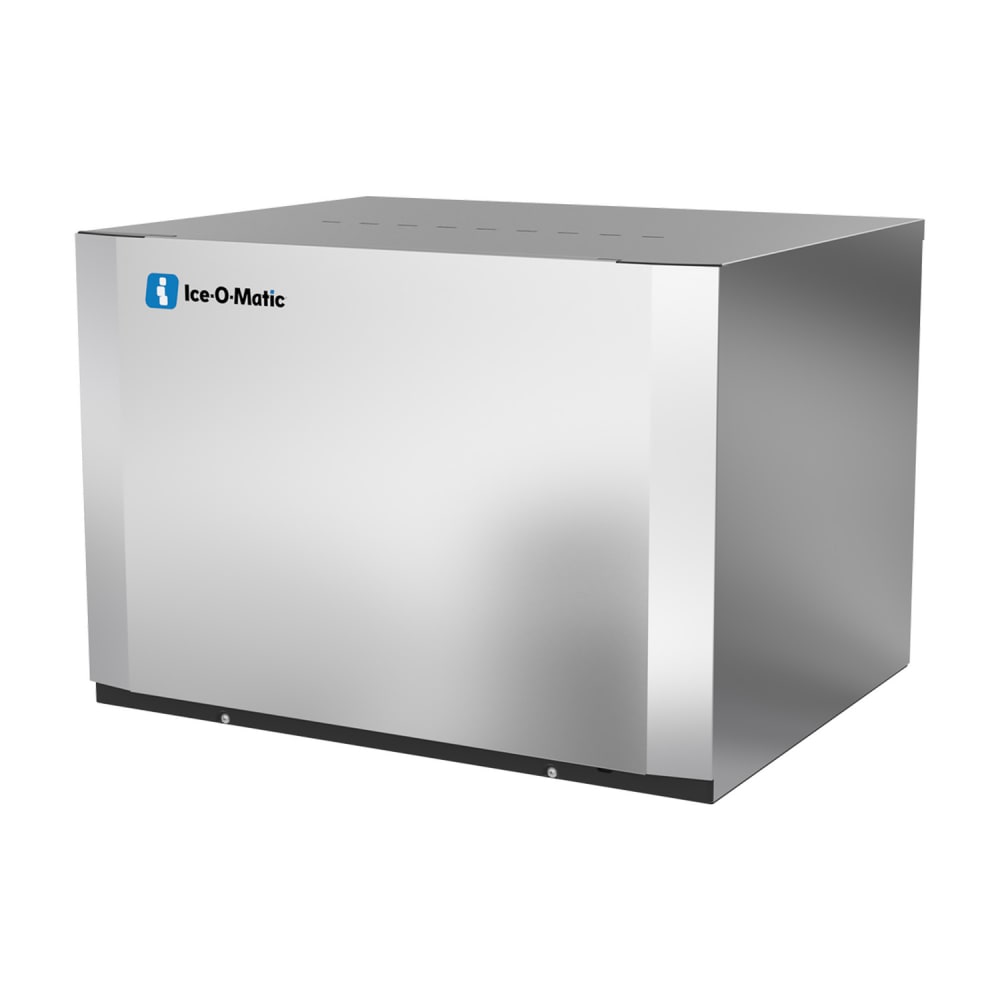

Ice-O-Matic CIM0330FW 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 316 lb/24 hr, Water Cooled, 115v/1ph

The Ice-O-Matic CIM0330FW ice maker produces full-size ice cubes at a maximum rate of 316 pounds per day in ideal conditions. Its LED display keeps users aware of status updates, and its one-touch controls simplify descaling and sanitizing. This unit is water cooled and features a self-contained condenser to streamline installation.

To defend against the growth of unsanitary bacteria, the Ice-O-Matic CIM0330FW ice machine head is protected with antimicrobial PURE ICE®. The components in the food zone can be removed and washed in a dishmachine to facilitate thorough cleaning. Because this unit discharges air from the top as well as the side, it can be installed in a variety of locations.

Product Details

• Part of the Elevation Series™
• 316-lb. maximum daily ice production
• 274-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• LED display provides status updates
• Water cooled
• Self-contained condenser

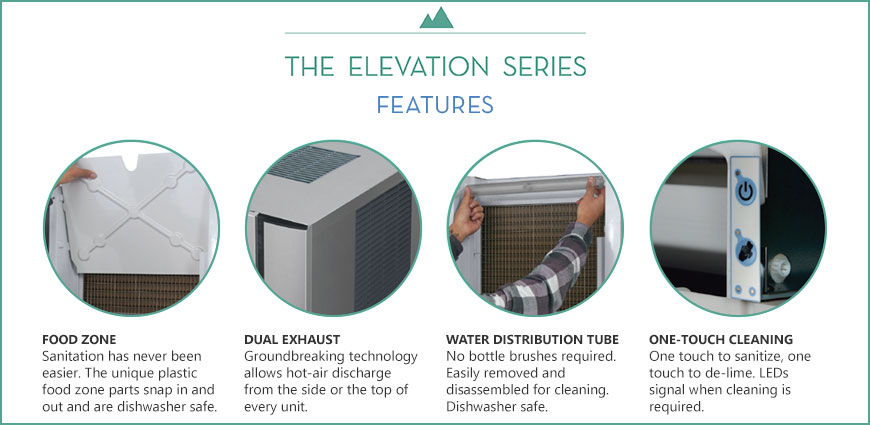

• Dual exhaust discharges from the top and side

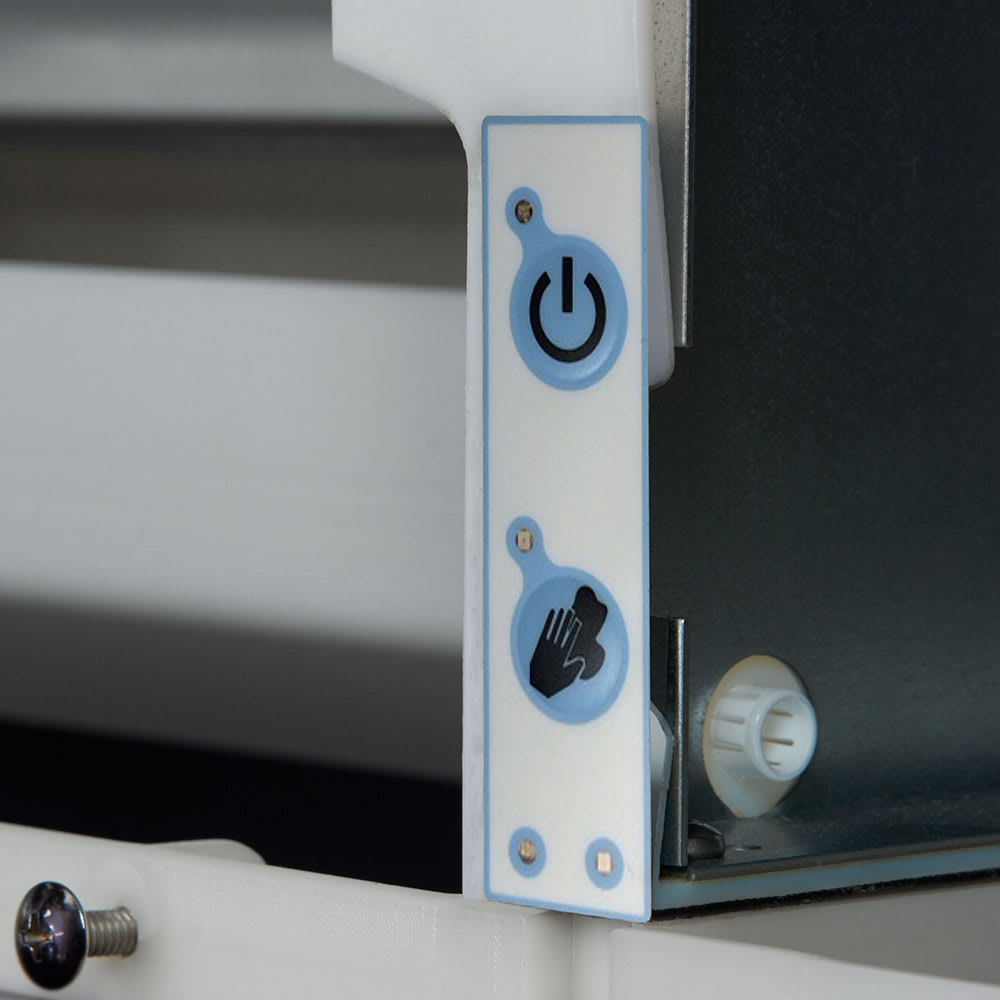

• 1-touch descaling and sanitizing

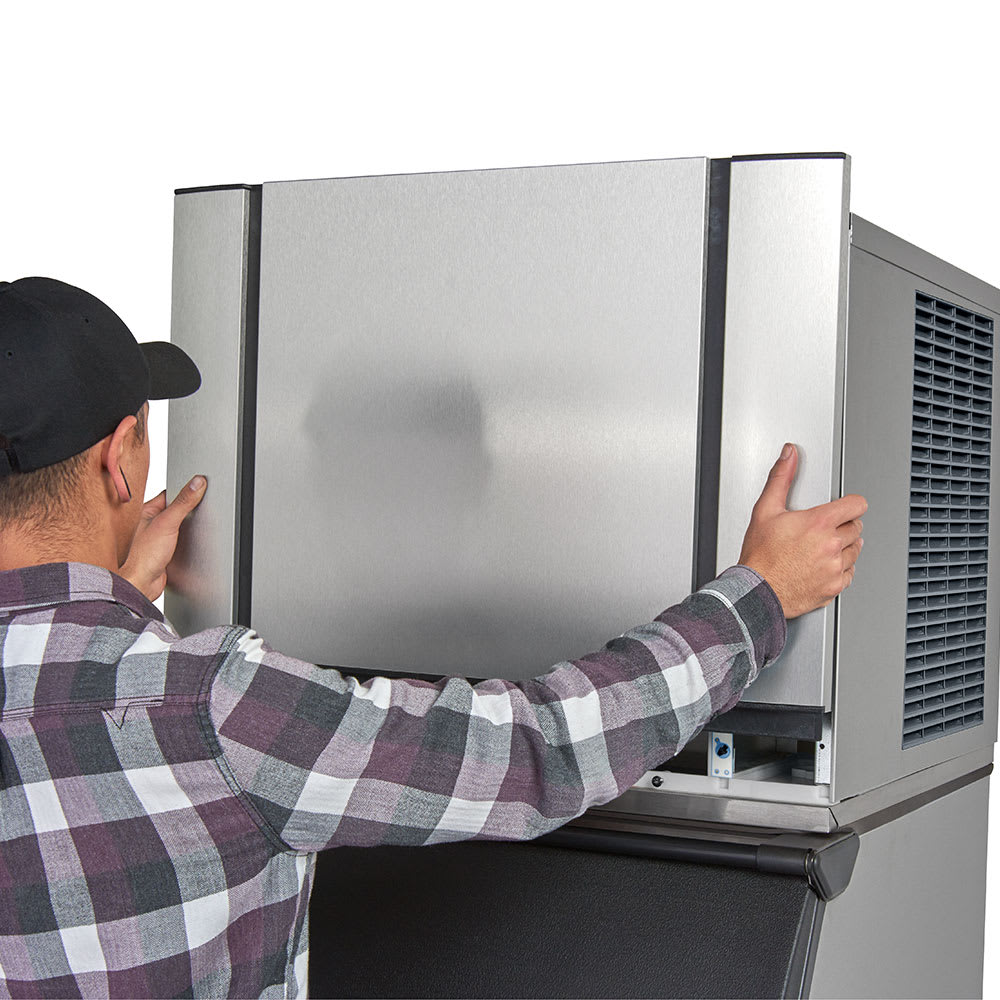

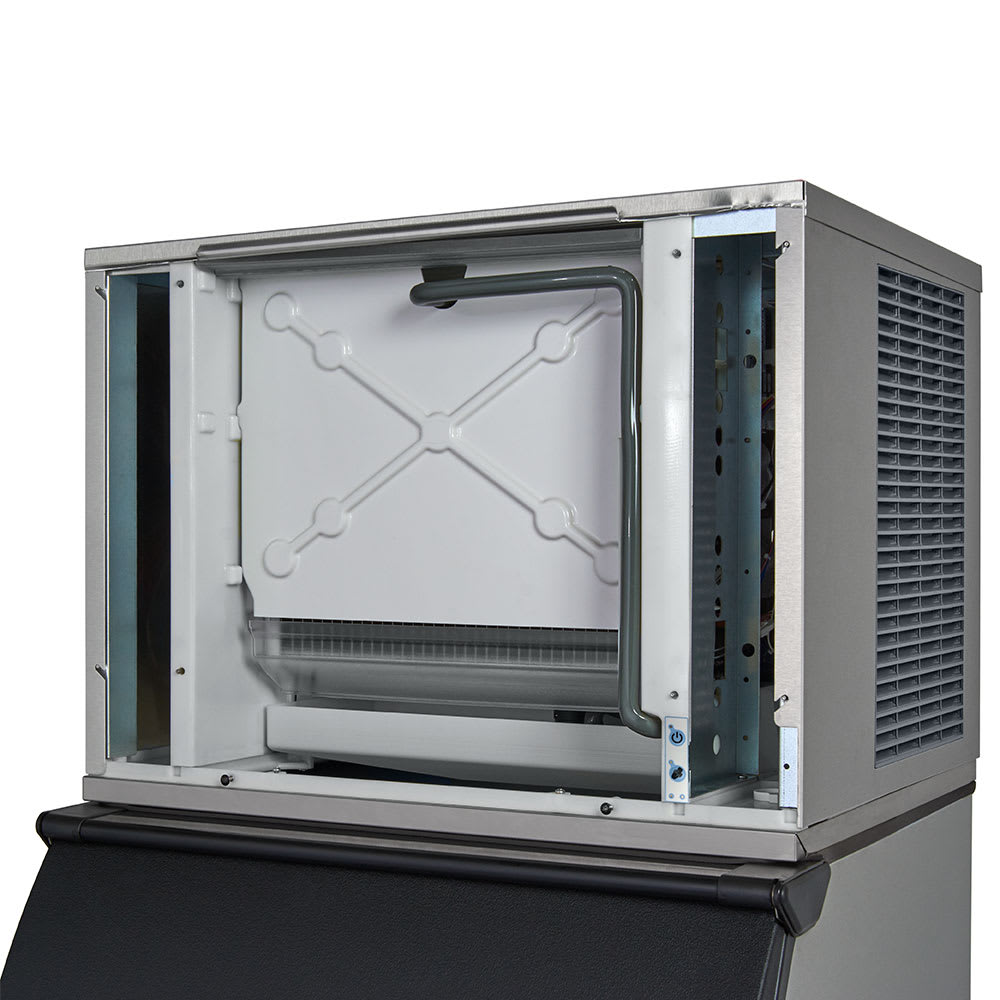

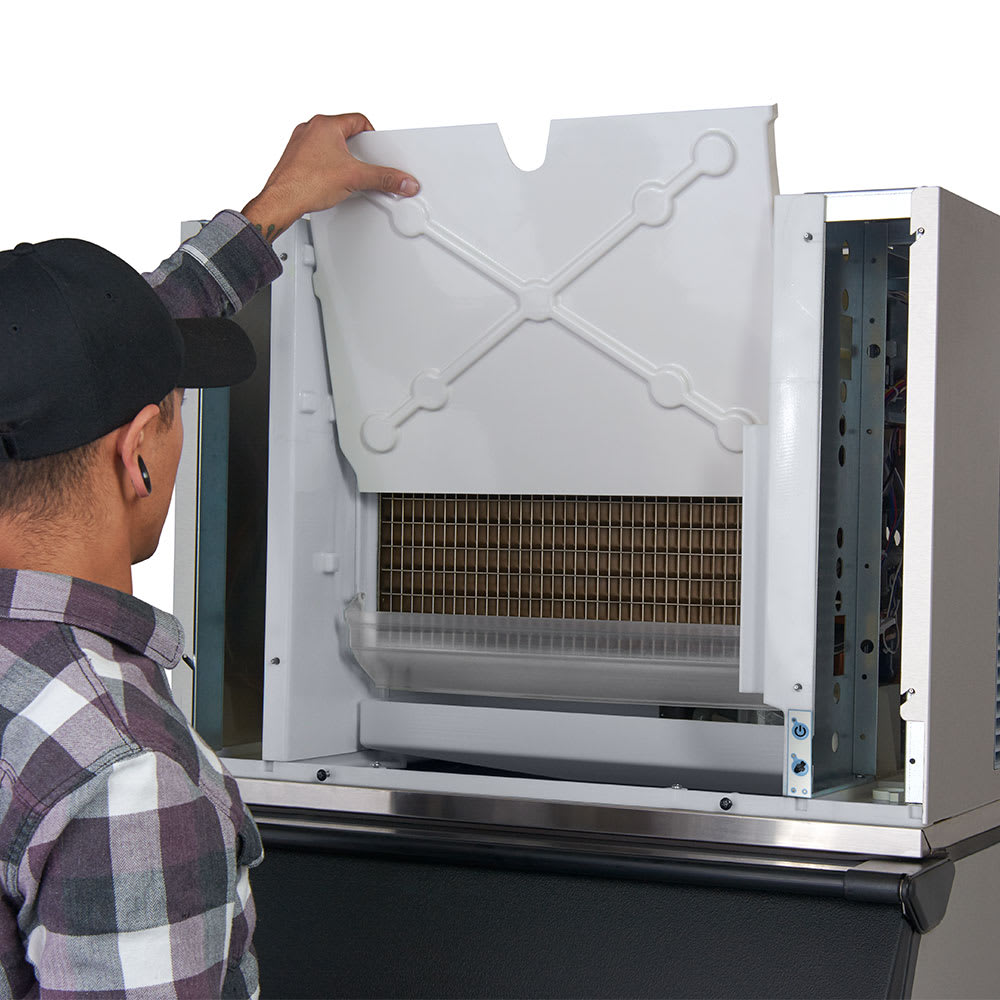

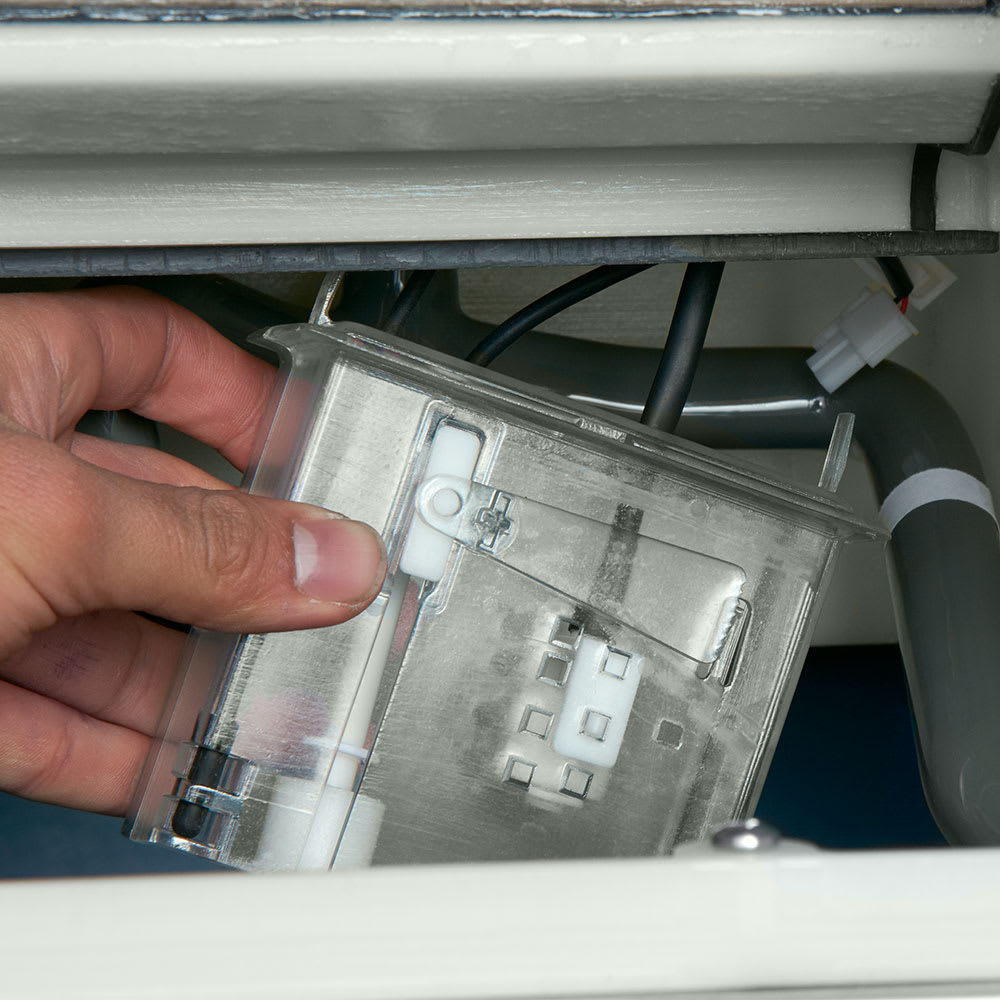

• Snap-out components are dishwasher safe
• PURE ICE agent inhibits microbial growth
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

Dimensions & Utilities

• 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• 10.7 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Ice-O-Matic CIM0330FW within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 316 lb production/24 hours at 70°/50° (274 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts
