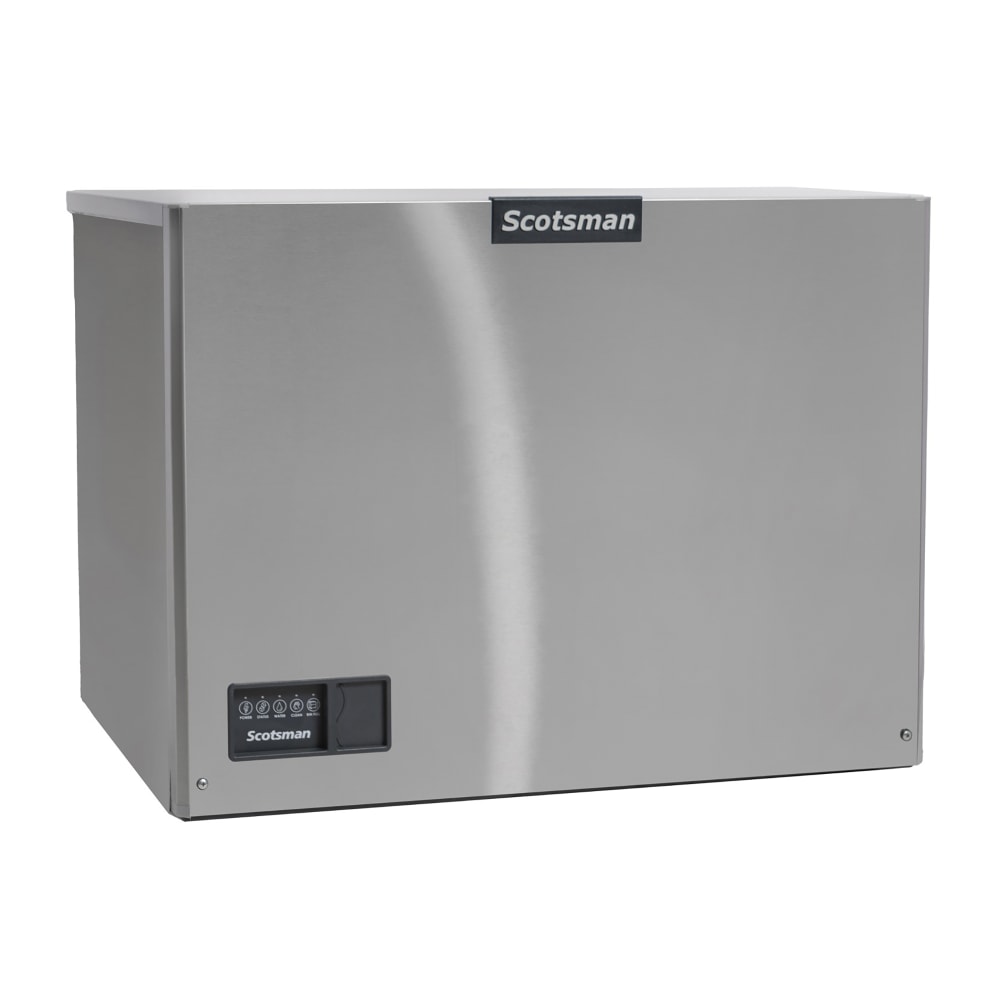

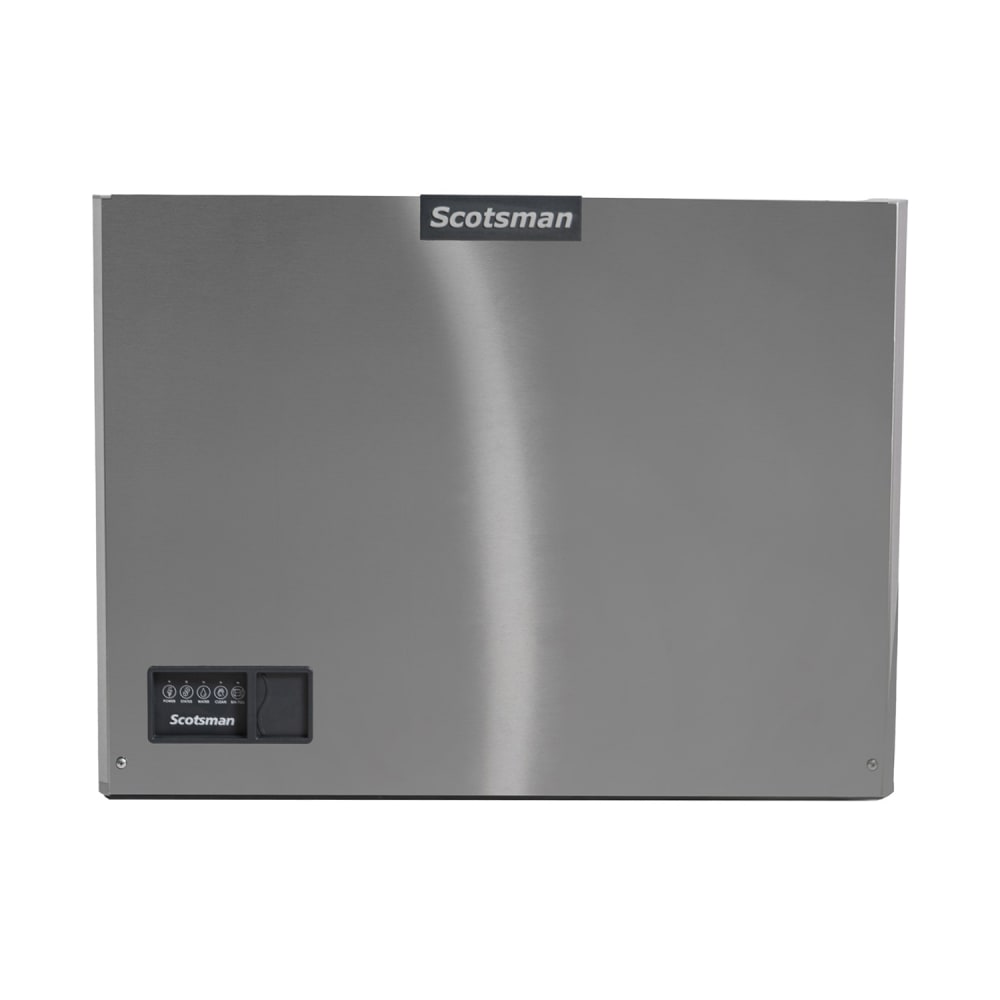

Scotsman MC0330MW-1 30" Prodigy ELITE® Full Cube Ice Machine Head - 420 lb/24 hr, Water Cooled, 115v/1ph

Producing as much as 420 pounds per day in ideal conditions, the Scotsman MC0330MW-1 Prodigy ELITE® ice maker produces medium cube ice. It’s water cooled and has a self-contained condenser to streamline installation. To defend against corrosion and simplify cleaning, it features a stainless steel finish with AgION™ antimicrobial protection. The self-aligning front panel provides access to key components, and scale is removed from the unit with WaterSense adjustable purge control.

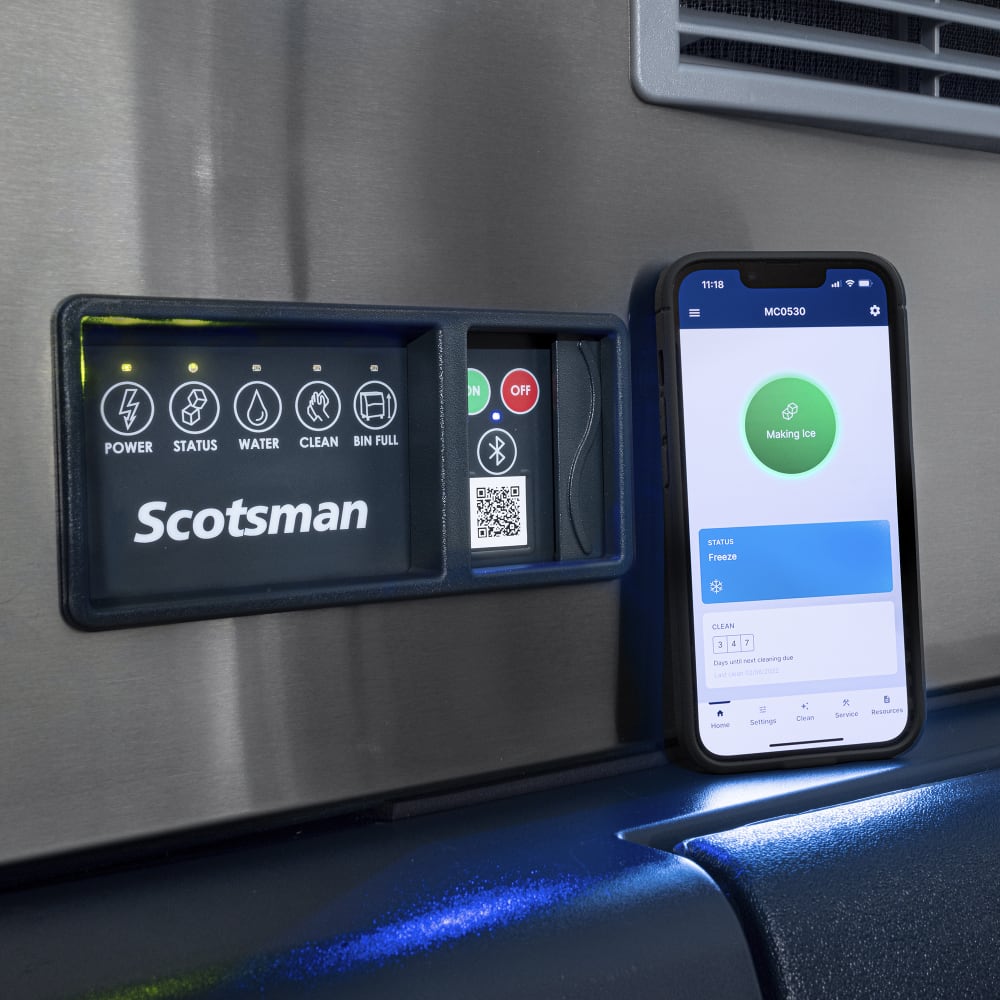

Providing users with operational status updates, the Scotsman MC0330MW-1 ice machine head features AutoAlert™ indicating lights. As this unit can be paired with Scotsman’s ICELINQ® mobile app, operators have complete access to dashboard information, operating controls, and a step-by-step guided cleaning process. A harvest assist feature helps guide ice through the unit and into an accompanying bin or dispenser that must be purchased separately. This unit cools with R-404A refrigerant and measures 30 inches wide by 24 inches deep by 23 inches high overall.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Prodigy ELITE series
• 420-lb. maximum daily ice production
• 326-lb. AHR-certified daily ice production
• Produces medium cube ice
• Individual ice cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. ⁷⁄₈ in.
• Stainless steel finish
• AutoAlert indicating lights notify users of operational status
• Self-contained condenser
• Water cooled
• 1-touch cleaning
• Front-located air filter
• Self-aligning front panel provides access to key components
• Compatible with ICELINQ mobile application
• Can be connected via bluetooth to mobile app
• Diagnostics reports, settings adjustments, and guided cleaning available through app
• WaterSense adjustable purge control removes scale buildup
• AgION protection defends against microbial growth
• Harvest assist helps guide ice through unit
• Unit-specific QR code
• R-404A refrigerant
• Operating ambient temperature range: 50-100 degrees F
• Operating water temperature range: 40-000 degrees F
• Operating incoming water pressure: 20-80 PSIG
• 5,200-BTU transfer capacity

Dimensions & Utilities

• 30 in. W x 24 in. D x 23 in. H
• 13.5 A, 4.97
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Scotsman MC0330MW-1 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (326 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor
