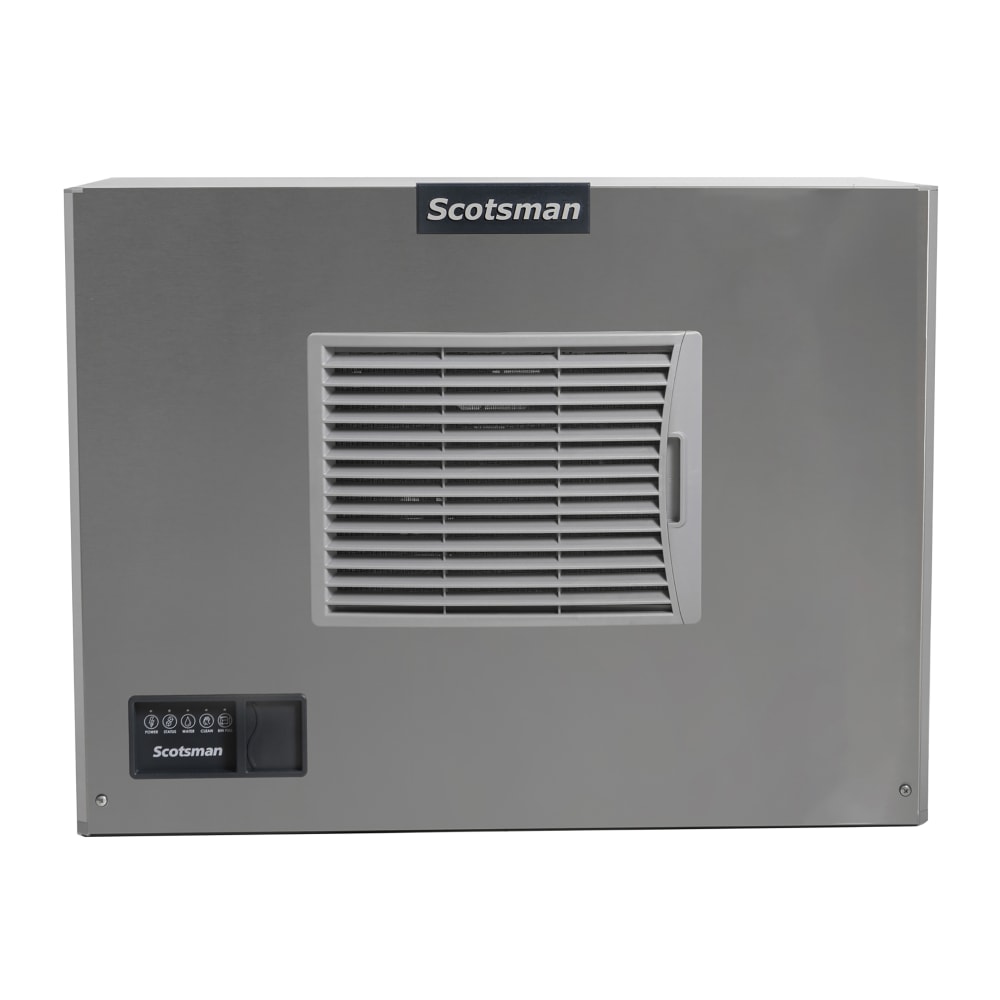

Scotsman MC0330MA-1 30" Prodigy ELITE® Full Cube Ice Machine Head - 400 lb/24 hr, Air Cooled, 115v/1ph

In ideal conditions, the Scotsman MC0330MA-1 Prodigy ELITE® ice machine head produces 400 pounds of ice daily. This full-cube ice looks elegant and works well in bars, bags, or restaurants. Water flows over an evaporator to create cubes, and then the Harvest Assist feature pushes a pin through the evaporator plate, causing the ice to fall. Typically, this ice is caught in a bin that must be purchased separately. To keep ice fresh, the WaterSense system monitors mineral buildup and removes it automatically. Furthermore, antimicrobial protection on the internal surfaces deters bacterial growth.

The Scotsman MC0330MA-1 ice machine head has AutoAlert™ indicator lights for visibility and a one-touch cleaning cycle for user-friendly operation. For convenience in operation, cleaning, and servicing, operators can use Scotsman’s ICELINQ® mobile app to check the unit’s dashboard, adjust settings, and walk through a step-by-step guided cleaning process. A front-located air filter helps the unit operate efficiently, and for servicing, the front panel can be removed. This unit is air cooled and uses less water than water-cooled units. A QR code on the front provides operators with warranty history and service information.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Prodigy ELITE series
• 400-lb. daily ice production capacity
• AHRI-certified, 288-lb. hourly ice production capacity
• Full-cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.

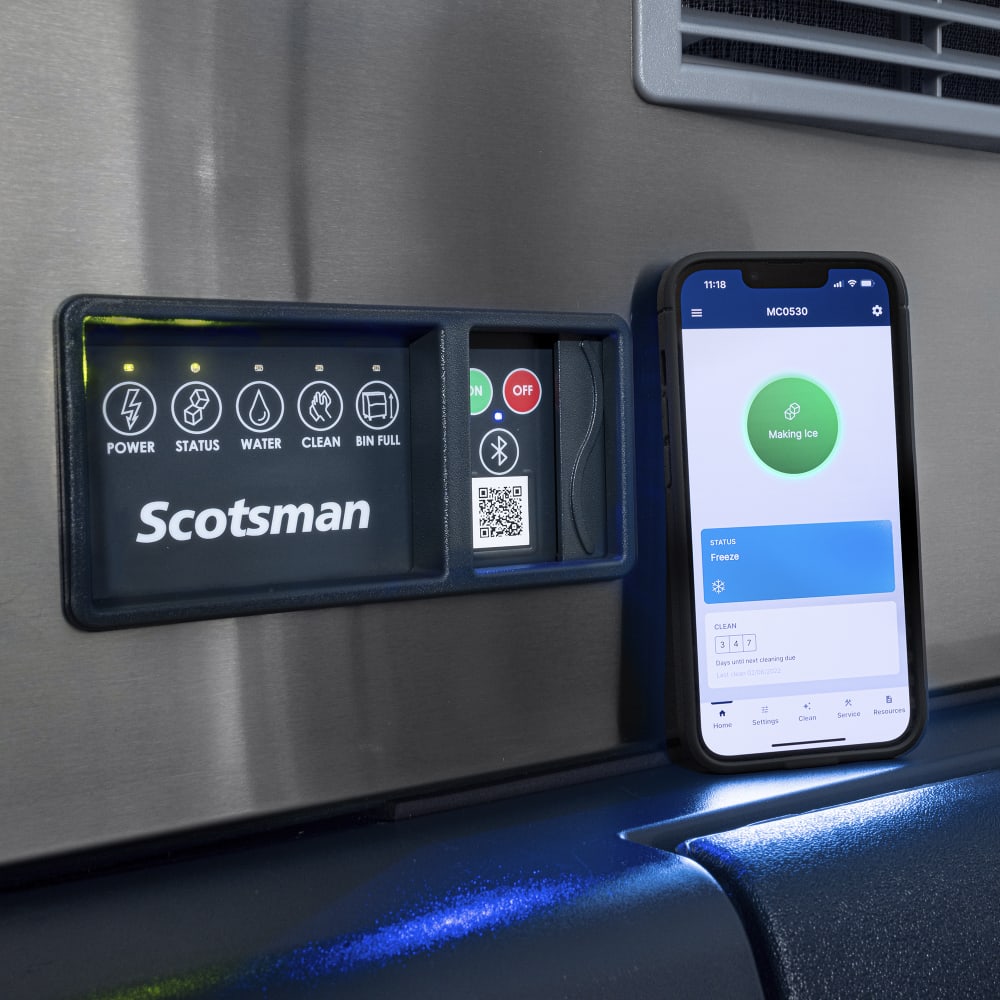

• Connects to mobile app via bluetooth for diagnostics reports, guided cleaning, and settings adjustments

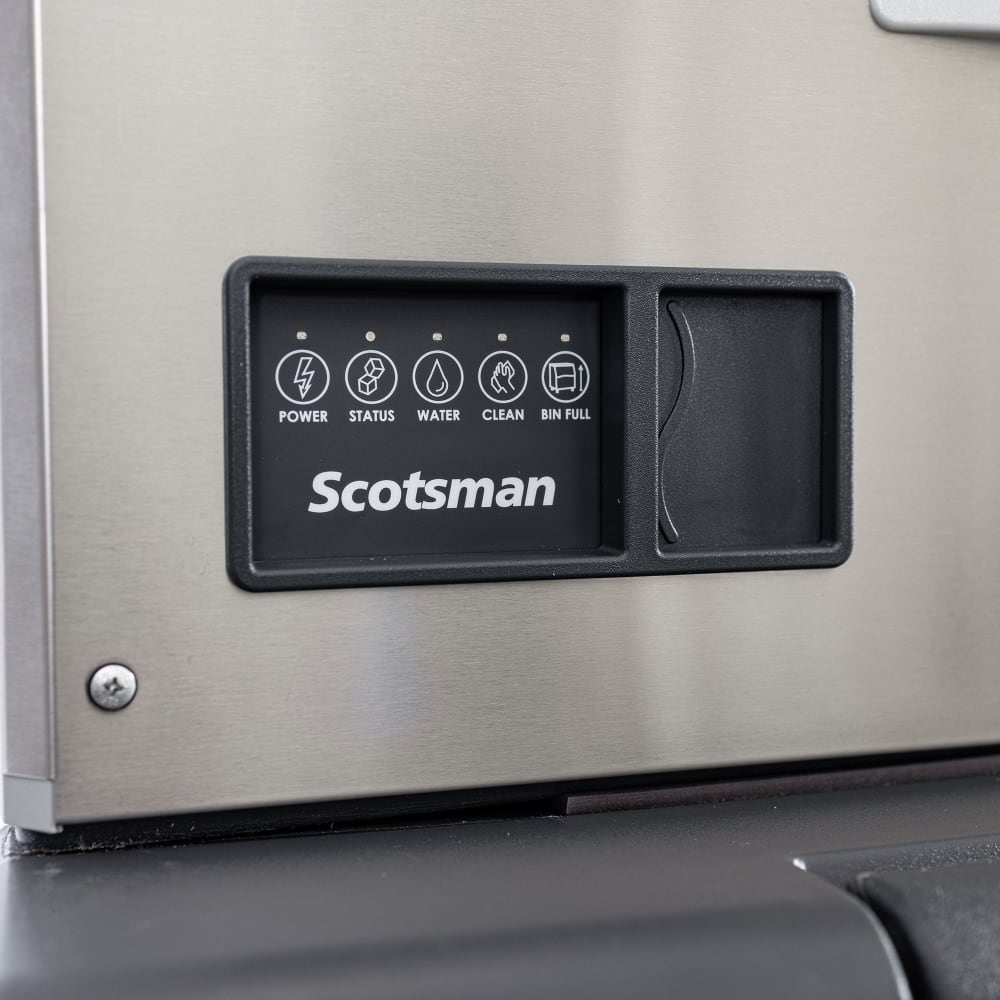

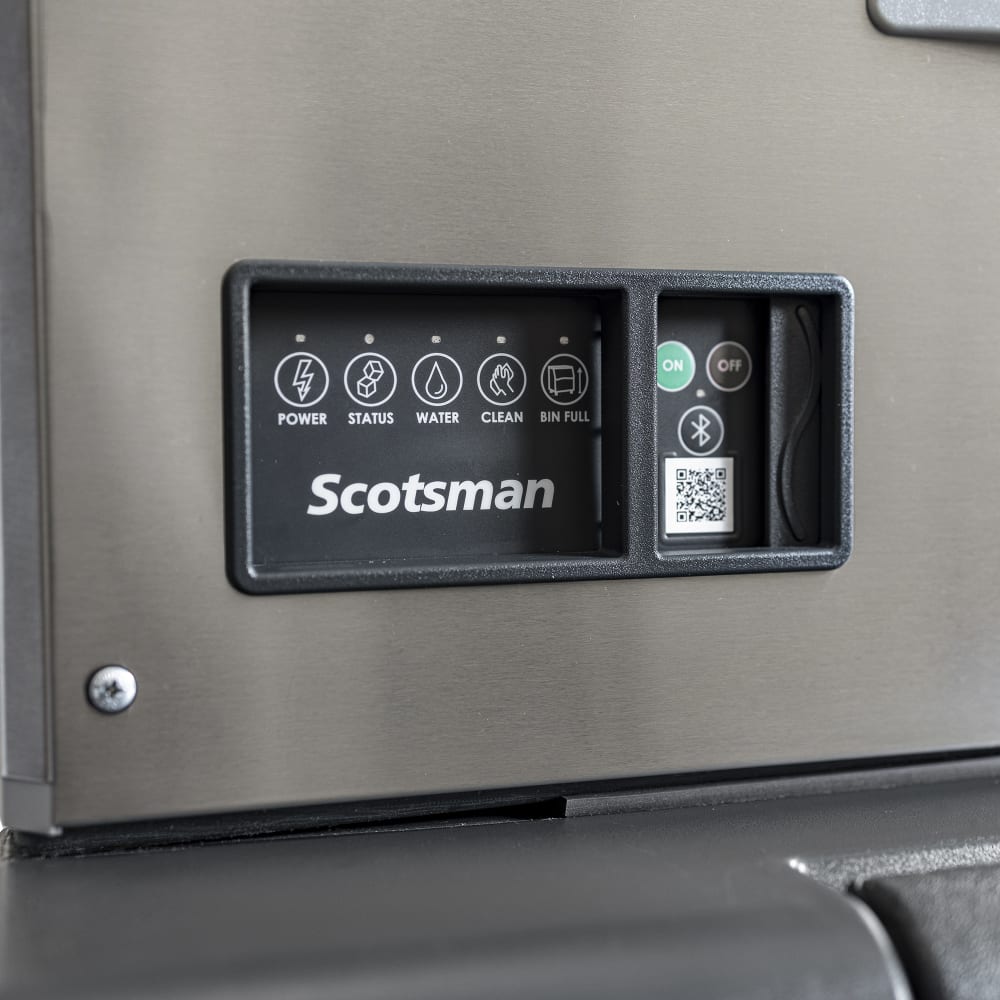

• AutoAlert indicator lights indicate operating status

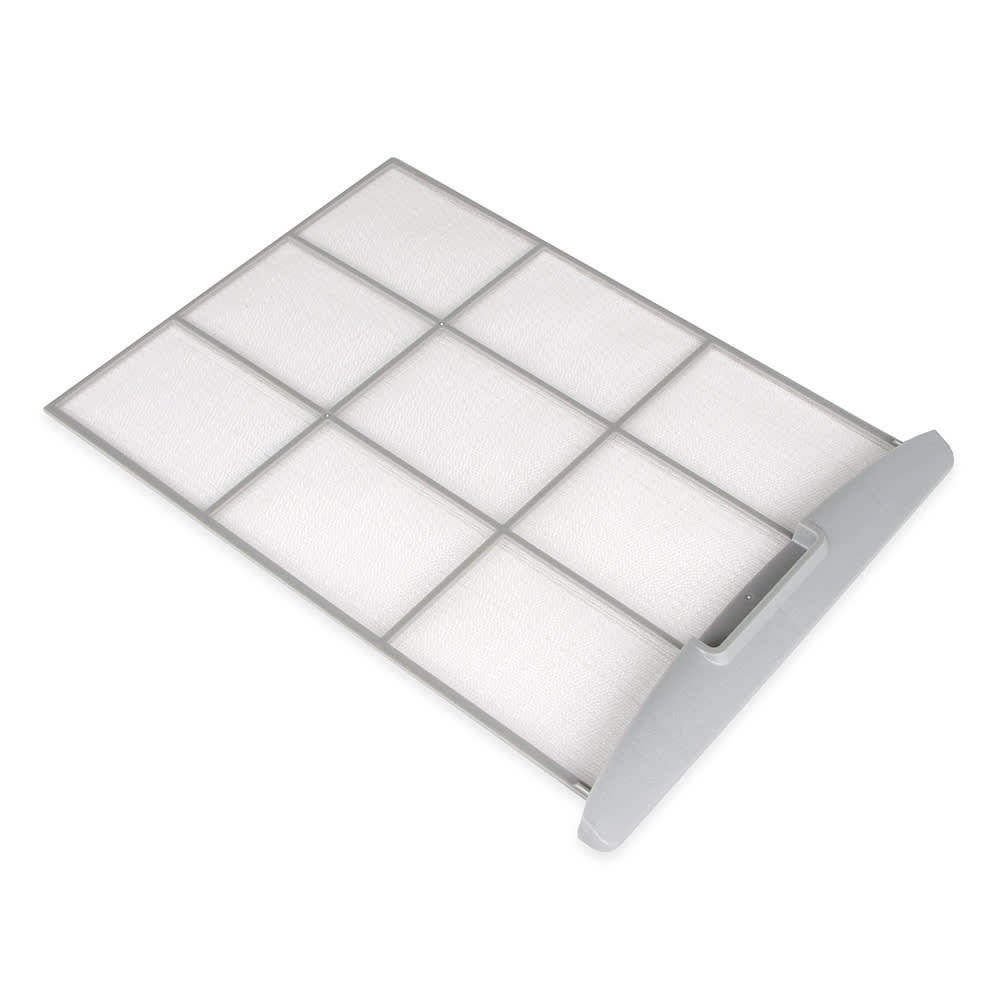

• Front-located reusable air filter for consistent airflow
• Harvest Assist technology moves ice to a bin efficiently
• Self-aligning front panel can be removed and provides access to internal components

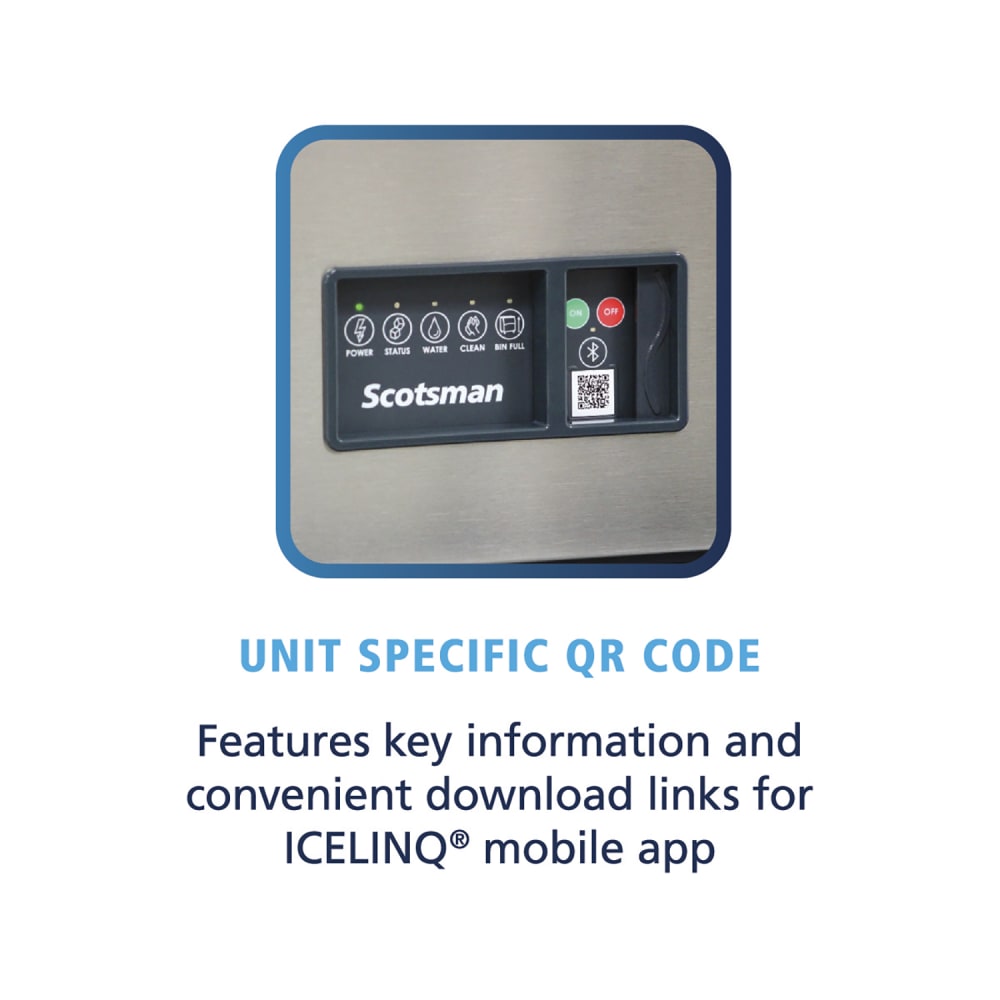

• QR code connects users to service information and warranty history
• ICELINQ mobile app compatible
• 1-touch cleaning reduces costs for labor and preserves time
• WaterSense purge control helps remove mineral sediment causing scale buildup
• Antimicrobial protection helps protect internal surfaces between cleanings
• Uses R404A refrigerant
• Compatible with B330P, B530P, and B530S ice bins (sold separately)
• 5,200 BTU

Product Features

Required Operating Conditions

• Surrounding air temperature: 50-100 degrees F
• Incoming water temperature: 40-100 degrees F
• Water pressure: 20-80 PSIG

Dimensions & Utilities

• 30 in. W x 24 in. D x 23 in. H
• 14.3 A, 6.23 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 400 lb/24 hours at 70°/50° (288 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 14.3 amps, cULus, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0330MA-1 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog

Certifications
