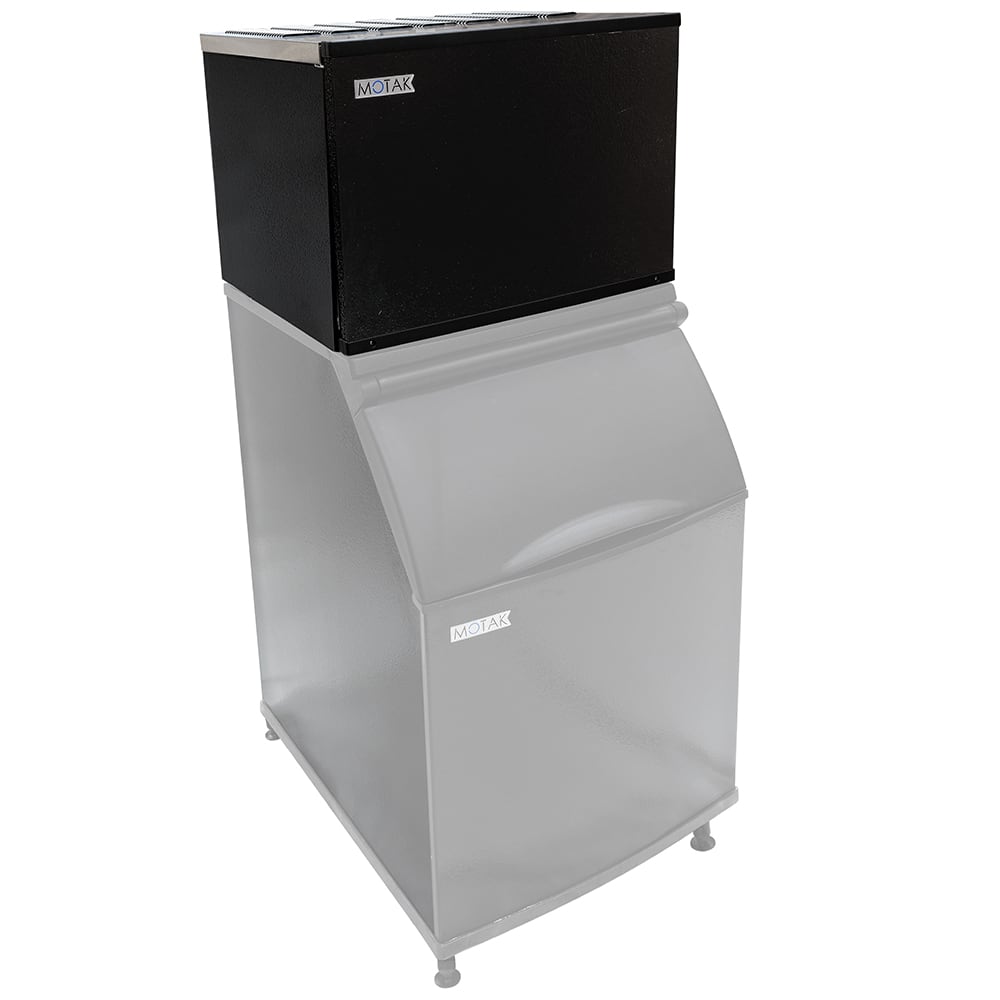

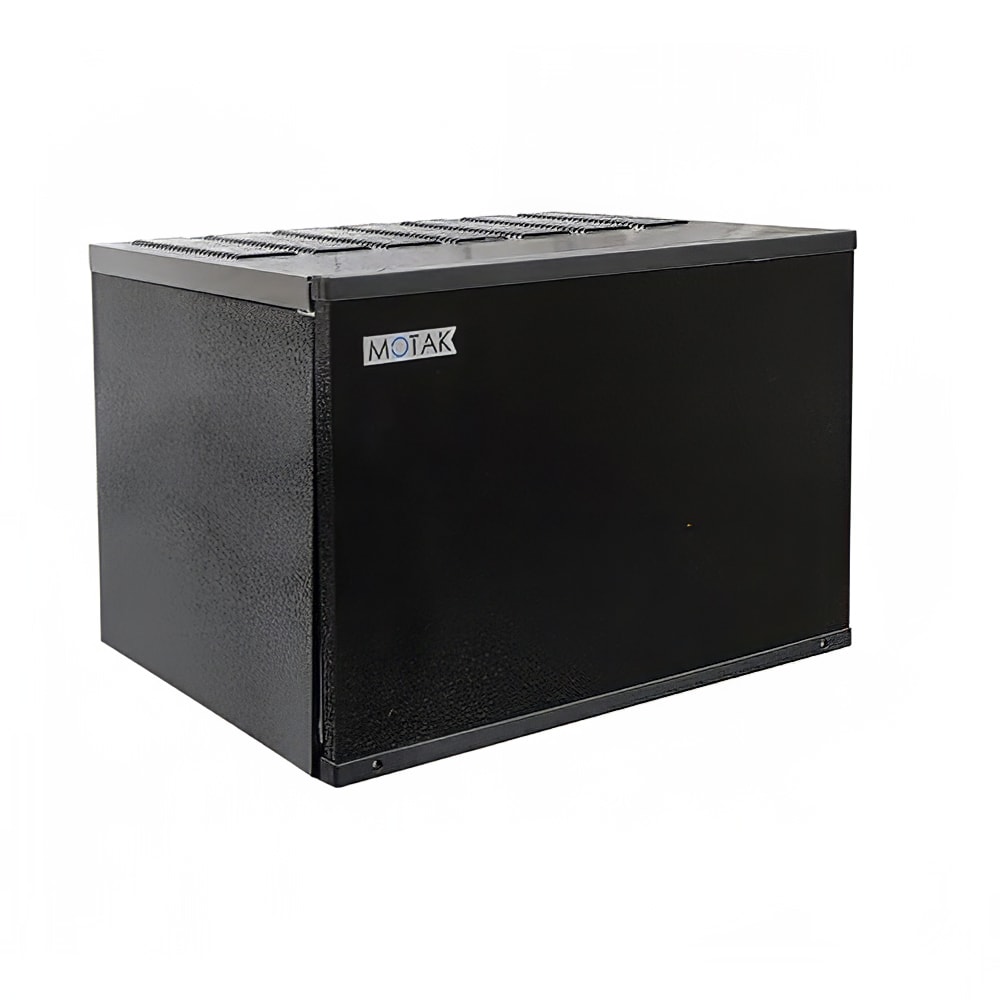

MoTak PKM0335SA-161 30" Half Cube Ice Machine Head - 325 lb/24 hr, Air Cooled, 115v/1ph

In pristine conditions, the MoTak PKM0335SA-161 ice cube machine can produce 325 pounds of half-sized ice—a solid investment for casual restaurants, hotels, bars, and convenience stores. The ⁷⁄₈-inch wide by ³⁄₈-inch deep by 1¹⁄₈-inch tall ice cubes work best in soft drinks, alcohol, and smoothies. In air temperatures measuring 70 degrees Fahrenheit and water temperatures measuring 50 degrees Fahrenheit, the unit can make 325 pounds of ice over a 24-hour period. If these temperatures rise to 90 degrees Fahrenheit and 70 degrees Fahrenheit respectively, the unit can product 225 pounds of ice over the same time frame. It uses R410a refrigerant and a back air inlet and top air outlet for proper cooling.

The MoTak PKM0335SA-161 ice cube machine has a black exterior that resists smudges and fingerprints, so it maintains its initial appearance over time for front-of-house situations, such as hotels, where customers use the machine directly. Other features, such as the water shield, distribution tube, pump floats, and trough are removable for a quick cleanup process. The food zone is also intentionally accessible to ensure proper sanitation for fresh-tasting ice.

Product Details

• 325-lb. maximum ice production
• Half-sized ice cubes
• Individual ice cube dimensions: ⁷⁄₈ in. W x ³⁄₈ in. D x 1¹⁄₈ in. H

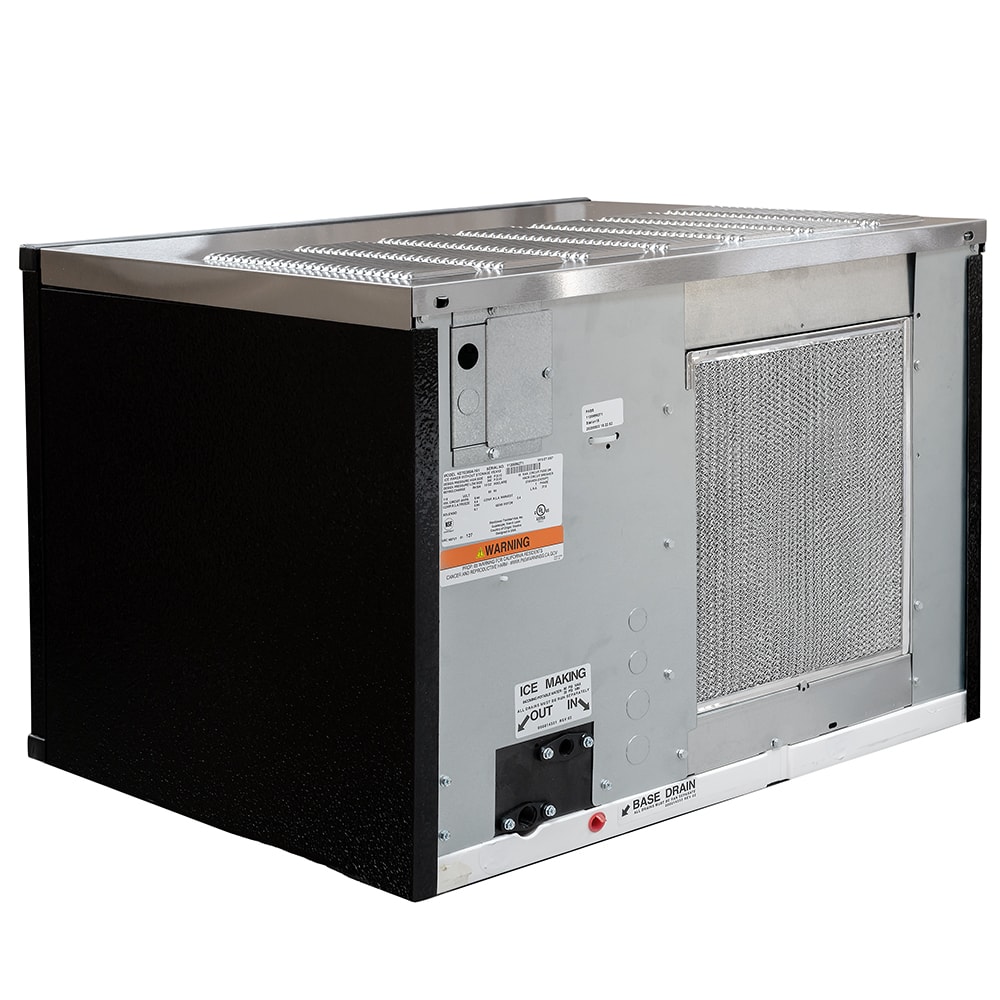

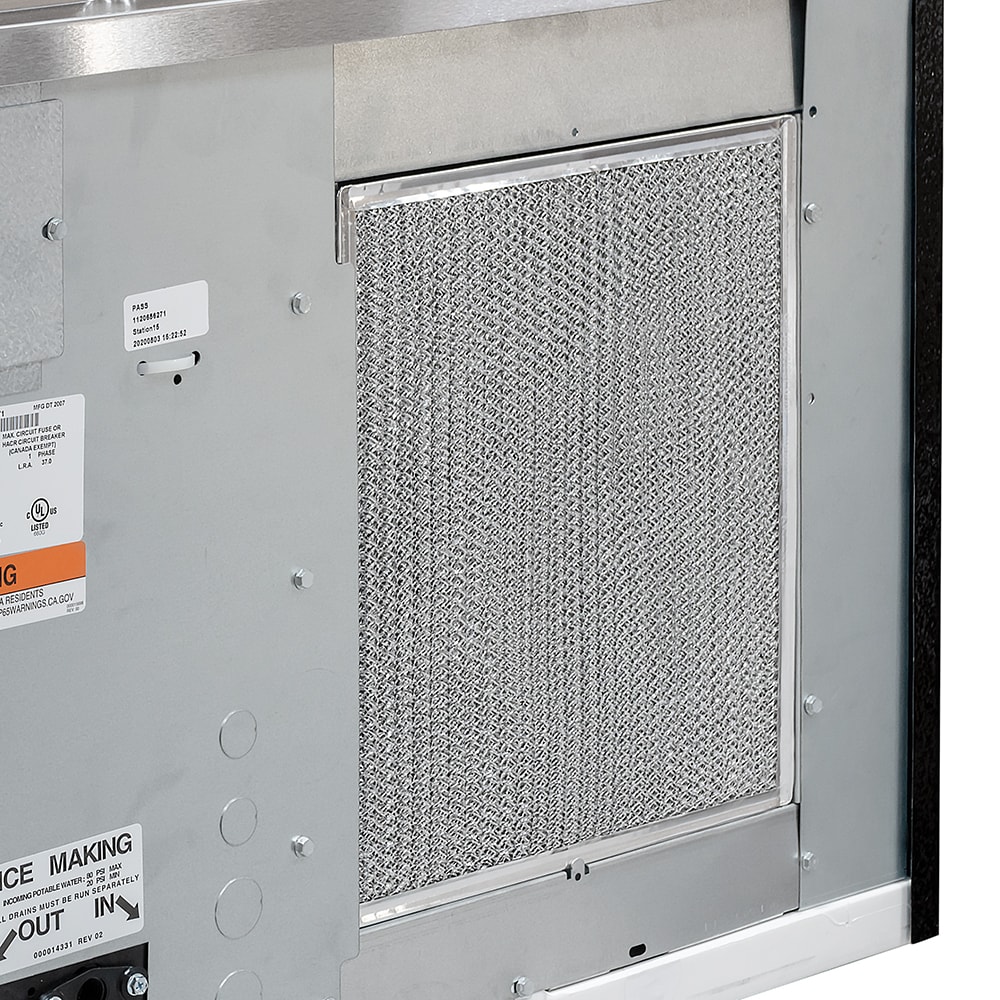

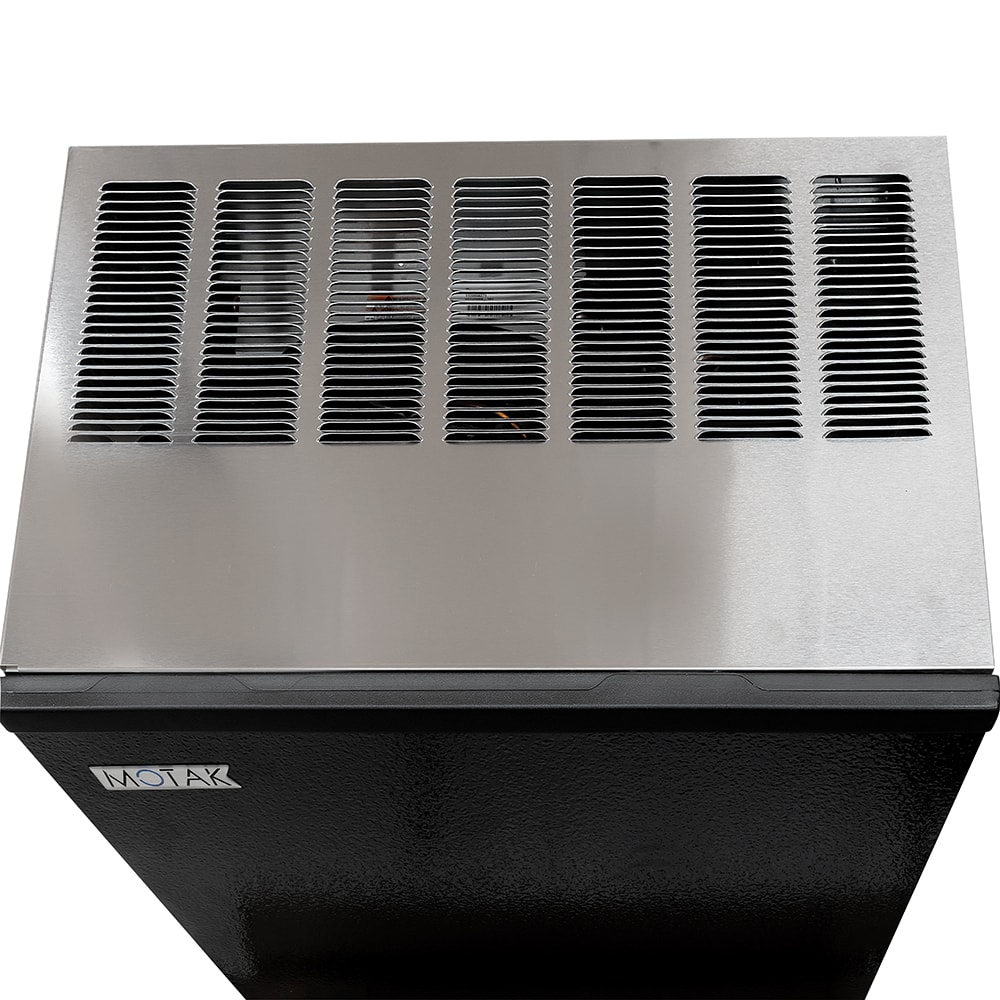

• Air cooled using back for inlet and top for outlet
• Uses R410a refrigerant

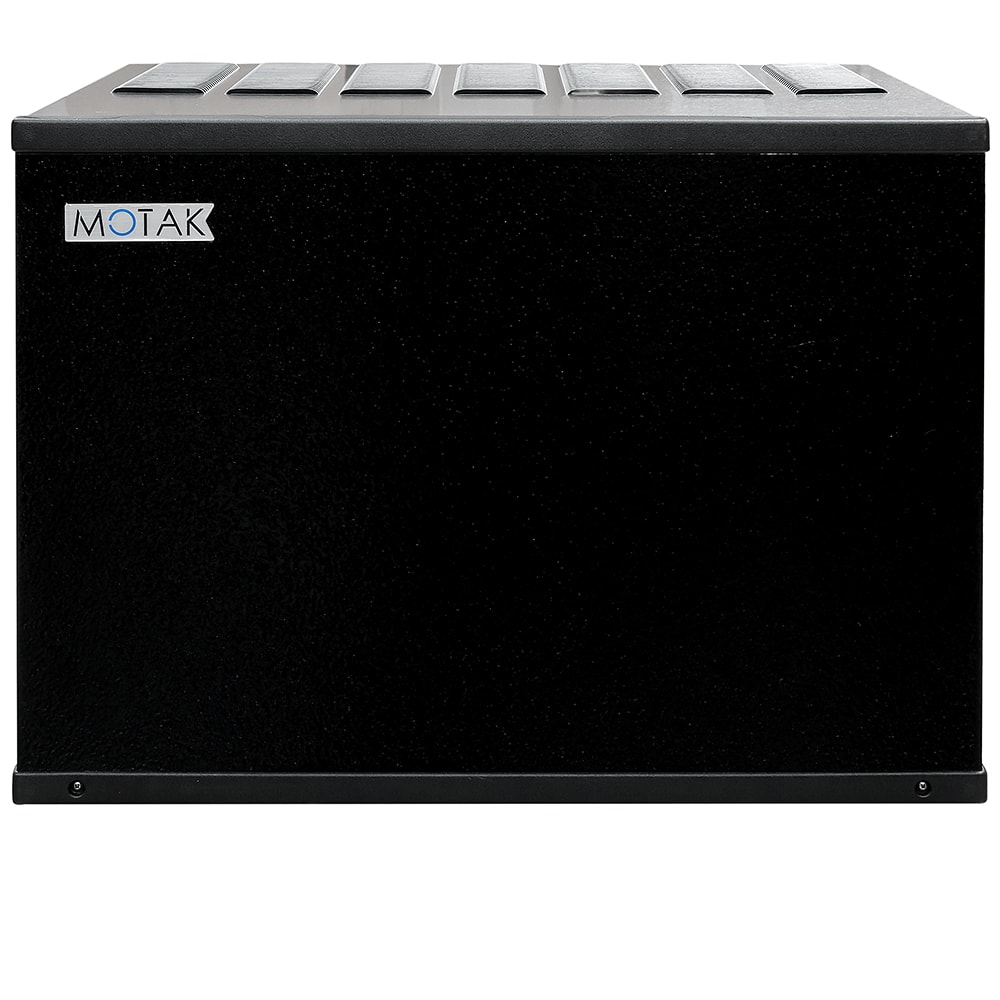

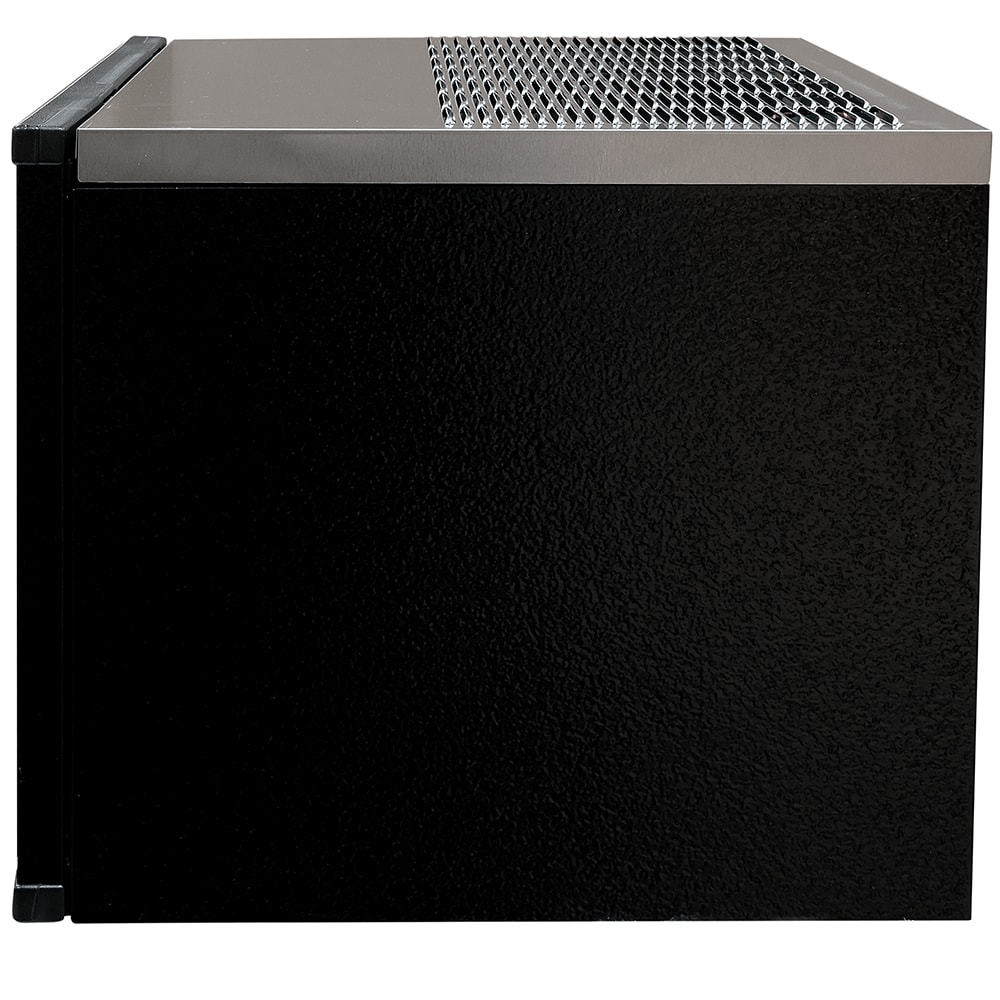

• Black exterior defends against smudges and fingerprints
• Removable water shield, distribution tube, pump floats, and trough
• Accessible food zone
• Ambient temperature range: 70-90 degrees F
• Water temperature: 50-70 degrees F
• Uses 20 gal. of water per 100 lbs. of ice
• Average BTU per hour: 4,600
• Peak BTU per hour: 5,450

Product Features

Dimension & Utilities

• 30 in. W x 24¹/₂ in. D x 21¹/₂ in. H
• 9.44-15 A, 6.25 kW
• 115 V/60 Hz/1 ph

*Free shipping on MoTak PKM0335SA-161 within the 48 contiguous states.

From The Manufacturer

MoTak Ice Cube Machine, cube style, air cooled, self-contained condenser, 30"W, production capacity up to 325 lb/24 hours at 70°/50° (225 lbs at 90°/70°), half-size cube, black exterior, R410A refrigerant, 115v/60/1-ph, 15.0 amps, NSF, cULus

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

MoTak PKM0335SA-161 Specifications

A KaTom house brand, MoTak offers an economy line of commercial appliances including refrigeration, cooking equipment, and ice machines. MoTak—sold exclusively by KaTom—offers products designed for budget-conscious operations and sourced from factories used by well-known equipment manufacturers.
