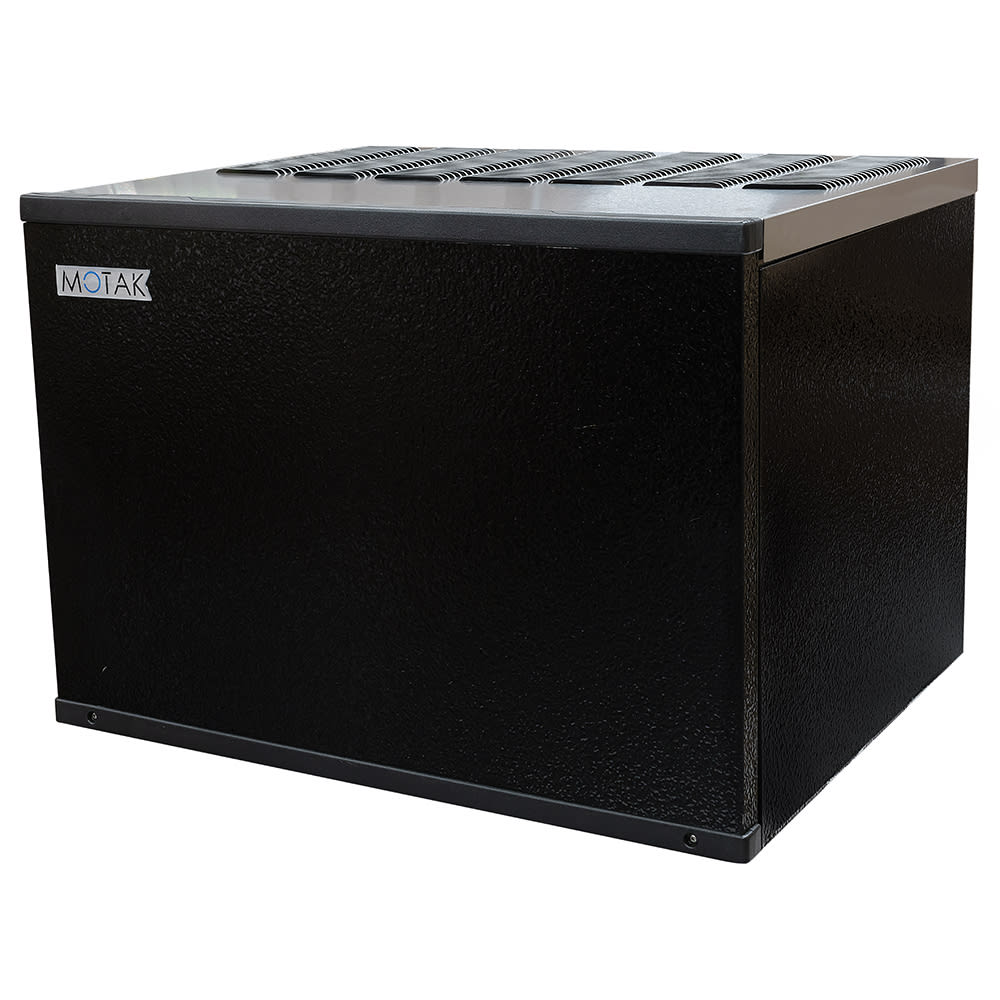

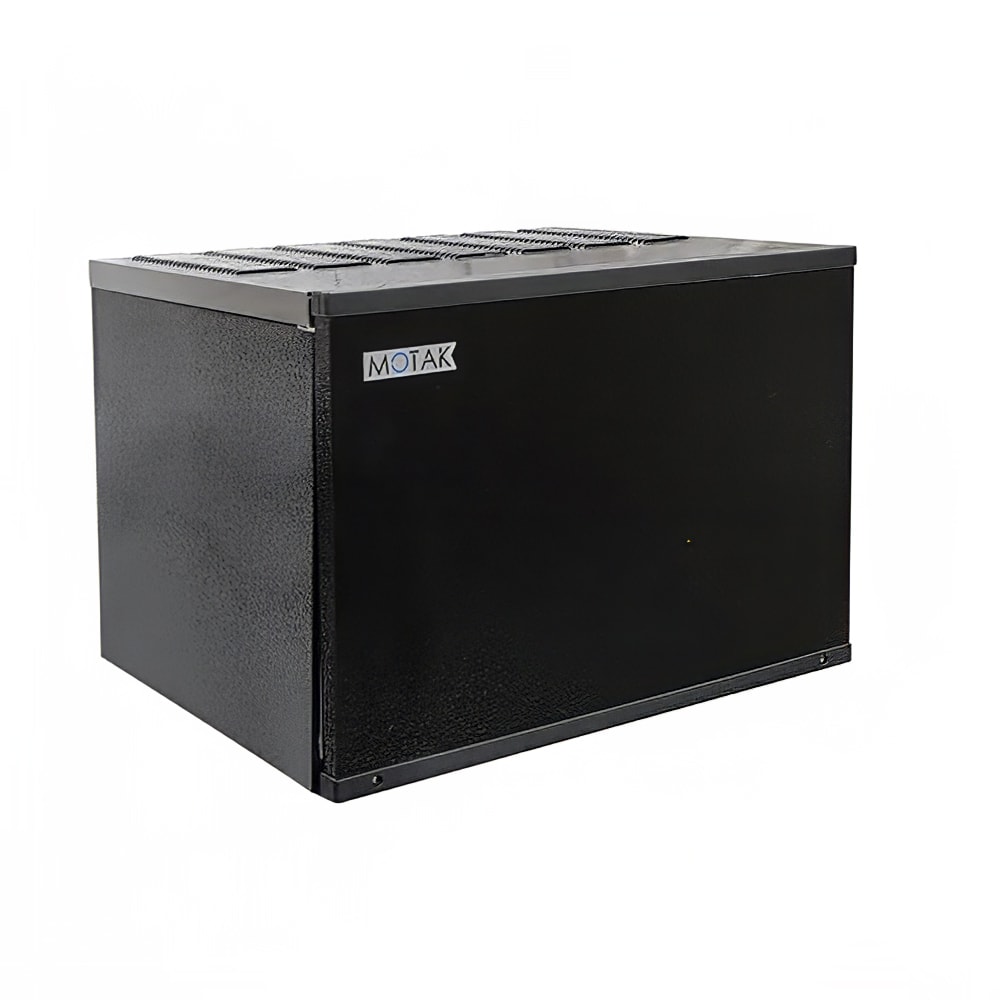

MoTak PKM0335FA-161 30" Full Cube Ice Machine Head - 325 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
Retail Price: $3,446.90
$2,039.00 /Each
Selected Ice Type: Full Cube
MoTak PKM0335FA-161 Description
With a maximum rate of 325 pounds per day in ideal conditions, the MoTak PKM0335FA-161 ice maker produces full-size cubes. This type melts slowly and is ideal for serving liquor on the rocks or specialty cocktails. If ambient temperatures are higher, it produces as much as 225 pounds in a 24-hour period. This unit operates with R410 refrigerant.
To facilitate cleaning, the MoTak PKM0335FA-161 ice machine is designed with an accessible food zone. For additional convenience and streamlined cleaning, its distribution pump, pump floats, water shield, and trough are removable. Its black exterior blends in unobtrusively in a variety of settings, and it resists harboring fingerprints or smudges to maintain a tidy appearance. Overall, this unit measures 30 inches wide by 24 1⁄2 inches deep by 21 1⁄2 inches high.
- 325-lb. maximum daily ice production
- 225-lb. maximum daily production at 90 degrees F
- Produces full-size ice cubes
- Individual ice cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

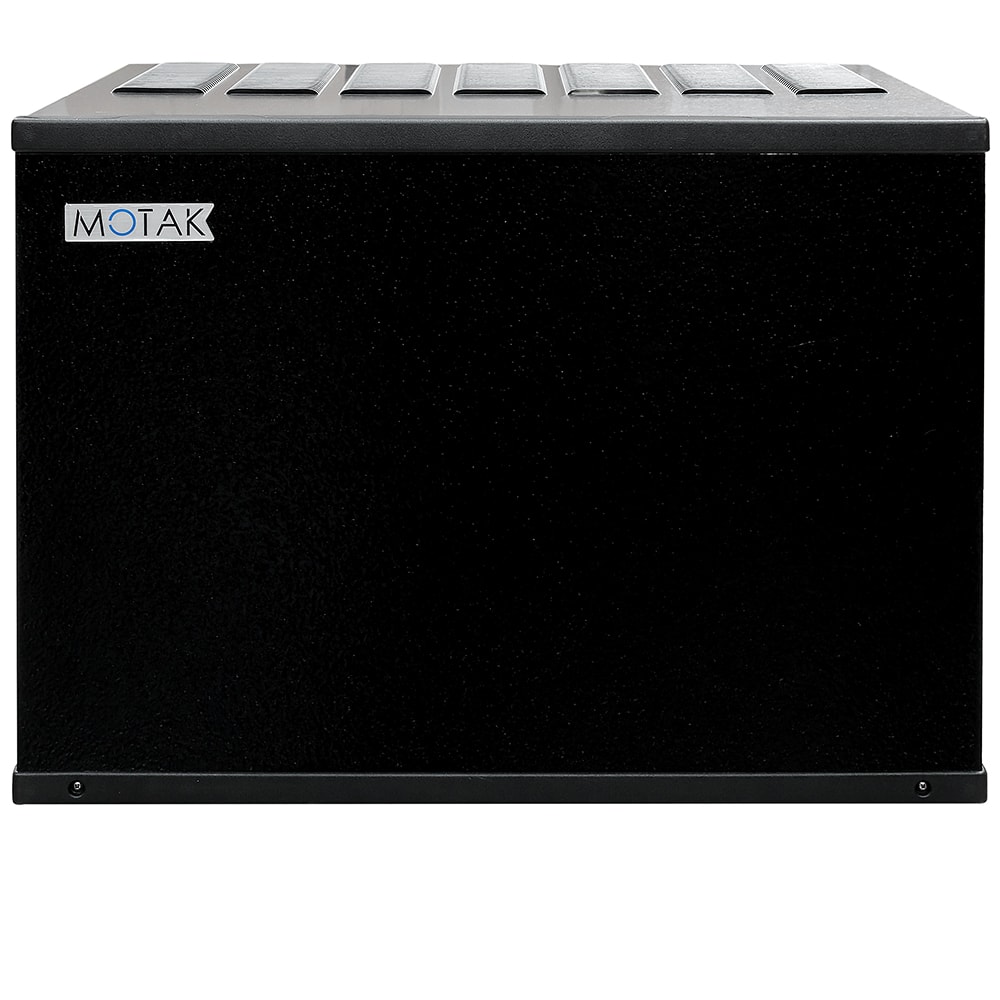

- Black exterior resists smudging and retaining fingerprints
- Distribution pump, water shield, pump floats, and trough are removable for cleaning
- Easy-to-access food zone
- Uses R410A refrigerant
- Ideal ambient temperature range: 70-90 degrees F
- Ideal water temperature range: 50-70 degrees F
- 20-gal. water usage per 100 lbs.
- 4,600 BTU/hr. average heat transfer capacity
- 5,450 BTU/hr. peak heat transfer capacity
- 30 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
- 15 A, 6.25 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on MoTak PKM0335FA-161 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
MoTak PKM0335FA-161 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | MoTak |
| 24 Hr. Production (lb) | 325 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.5 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 30 |
| Weight | 145.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
MoTak PKM0335FA-161 MoTak PKM0335FA-161 30" Full Cube Ice Machine Head - 325 lb/24 hr, Air Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $2,039.00 / Each | $3,651.00 / Each | $3,640.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 325 | 309 | 316 |
| Ice Type | Full Cube | Full Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30 | 30 | 30.25 |
| Rating | Better | Best | Better |
| Voltage | 115 | 115 | 115 |
| Refrigerant | R410A | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Can make up to approximately 325 pounds of ice per day.
It produces full-cube ice.
It It uses environmentally friendly R410A refrigerant.

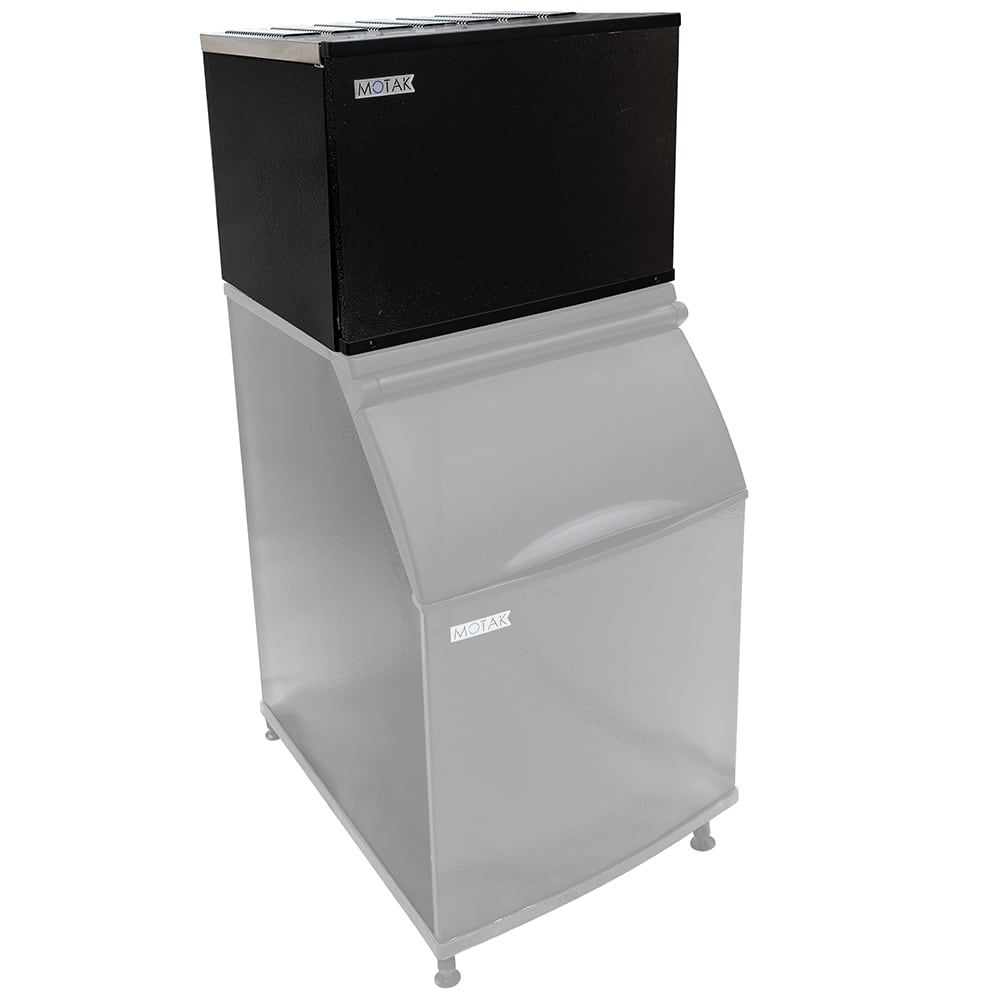

A compatible ice storage bin must be purchased separately.
Key components such as the water curtain and ice damper can be removed for cleaning and descaling.
It can produce up to 325 lb. of ice per 24 hours.
It makes full-cube ice.
It measures 30 in. W x 24 1/2 in. D x 21 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R410A refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include cULus Listed and NSF.
No, this ice machine head is sold without an ice bin.
