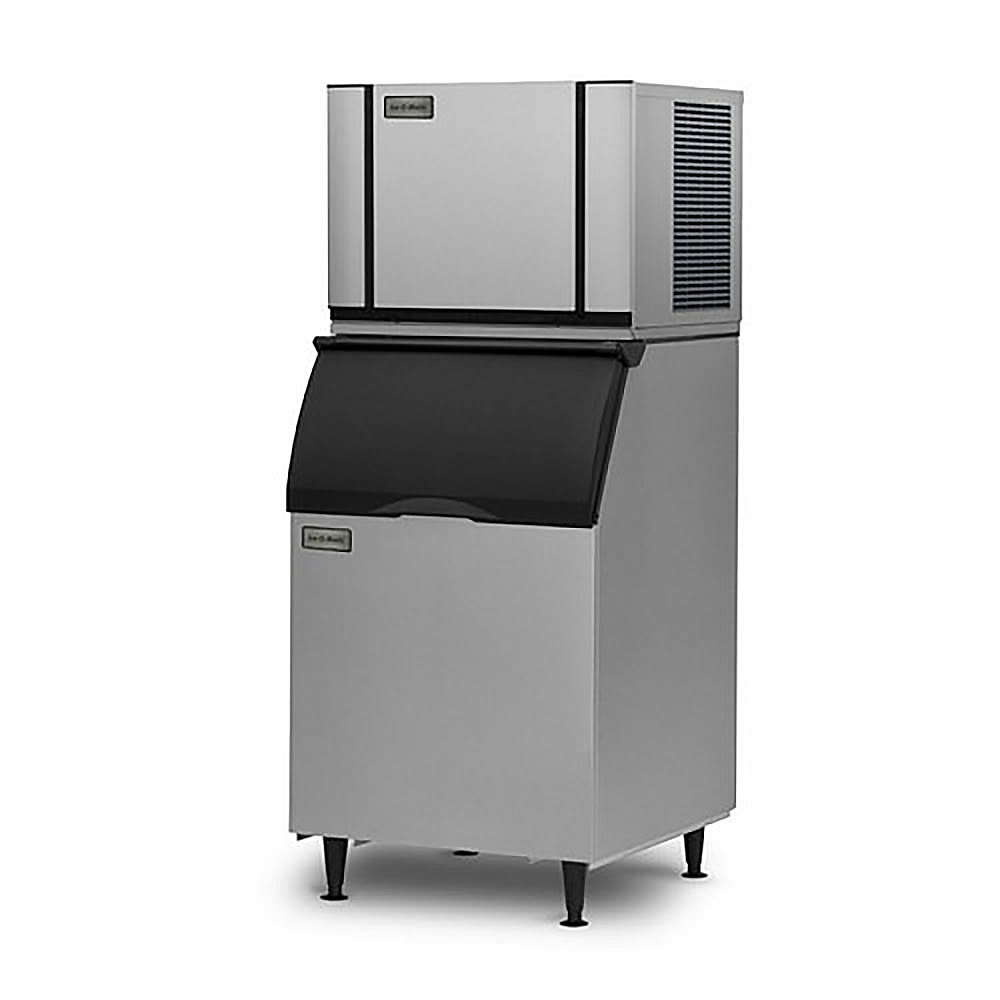

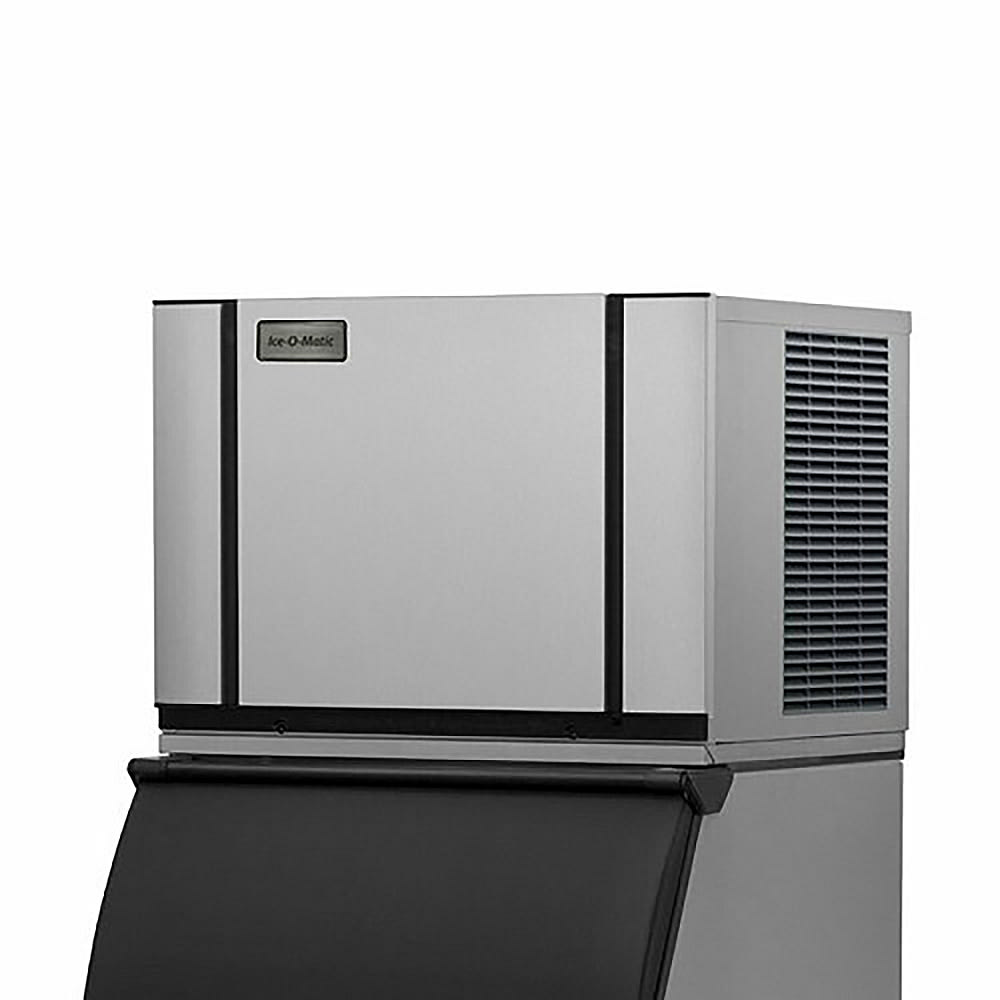

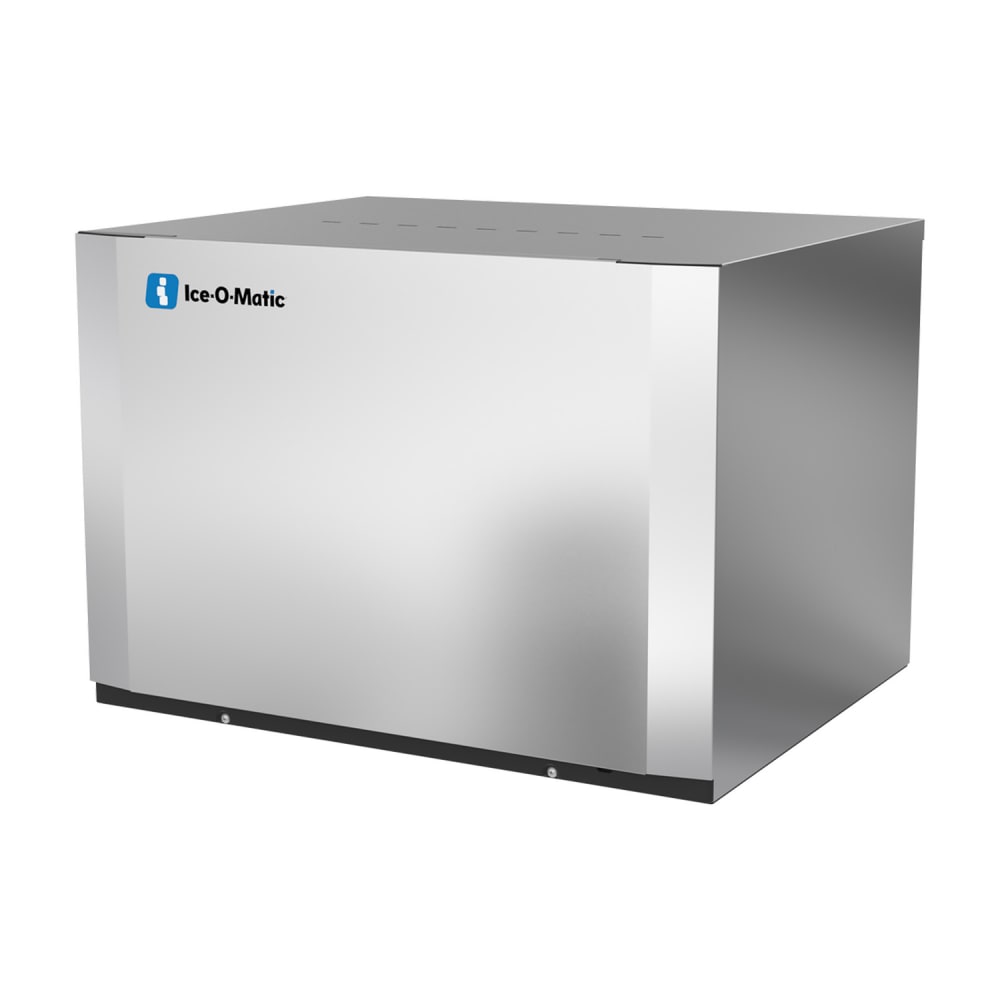

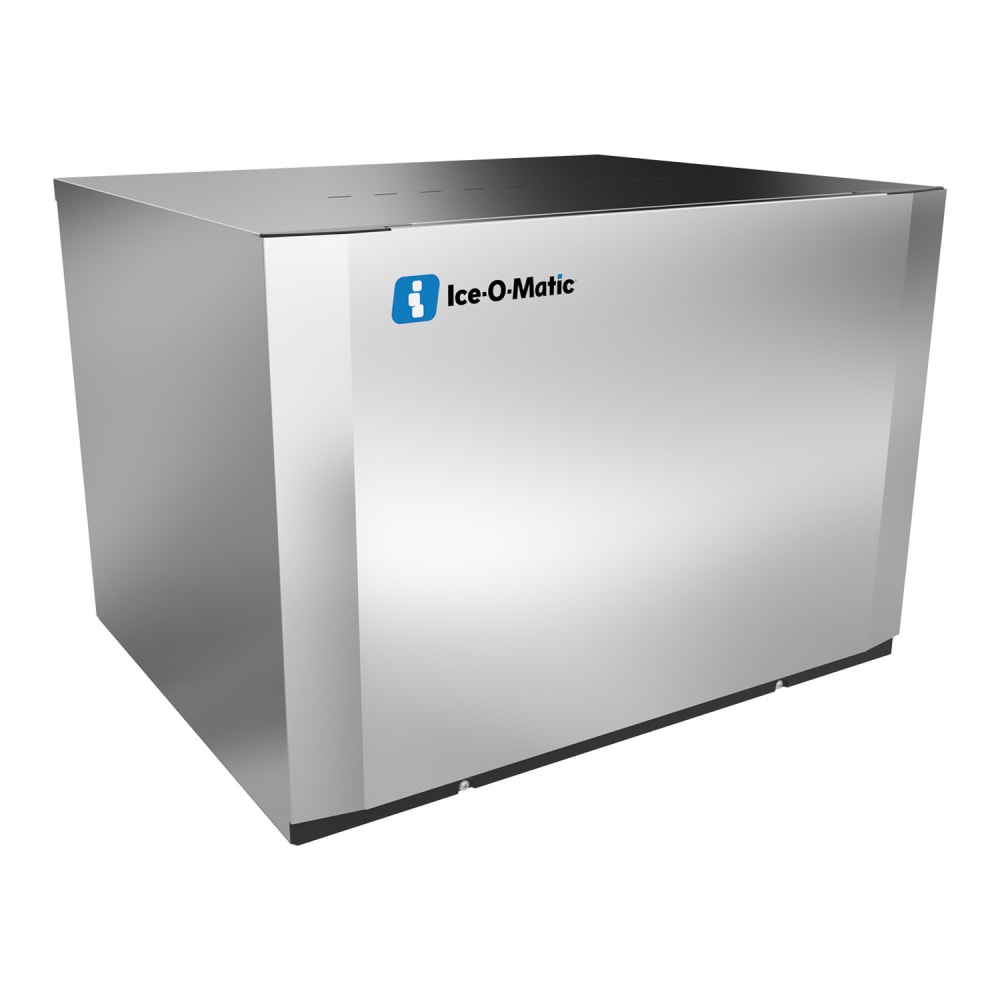

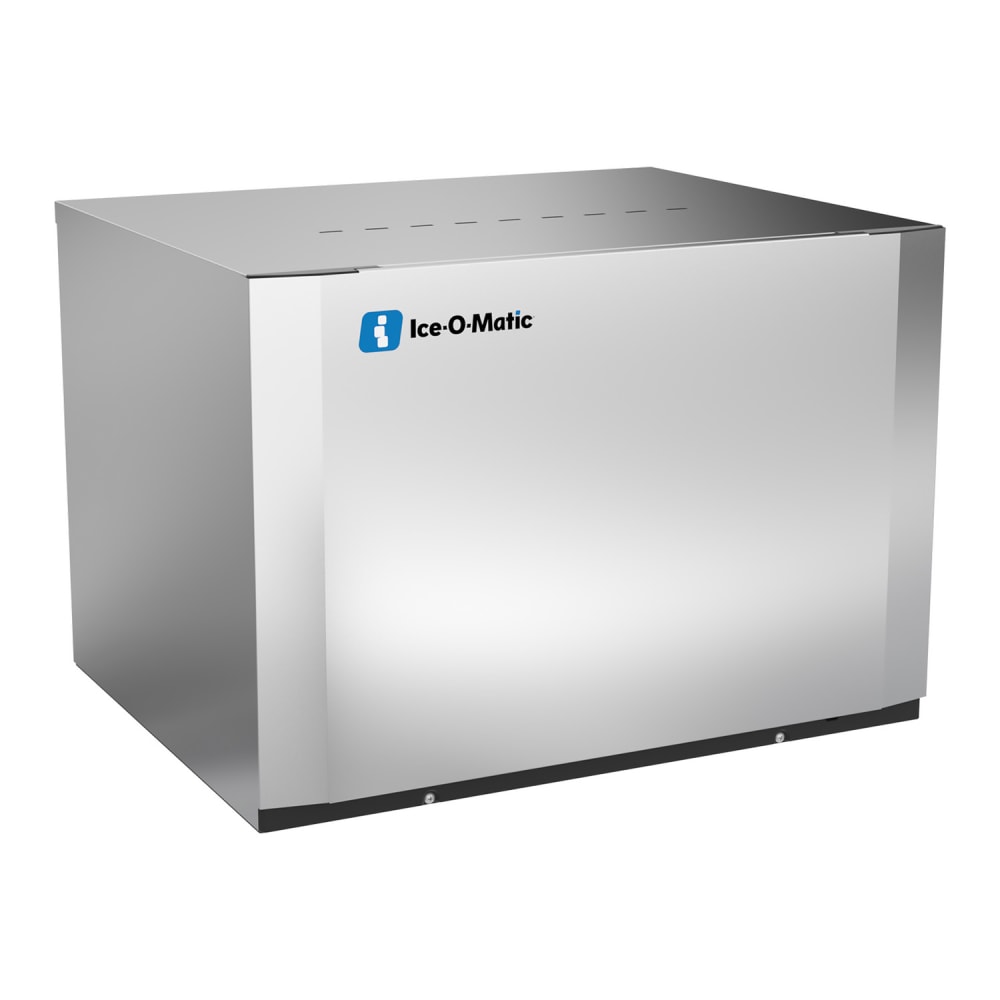

Ice-O-Matic CIM0330HW 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 316 lb/24 hr, Water Cooled, 115v/1ph

The Ice-O-Matic CIM0330HW ice machine head produces half-size cubes at a maximum rate of 310 pounds per day. Its built-in antimicrobial PURE ICE® inhibits bacterial growth, and it descales and sanitizes at the push of a button. This water-cooled unit features a self-contained condenser to streamline installation.

The Ice-O-Matic CIM0330HW ice maker discharges air from the top as well as the side to offer installation flexibility. Its plastic food zone eliminates crevices that could harbor bacteria, and its components can be removed and cleaned in the dishwasher. Operators can monitor the unit’s status on a clear LED display.

Product Details

• Part of the Elevation Series™
• 310-lb. maximum daily ice production
• 270-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Water cooled
• Self-contained condenser
• Dual exhaust discharges air from top and side for installation flexibility
• 1-touch controls simplify sanitizing and descaling
• LED status display
• Snap-out components are dishwasher safe
• PURE ICE agent inhibits microbial growth
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

Dimensions & Utilities

• 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• 10.7 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Ice-O-Matic CIM0330HW within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 316 lb production/24 hours at 70°/50° (274 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0330HW Specifications
