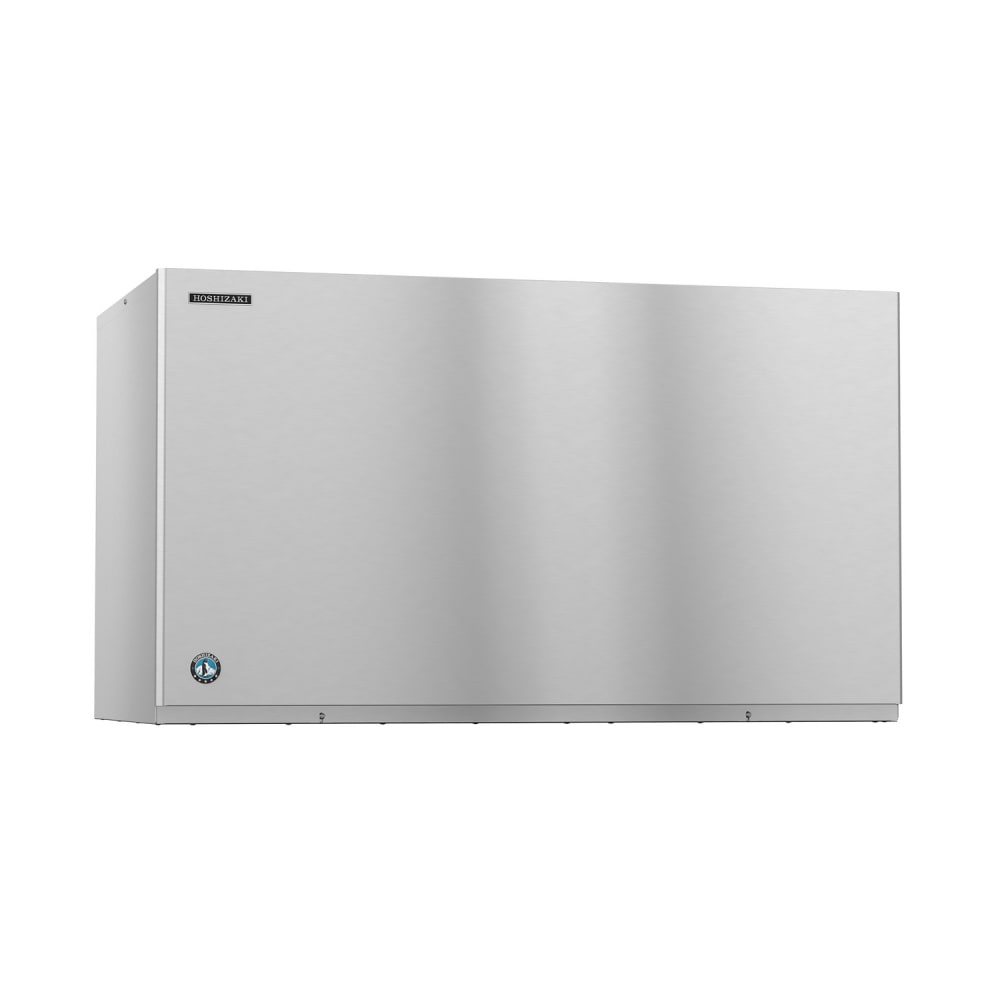

Hoshizaki KM-1301SWJ 48" Crescent Cube Ice Machine Head - 1247 lb/24 hr, Water Cooled, 208-230v/1ph
$9,450.00 /Each
Contact us for details!
Hoshizaki KM-1301SWJ Description
The Hoshizaki KM-1301SWJ crescent cube ice machine head has a feature called CycleSaver™, which requires fewer cycles to produce the same amount of ice as competing units. When operating issues arise, the EverCheck™ alert system sounds an audible alarm to ensure operators are informed about the ice machine's status. An H-Guard Plus™ antimicrobial agent is included to slow the growth of bacteria.

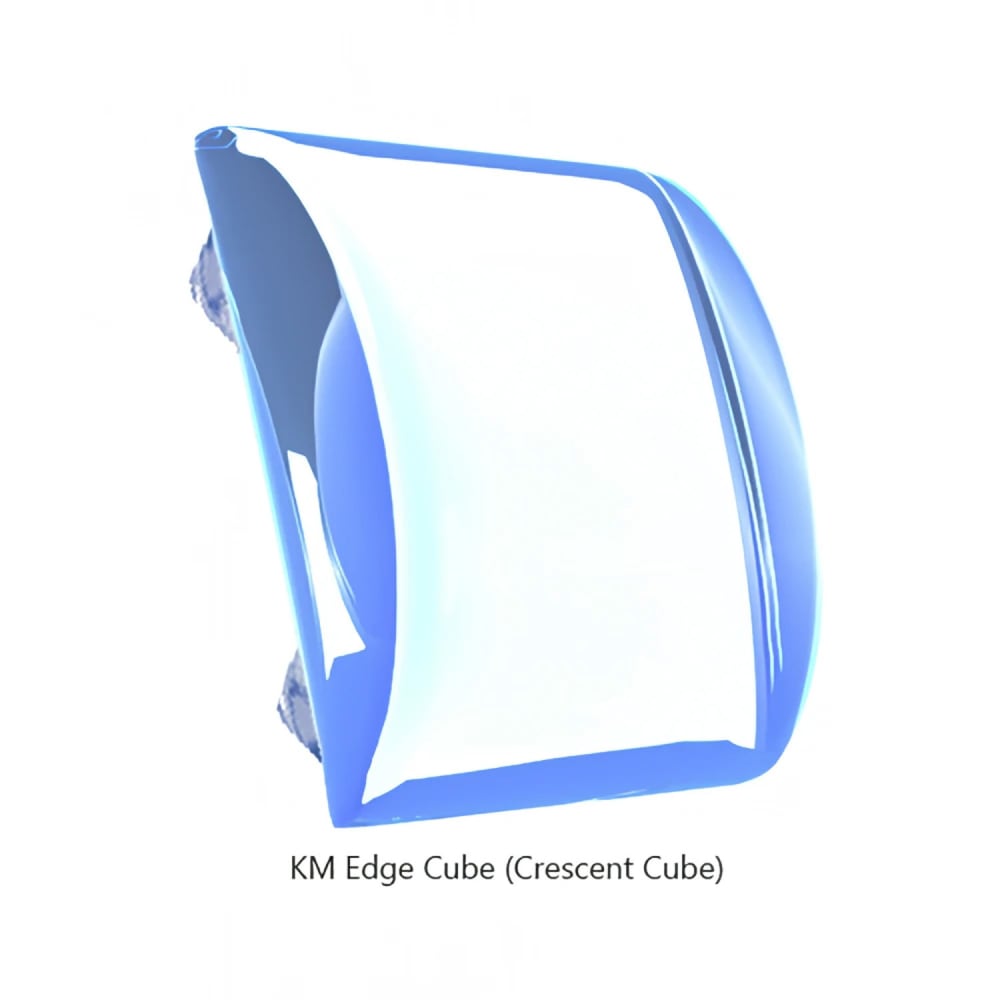

This unit creates crescent cube ice measuring 1 1⁄8 inches wide by 1⁄2 inches deep by 1 1⁄2 inches tall. The amount of ice produced depends on the ambient temperatures, but it can range from 1,230 to 1,247 pounds in a 24-hour period.
For durability and corrosion resistance, the exterior of this ice maker head is made of stainless steel. The stainless steel evaporator is also designed to resist minor damage for commercial use. The Hoshizaki KM-1301SWJ crescent cube ice machine head has a water-cooled condenser that uses R-404A refrigerant to keep temperatures cool and produce ice. This system is self-contained, but should be installed with 6 inches of clearance on each side and the top.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Designed to make 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H crescent cube ice
- Produces 1,230-1,247 lbs. of ice every 24 hrs.
- Uses fewer cycles compared to competitors with the CycleSaver technology while producing just as much ice
- Bacteria is prevented from growing quickly by the H-Guard Plus antimicrobial agent
- Operator knows when service is needed thanks to the EverCheck alert system
- Stainless steel exterior withstands heavy commercial use since it resists corrosion and minor damage
- Temperatures stay cool with R-404A refrigerant
- Stainless steel evaporator withstands wide temperature ranges
- Water cools the motor by pushing cool water by the condenser coils
- Maintenance and cleaning the unit is easy thanks to the removable panels
- Bin is sold separately
- 20,900 BTU
- 208-230 V/60 Hz/1 ph, 8.2 A
- Overall Dimensions: 48 1⁄4 in. W x 27 7⁄16 in. D x 27 in. H
- Requires 45-100 degrees F ambient air temperature
- Requires 45-90 degrees F water temperature
- Requires 10-113 PSIG water pressure
- Rear, sides, and top require at least 6 in. of clearance for ideal air circulation
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1301SWJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1247 lb/24 hours at 70°/50° (1230 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 8.2 amps, NSF, UL
Watch a video about this product
Hoshizaki KM-1301SWJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1247 |
| Compressor Type | Water Cooled |
| Depth (in) | 27.38 |
| Height (in) | 27.38 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 335.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki KM-1301SWJ Hoshizaki KM-1301SWJ 48" Crescent Cube Ice Machine Head - 1247 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $9,450.00 / Each | $9,410.00 / Each | $9,234.00 / Each | $8,726.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| 24 Hr. Production (lb) | 1247 | 1615 | 1590 | 1560 |
| Ice Type | Crescent Cube | Full Cube | Half Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 48 | 48 | 48 | 48.25 |
| Rating | Best | Best | Best | Better |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | KM EDGE | Indigo NXT™ | Indigo NXT™ | Elevation Series™ |
| Refrigerant | R404A | R410A | R410A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
