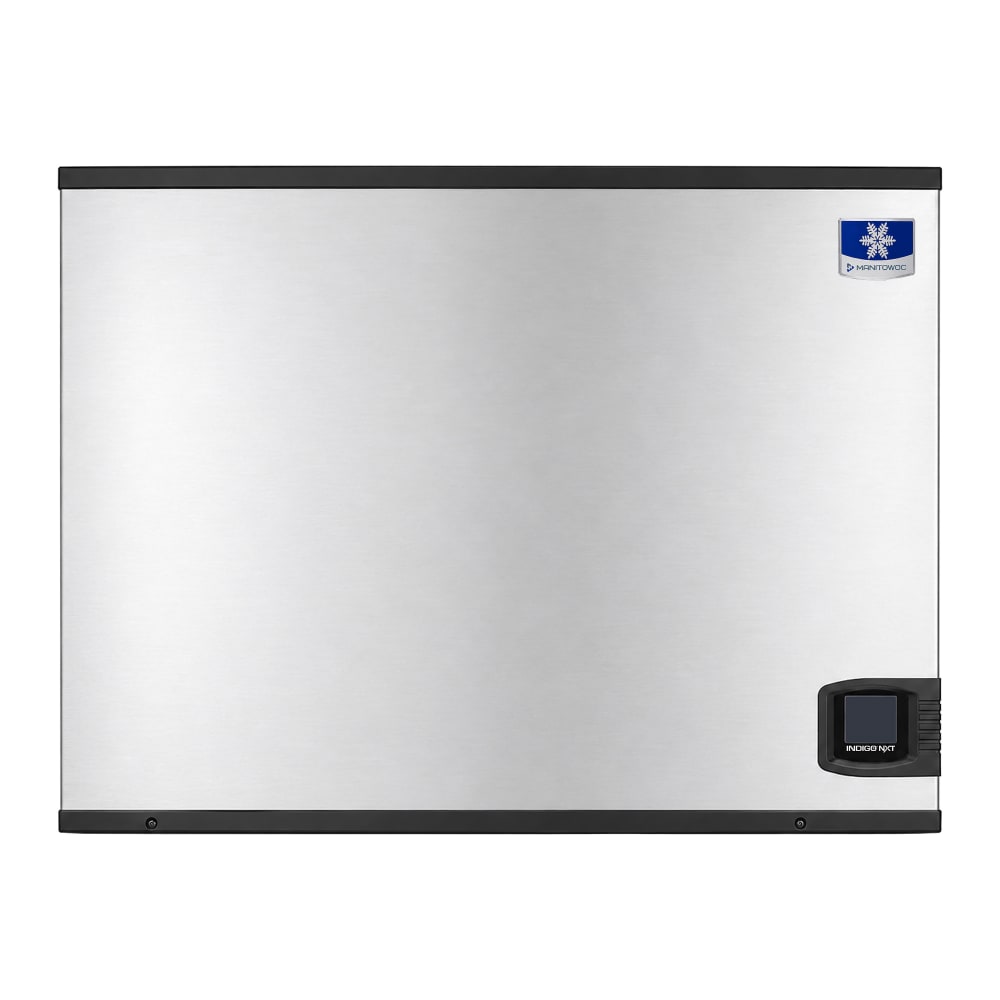

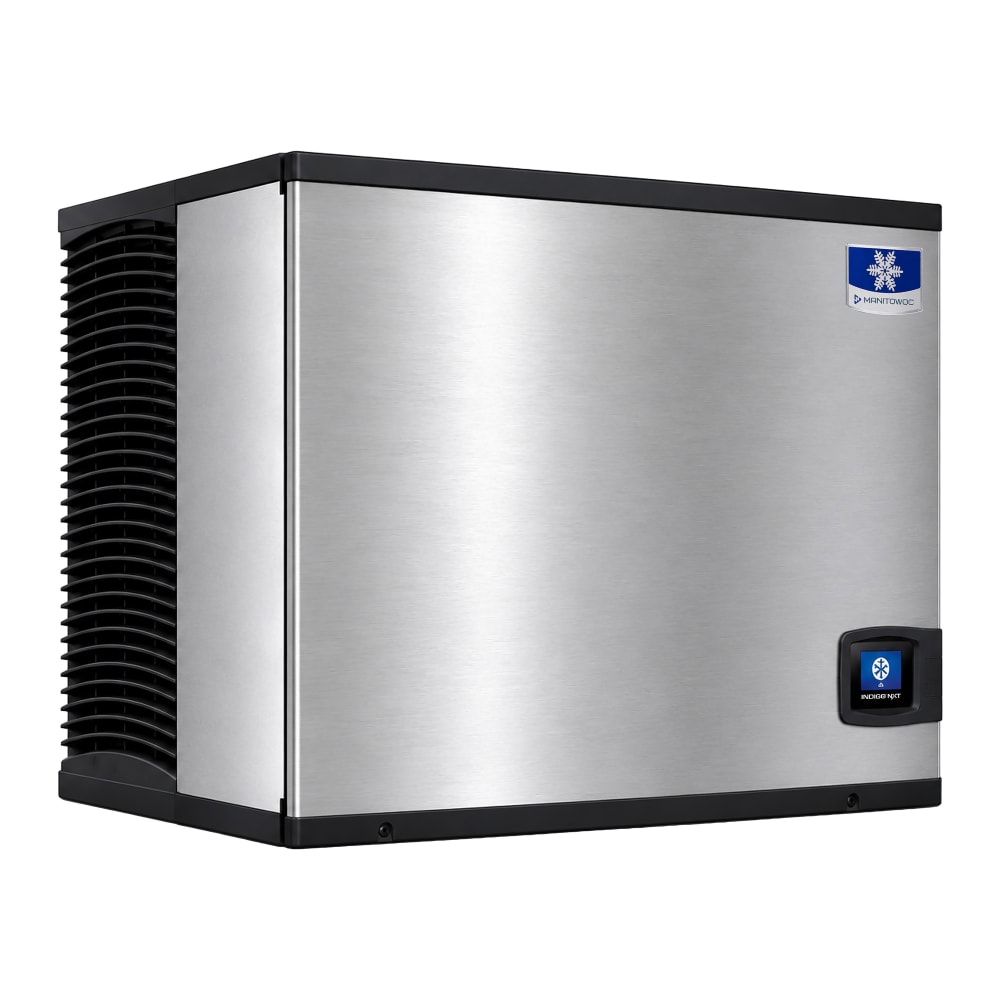

Manitowoc Ice IYT-1500W Description

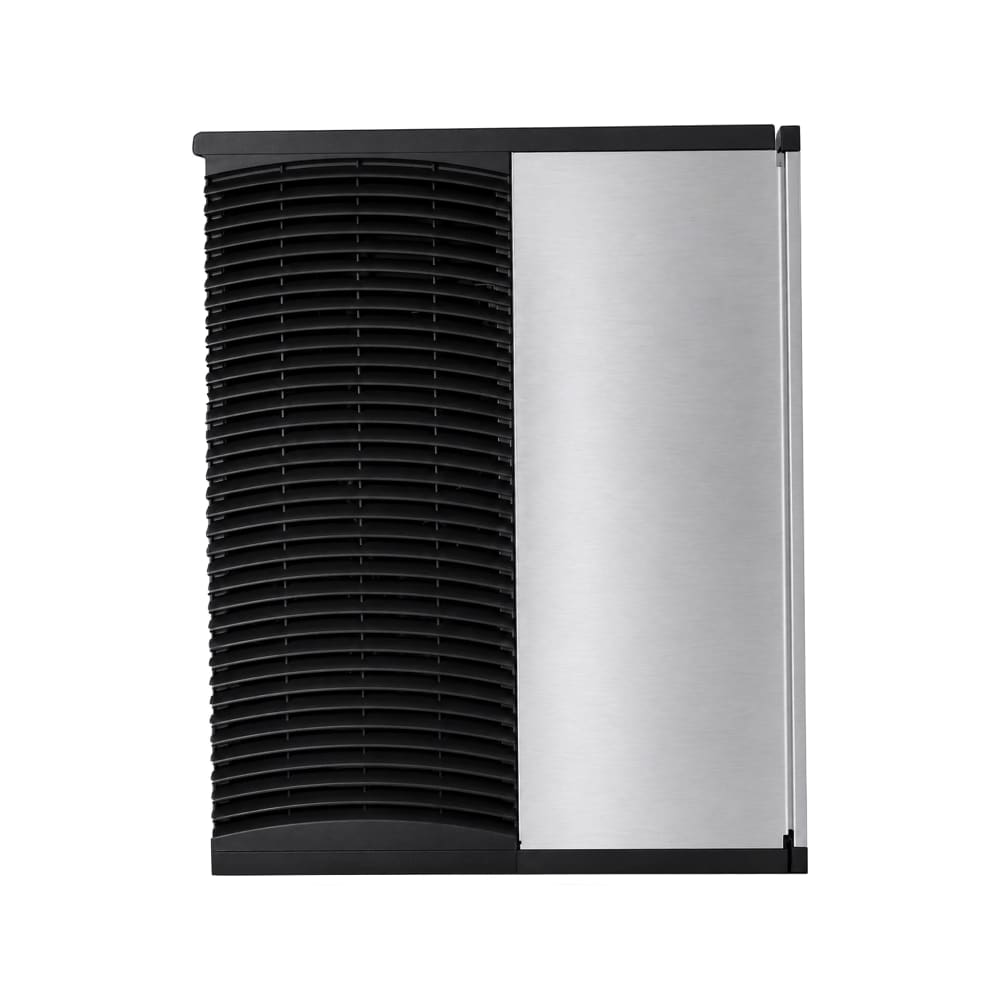

The Manitowoc IYT-1500W Indigo NXT™ ice machine head is cooled with water. The maximum ice production capacity is 1,725 pounds, and production is programmable based on amount or time of day. Ice is checked by an acoustical ice-sensing probe to make sure it reaches its correct thickness before it is released to the ice bin, which is sold separately. The components that come into contact with water are made with an AlphaSan® antimicrobial agent to slow bacteria growth.
The stainless steel exterior is made with a DuraTech® clear coat that helps protect against corrosion and keeps fingerprints and dirt hidden. The food zone is easy to clean since the front door swings out. Users can keep up with how the machine is running with diagnostics that run daily to help with preventive maintenance. The easyTouch® display on the Manitowoc IYT-1500W Indigo NXT ice maker provides information on the operating status, cleaning reminders, and more.
Product Details
- Water-cooled motor
- 1,725-lb. maximum ice production capacity
- Customizable ice production
- Acoustical ice-sensing probe determines if the ice has reached ideal thickness

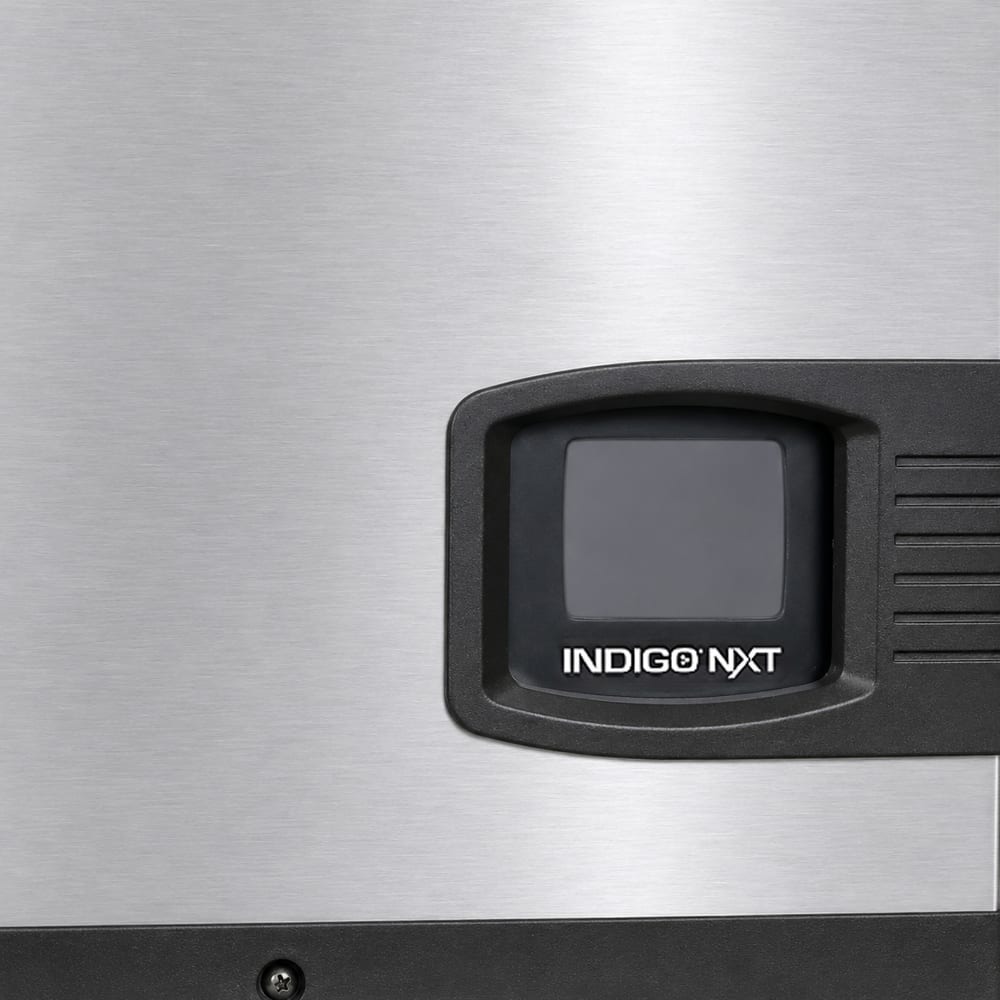

- Technical and operational information is shown on the easyTouch display
- Data is gathered to generate intelligent diagnostic feedback
- Hinged front door swings out for access to the food zone
- Distribution tube, curtain, water trough, and sensing probes are removable for cleanup
- AlphaSan antimicrobial is built into select components to slow bacteria growth
- DuraTech clear coat on the stainless steel surface resists corrosion and dirt

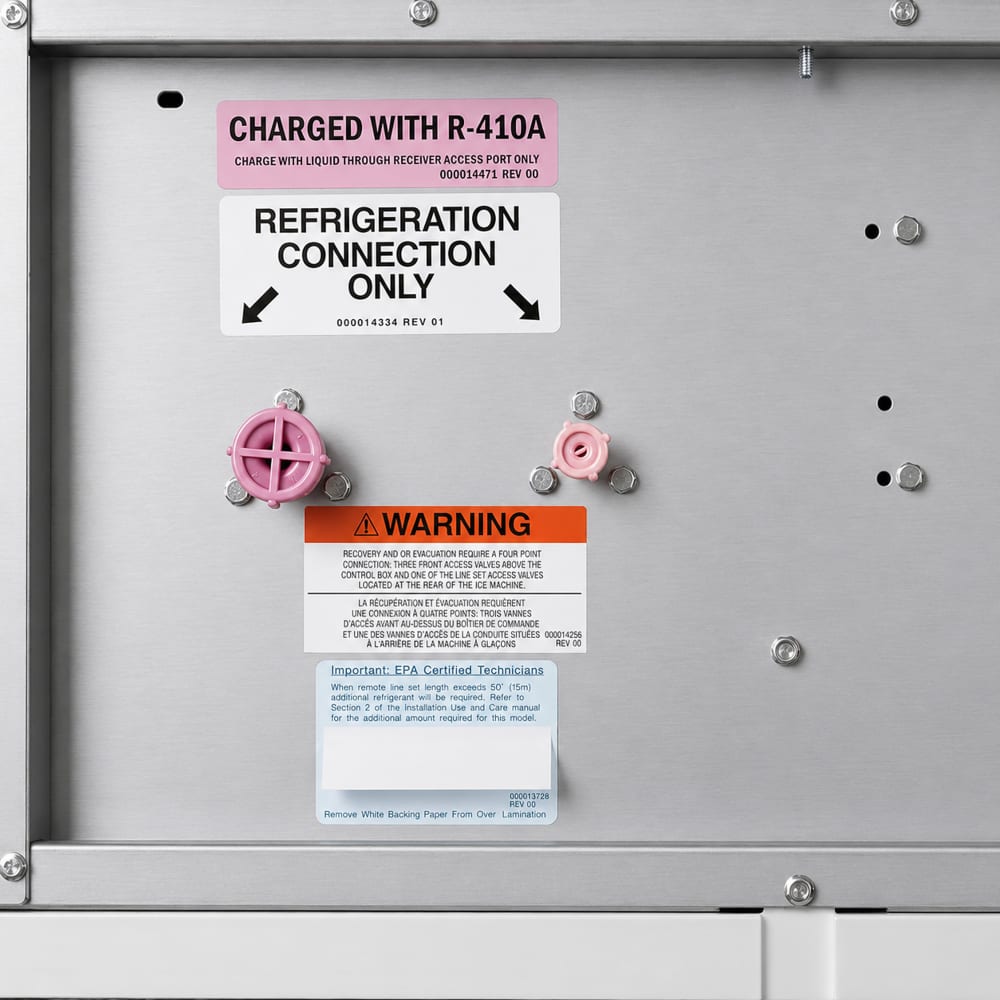

- Cool temperatures are maintained with R410A refrigerant
- 23,000-27,000 BTU
- 3.5 kW, 11.3 A
- 208-230 V/60 Hz/1 ph

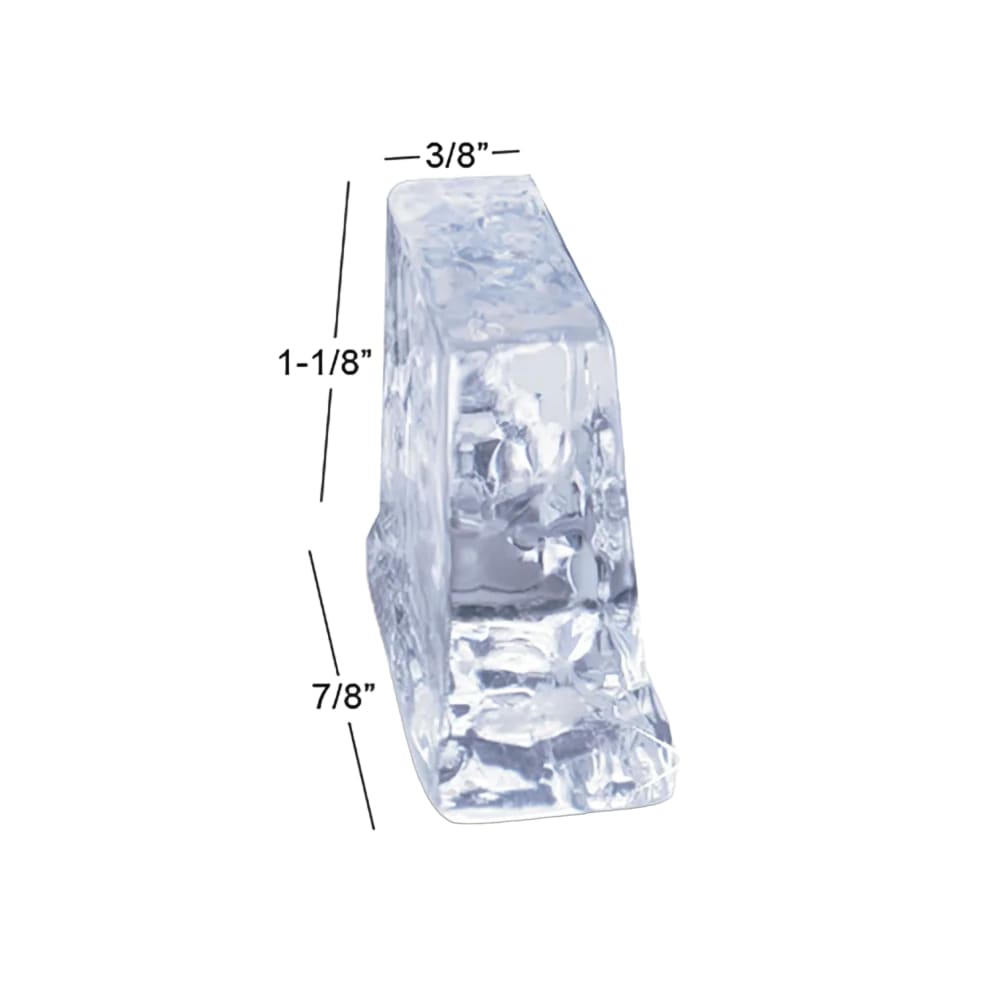

- Ice cube dimensions: 0.375 in. W x 1.125 in. D x 0.875 in. H
- Overall dimensions: 48 in. W x 24 in. D x 29.5 in. H
- CE approved; California Low Lead qualified; cULus listed; AHRI and NSF certified
- Note: a bin is required for operation and plug and cord are not included
The commercial ice machine buyers' guide provides in-depth information on all ice machines.
Product Features
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1725 lb/24 hours at 70°/50° (1420 lb AHRI certified at 90°70°), DuraTech™ exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE, 208-230v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Manitowoc Ice IYT-1500W Specifications
PDF Spec Sheet| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lbs) | 1725 |
| Height (in) | 29.5 |
| Ice Type | Half Cube |
| Warranty | 3-yr Parts & Labor; 5-yr Evaporator Parts & Labor; 5-yr Parts & 3-yr Labor Compressor |
| Voltage | 208/230 |
| Compressor Type | Water Cooled |
| Hertz | 60 |
| Phase | 1 |
| Product Type | Ice Makers & Bins |
| Series | Indigo NXT™ |
| Recommended Bins | D-970, F-700, F-1300, F-1325, F-1650, FC-1350 |
| Depth (in) | 24 |
| Width (in) | 48 |
| Product | Ice Machine Head |
| Production Range (per day) | 1500-2099 lb |
| Width (in) Range | 40-49 |
| Special Features | DuraTech™ Exterior |
| Weight | 294.00 |
