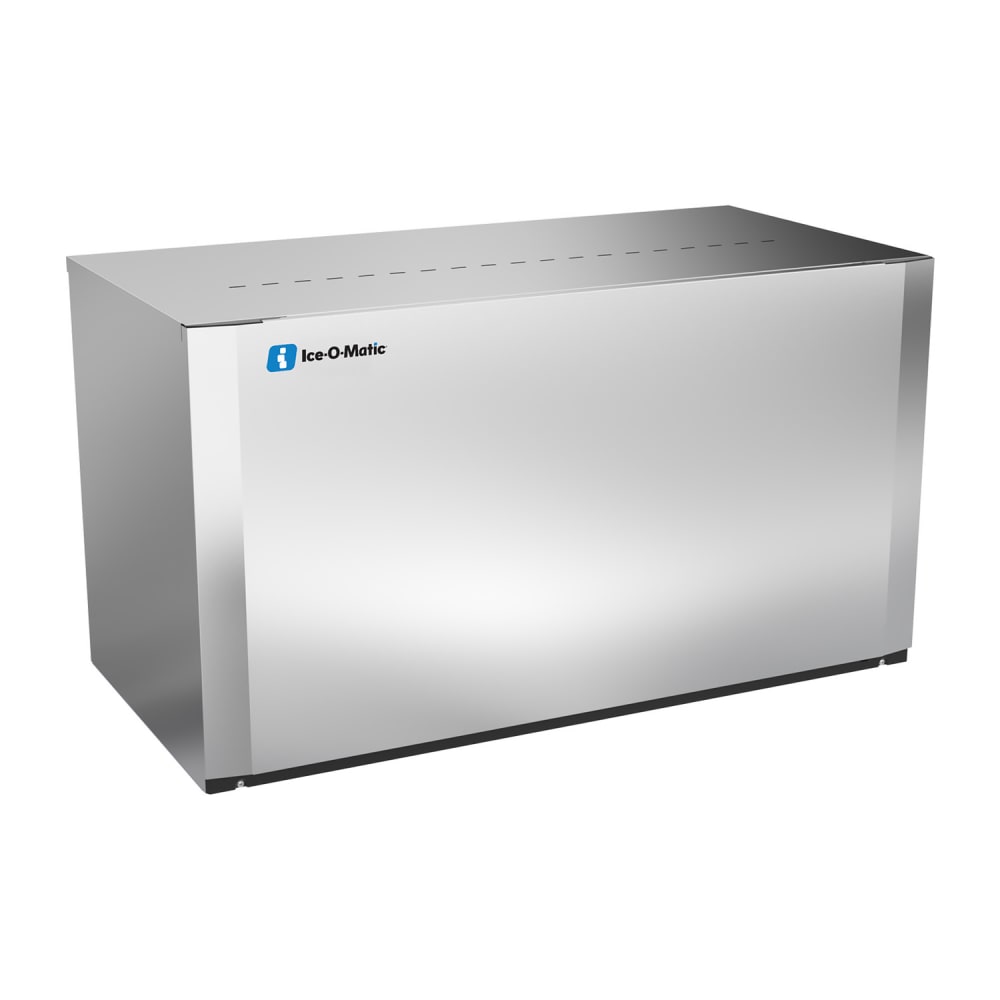

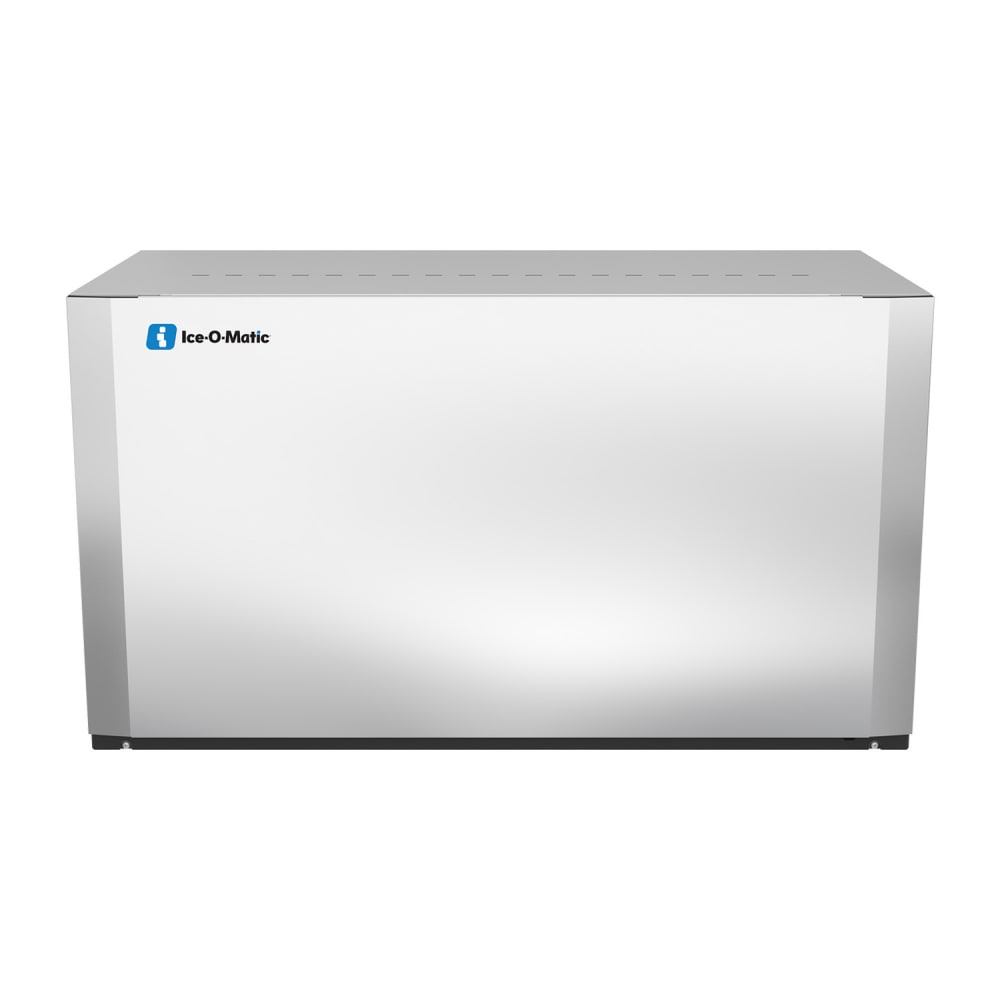

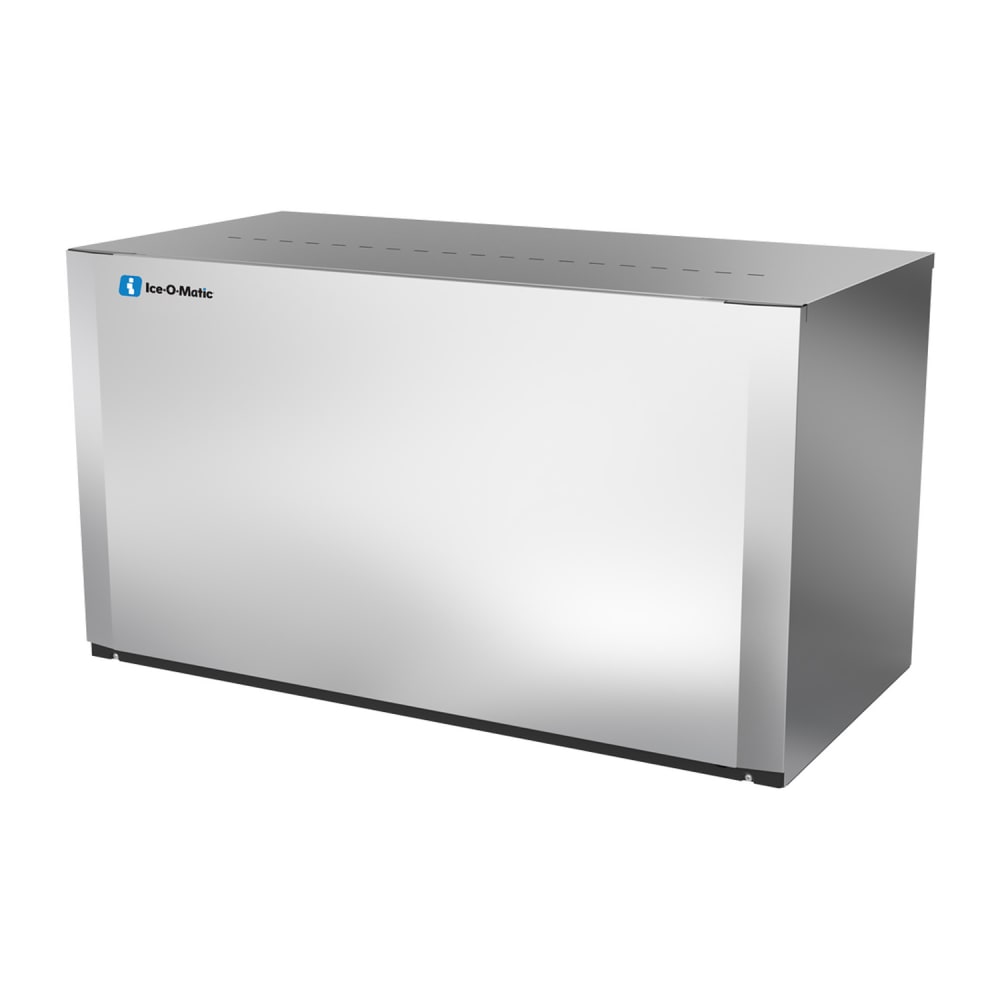

Ice-O-Matic CIM1446HW 48 1/4" Elevation Series™ Half Cube Ice Machine Head - 1560 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$8,726.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM1446HW Description
The Ice-O-Matic CIM1446HW half-cube ice machine head has a foodzone made of plastic to facilitate cleaning. It has no crevices that can harbor bacteria or debris and its components snap out for placement in the dishwasher when they must be cleaned. Protected with PURE ICE® antimicrobial, bacterial growth is inhibited, and the single push of a button controls the unit's descaling and sanitizing processes. Made of stainless steel, the ice machine head is durable and corrosion resistant.
Great for mixed beverages and soft drinks, the Ice-O-Matic CIM1446HW ice machine head creates half-size cubes of ice. In ideal operating conditions, it can create 1,560 pounds of ice per day, and when ambient temperatures are a bit higher, it produces closer to 1,440 pounds of ice daily. Its self-contained condenser reduces the risk of cross contamination, and it's air cooled with a dual exhaust. For durability, the evaporator is nickel plated.
- Part of the Elevation Series™
- 1,560-lb. maximum daily ice production
- 1,440-lb. AHRI-certified daily ice production
- Generates half-size cubes
- Cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Uses Harvest Assist to guide ice into a bin or dispenser
- LED status display can be monitored for updates
- Self-contained, air-cooled condenser
- Side and top air discharge reduces risk of obstruction

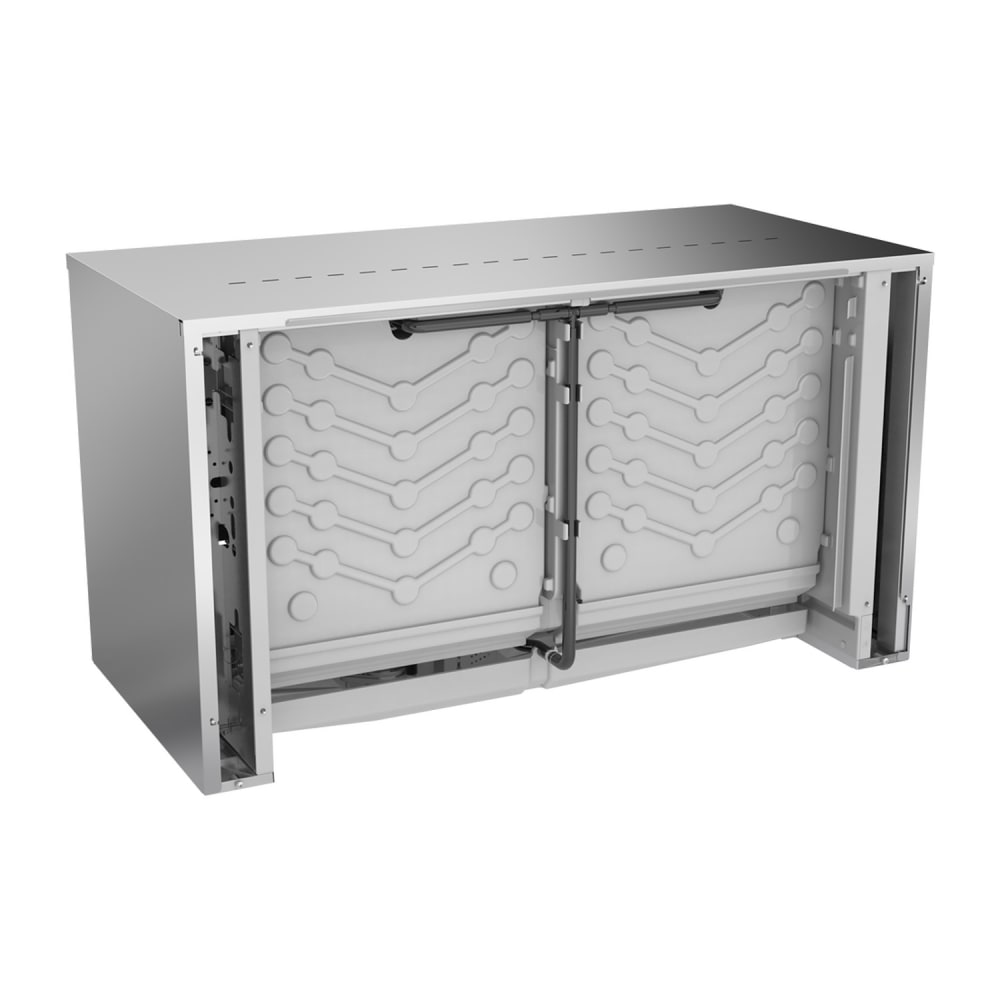

- Evaporator is nickel plated for durability
- Single-push sanitizing and descaling
- Plastic foodzone streamlines cleaning
- Foodzone components are dishwasher safe
- Built-in PURE ICE antimicrobial
- Durable stainless steel construction
- Ideal incoming water pressure: 20-60 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 22,000-BTU heat transfer capacity
- Ice Maker: 48 1⁄4 in. W x 24 1⁄4 in. D x 26 4⁄5 in. H
- 18.9 A, 3.72 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM1446HW within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48"W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406HW)
Ice-O-Matic CIM1446HW Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1560 |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.8 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 48.25 |
| Weight | 310.00 |
Important Prop 65 information for California residents.
- Ice-O-Matic ICE1406HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM1446HW Ice-O-Matic CIM1446HW 48 1/4" Elevation Series™ Half Cube Ice Machine Head - 1560 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,726.00 / Each | $9,234.00 / Each | $9,450.00 / Each | $8,799.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 4 - 8 Business Days | ||
| 24 Hr. Production (lb) | 1560 | 1590 | 1247 | 1444 |
| Ice Type | Half Cube | Half Cube | Crescent Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 48.25 | 48 | 48 | 48 |
| Rating | Better | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | Indigo NXT™ | KM EDGE | Prodigy ELITE® |
| Refrigerant | R404A | R410A | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
