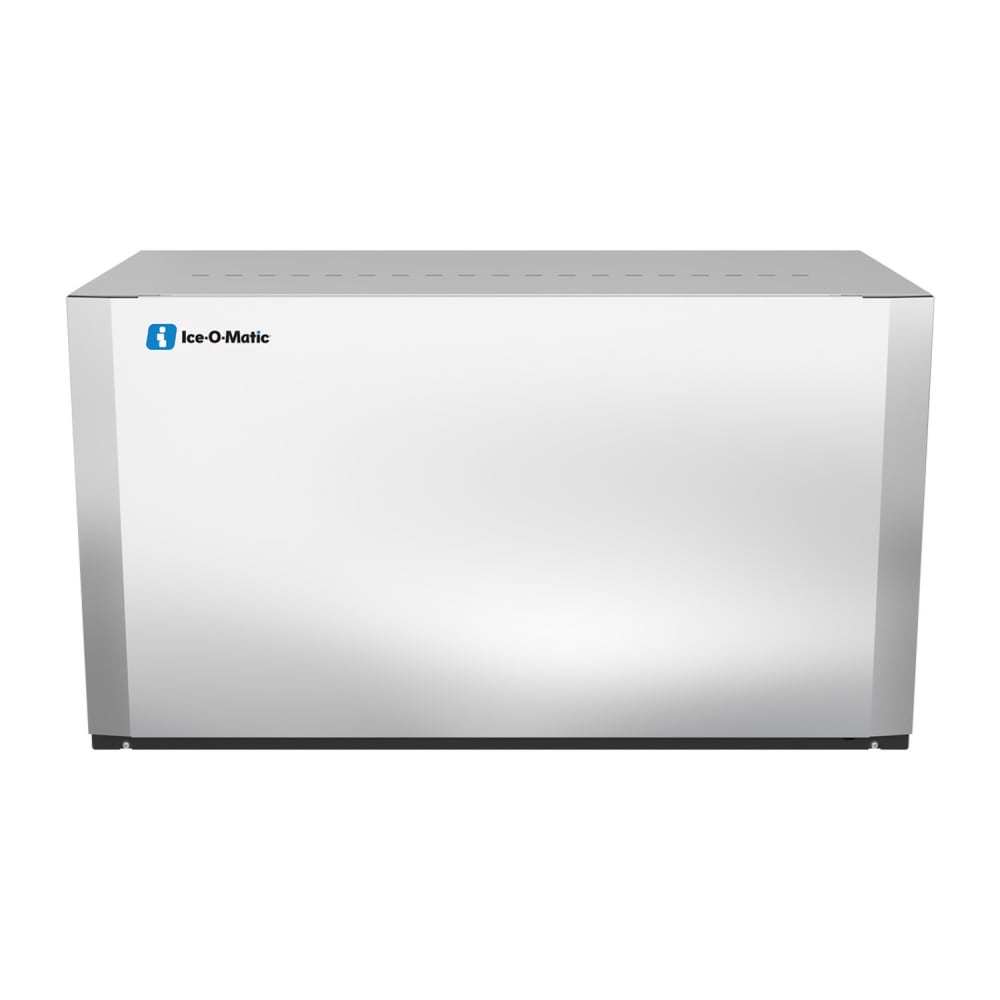

Ice-O-Matic CIM1446FW 48 1/4" Elevation Series™ Full Cube Ice Machine Head - 1560 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$8,726.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM1446FW Description
The Ice-O-Matic CIM1446FW ice machine head is made of durable and corrosion-resistant stainless steel. Its condenser is self-contained to streamline installation, and it produces full-size cubes of ice that are great for establishments that serve soft drinks and mixed beverages. When operating conditions are ideal, this unit creates 1,560 pounds of ice daily; when ambient temperatures are a bit higher, it crafts closer to 1,440 pounds of ice per day. To give operators status updates, this unit has an LED display.
To prevent bacteria from gathering within seams, the Ice-O-Matic CIM1446FW full-cube ice maker head is made of plastic that can be wiped clean. The components snap out for removal and can be cleaned in a dishwasher, and with the push of a button, the unit performs sanitizing and descaling. PURE ICE® antimicrobial protects the ice maker from excessive bacterial growth, reducing the spread of germs in a busy environment.
- Part of the Elevation Series™
- 1,560-lb. maximum daily ice production
- 1,440-lb. AHRI-certified daily ice production
- Produces full-size cubes
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Self-contained, water-cooled condenser
- Dual exhaust with side and top discharge
- Microbe growth inhibited by PURE ICE antimicrobial
- LED status display for monitoring
- Sanitizing and descaling provided with 1 touch
- Plastic foodzone with removable components that are dishwasher safe
- Durable nickel-plated evaporator
- Strong, rust-resistant stainless steel
- Uses Harvest Assist to guide ice into a bin
- Ideal incoming water pressure: 20-60 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 16,700-BTU heat transfer capacity
- Ice Maker: 48 1⁄4 in. W x 24 1⁄4 in. D x 26 in. H
- 18.9 A, 3.72 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM1446FW within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48"W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), full size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406FW)
Ice-O-Matic CIM1446FW Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1560 |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.8 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 48.25 |
| Weight | 310.00 |
- Ice-O-Matic ICE1406FW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM1446FW Ice-O-Matic CIM1446FW 48 1/4" Elevation Series™ Full Cube Ice Machine Head - 1560 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,726.00 / Each | $9,410.00 / Each | $9,450.00 / Each | $8,799.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 1 - 3 Business Days | ||
| 24 Hr. Production (lb) | 1560 | 1615 | 1247 | 1444 |
| Ice Type | Full Cube | Full Cube | Crescent Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 48.25 | 48 | 48 | 48 |
| Rating | Better | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | Indigo NXT™ | KM EDGE | Prodigy ELITE® |
| Refrigerant | R404A | R410A | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
