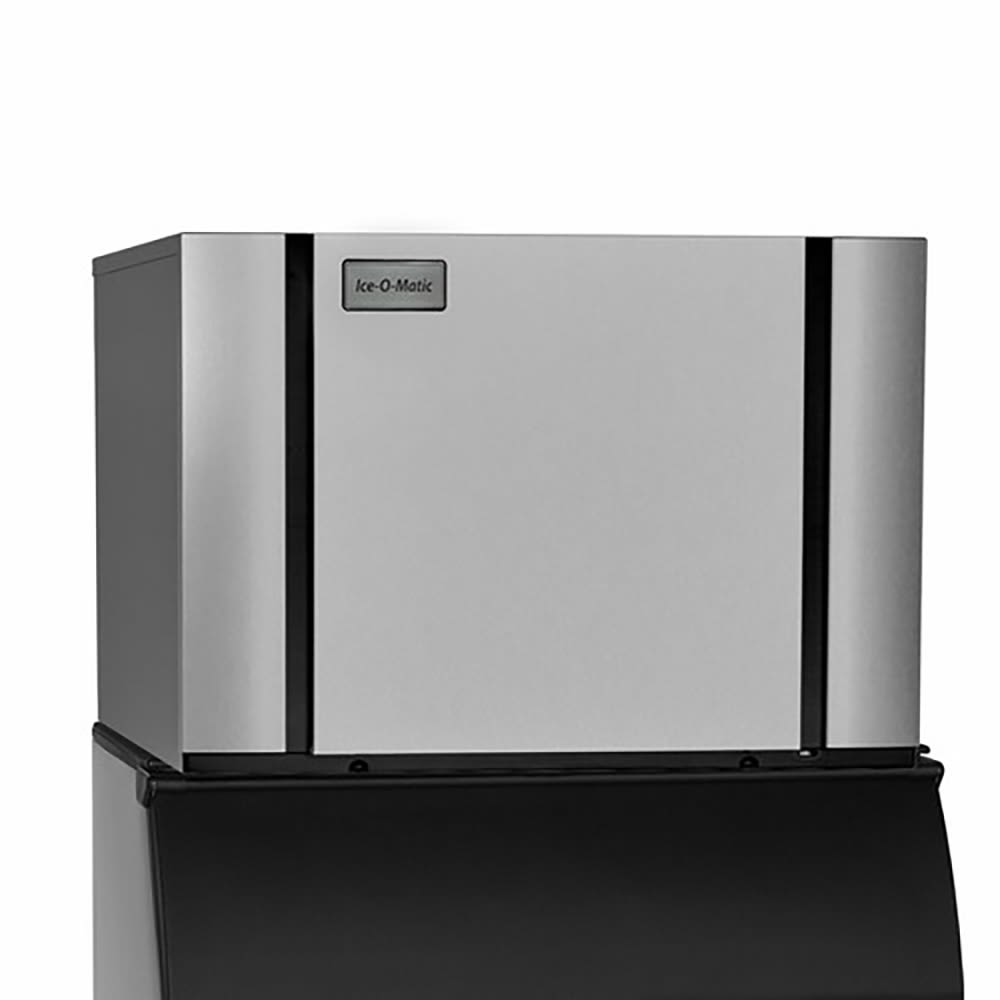

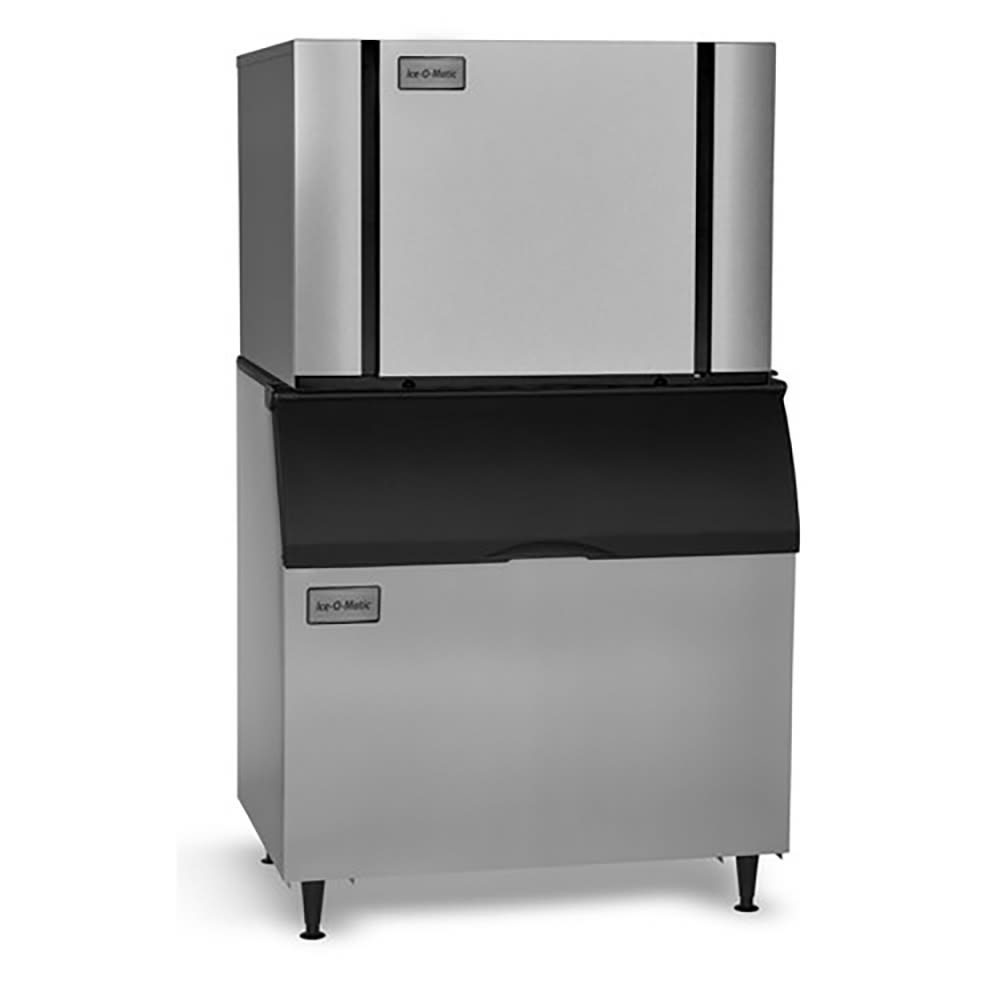

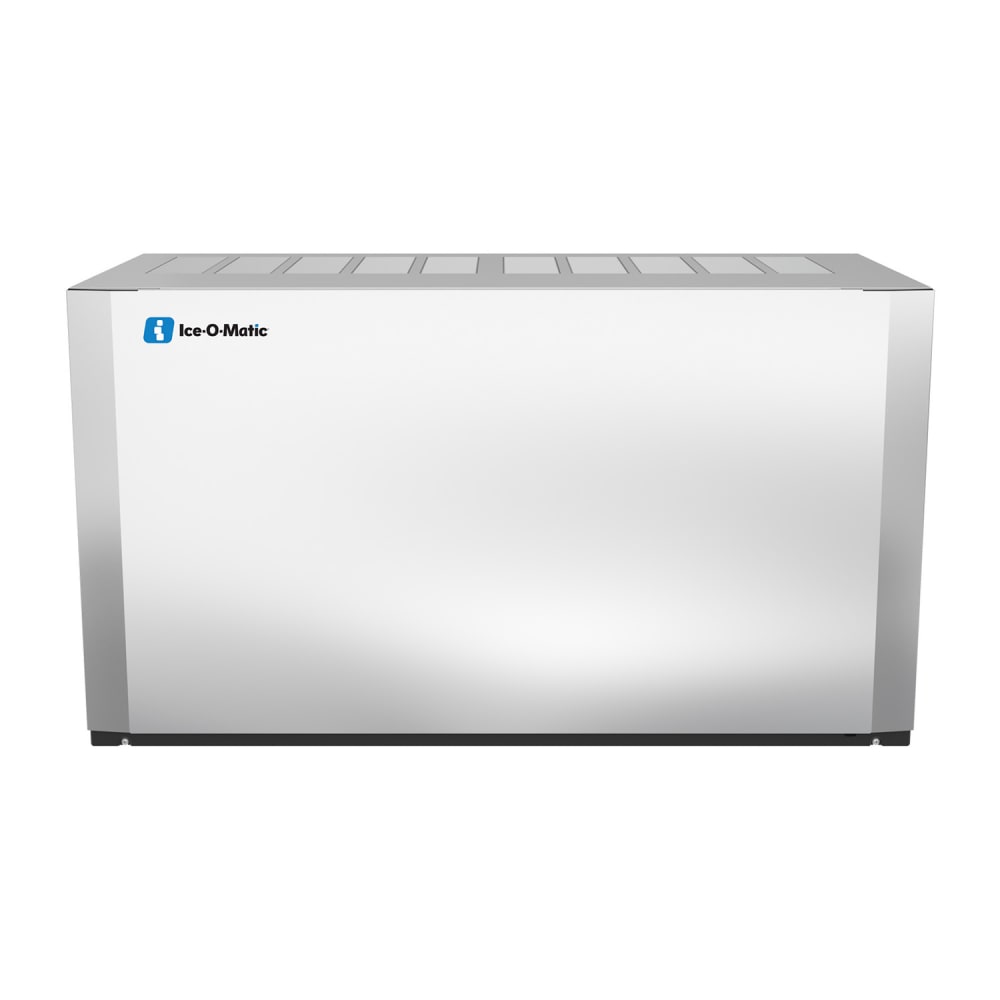

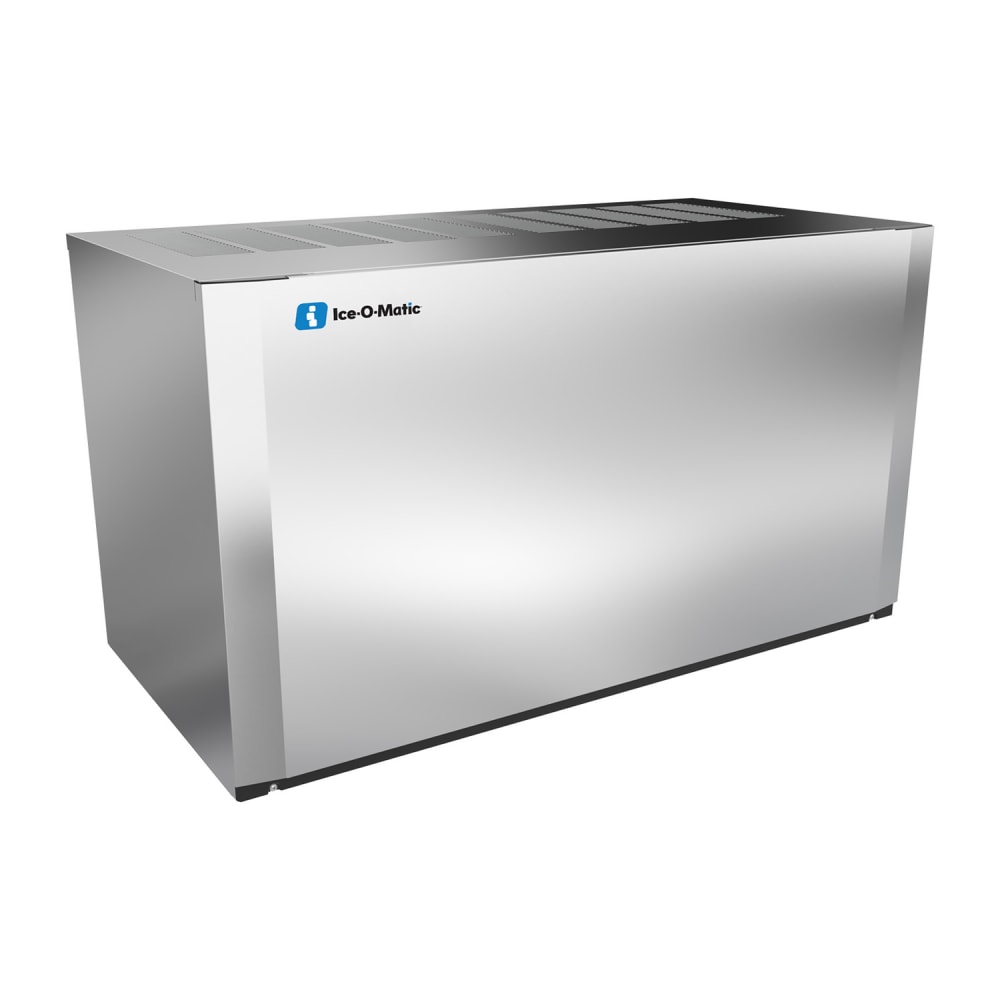

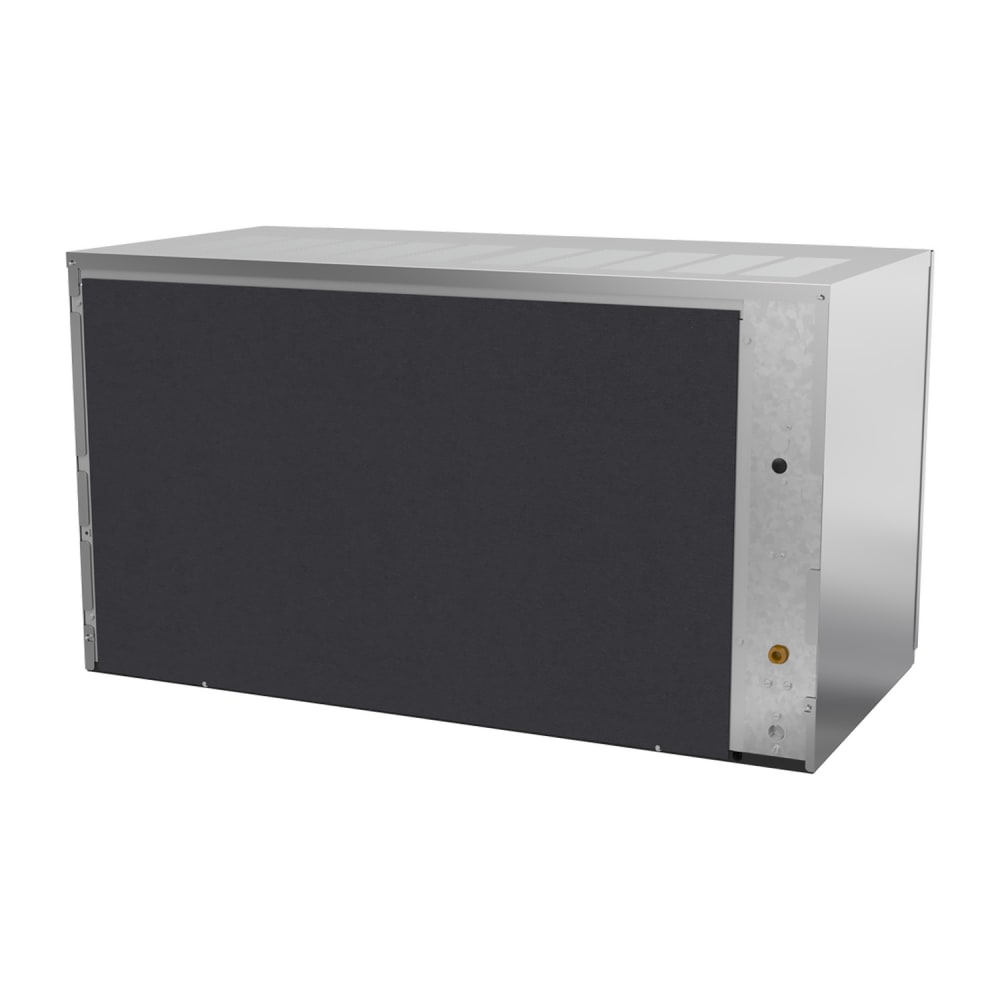

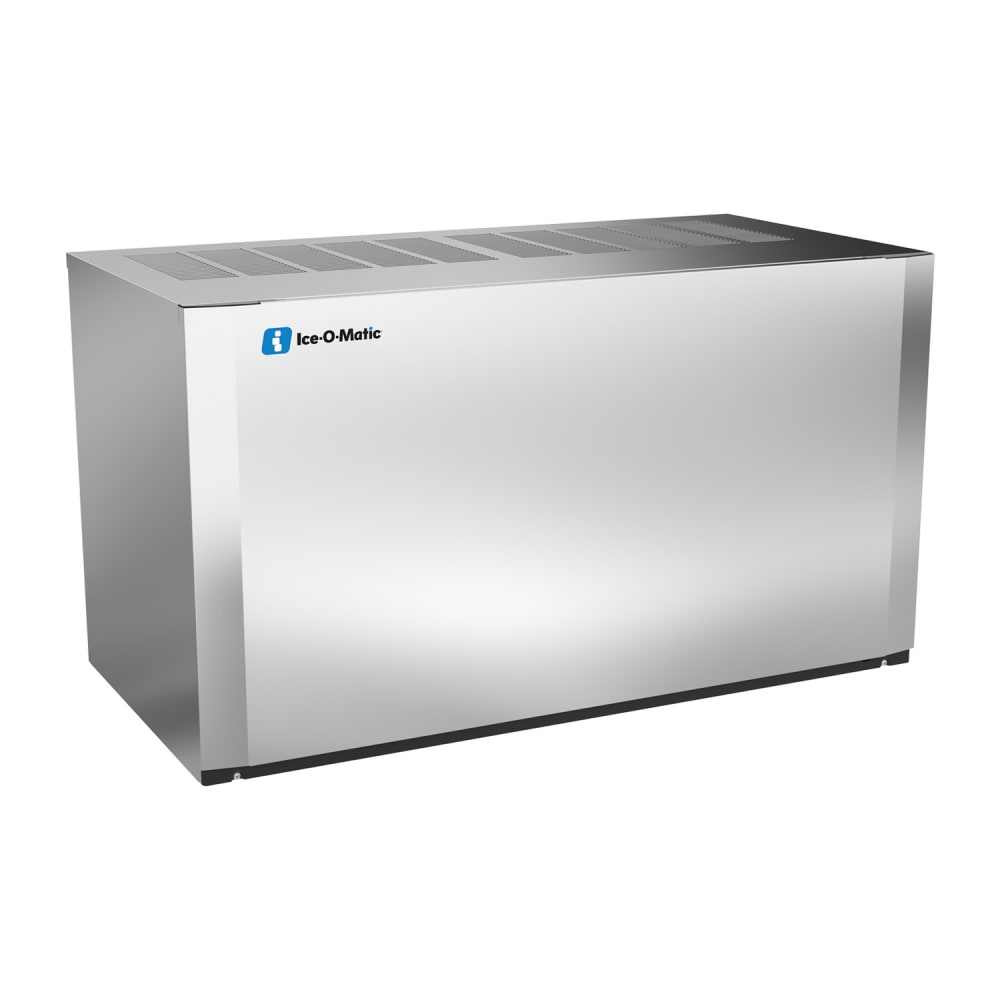

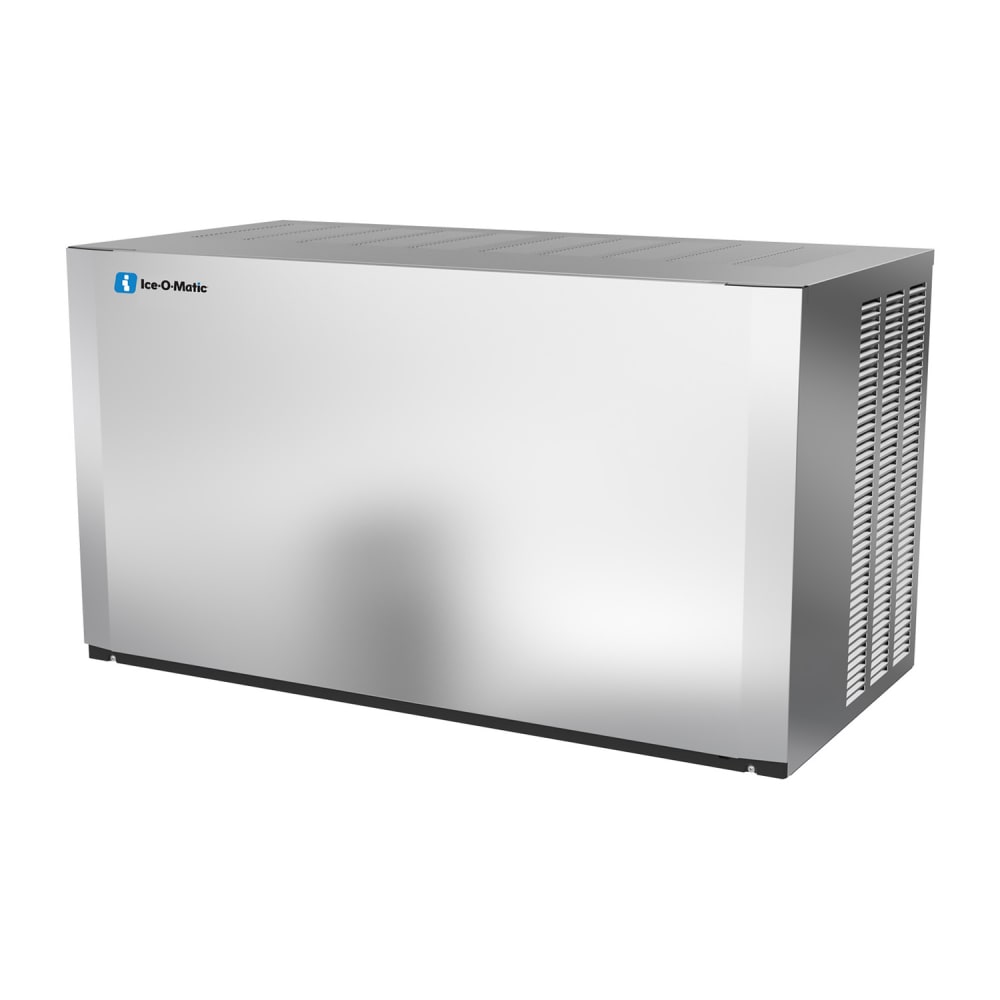

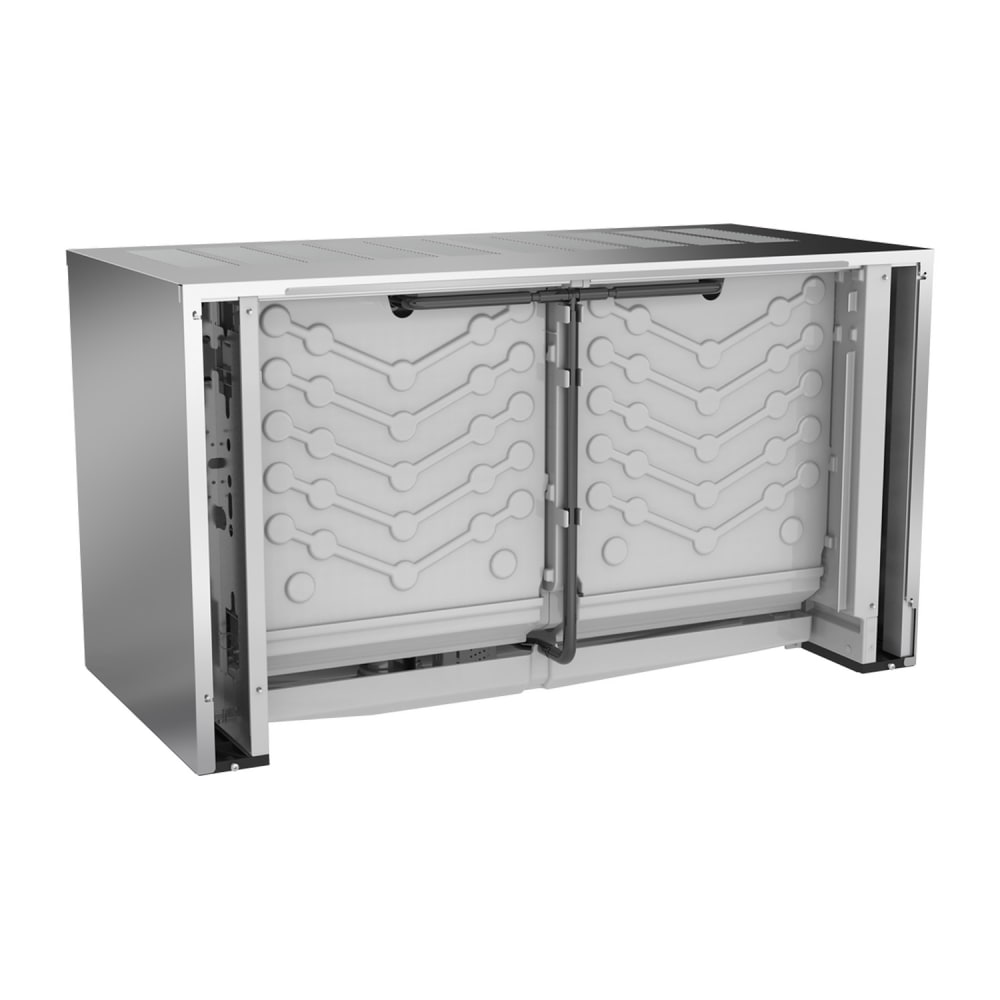

Ice-O-Matic CIM1446FA49 48 1/4" Elevation Series™ Full Cube Ice Machine Head - 1560 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$8,306.00 /Each
Ice-O-Matic CIM1446FA49 Description
The Ice-O-Matic CIM1446FA49 full-cube ice maker is equipped with a plastic food zone without crevices to harbor bacteria, making it fast and easy to wipe clean. The food zone’s components are removable and dishwasher safe to further facilitate thorough cleaning. This unit descales and self-sanitizes at the push of a button, reducing necessary labor and optimizing performance.
With a maximum rate of 1,560 pounds per day in ideal conditions, the Ice-O-Matic CIM1446FA49 ice machine head produces full-size cubes. Because its dual-exhaust system releases air from the top and side, it can be installed in a variety of configurations without risking obstruction. To ensure users are kept up to date, it features a clearly readable LED display.
- Part of the Elevation Series™
- 1,560-lb. maximum daily ice production
- 1,210-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air cooled
- PURE ICE® antimicrobial protection
- Dual-exhaust system releases air from top and side for installation flexibility
- Descales and sanitizes with 1-touch controls
- Updates provided with LED status display
- Self-contained condenser
- Plastic food zone equipped with dishwasher-safe components
- Uses R449 refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 22,000-BTU heat transfer capacity
- 48 1⁄4 in. W x 24 1⁄4 in. D x 26 4⁄5 in. H
- 19.2 A, 4.2 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM1446FA49 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48"W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406FA)
Ice-O-Matic CIM1446FA49 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1560 |
| Also Known As | CIM1446FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.8 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R449A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 48.25 |
| Weight | 310.00 |
Important Prop 65 information for California residents.
- Ice-O-Matic ICE1406FA
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM1446FA49 Ice-O-Matic CIM1446FA49 48 1/4" Elevation Series™ Full Cube Ice Machine Head - 1560 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,306.00 / Each | $9,375.00 / Each | $8,871.00 / Each | $8,696.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 1560 | 1365 | 1688 | 1553 |
| Ice Type | Full Cube | Crescent Cube | Full Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 48.25 | 48 | 48 | 48 |
| Rating | Better | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | KM EDGE | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R449A | R404A | R410A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
