Hoshizaki KM-1301SAJ 48" Crescent Cube Ice Machine Head - 1365 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$8,315.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hoshizaki KM-1301SAJ Description
The Hoshizaki KM-1301SAJ crescent cube ice machine head can produce 1,301 to 1,365 pounds of crescent cube ice over a 24-hour period, depending on the ambient operating temperature. The CycleSaver™ design produces the same amount of ice as comparable units in fewer cycles. When service is required, operators are alerted to any issues by the EverCheck™ system. H-Guard Plus™ antimicrobial agent is built into the machine to slow the growth of bacteria.
The stainless steel exterior construction helps prevent damage and resists corrosion; the evaporator is also made of stainless steel to withstand long-term exposure to water and ice. The air-cooled, self-contained condensing system uses R-404A refrigerant, and the air filter and panels are removable for replacement and maintenance. The Hoshizaki KM-1301SAJ crescent cube ice machine head should have at least 6 inches of clearance on all sides for proper airflow.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details

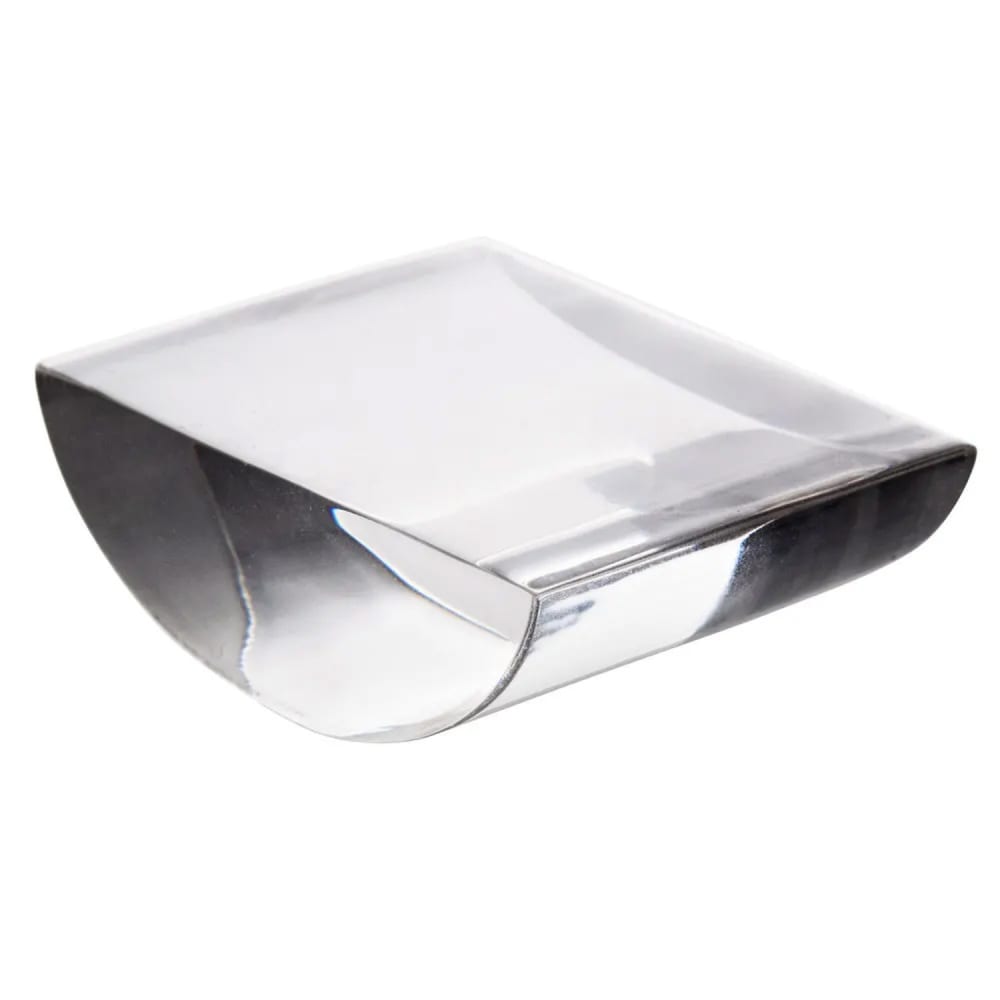

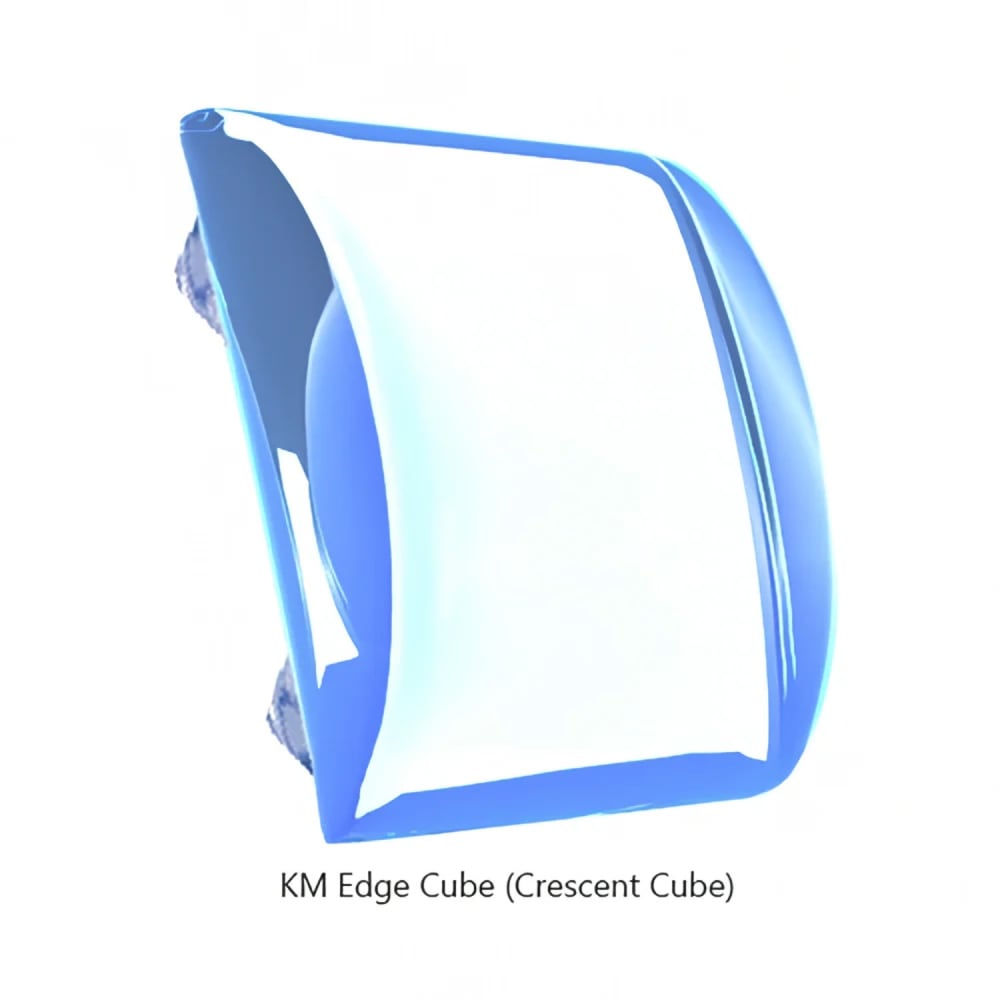

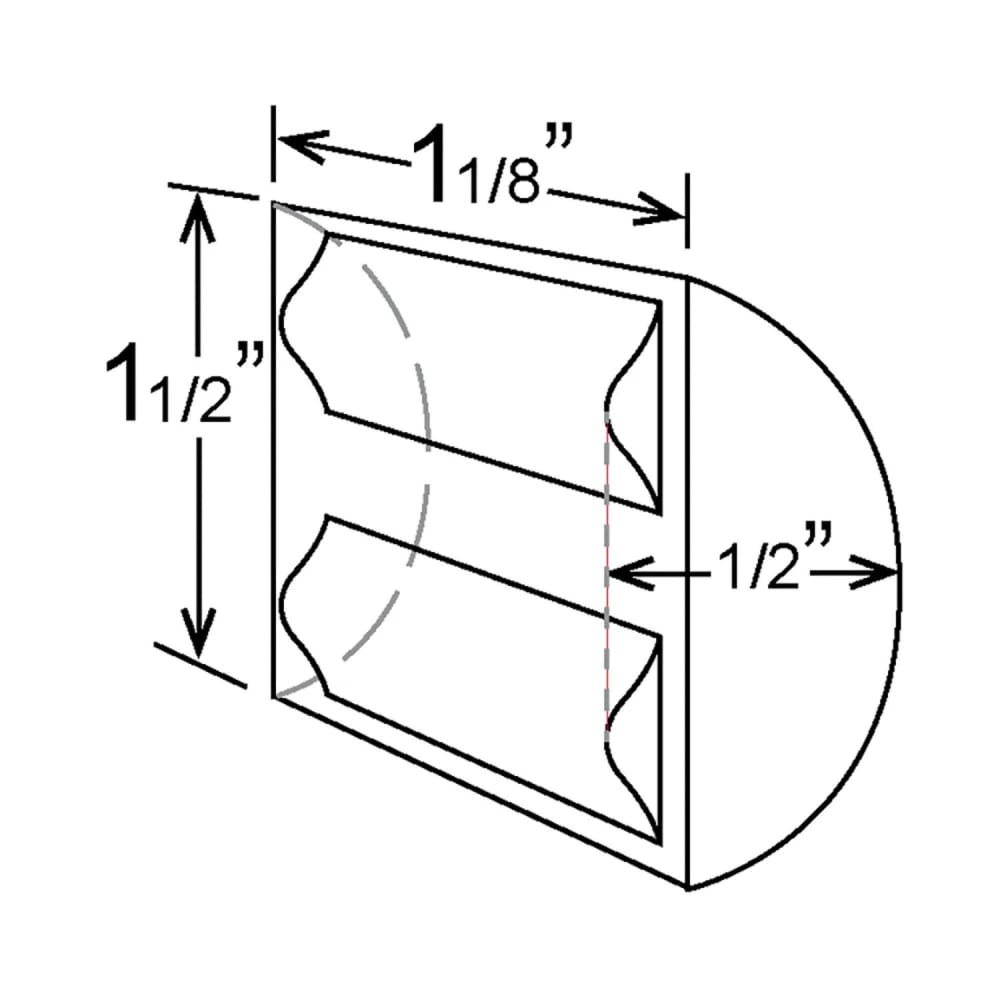

- Crescent cube ice measures 11⁄8 in. W x 1⁄2 in. D x 11⁄2 in. H
- Makes 1,301-1,365 lbs. of ice every 24 hrs. depending on operating temperatures
- CycleSaver technology produces just as much ice as competitors in fewer cycles
- H-Guard Plus antimicrobial agent is built into the unit to slow bacteria growth
- EverCheck alert system lets the operator know when maintenance is needed
- Exterior is durable and resistant to corrosion with its stainless steel construction
- R-404A refrigerant keeps temperatures cool
- Evaporator is constructed of stainless steel for strength
- Air-cooled condenser is self-contained
- Air filter is removable and replaceable
- Panels are easy to remove for maintenance and cleaning
- Bin is sold separately
- 19,400 BTU
- 208-230 V/60 Hz/1 ph, 12.4 A
- Overall Dimensions: 481⁄4 in. W x 277⁄16 in. D x 273⁄8 in. H
Product Features

Operation Requirements
- Can operate in ambient temperatures from 45-100 degrees F
- Water temperature should be between 45-90 degrees F
- Optimal water pressure is between 10-113 PSIG
- 6-in. clearance is required on rear, sides, and top for ideal air circulation
*Free shipping on Hoshizaki KM-1301SAJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1365 lb/24 hours at 70°/50° (1301 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 12.4 amps, NSF, UL
*Image may not depict product color, inclusions or accessories.

Hardwired
Product does not come with plug and must be hardwired to operate

Stackable
This item can be safely stacked

Watch a video about this product
Hoshizaki KM-1301SAJ Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Hoshizaki |
24 Hr. Production (lb) | 1365 |
Compressor Type | Air Cooled |
Depth (in) | 27.38 |
Height (in) | 27.38 |
Ice Type | Crescent Cube |
Voltage | 208/230 |
Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
Width (in) | 48 |
Series | KM EDGE |
Phase | 1 |
Rating | Best |
Product | Ice Machine Heads |
Product Type | Ice Makers & Bins |
Certifications | Hardwired |
Certifications | NSF |
Certifications | UL |
Certifications | AHRI |
Certifications | Stackable |
Weight | 338.00 |



Important Prop 65 information for California residents.
