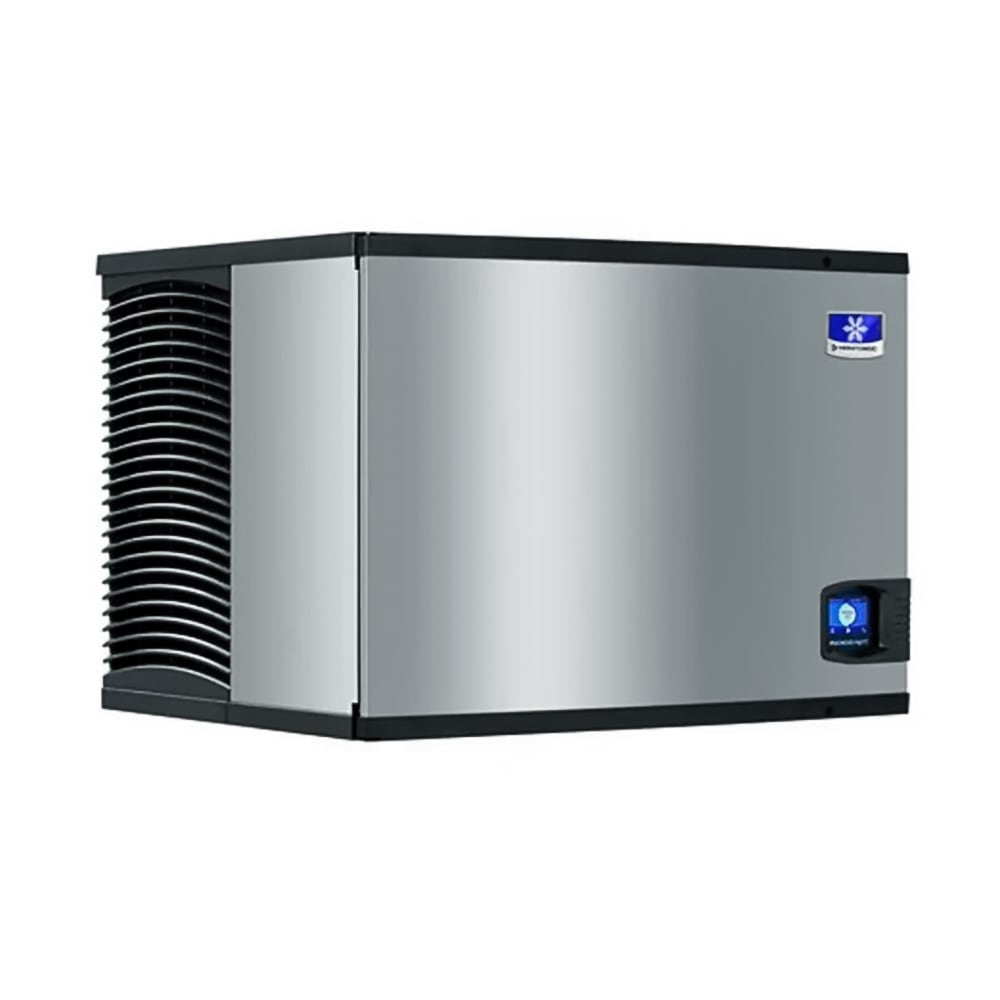

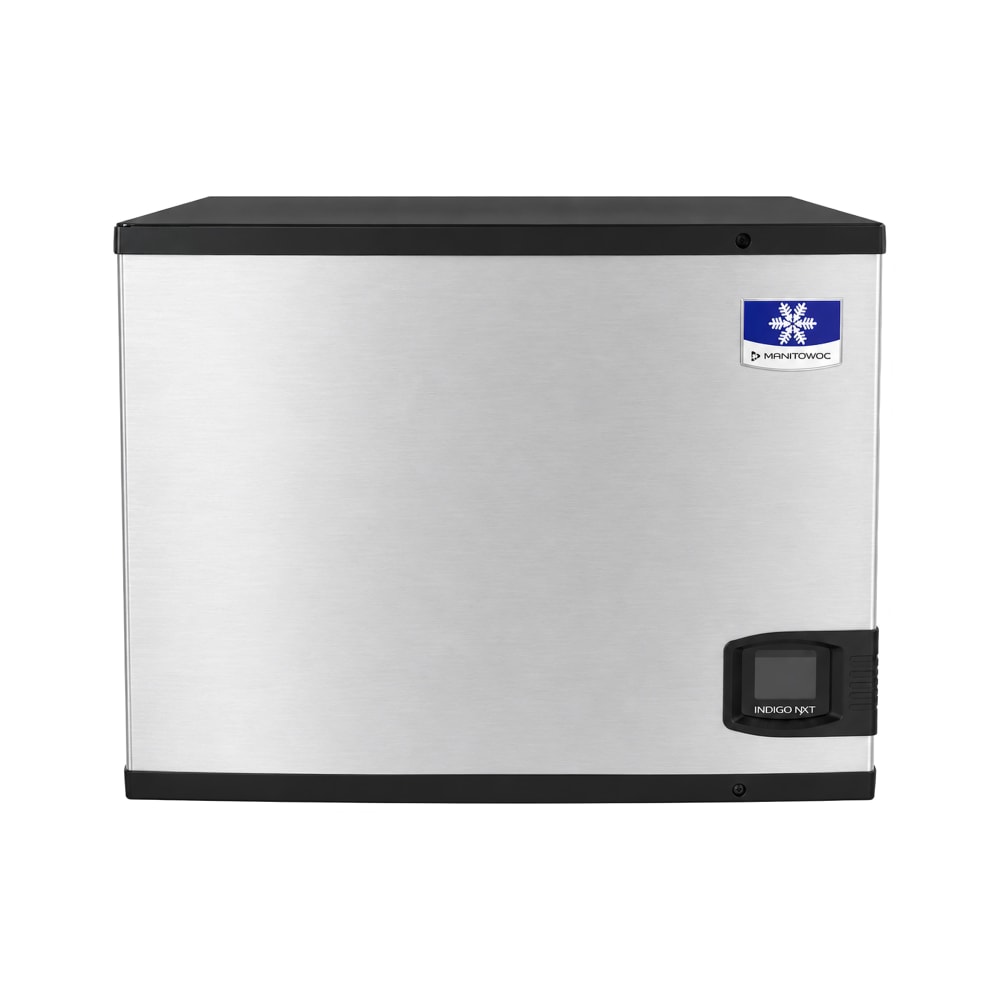

Manitowoc Ice IYT0750A 30" Indigo NXT™ Half Cube Ice Machine Head - 715 lb/24 hr, Air Cooled, 208-230v/1ph

This Manitowoc Ice IYT0750A Indigo NXT™ commercial ice maker head uses an air-cooled condenser that does not require two constant water supplies. Over a full day, it can crank out 715 pounds of half-dice ice, making it great for establishments with small customer bases. The easyTouch® display is the unit's program hub, and its intuitive icon-based approach ensures the machine is straightforward to use. Employees can use diagnostics to figure out problems, or put in settings for automatic shutdown and daily ice production quotas.

Active Sense hardware and software works with an acoustical ice sensing probe that ensures the Manitowoc Ice IYT750A ice machine head creates consistent ice cubes, even in harsh water conditions. A DuraTech™ exterior protects the unit against both corrosion and smudging, so its great appearance lasts a long time. To streamline cleaning and maintenance, key internal components can be taken out of the head.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• 715-lb. maximum daily ice production
• 575-lb. AHRI-certified daily ice production
• Air-cooled system

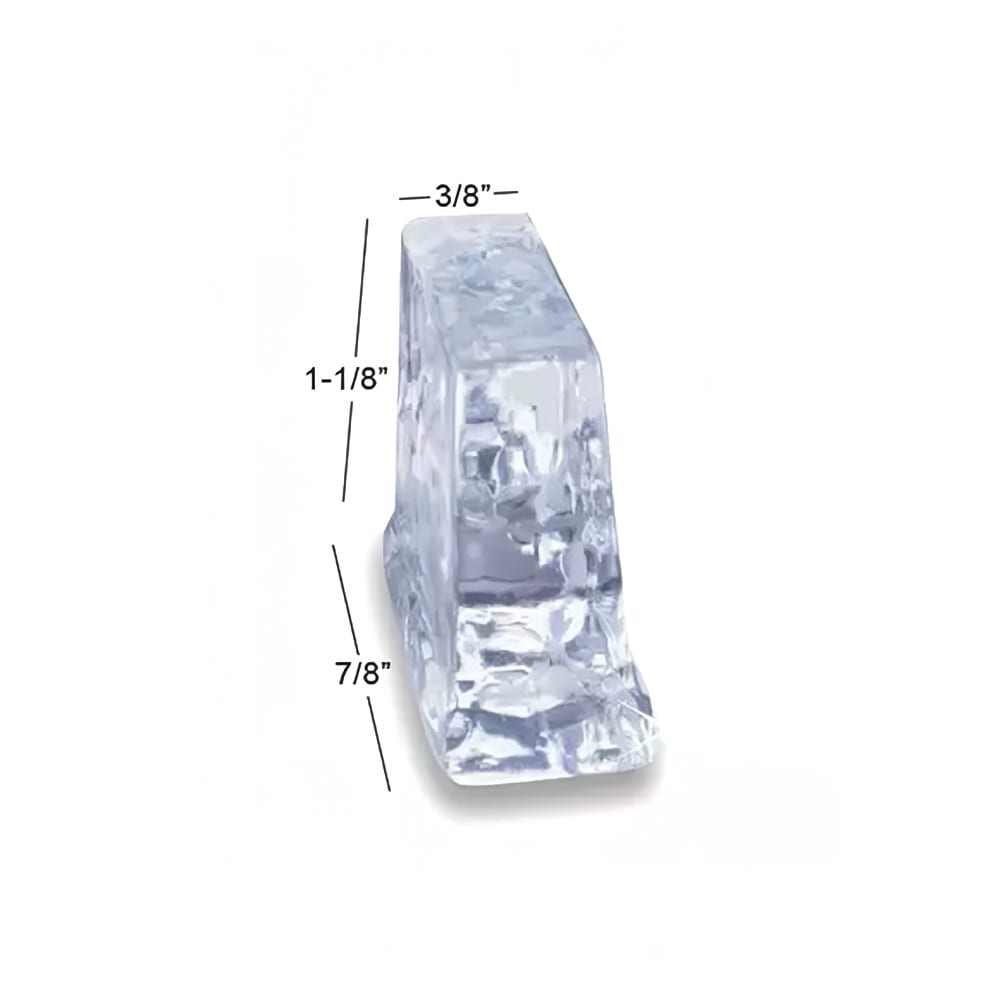

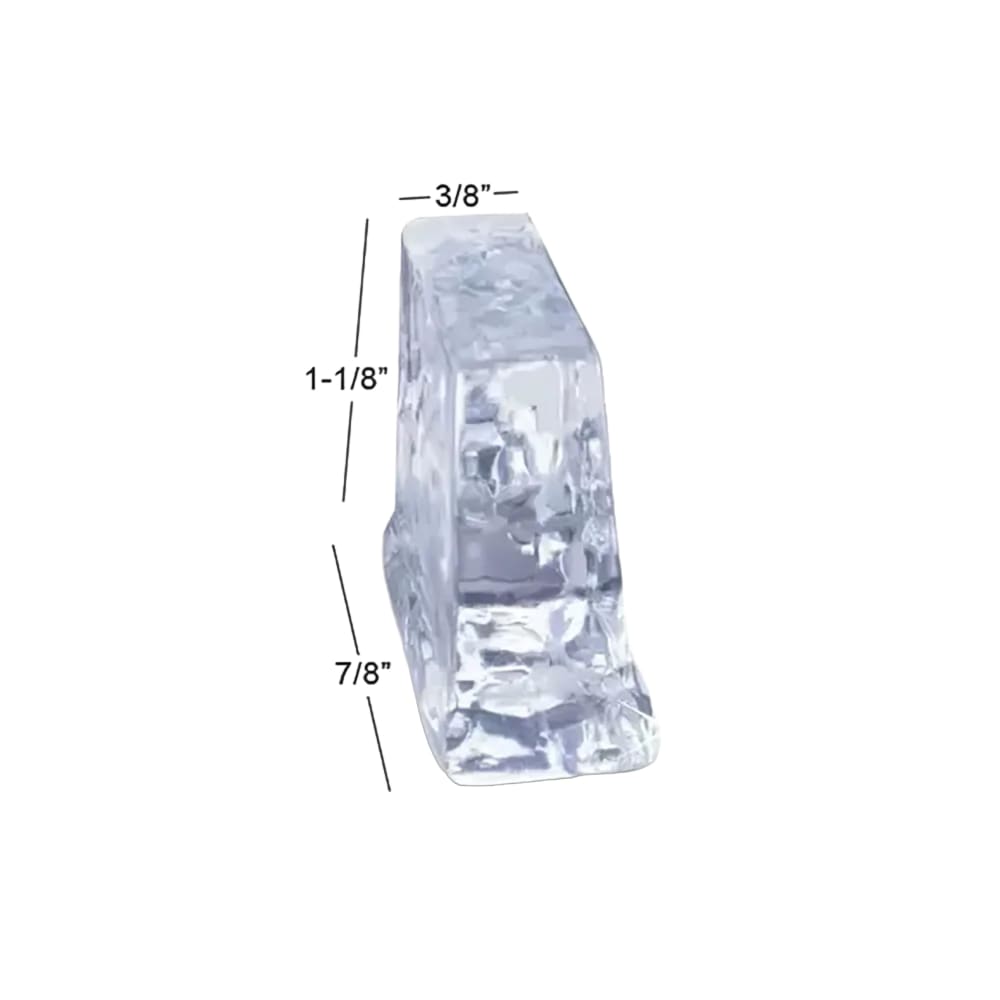

• Produces half-dice ice that measures ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.

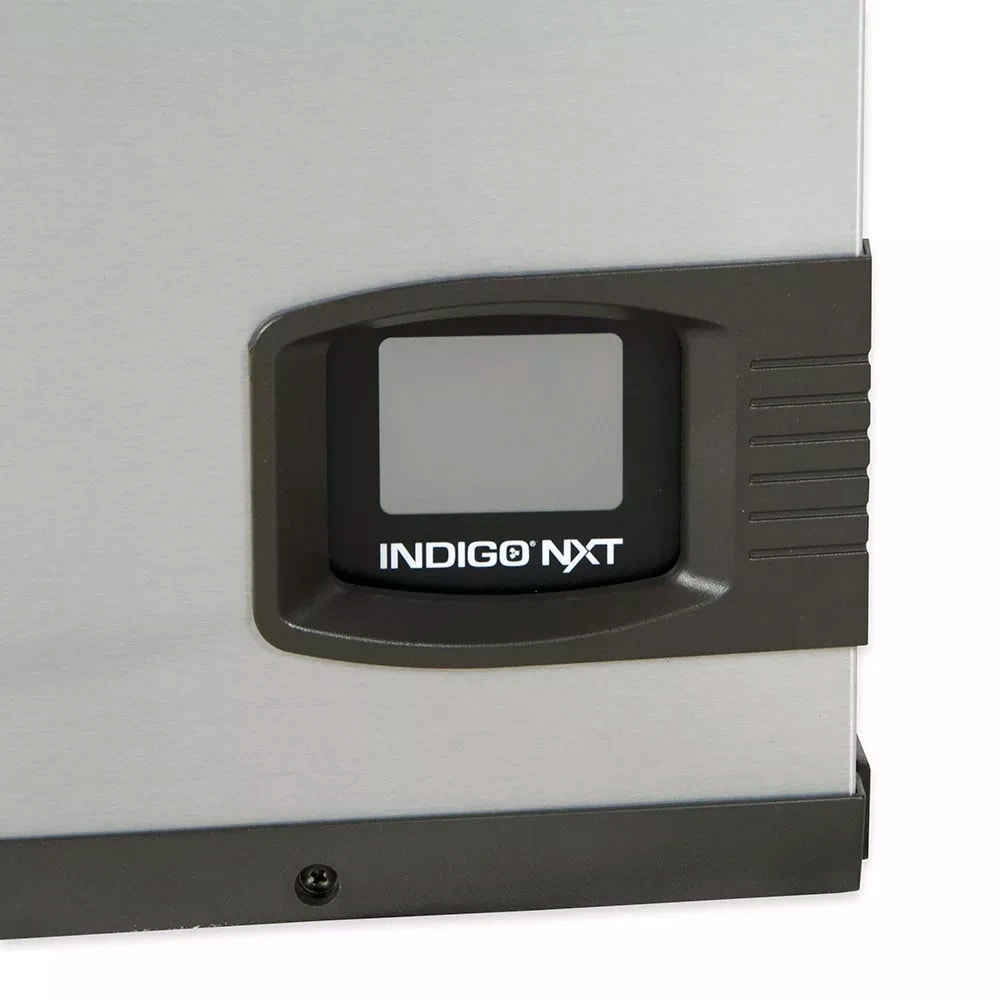

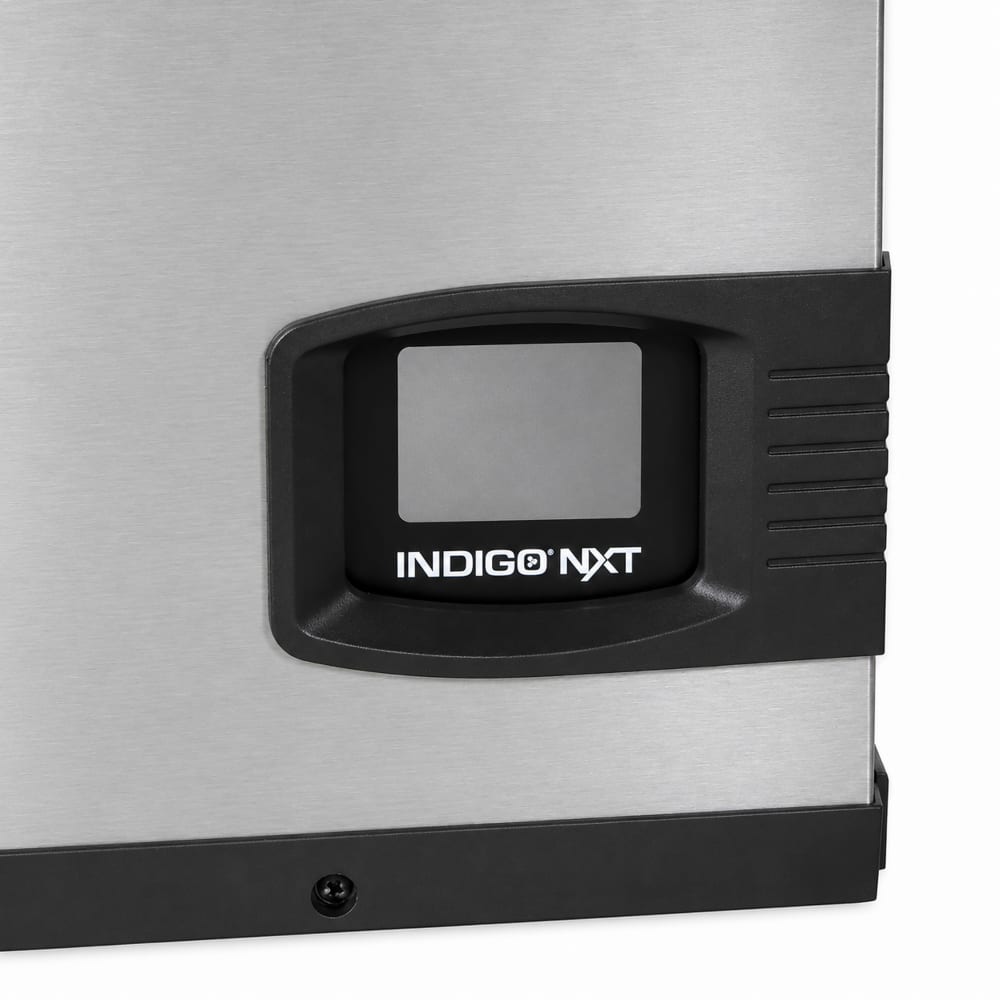

• EasyTouch screen with icon-based interface
• DuraTech exterior minimizes dirt, reduces fingerprint smudges, and resists corrosion
• Acoustical ice sensing probe sustains ice cube thickness in various water conditions
• Water trough, distribution tube, curtain, and sensing probes are all removable for cleaning
• Intelligent diagnostics are helpful for problem solving
• Ice bin not included
• Uses R410A refrigerant
• Ambient temperature range: 40-119 degrees F
• Incoming water temperature: 40-90 degrees F

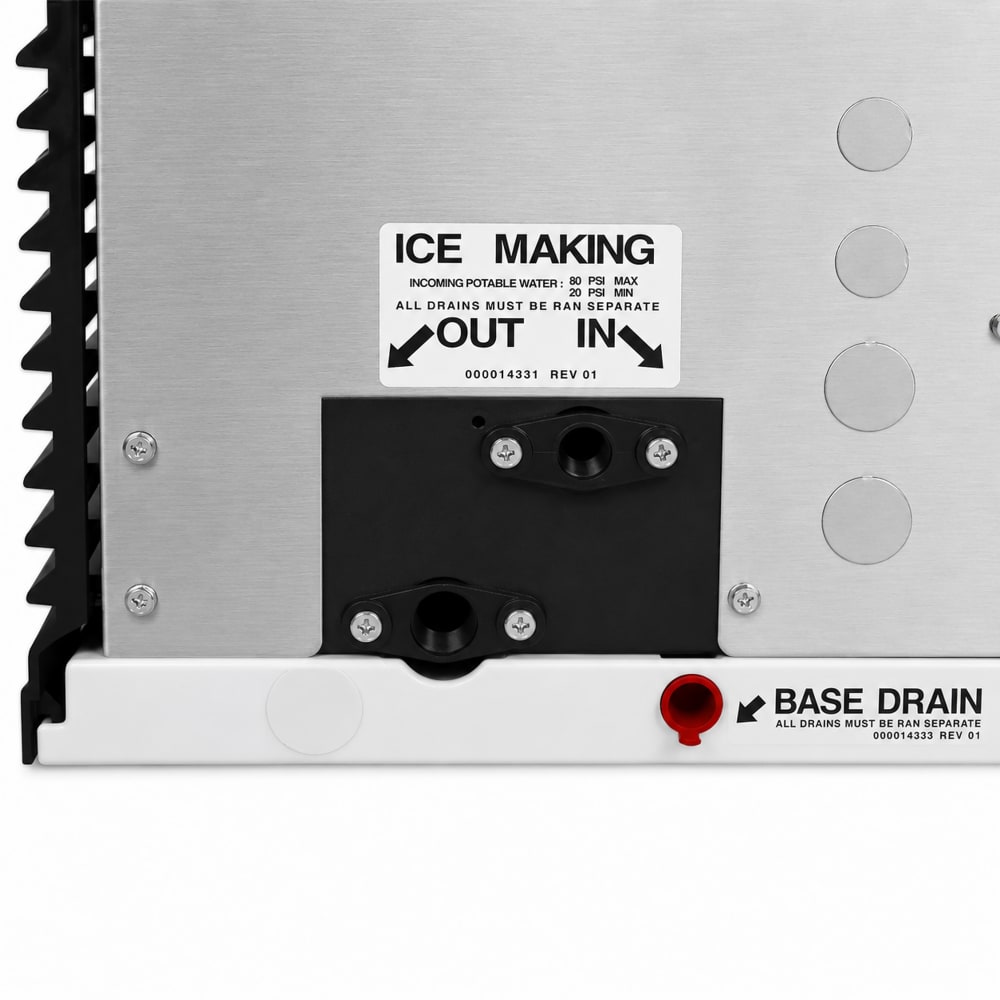

• Incoming water pressure: 20-80 PSI
• 12,800 average BTU; 13,700 peak BTU

Product Features

Dimensions & Utilities

• 30 in. W x 24 in. D x 21¹⁄₂ in. H
• 11.1 A
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 715 lb/24 hours at 70°/50° (575 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Warranty, 5-year Compressor Parts
