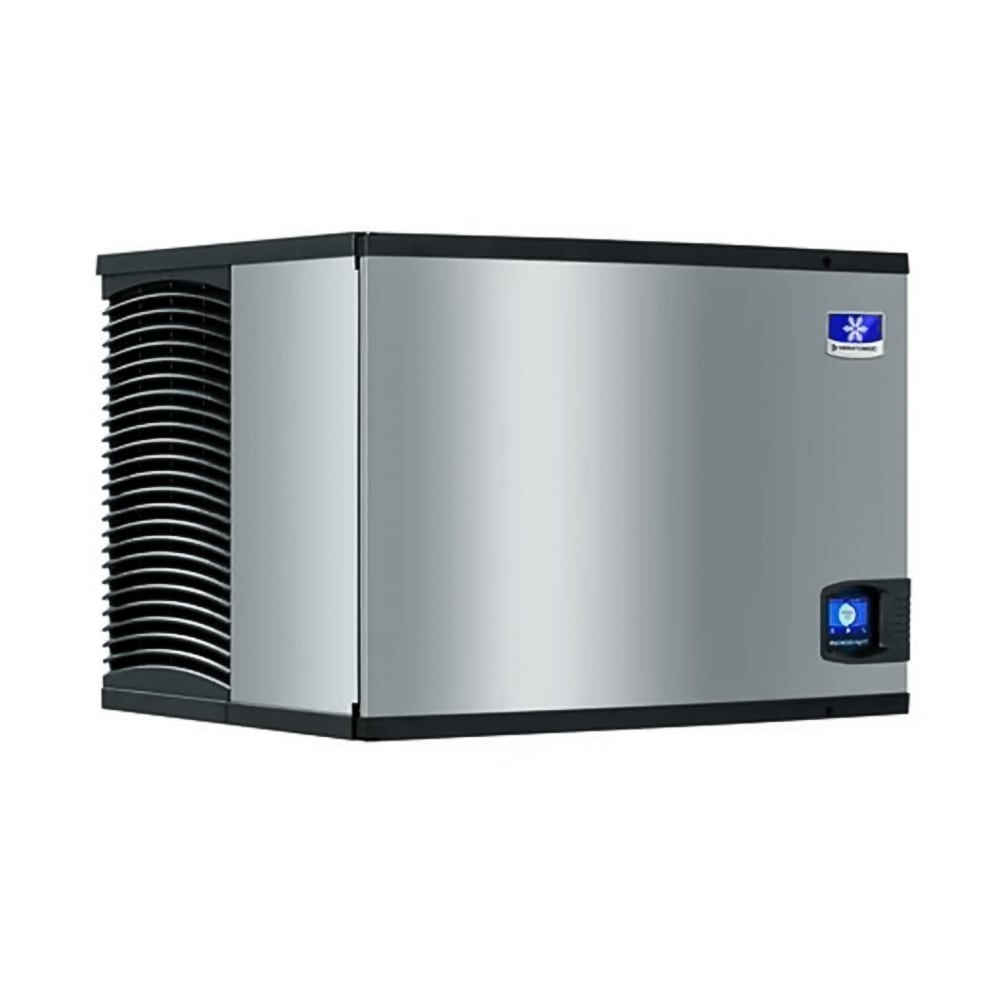

Manitowoc Ice IYT0750W 30" Indigo NXT™ Half Cube Ice Machine Head - 740 lb/24 hr, Water Cooled, 208-230v/1ph

The Manitowoc Ice IYT0750W Indigo NXT™ half dice cube ice machine head is finished with a DuraTech™ clear coating that resists corrosion from moisture exposure. Its water-cooled system can produce 740 pounds of ice per day in ideal conditions, and the half-dice-sized cubes closely fit together in glasses for optimized beverage displacement. So it conserves energy during slow periods, this unit is programmable.

Controlled by a touchscreen panel, the Manitowoc Ice IYT0750W half dice cube ice machine has an icon-based navigation system that streamlines use. It’s built with a hinged access door, so this ice machine head enables convenient access for component cleaning. Inside, AlphaSan® antimicrobial treatment protects some components, resisting the growth of microbes such as fungus and bacteria.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• Half-dice cube style ice
• Half cube size: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• 740-lb. maximum daily ice production
• 650-lb. AHRI-certified daily ice production
• DuraTech™ exterior clear coat resists corrosion and fingerprints
• easyTouch® user-friendly touchscreen display with icons
• Program production by ice volume or time of day
• Hinged access door opens outward to reveal system components
• Removable water trough, distribution tube, curtain, and sensing probes ease cleaning
• AlphaSan antimicrobial treatment enhances select components
• Self-diagnostic ability for 24-hr. feedback
• Acoustical ice-sensing probe
• Active Sense automatically adjusts to conditions

Refrigeration and Condenser Requirements

• Water-cooled system
• Self-contained condenser
• 13,700-BTU maximum heat transfer capacity
• R410A refrigerant is CFC free
• Ideal incoming air temperature: 40-119 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSIG

Dimensions & Utilities

• 30 in. W x 24 in. D x 21.5 in. H
• 7.9 A, 3.79 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0750W within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 740 lb/24 hours at 70°/50° (650 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IYT0750W Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
