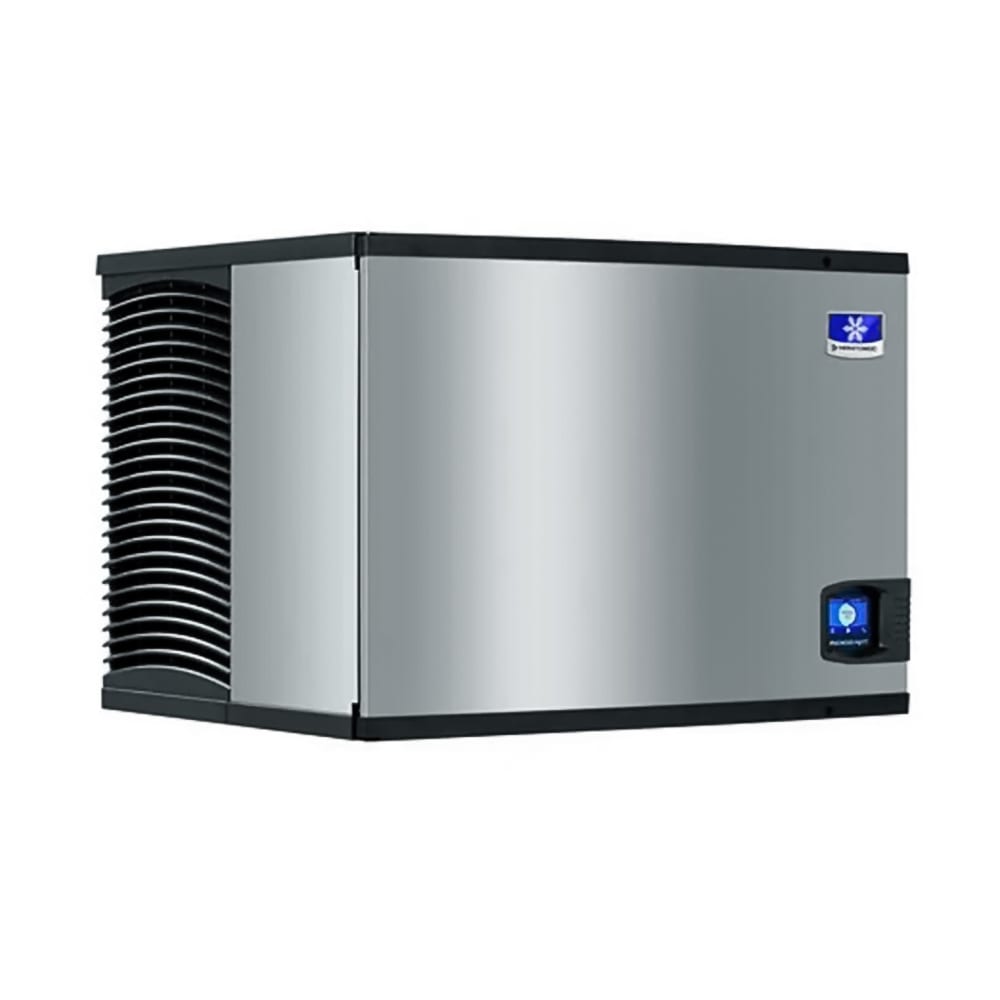

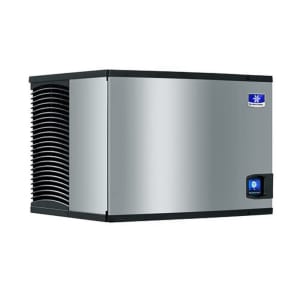

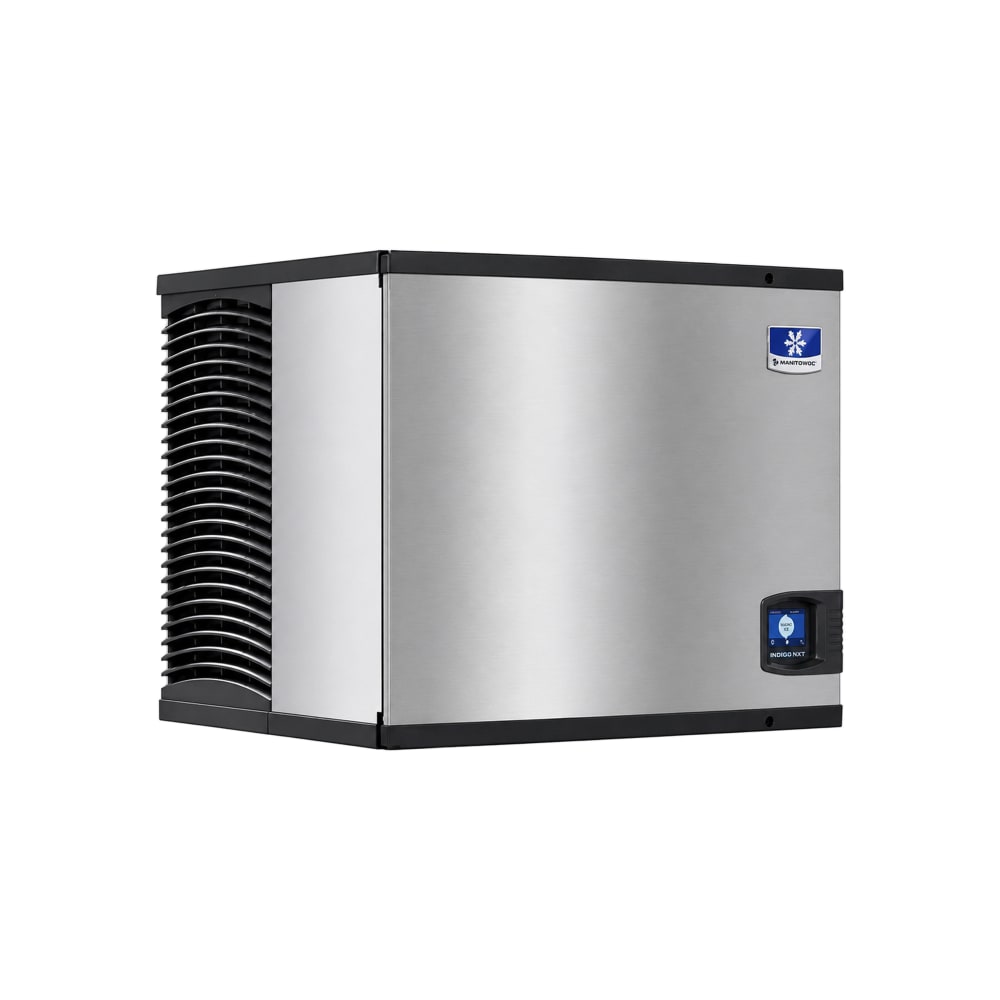

Manitowoc Ice IDT0750W 30" Indigo NXT™ Full Cube Ice Machine Head - 703 lb/24 hr, Water Cooled, 208-230v/1ph

By using the monitoring technology on its easyTouch® display, the Manitowoc IDT0750W Indigo NXT™ ice cube machine head provides 24-hour diagnostics results and encourages preventive maintenance to maintain ideal ice production. The touchscreen display also enables users to program daily volumes of ice production and stop production during slow periods to save on electrical costs. In 24 hours, the water-cooled machine can deliver as much as 703 pounds of dice-size cubes. Designed with an acoustic ice-sensing probe, ice is created at a thickness that upholds establishment standards, and an active sense accompanies this technology for consistent harvesting and improved reliability.

The Manitowoc IDT0750W ice machine head has a 30-inch-wide by 24-inch-deep by 21.5-inch-high structure to fit atop an ice storage bin (sold separately). Its DuraTech™ exterior resists corrosion and hides fingerprints and dirt with its clear coat. A hinged front door swings outward for full access to the removable water trough, distribution tube, curtain, and sensing probes for streamlined cleaning.

Product Details

• Part of the Indigo NXT series
• Requires ice storage bin or dispenser (sold separately)
• Produces dice-style cubes
• Water-cooled compressor
• Self-contained condenser
• Maximum ice production: 703 lbs. per 24 hours
• AHRI-certified production: 600 lbs. per 24 hours
• Dice cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• DuraTech exterior resists corrosion, fingerprints, and dirt
• Acoustical ice-sensing probe and active sense for reliable production
• Hinged front door
• Removable water trough, distribution tube, curtain, and sensing problems
• R410A refrigerant
• 12,800-BTU average heat transfer capacity
• Alpha-San anti-microbial protection

easyTouch Display Details

• 240 x 320 pixels, 262k color
• Diagonal reflective touch display with icon-based menu
• Start-up wizard walks user through 12 operational screens
• Home screen status always displays one of its five options
• Screen can be locked to prevent tampering
• User-friendly design
• 13 language options
• One-touch 24-hour off program and cleaning with displayed instructions

Ideal Operating Conditions

• Air temperature range: 40-110 degrees F
• Water temperature range: 40-90 degrees F
• Water pressure range: 20-80 PSI

Dimensions & Utilities

• 30 in. W x 24 in. D x 21¹/₂ in. H
• 7.9 A, 4.07 kW
• 208-230 V/60 hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0750W within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 703 lb./24 hours at 70°/50° (600 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IDT0750W Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
