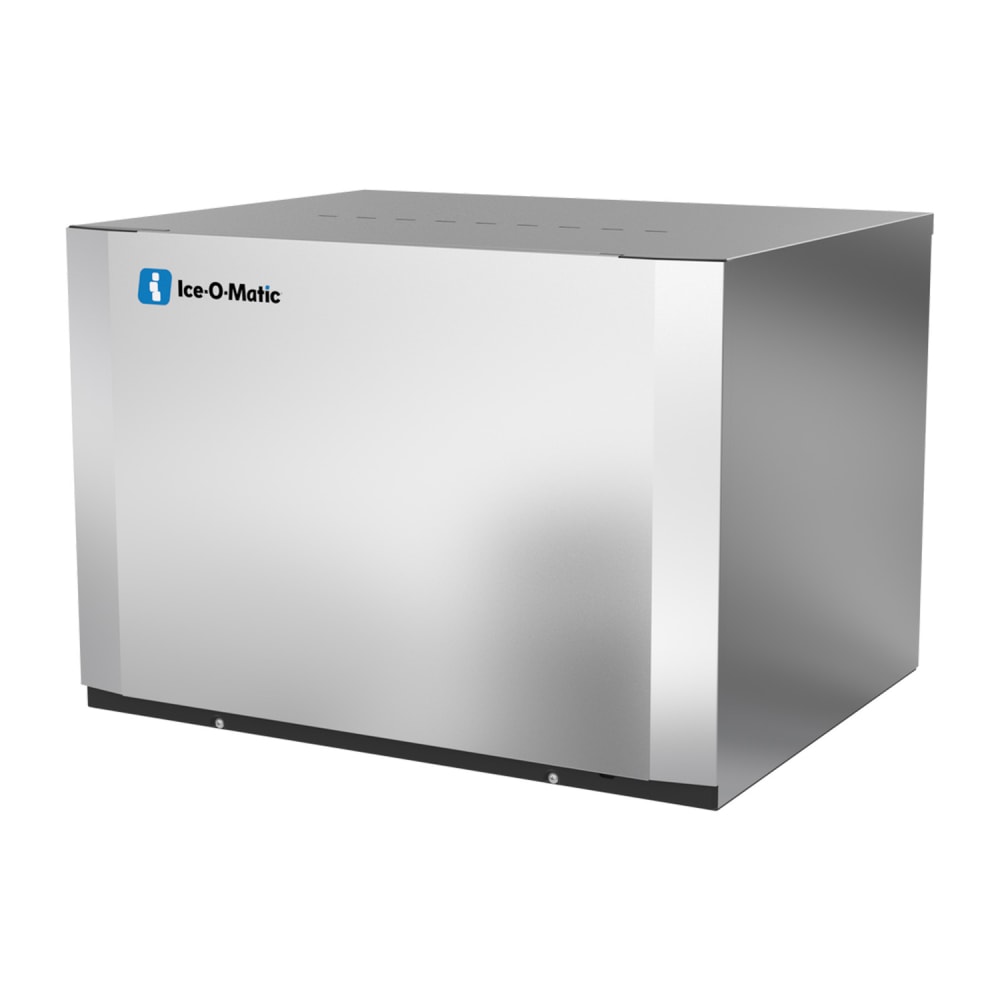

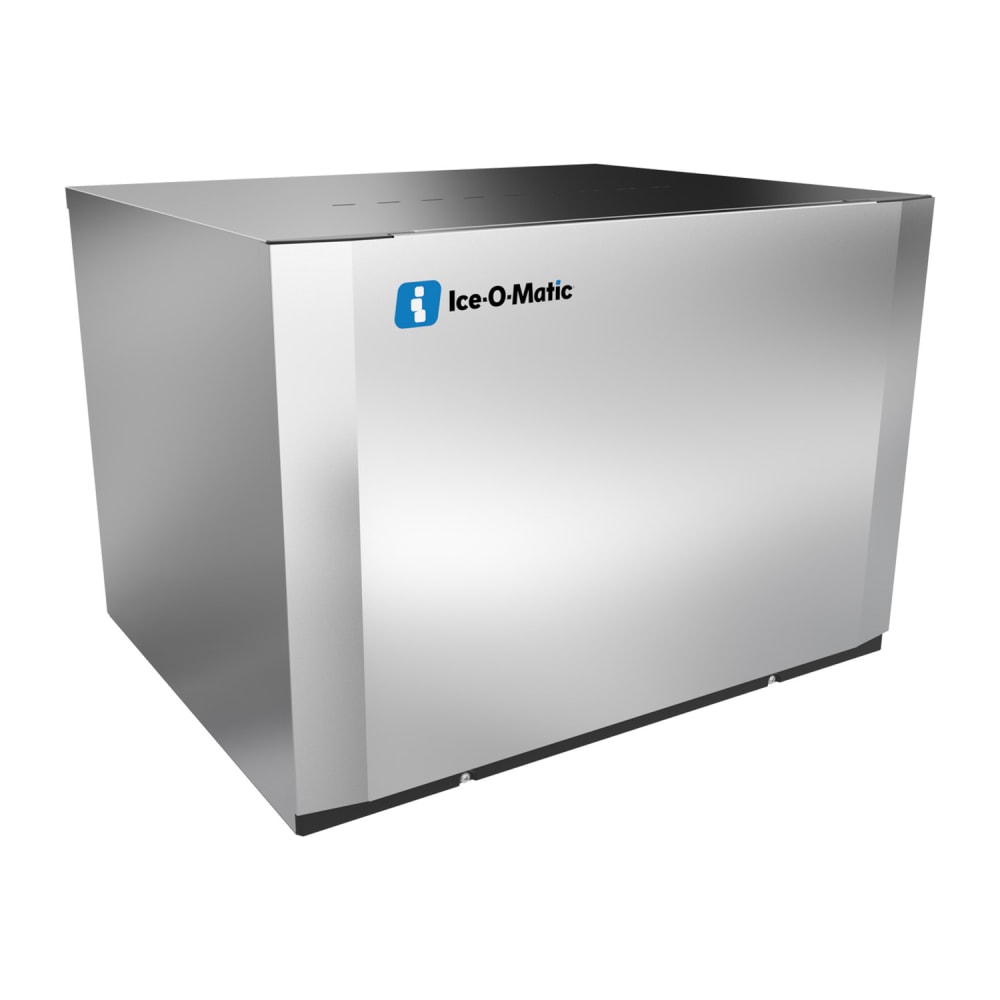

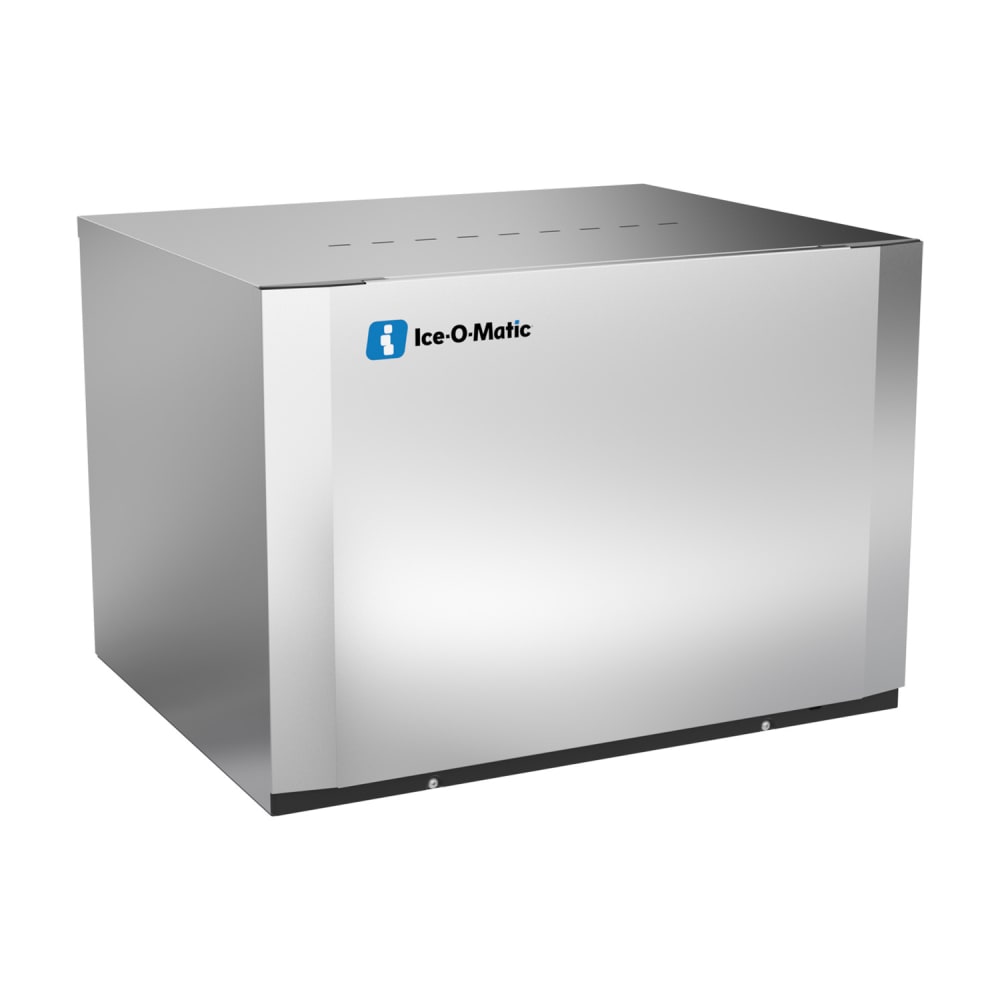

Ice-O-Matic CIM0636FW 30" Elevation Series™ Full Cube Ice Machine Head - 620 lb/24 hr, Water Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0636FW • MPN: CIM0636FW
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,121.00
800-541-8683

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0636FW Description

Ice-O-Matic

The Ice-O-Matic CIM0636FW Elevation™ cube ice maker uses a self-contained, water-cooled condenser and R-404A refrigerant to produce full-cube ice. Measuring 78 inch by 78 inch by 78 inch, the cubes are perfect for bagged ice, soft drinks, tea, and other beverages. The Universal Smart Harness™ control board simplifies installation and maintenance since it has a common configuration, universal components, and digital diagnostics.

The risk of bacteria growth is reduced with built-in Agion® antimicrobial protection. When cleaning is required, the LED status display alerts the operator, and one-touch controls ease the sanitizing and descaling process. Snapping in and out of place, the dishwasher-safe components in the Ice-O-Matic CIM0636FW Elevation cube ice maker are easy to remove and put back in place.

Product Details

  • Produces full-size, 78-in. x 78-in. x 78-in. cubes
  • Universal Smart Harness control board makes installation and maintenance easy thanks to its common configuration, universal components, and digital diagnostics
  • Self-contained condenser needs a constant flow of water since it is water cooled
  • Maintains cold temperatures with R-404A refrigerant
  • Plastic parts are BPA-free and recyclable
  • 208-230 V/60 Hz/1 ph, 9 A, 4.27 kW, 8600 BTU
  • Overall Dimensions: 3014 in. W x 2414 in. D x 2114 in. H
  • CE and cULus listed; NSF certified

Product Features

Product Features

Easy to Clean

  • LED status display indicates when cleaning is necessary
  • Easily clean and maintain the unit with one-touch sanitizing and descaling controls
  • Agion antimicrobial protection reduces the risk of bacteria growth
  • Food zone is made of plastic and lacks crevices so it is easy to wipe clean
  • Components easily snap in and out for cleaning in the dishmachine

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30" W, approximately 620 lb production/24 hours at 70°/50° (535 lb at 90°/70°), full-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.0 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0636FW Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Series Elevation Series™
Width (in) Range 30 - 39
Height (in) 21.25
Voltage 208/230
Phase 1
Made in USA Yes
Special Features Agion® Antimicrobial
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Product Type Ice Makers & Bins
24 Hr. Production (lbs) 620
Ice Type Half Cube
Width (in) 30.25
Compressor Type Water Cooled
Depth (in) 24.25
Production Range (per day) 100-999 lb
Product Ice Machine Head
Special Features Dual Exhaust
Weight 160.00
Ice-O-Matic CIM0636FW Certifications
  • UL
  • NSF
