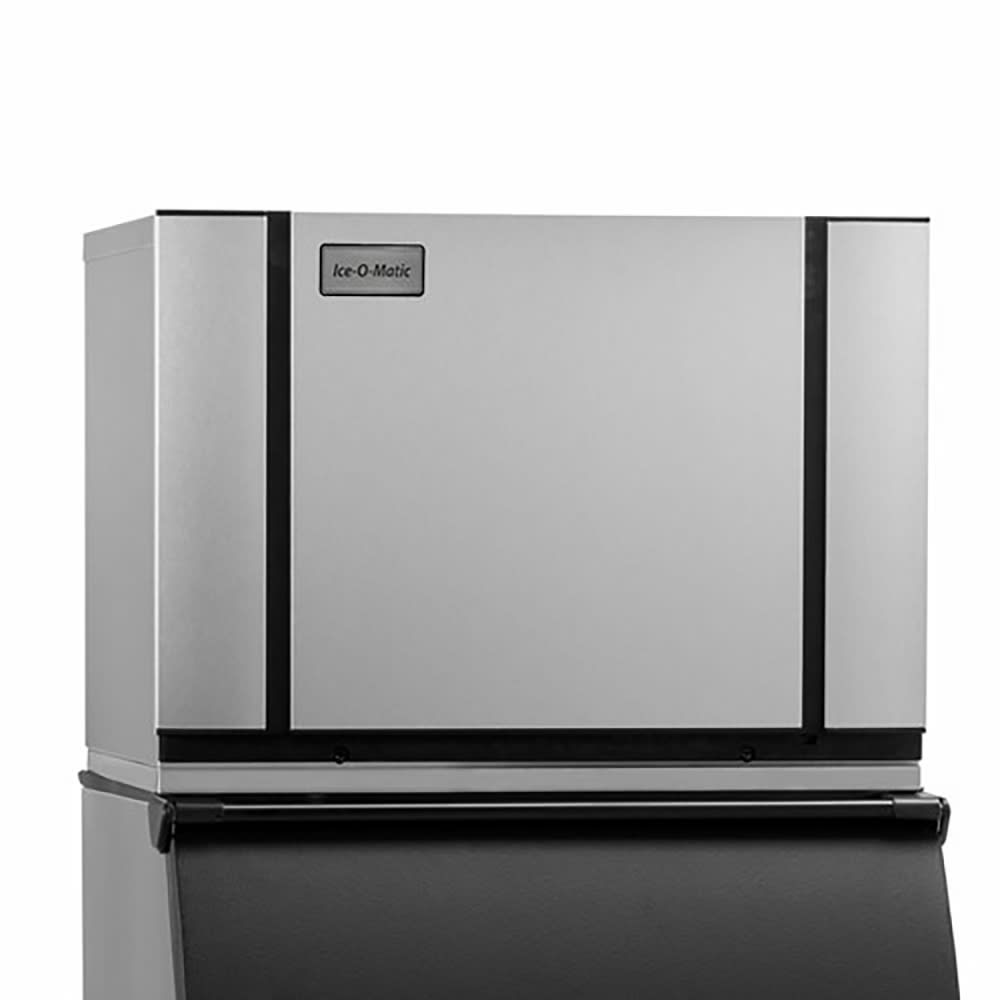

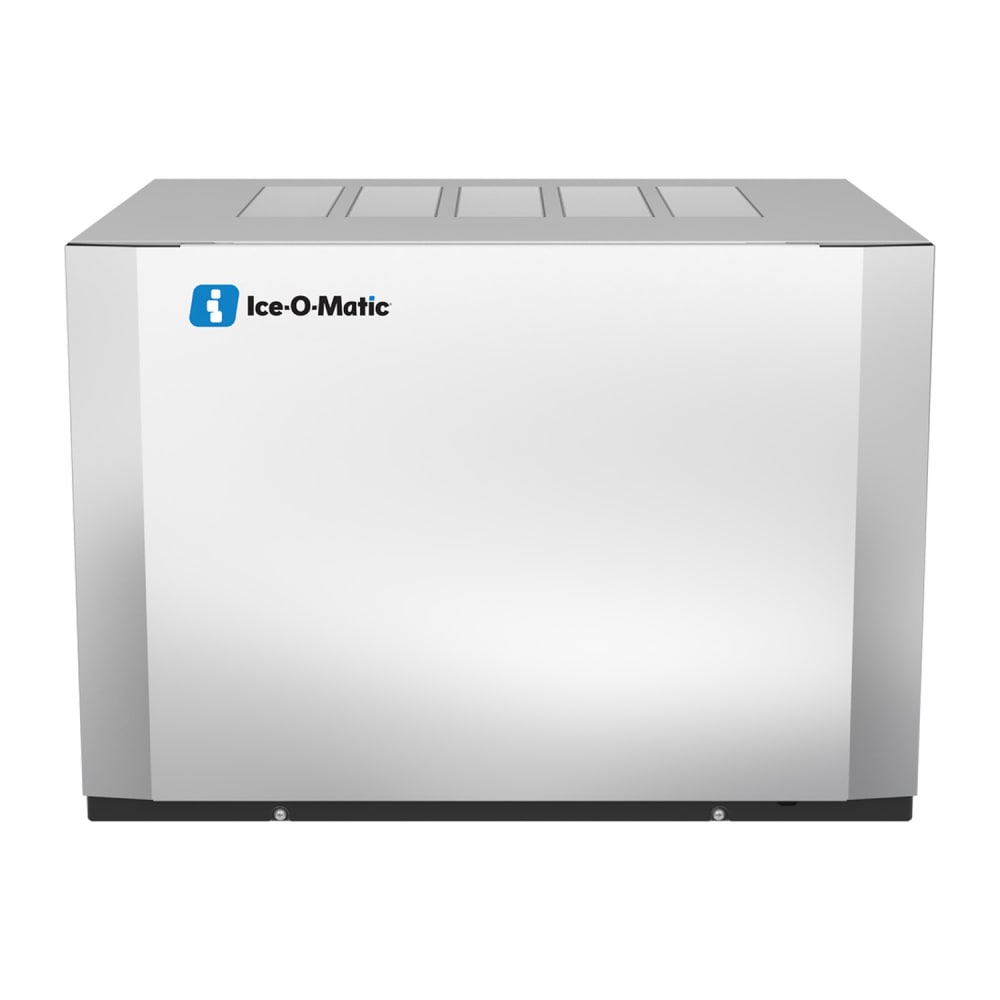

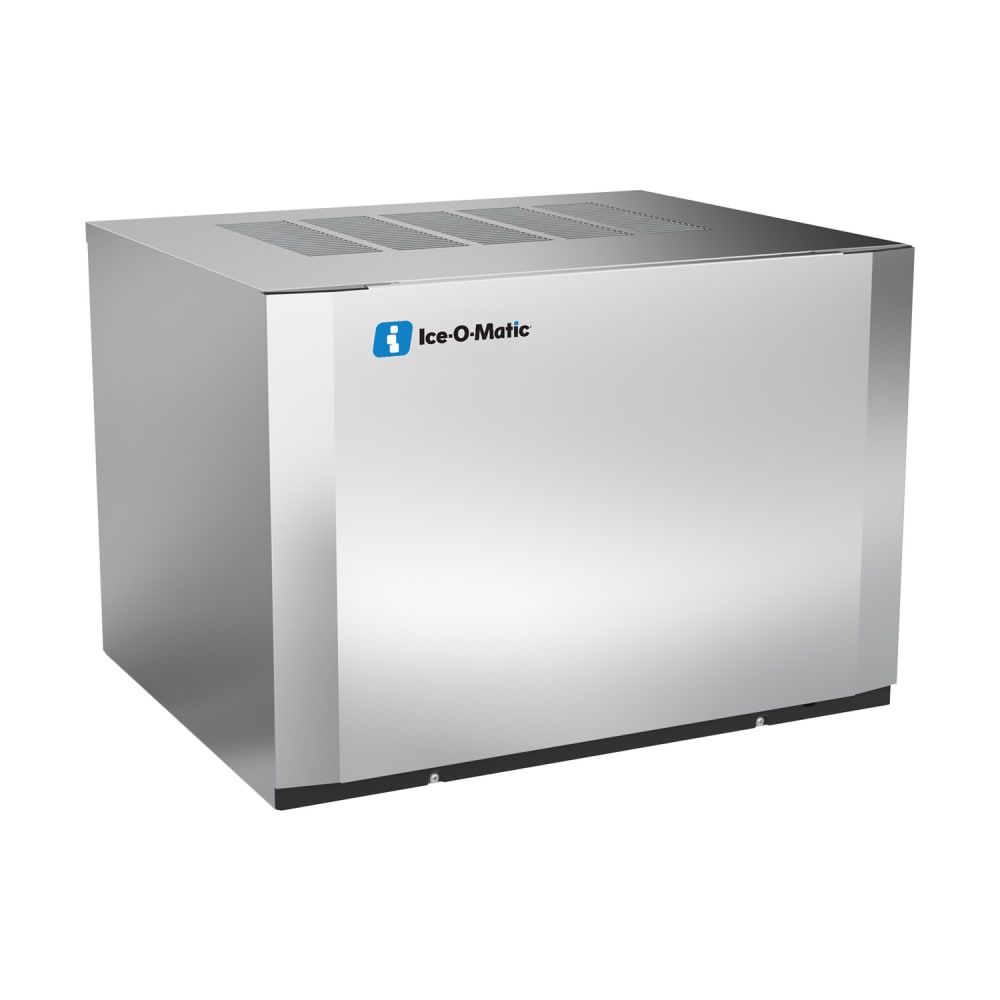

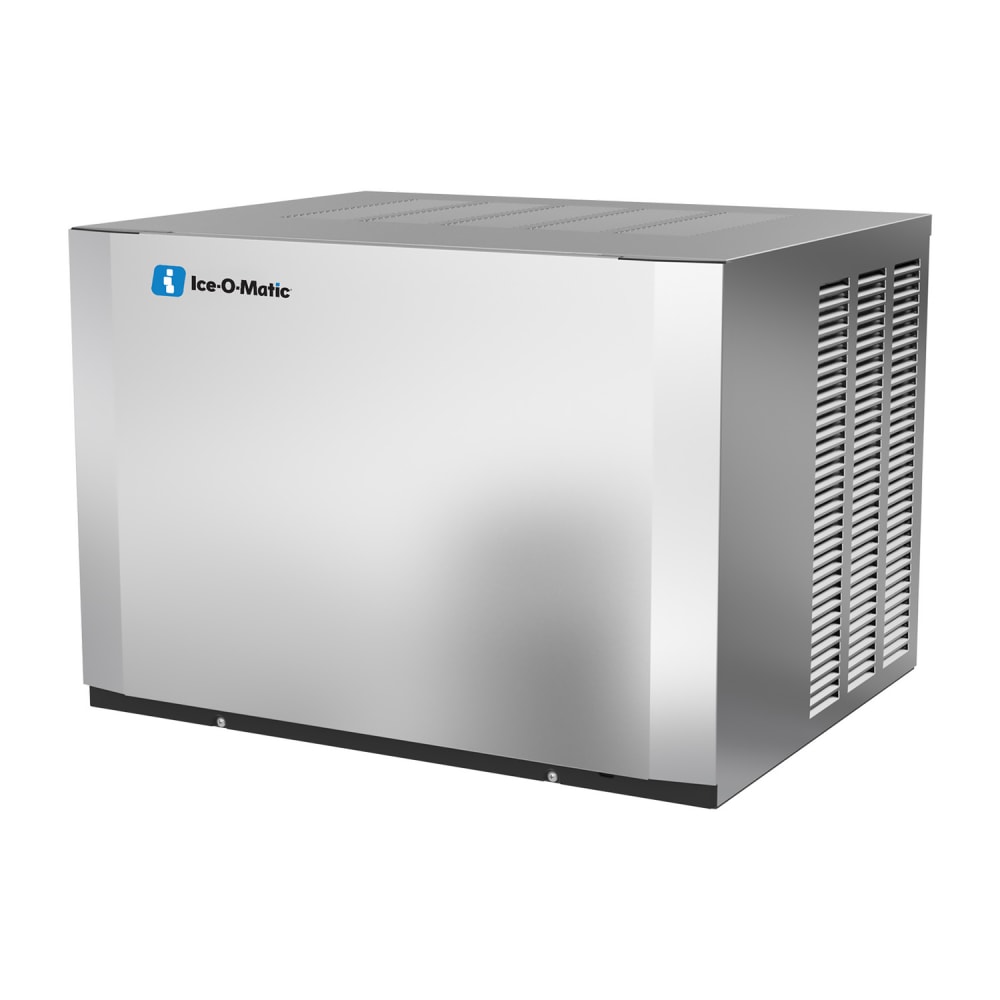

Ice-O-Matic CIM0636FA 30" Elevation Series™ Full Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0636FA • MPN: CIM0636FA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,060.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0636FA Description


In a 24-hour period, the Ice-O-Matic CIM0636FA Elevation™ modular cube ice maker is capable of creating 600 pounds of full-cube ice that works well in soft drinks, cocktails, and dispensed ice applications. With dual exhaust technology, the unit can discharge hot air from both the side and top to maximize your installation options. The Universal Smart Harness™ control board's universal components, digital diagnostics, and common configuration simplify the installation process and ease servicing.

Agion® antimicrobial protection is built into the food zone's plastic components to inhibit the growth of potentially harmful microorganisms that can cause mold and slime. The Ice-O-Matic CIM0636FA Elevation modular cube ice maker has an LED status display to indicate when cleaning is required. When it's time to perform routine cleaning tasks, one-touch descaling and sanitizing controls help make those processes simpler for employees, while the dishwasher-safe components snap in and out of place.

Product Details

Product Features
  • Dispenses full-cube ice that measures 78 in. x 78 in. x 78 in.
  • 24-hr. production capacity of 600 lbs. in 70 degree F operating temperatures
  • Self-contained, air-cooled condenser
  • Discharges hot air from the top or side with a dual exhaust system
  • Universal components, digital diagnostics, and a common configuration in the Smart Harness control board simplify installation and cleanup
  • BPA-free plastic parts are recyclable
  • 208-230 V/60 Hz/1 ph, 9.2 A, 5.63 kW, 8600 BTU
  • Overall Dimensions: 3014 in. W x 2414 in. D x 2114 in. H
  • CE and cULus listed; NSF and ENERGY STAR certified

Easy to Clean

  • Operators are alerted to required cleaning by the LED status display

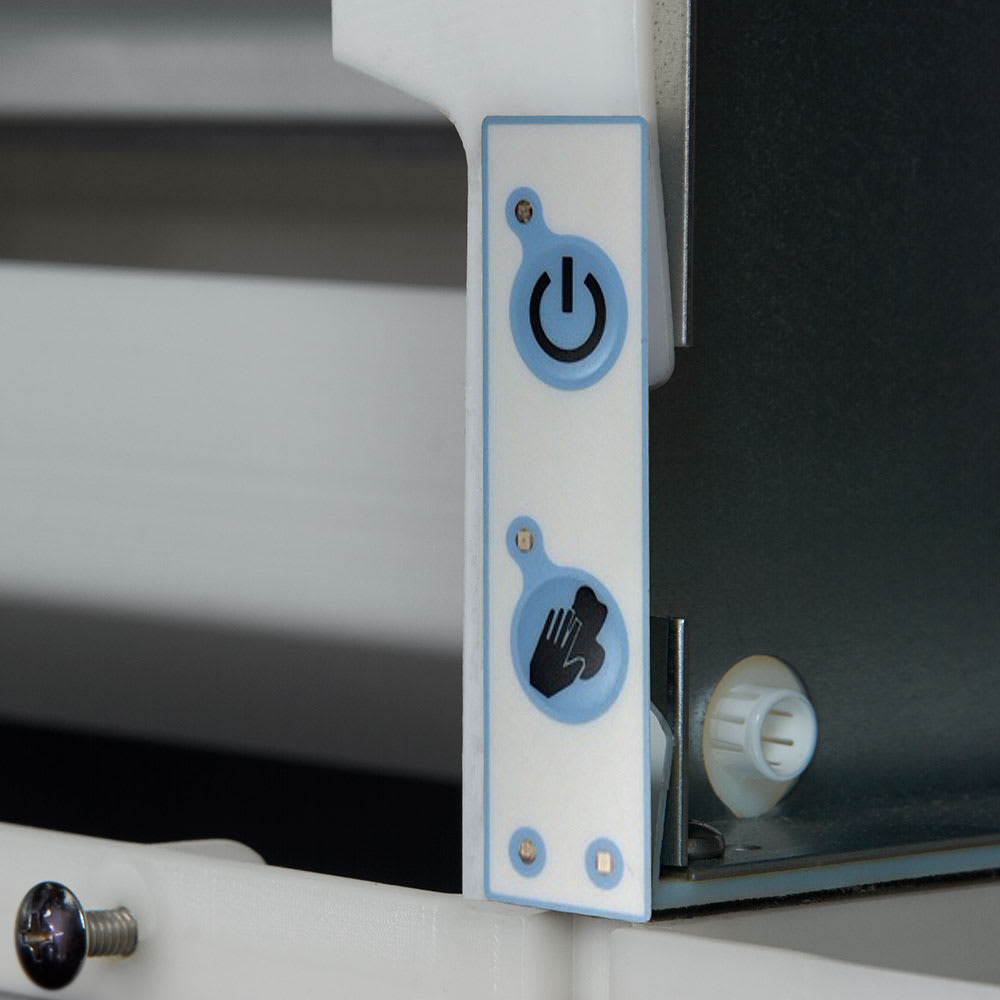

  • Sanitizes and descales with one-touch controls

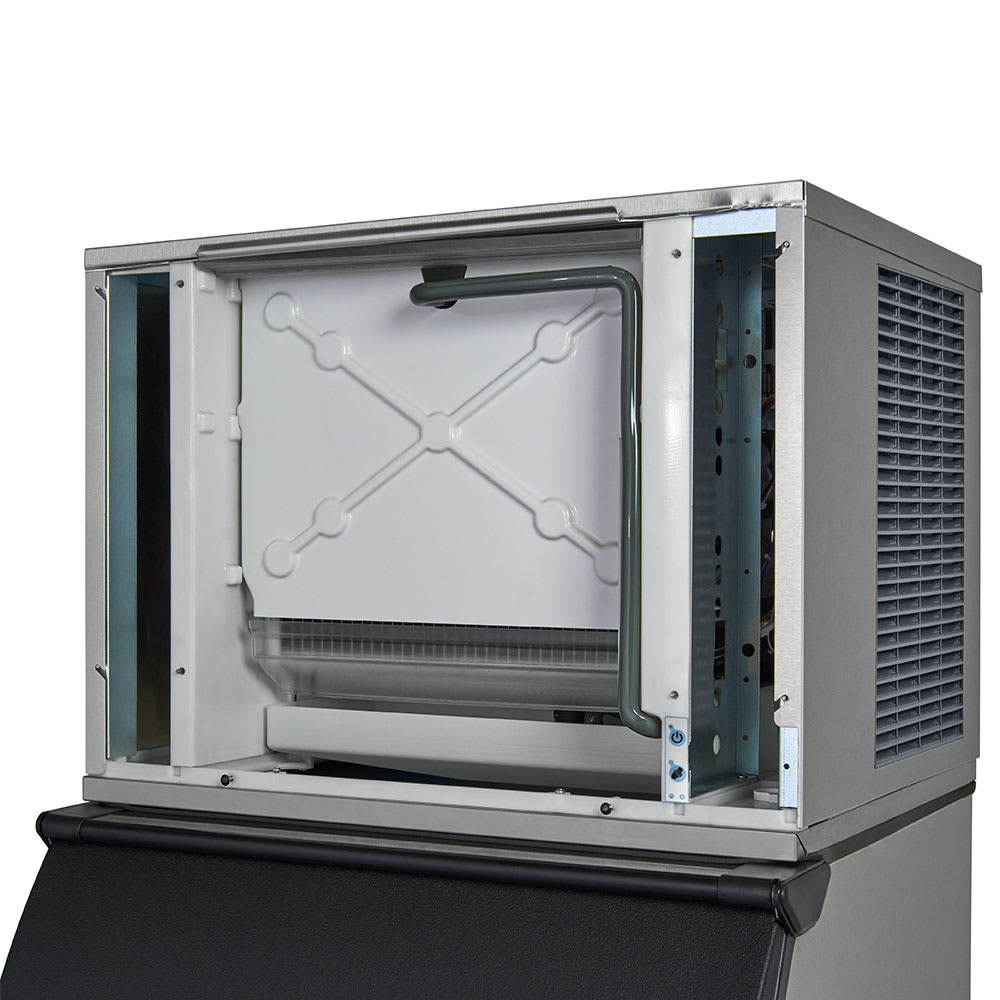

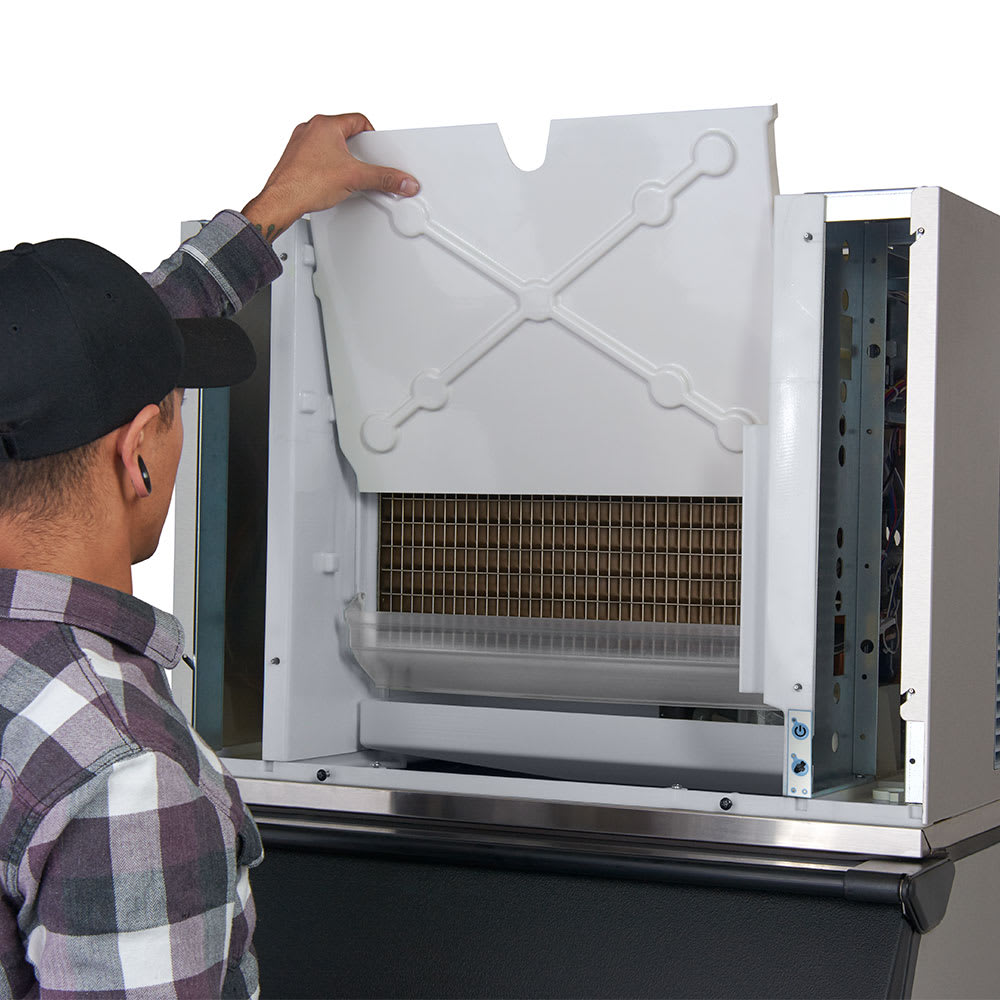

  • Food zone components that are dishwasher safe snap in and out of place
  • Easily wipe down the plastic food zone since it is made without crevices
  • Agion antimicrobial protection reduces the risk of bacteria growth

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), full-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0636FA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator
Series Elevation Series™
Width (in) Range 30 - 39
Height (in) 21.25
Voltage 208/230
Phase 1
Made in USA Yes
Special Features Agion® Antimicrobial

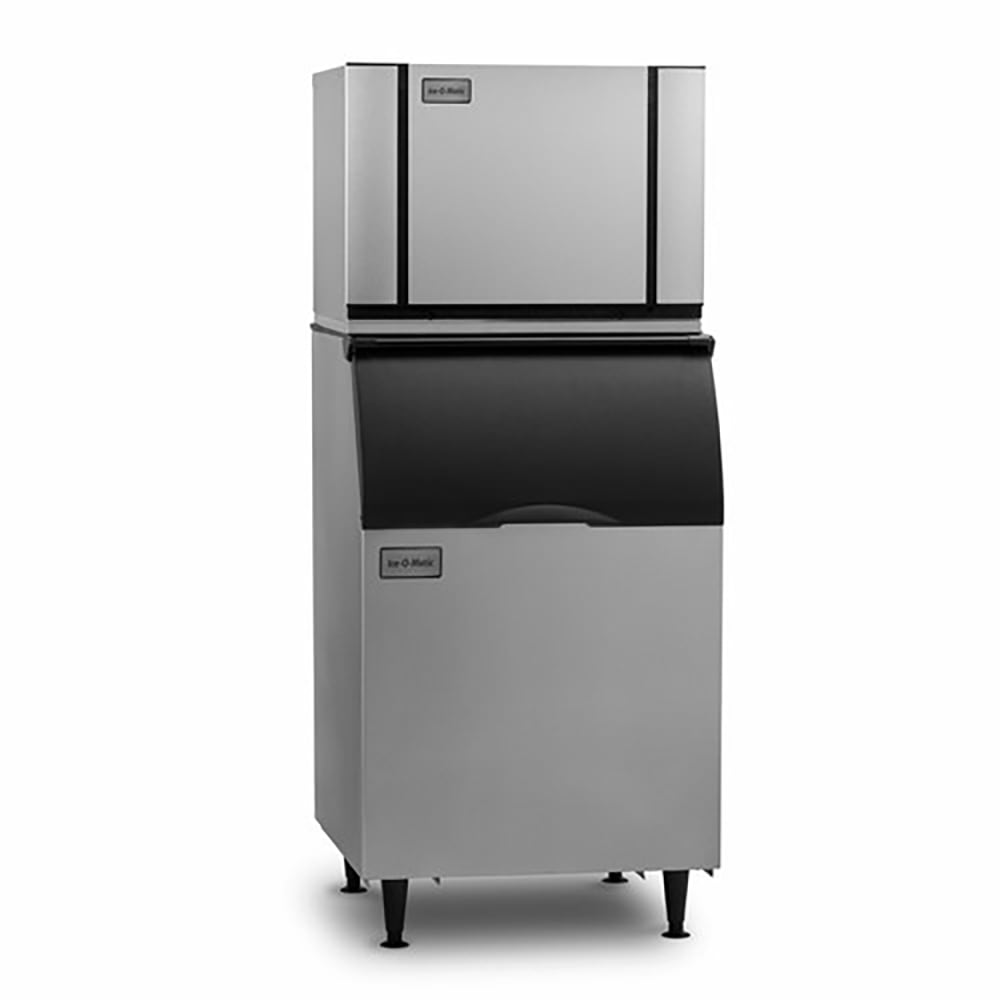

Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Product Type Ice Makers & Bins
24 Hr. Production (lbs) 600
Ice Type Half Cube
Width (in) 30.25
Compressor Type Air Cooled
Depth (in) 24.25
Production Range (per day) 100-999 lb
Product Ice Machine Head
Special Features Dual Exhaust
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 9.2
Weight 160.00
Ice-O-Matic CIM0636FA Certifications
  • UL
  • NSF
  • Energy Star
