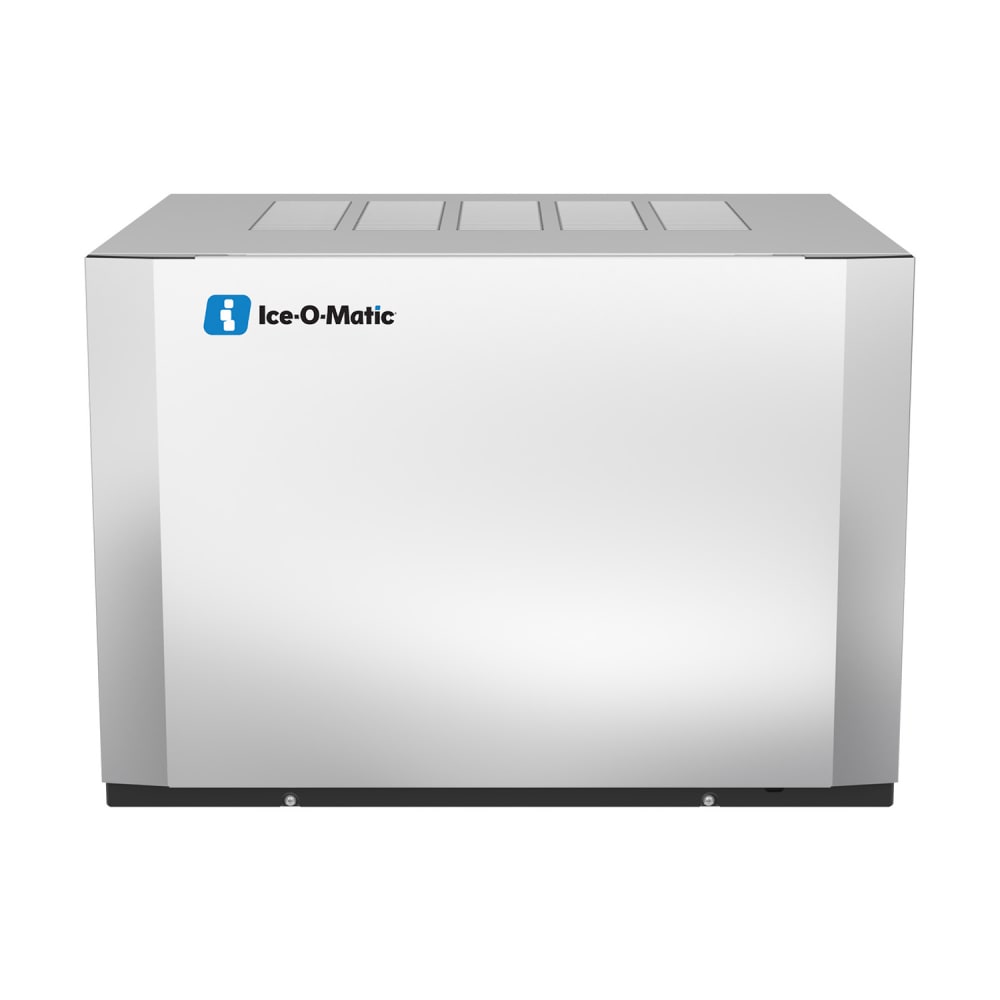

Ice-O-Matic CIM0636HA 30" Half Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208 230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0636HA • MPN: CIM0636HA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,060.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0636HA Description


The Ice-O-Matic CIM0636HA Elevation™ modular cube ice maker uses a Universal Smart Harness™ control board to simplify installation and maintenance. It is easy to clean with its one-touch descaling and sanitizing controls. At required cleaning times, the LED status display alerts the operator, and the dishwasher-safe components are easy to snap in and out of place. Since the plastic food zone is made without crevices, it is easy to wipe clean.

The R-404A refrigerant is cooled with an air-cooled, self-contained condenser. With its dual exhaust system, air discharges from the top and side of the unit, maximizing installation possibilities. Producing up to 600 pounds of ice in a 24-hour period, the Ice-O-Matic CIM0636HA Elevation modular cube ice maker produces half-cube ice that measures 38 inch by 78 inch by 78 inch so they work well in blended drinks, sodas, and bagged ice operations.

Product Details

  • Makes half-cube, 38-in. x 78-in. x 78-in. ice
  • Produces up to 600 lbs. of ice in 24 hrs. at 70 degrees F
  • Produces up to 455 lbs. of ice in 24 hrs. at 90 degrees F
  • Self-contained, air-cooled condenser is easy to service
  • Air discharges from the top and side thanks to a dual exhaust system that increases installation flexibility
  • Digital diagnostics, universal components, and the common configuration of the Universal Smart Harness control board make it easy to install and maintain
  • Uses R-404A refrigerant to maintain cold temperatures
  • Plastic parts are recyclable and BPA-free
  • 208-230 V/60 Hz/1 ph, 9 A, 4.27 kW, 8600 BTU
  • Overall Dimensions: 3014 in. W x 2414 in. D x 2114 in. H
  • CE and cULus listed; NSF and ENERGY STAR certified

Product Features

Product Features

Easy to Clean

  • Reduces the risk of bacteria growth with Agion® antimicrobial protection
  • Required cleaning times are indicated on the LED status display
  • Dishmachine-safe components easily snap in and out
  • One-touch controls simplify sanitizing and descaling
  • Plastic food zone lacks crevices so it is easy to wipe clean

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0636HA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 600
Ice Type Half Cube
Width (in) 30
Compressor Type Air Cooled
Depth (in) 24.25
Production Range (per day) 300-899 lb
Product Type Ice Machines
Product Ice Machine Head
Weight 160.00
Ice-O-Matic CIM0636HA Certifications
  • UL
  • NSF
  • Energy Star
