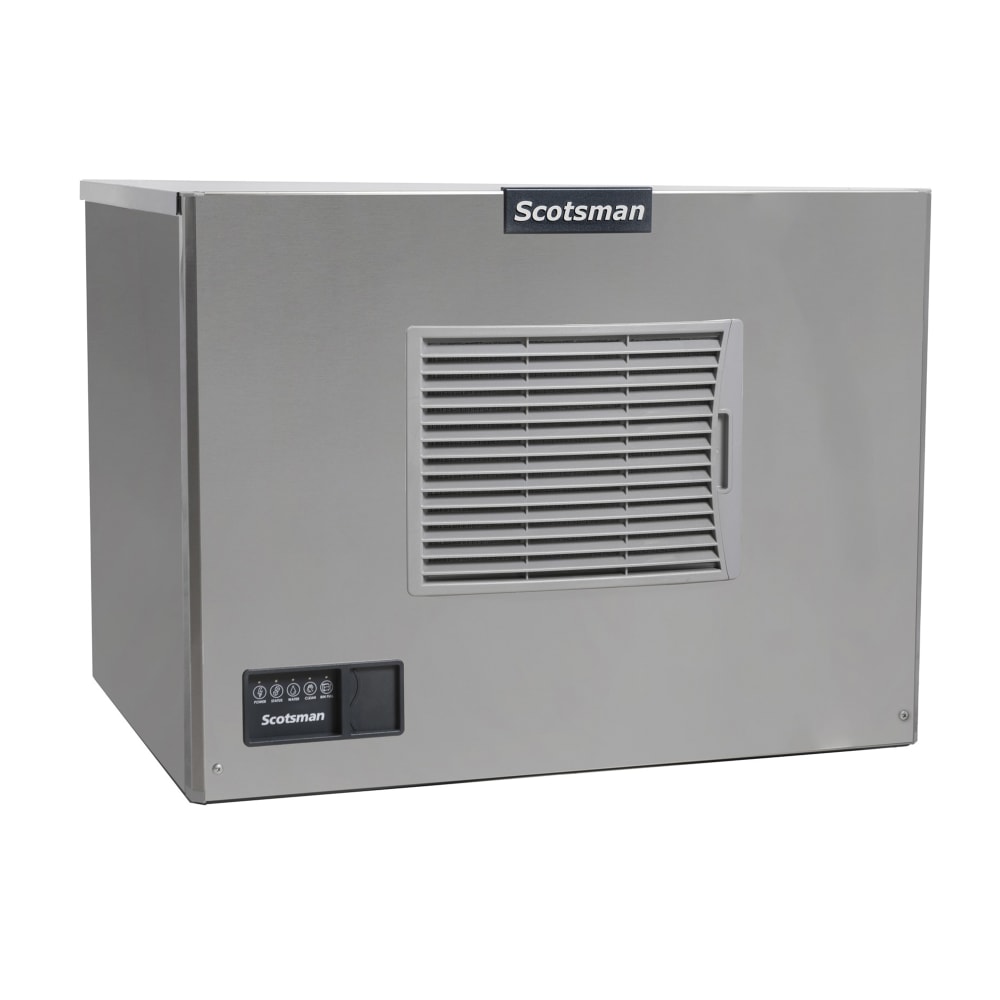

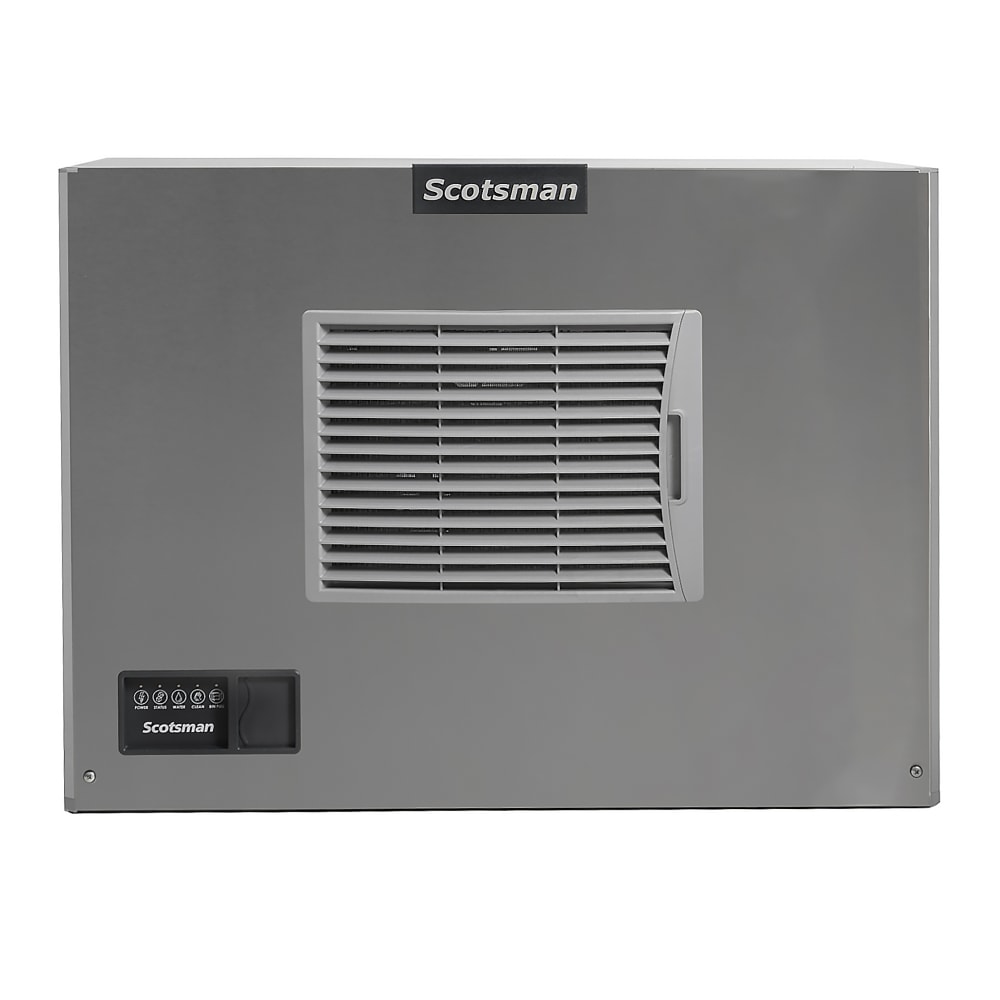

Scotsman MC0630SAX-32 30" Prodigy ELITE® Half Cube Ice Machine Head w/ Filter - 582 lb/24 hr, Air Cooled, 208-230v/1ph

KaTom #: 044-C0630SA32A • MPN: MC0630SAX-32/AP2-P
  • 044-C0630SA32A Primary Thumbnail Image
  • 044-C0630SA32A Multiple Thumbnail Image #1
  • 044-C0630SA32A Multiple Thumbnail Image #2
  • 044-C0630SA32A Multiple Thumbnail Image #3
  • 044-C0630SA32A Multiple Thumbnail Image #4
  • 044-C0630SA32A Multiple Thumbnail Image #5
  • 044-C0630SA32A Multiple Thumbnail Image #6
  • 044-C0630SA32A Multiple Thumbnail Image #7
  • 044-C0630SA32A Multiple Thumbnail Image #8
  • 044-C0630SA32A Multiple Thumbnail Image #9

Typically ships in 2 - 3 weeks

Free Shipping Item

Retail Price: $11,977.00

$4,910.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Air Cooled

Water CooledWater Cooled

Selected Ice Type: Half Cube

Full CubeFull Cube

Selected Voltage: 208-230V, 1 Phase

Jared Reeves User Image
Ask a Foodservice Equipment Specialist

Scotsman MC0630SAX-32 Description

Producing half-size cubes, the Scotsman MC0630SAX-32/AP2-P ice machine head uses Harvest Assist technology to push ice into the bin so it is ready when needed. A bin or ice dispenser is not included with the unit and needs to be purchased separately. In 24 hours, this ice maker can produce 582 pounds of ice if ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. Because the unit is air cooled, it uses air from whatever room it is in to cool the refrigerant; when this liquid is cold, it removes heat from the evaporator plate so that cubes form. The AP2-P water filter is included with this unit.

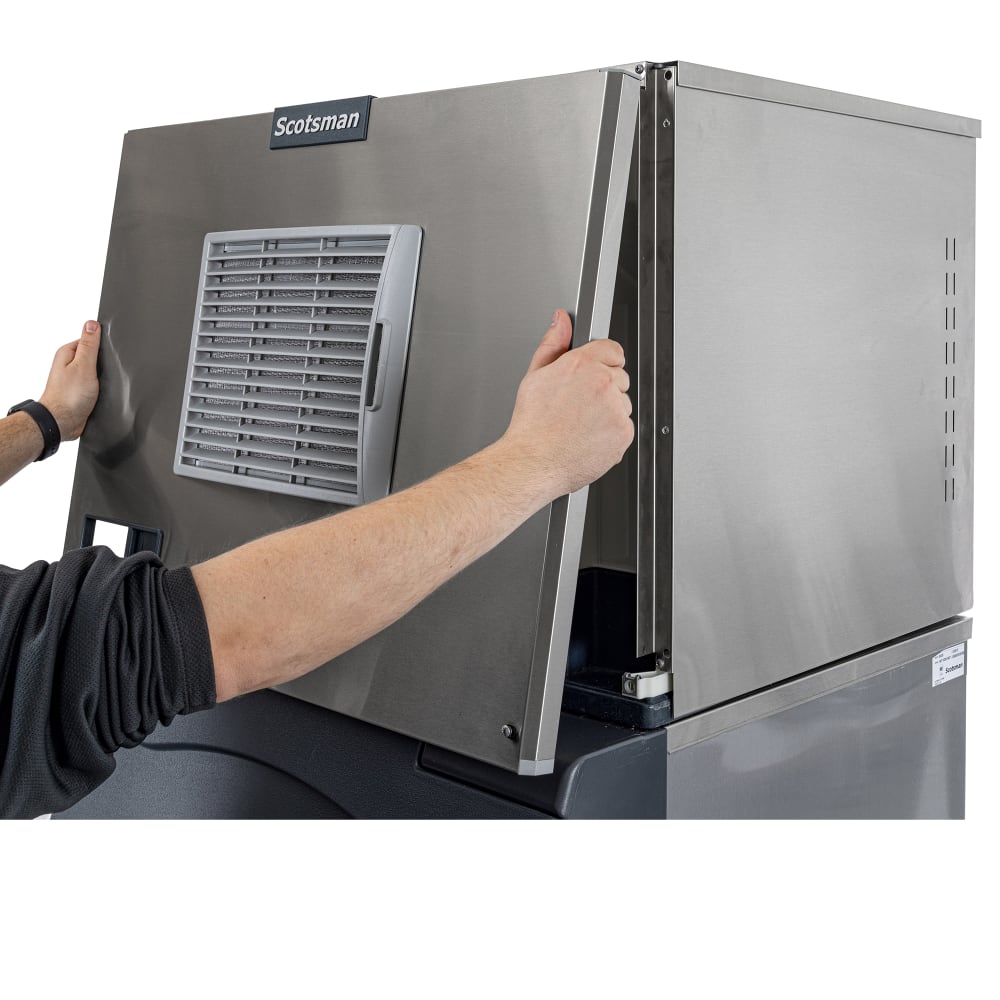

This Scotsman MC0630SAX-32/AP2-P ice maker can be cleaned with the push of a button, and its stainless steel construction has an antimicrobial protection guard. As this ice maker can be used with the ICELINQ® mobile app, operators can conveniently access the machine dashboard, operating controls, and intuitive step-by-step cleaning. The air filer is located on the self-aligning front panel to support efficiency and quick access to key mechanisms. To see service information and warranty history, users can scan an included QR code and connect immediately. Users will know when maintenance is needed due to a handy indicator light with increased visibility.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Self-Contained Design

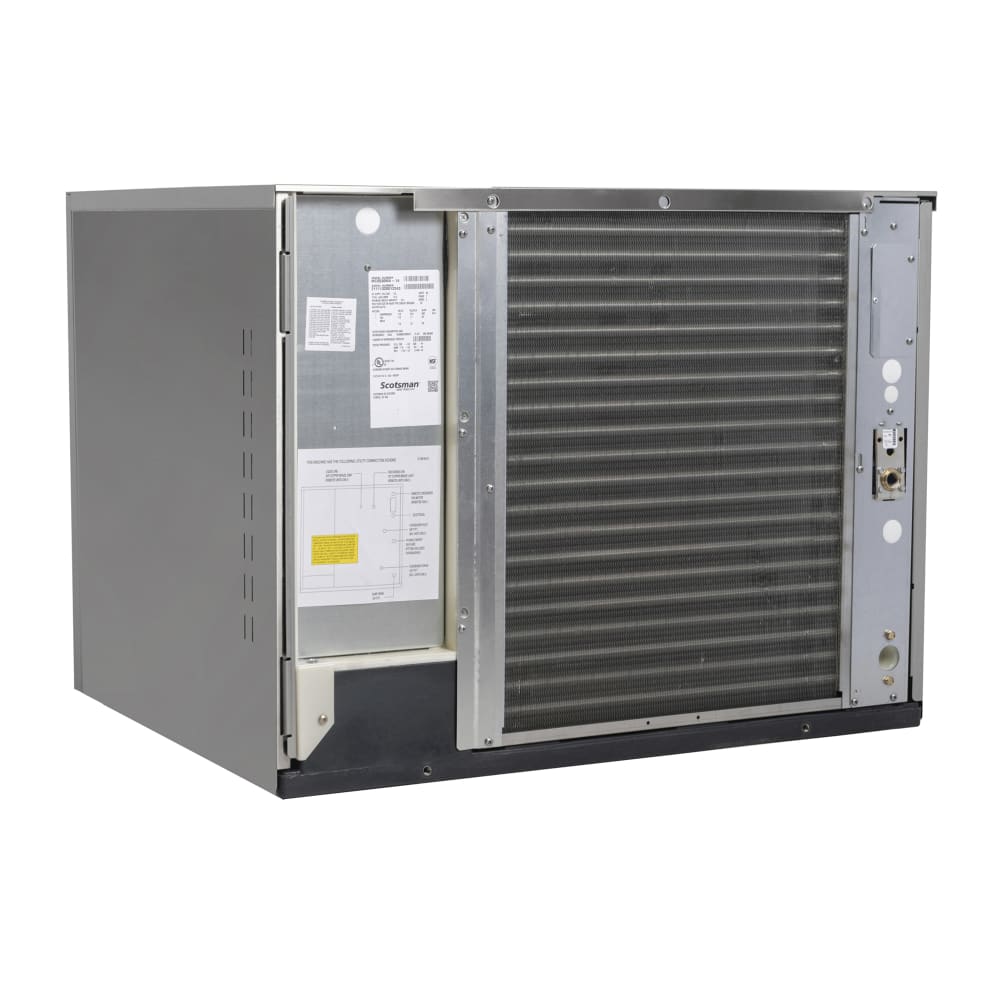

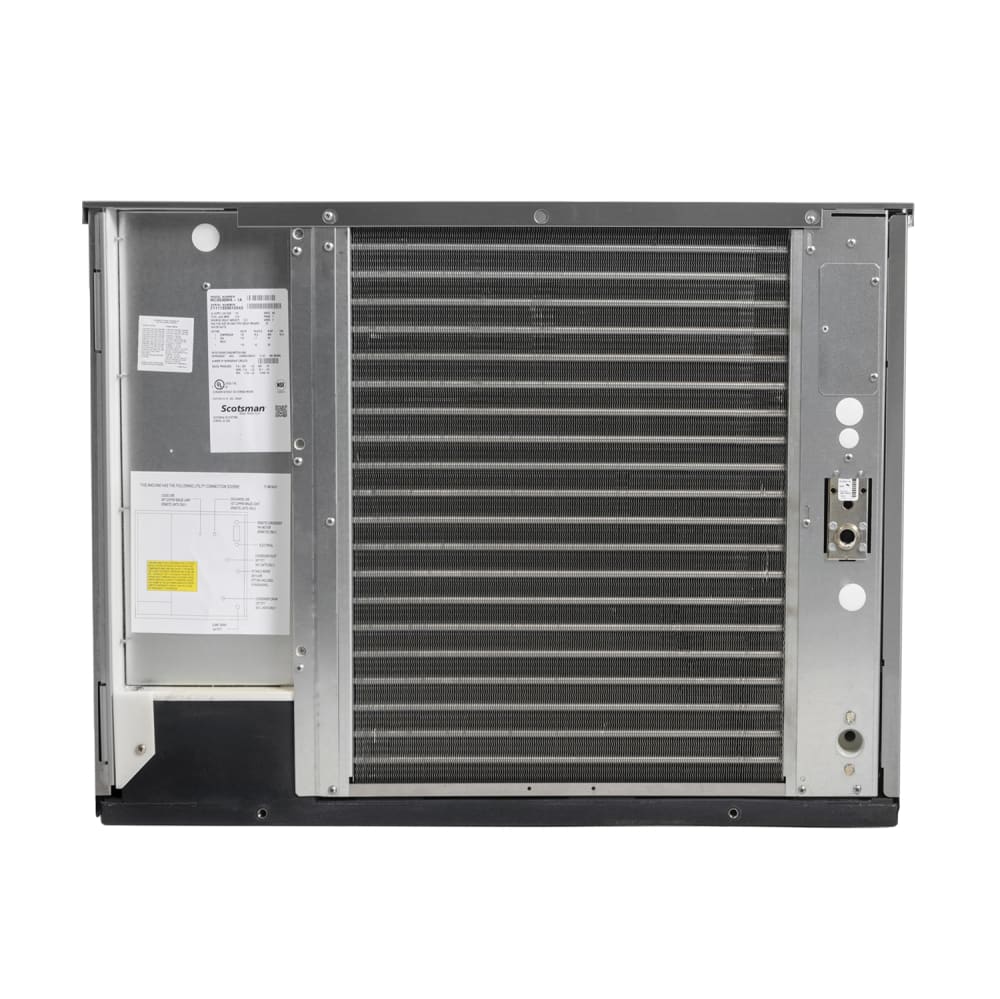

Air-cooled condenser is integrated into the unit
Service Information

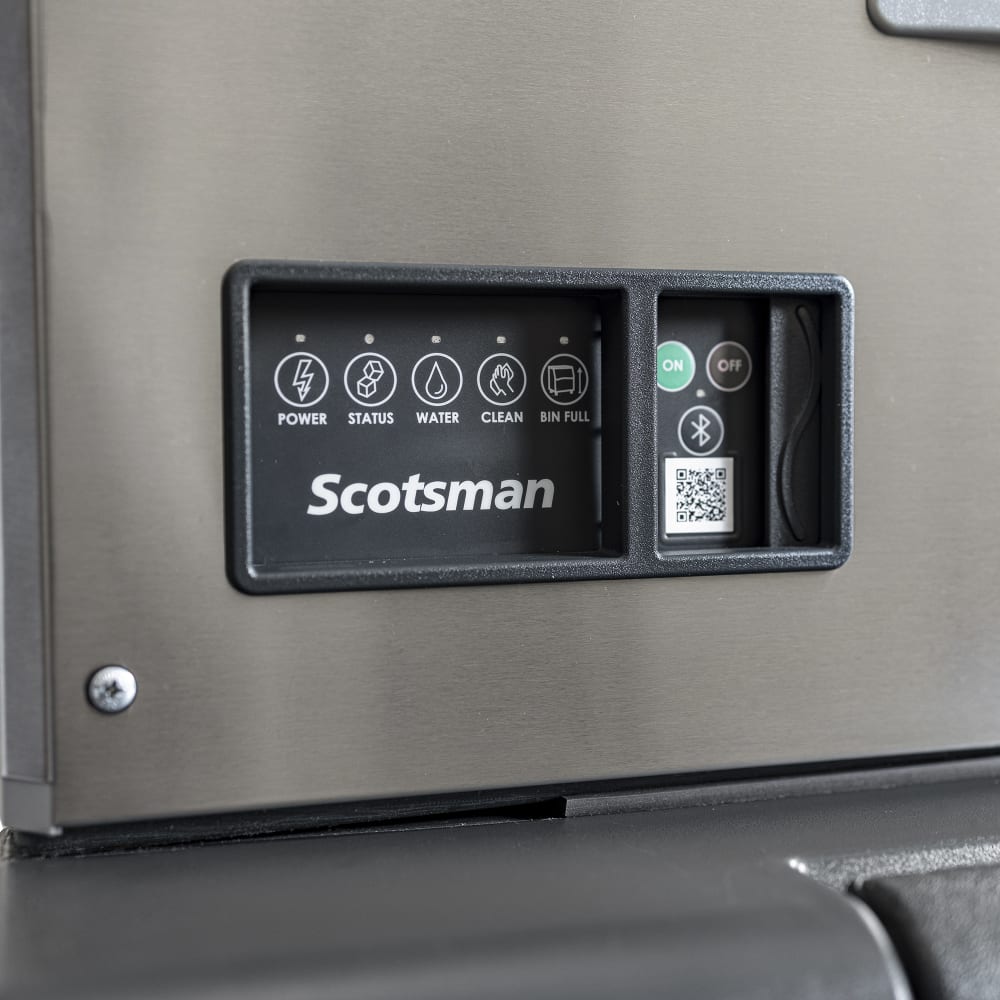

QR code provides access to service details
WaterSense Purge Control
Removes mineral-laden water between cleaning cycles
Simplified Upkeep
One control starts the cleaning cycle
Automatic Ice Transfer
Guides formed ice into the bin during harvest
AgION™ Protection
Slows bacterial growth between cleanings

  • 582-lb. maximum daily ice production
  • Half-cube ice size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.

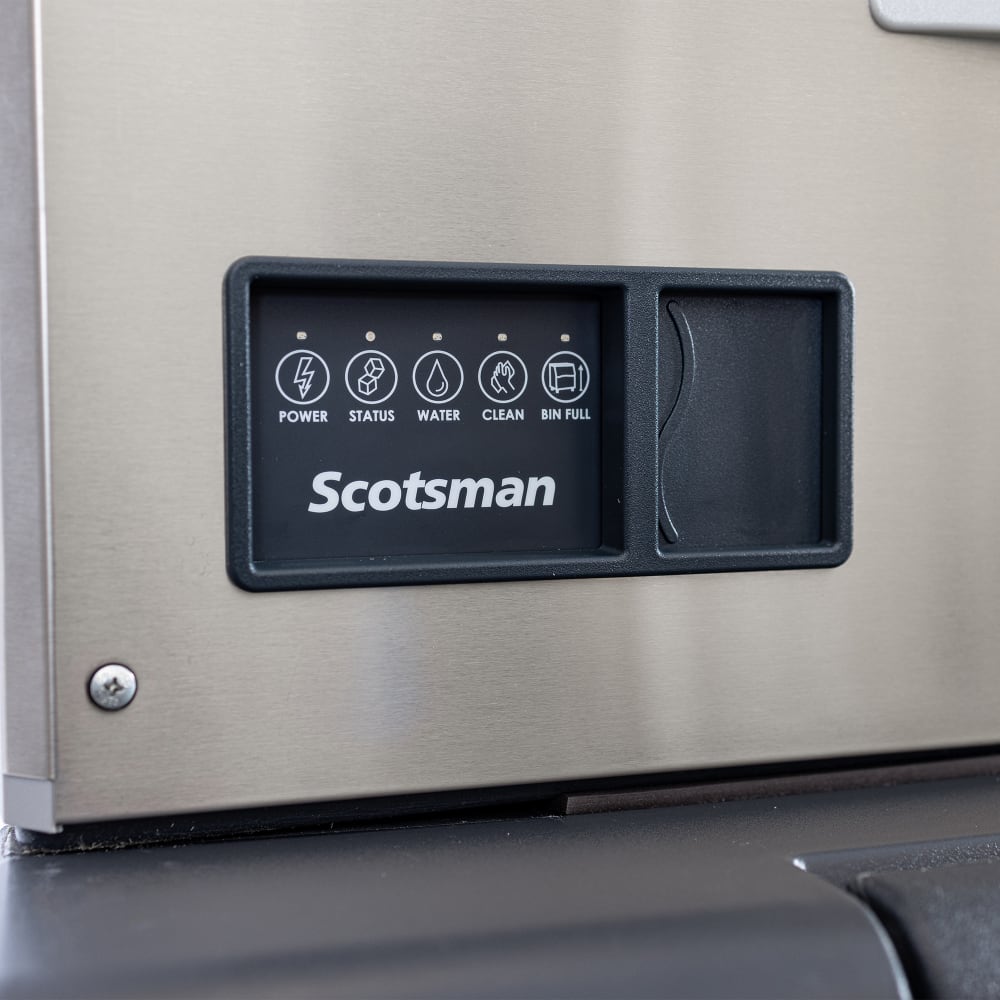

  • AutoAlert™ indicator light when maintenance is needed

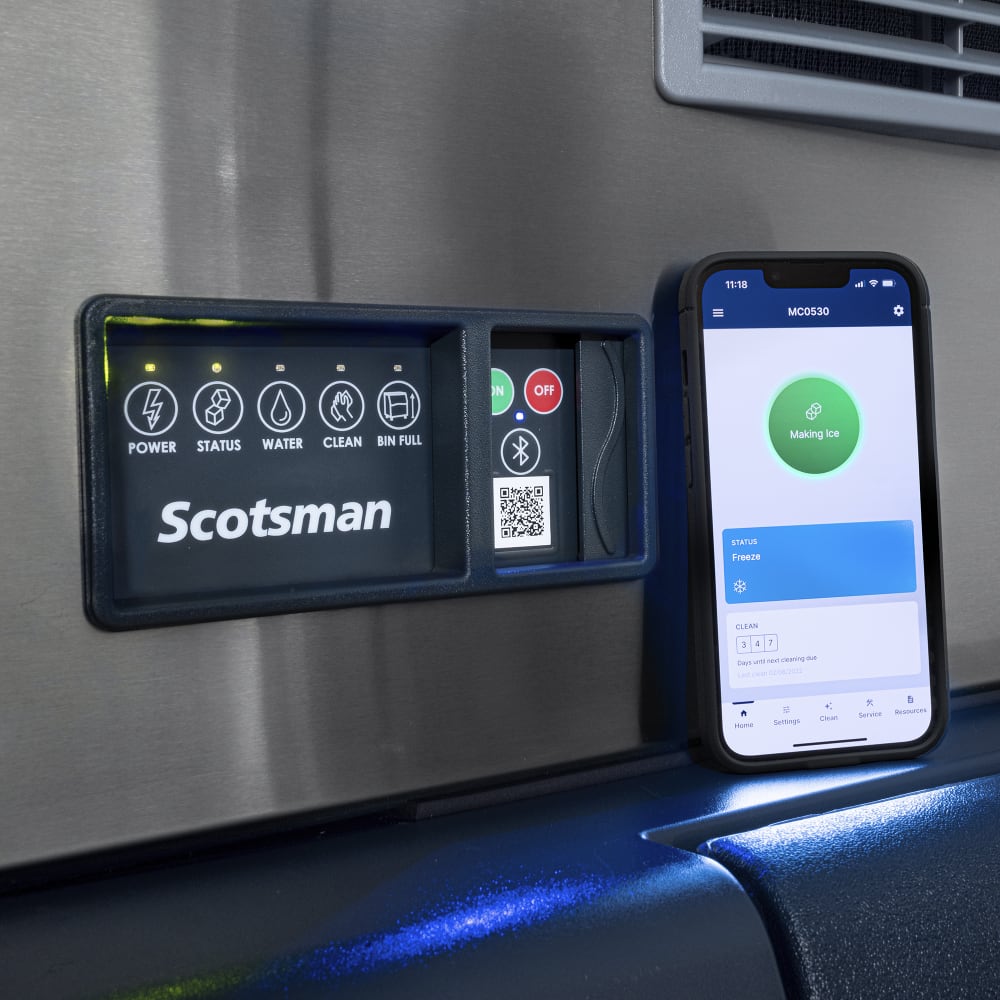

  • Compatible with ICELINQ mobile application
  • Smart-Board™ available for additional diagnostics (sold separately)
  • Small operational footprint
  • Cleans at the touch of a button
  • Antimicrobial protection guard for internal surfaces slows bacteria growth
  • Wipeable stainless steel

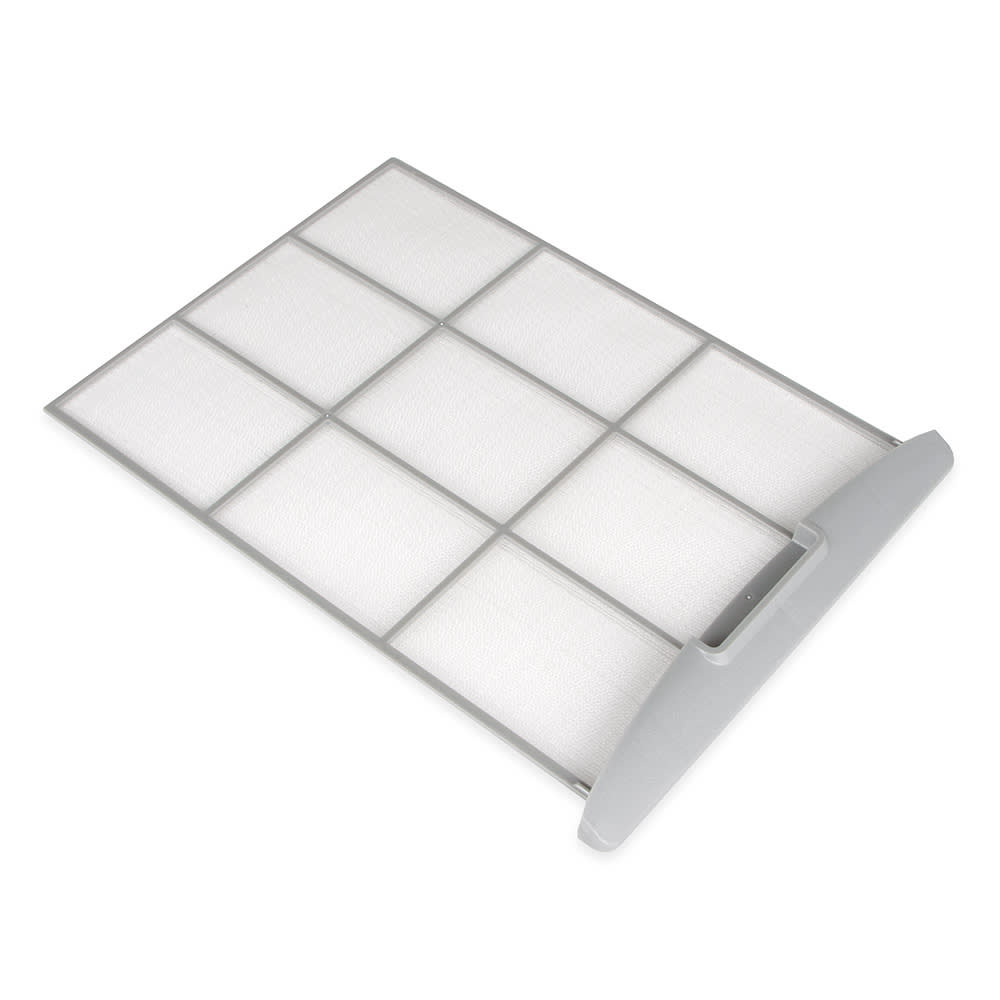

  • Accessible, front-located air filter
  • R290 hydrocarbon refrigerant
  • AP2-P water filter included
  • Complete access to key components for cleaning and servicing
  • WaterSense control reduces buildup
  • Efficiently pushes ice cubes to bin
  • Vari-Smart™ controls ice levels (sold separately)
  • 12,700-BTU heat transfer capacity
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSIG
  • Ice storage bin or dispenser is sold separately

  • 30 7⁄10 in. W x 24 in. D x 23 in. H
  • 11 A
  • 208-230 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Scotsman MC0630SAX-32 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 582 lb at 70°/50° (479 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 208-230v/60/1-ph, cETLus, NSF

AquaPatrol™ Plus Water Filtration System, double system, 4.2 gallons per minute max flow, designed for cubers over 650 lb and up to 1,200 lb, and for flakers and nuggets over 1,200 lb, cULus, NSF

Warranty Icon
Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Watch a video about this product

Scotsman MC0630SAX-32 Specifications

Warning Small Important Prop 65 information for California residents.

Replacement for the Following Item
  • Scotsman C0630SA32B












Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It measures 30 7⁄10 in. W x 24 in. D x 23 in. H.

— KaTom Foodservice Equipment Specialist

It requires 208 V, 60 Hz, and single phase power.

— KaTom Foodservice Equipment Specialist

Ice production totals 640 lb. in 24 hours.

— KaTom Foodservice Equipment Specialist

Medium cubes are produced measuring 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

— KaTom Foodservice Equipment Specialist

It is an air-cooled configuration.

— KaTom Foodservice Equipment Specialist

Yes, a separate ice storage bin is required and sold separately.

— KaTom Foodservice Equipment Specialist

A 3⁄8-in. FPT water inlet and a 3⁄4-in. FPT drain connection are required.

— KaTom Foodservice Equipment Specialist
