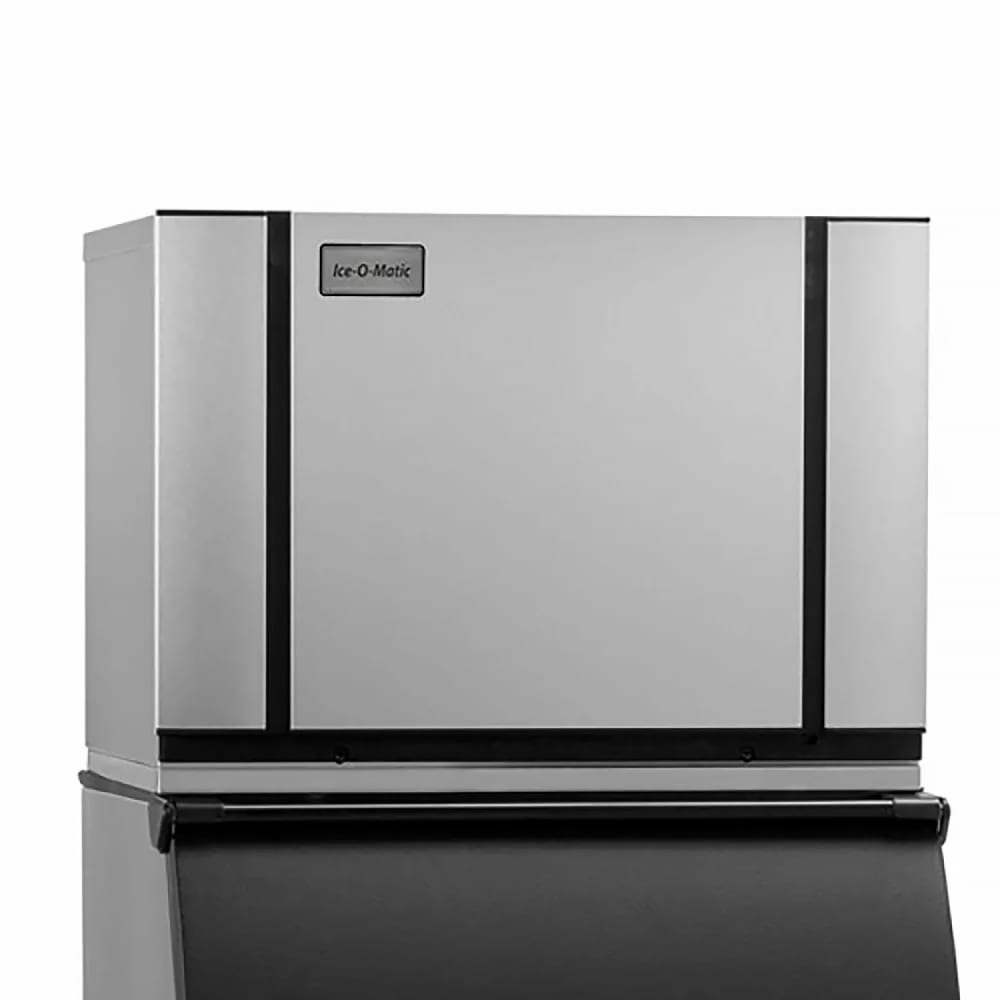

Ice-O-Matic CIM0636HR 30" Elevation Series™ Half Cube Ice Machine Head - 615 lb/24 hr, Remote Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0636HR • MPN: CIM0636HR
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,029.00
800-541-8683

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0636HR Description

Ice-O-Matic

The Ice-O-Matic CIM0636HR Elevation™ modular cube ice maker dispenses half-cube ice that measures 38 inch by 78 inch by 78 inch. In a 24-hour period, the unit produces up to 615 pounds of ice at 70 degrees Fahrenheit, and at 90 degrees Fahrenheit, it makes up to 535 pounds of ice.

The remote condenser, which must be purchased separately, can be placed away from the machine to reduce heat and noise levels in your establishment. Thanks to the common configuration, digital diagnostics, and universal components in the Universal Smart Harness™ control board, the unit is easy to install and service the ice maker.

With its built-in Agion® antimicrobial protection, bacteria growth in the unit is slowed. The Ice-O-Matic CIM0636HR Elevation modular cube ice maker’s LED status display indicates when cleaning is required, while the one-touch controls make it easy to descale and sanitize. Made of plastic and free of crevices, the food zone is easy to wipe clean. The warewasher-safe components are easy to remove since they snap in and out of place.

Product Details

  • Makes up to 615 lbs. of ice in a 24-hr. period at 70 degrees F or up to 535 lbs. of ice in a 24-hr. period at 90 degrees F
  • Half-cube ice measures 38 in. x 78 in. x 78 in.
  • Easy to install and service with the Universal Smart Harness control board’s digital diagnostics, common configuration, and universal components
  • Remote condenser allows the motor to be located away from the unit to reduce the noise and heat output
  • Cold temperatures are maintained with R-404A refrigerant
  • BPA-free plastic parts can be recycled
  • 208-230 V/60 Hz/1 ph, 10 A, 5.29 kW, 8600 BTU
  • Overall Dimensions: 3014 in. W x 2414 in. D x 2114 in. H
  • CE and cULus listed; NSF and ENERGY STAR certified

Product Features

Product Features

Easy to Clean

  • Agion antimicrobial protection slows the growth of bacteria
  • LED status display indicates when the unit should be cleaned

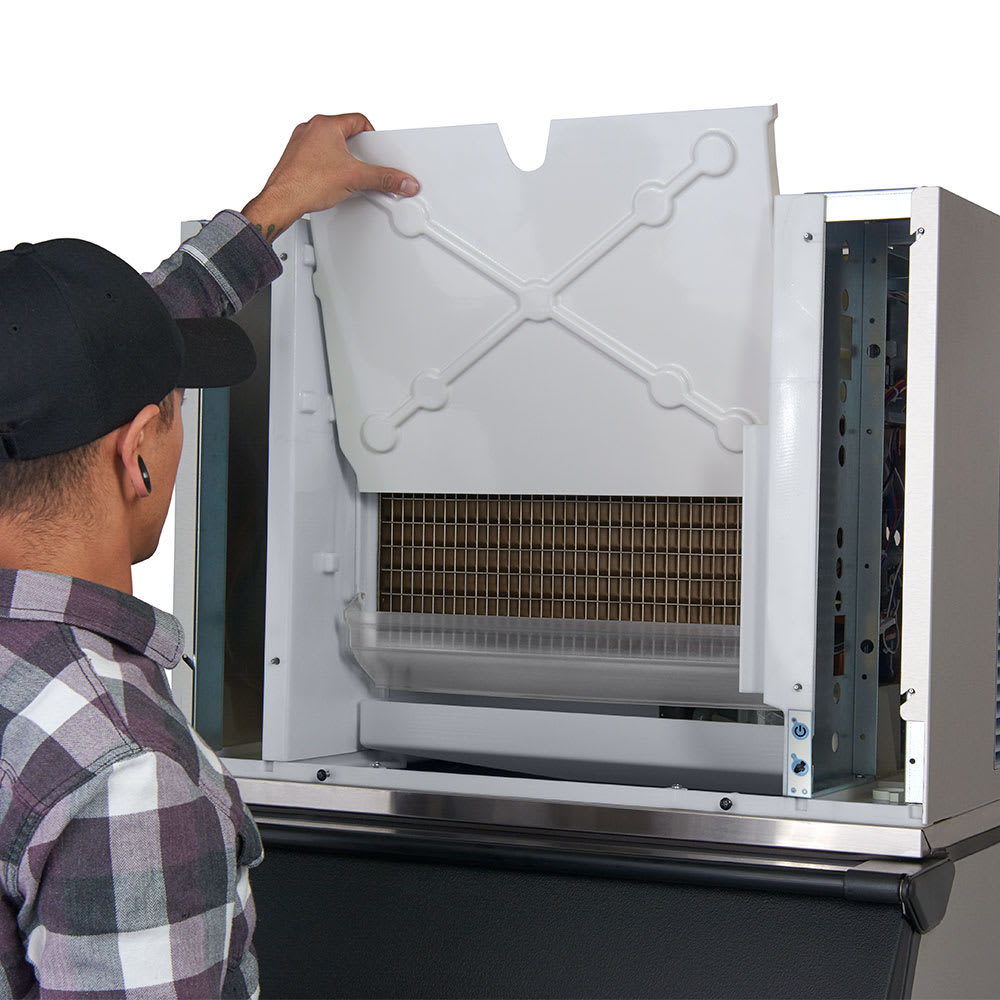

  • Easily snap the warewasher-safe components in and out
  • Crevice-free food zone is made of plastic and can be wiped clean

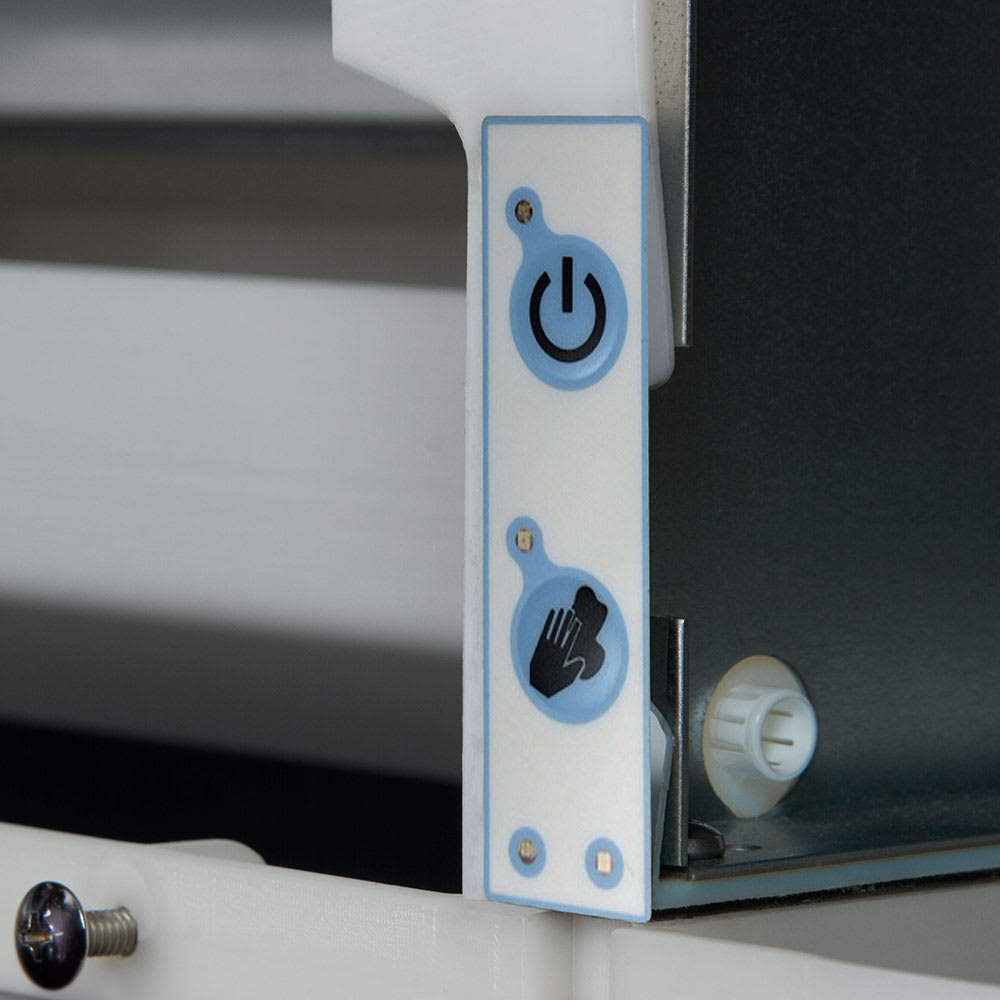

  • Easy to sanitize and descale with one-touch controls

Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30" W, approximately 615 lb production/24 hours at 70°/50° (535 lb at 90°/70°), half-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 10.0 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0636HR Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator
Series Elevation Series™
Width (in) Range 30 - 39
Height (in) 21.25
Voltage 208/230
Phase 1
Made in USA Yes
Special Features Agion® Antimicrobial
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Product Type Ice Makers & Bins
24 Hr. Production (lbs) 615
Ice Type Half Cube
Width (in) 30.25
Compressor Type Remote Cooled
Depth (in) 24.25
Production Range (per day) 100-999 lb
Product Ice Machine Head
Special Features Dual Exhaust
Compatible Compressors 159-RCA1061
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 10
Weight 160.00
Ice-O-Matic CIM0636HR Certifications
  • UL
  • NSF
  • Energy Star
